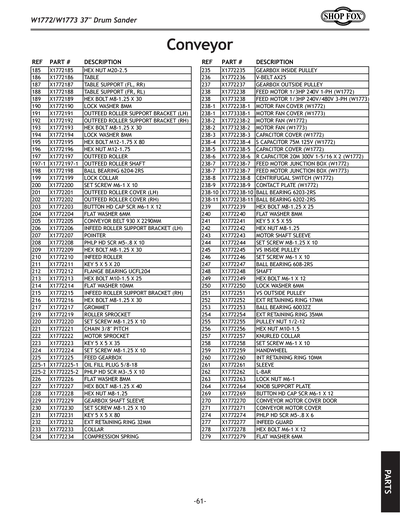

Parts for W1772 37" 10 HP Drum Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

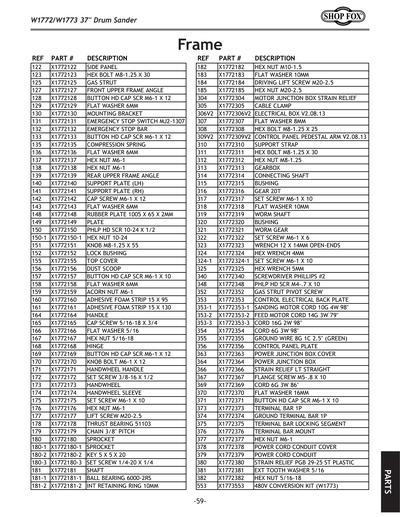

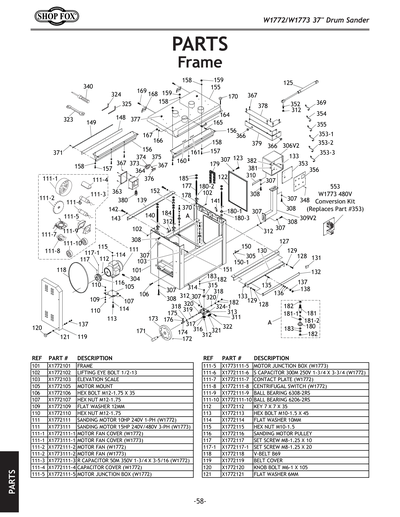

101
FRAME
102
LIFTING EYE BOLT 1/2-13
Price
N/A
103
ELEVATION SCALE
Price
N/A
105
MOTOR MOUNT
Price
N/A
106
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
107
Now: PN09M
HEX NUT M12-1.75
Price
N/A
108
HEX BOLT M12-1.75 X 120
Price
N/A
109
Now: PW06M
FLAT WASHER 12MM
Price
N/A
110
Now: PN09M
HEX NUT M12-1.75
Price
N/A
111
SANDING MOTOR 10HP 240V 1-PH
Price
N/A
111-1
MOTOR FAN COVER
Price
N/A
111-10
BALL BEARING 6206-2RS
Price
N/A
111-11
CONTACT PLATE 2PC
111-2
MOTOR FAN
Price
N/A
111-3
R CAPACITOR 50M 350V 1-3/4 X 3-5/16
Price
N/A
111-4
CAPACITOR COVER
Price
N/A
111-5
MOTOR JUNCTION BOX
Price
N/A
111-6
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 ROHS
Price
N/A
111-7
CONTACT PLATE 2PC
Price
N/A
111-8
CENTRIFUGAL SWITCH
Price
N/A
111-9
BALL BEARING 6308-2RS
Price
N/A
112
KEY 7 X 7 X 35
Price
N/A
113
HEX BOLT M10-1.5 X 45
Price
N/A
114
Now: PW04M
FLAT WASHER 10MM
Price
N/A
115
Now: PN02M
HEX NUT M10-1.5
Price
N/A
116
SANDING MOTOR PULLEY
Price
N/A
117
SET SCREW M8-1.25 X 10
Price
N/A
117-1
SET SCREW M8-1.25 X 20
Price
N/A
118
Now: PVB69
V-BELT B69
Price
N/A
119
BELT COVER
Price
N/A
120
KNOB BOLT M6-1 X 105
121
Now: PW03M
FLAT WASHER 6MM
Price
N/A
122
SIDE PANEL
Price
N/A
123
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
124

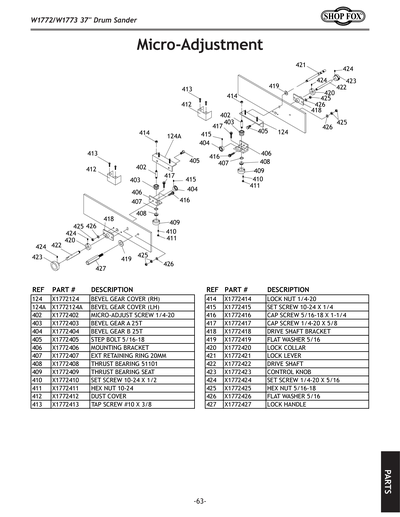

BEVEL GEAR COVER (RH)
Price
N/A
124A
BEVEL GEAR COVER (LH)
Price
N/A
125
GAS STRUT
Price
N/A
127
FRONT UPPER FRAME ANGLE
Price
N/A
128
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
129
Now: PW03M
FLAT WASHER 6MM
Price
N/A
130
MOUNTING BRACKET
Price
N/A
131
EMERGENCY STOP SWITCH MJ2-1307 15A/250V
Price
N/A
132
EMERGENCY STOP BAR
Price
N/A
133
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
135
COMPRESSION SPRING
Price
N/A
136
Now: PW03M
FLAT WASHER 6MM
Price
N/A
137
Now: PN01M
HEX NUT M6-1
Price
N/A
138
Now: PN01M
HEX NUT M6-1
Price
N/A
139
REAR UPPER FRAME ANGLE
Price
N/A
140
SUPPORT PLATE (LH)
Price
N/A
141
SUPPORT PLATE (RH)
Price
N/A
142
CAP SCREW M6-1 X 12
Price
N/A
143
Now: PW03M
FLAT WASHER 6MM
Price
N/A
148
RUBBER PLATE 1005 X 65 X 2MM
Price
N/A
149
PLATE
Price
N/A
150
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
150-1
Now: PN07
HEX NUT 10-24
Price
N/A
151
KNOB M8-1.25 X 55
Price
N/A
152
LOCK BUSHING
Price
N/A
155
TOP COVER
Price
N/A
156
FRONT DUST SCOOP
Price
N/A
157
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
158
Now: PW03M
FLAT WASHER 6MM
Price
N/A
159
Now: PN35M
ACORN NUT M6-1
Price
N/A
160
ADHESIVE FOAM STRIP 15 X 95
Price
N/A
161
ADHESIVE FOAM STRIP 15 X 130
Price
N/A
164
HANDLE
Price
N/A
165
CAP SCREW 5/16-18 X 3/4
Price
N/A
166
Now: PW07
FLAT WASHER 5/16
Price
N/A
167
Now: PN02
HEX NUT 5/16-18
Price
N/A
168
HINGE
Price
N/A
169
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
170
KNOB BOLT M6-1 X 12
Price
N/A
171
HANDLE V1.12.95
Price
N/A
172
Now: PSS09
SET SCREW 3/8-16 X 1/2
Price
N/A
173
HANDWHEEL
Price
N/A
174
HANDWHEEL SLEEVE
Price
N/A
175
SET SCREW M6-1 X 10
Price
N/A
176
Now: PN01M
HEX NUT M6-1
Price
N/A
177
LIFT SCREW M20-2.5
Price
N/A
178
THRUST BEARING 51103
Price
N/A
179
CHAIN 3/8" PITCH
Price
N/A
180
SPROCKET
Price
N/A
180-1
SPROCKET
Price
N/A
180-2
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
180-3
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
181
SHAFT
Price
N/A
181-1
BALL BEARING 6000-2RS
Price
N/A
181-2
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
182
Now: PN02M
HEX NUT M10-1.5
Price
N/A
183
Now: PW04M
FLAT WASHER 10MM
Price
N/A
184
DRIVING LIFT SCREW M20-2.5
Price
N/A
185
Now: PN28M
HEX NUT M20-2.5
Price
N/A
186
TABLE
Price
N/A
187
TABLE SUPPORT (FL, RR)
Price
N/A
188
TABLE SUPPORT (FR, RL)
Price
N/A
189
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
190
LOCK WASHER 8MM
Price
N/A
191
OUTFEED ROLLER SUPPORT BRACKET (LH)
Price
N/A
192
OUTFEED ROLLER SUPPORT BRACKET (RH)
Price
N/A
193
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
194
LOCK WASHER 8MM
Price
N/A
195
HEX BOLT M12-1.75 X 80
Price
N/A
196
Now: PN09M
HEX NUT M12-1.75
Price
N/A
197
OUTFEED ROLLER
Price
N/A
197-1
OUTFEED ROLLER SHAFT
Price
N/A
198
BALL BEARING 6204-2RS
Price
N/A
199
LOCK COLLAR
Price
N/A
200
SET SCREW M6-1 X 10
Price
N/A
201
OUTFEED ROLLER COVER (LH)
Price
N/A
202
OUTFEED ROLLER COVER (RH)
Price
N/A
203
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
204
Now: PW03M
FLAT WASHER 6MM
Price
N/A
205

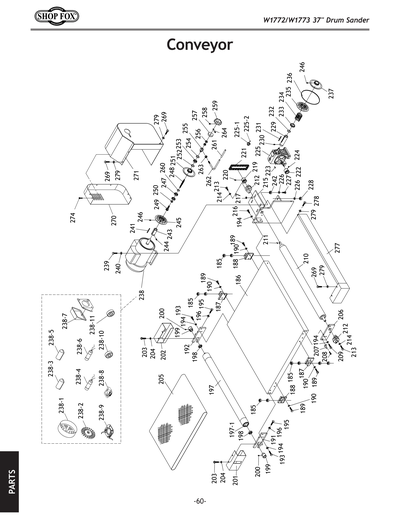

CONVEYOR BELT 930 X 2290MM
Price
N/A
206
INFEED ROLLER SUPPORT BRACKET (LH)
Price
N/A
207
POINTER
Price
N/A
208
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
209
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
210
INFEED ROLLER
Price
N/A
211
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
212
FLANGE BEARING UCFL204
Price
N/A
213
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
214
Now: PW04M
FLAT WASHER 10MM
Price
N/A
215
INFEED ROLLER SUPPORT BRACKET (RH)
Price
N/A
216
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
217
GROMMET 15 X 19MM
Price
N/A
219
ROLLER SPROCKET
Price
N/A
220
SET SCREW M8-1.25 X 10
Price
N/A
221
CHAIN 3/8
Price
N/A
222
MOTOR SPROCKET
Price
N/A
223
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
224
SET SCREW M8-1.25 X 10
Price
N/A
225
SPEED REDUCER HOUSING
Price
N/A
225-1
OIL FILL PLUG 5/8-18
Price
N/A
225-2
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
226
Now: PW01M
FLAT WASHER 8MM
Price
N/A
227
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
228
Now: PN03M
HEX NUT M8-1.25
Price
N/A
229
GEARBOX SHAFT SLEEVE
Price
N/A
230
SET SCREW M8-1.25 X 10
Price
N/A
231
Now: PK17M
KEY 5 X 5 X 80
Price
N/A
232
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
233
COLLAR
Price
N/A
234
COMPRESSION SPRING
Price
N/A
235
GEARBOX INSIDE PULLEY HALF
Price
N/A
236
Now: PVA25
V-BELT A25
Price
N/A
237
GEARBOX OUTSIDE PULLEY HALF
Price
N/A
238
FEED MOTOR 1/3HP 240V 1-PH
Price
N/A
238-1
MOTOR FAN COVER
Price
N/A
238-10
BALL BEARING 6203-2RS
Price
N/A
238-11
BALL BEARING 6202-2RS
Price
N/A
238-2
MOTOR FAN
Price
N/A
238-3
CAPACITOR COVER
Price
N/A
238-4
S CAPACITOR 75M 125V 1-3/8 X2-1/4
Price
N/A
238-5
CAPACITOR COVER
Price
N/A
238-6
R CAPACITOR 20M 300V 1-5/16 X 2
Price
N/A
238-7
MOTOR JUNCTION BOX
Price
N/A
238-8
CENTRIFUGAL PLATE
Price
N/A
238-9
CONTACT PLATE
Price
N/A
238A
MOTOR ASSY W/ PULLEYS
239
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
240
Now: PW01M
FLAT WASHER 8MM
Price
N/A
241
KEY 5 X 5 X 55
Price
N/A
242
Now: PN03M
HEX NUT M8-1.25
Price
N/A
243
MOTOR SHAFT SLEEVE
Price
N/A
244
SET SCREW M8-1.25 X 10
Price
N/A
245
GEARBOX OUTSIDE PULLEY HALF
Price
N/A
246
SET SCREW M6-1 X 10
Price
N/A
247
BALL BEARING 608-2RS
Price
N/A
248
SHAFT
Price
N/A
249
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
250
LOCK WASHER 6MM
Price
N/A
251
VS OUTSIDE PULLEY
Price
N/A
252
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
253
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
254
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
255
PULLEY NUT 1/2-12
Price
N/A
256
Now: PN02M
HEX NUT M10-1.5
Price
N/A
257
KNURLED COLLAR
Price
N/A
258
SET SCREW M6-1 X 10
Price
N/A
259
HANDWHEEL
Price
N/A
260
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
261
BAR WITH SLEEVE
Price
N/A
262
BAR WITH SLEEVE
Price
N/A
263
LOCK NUT M6-1
Price
N/A
264
KNOB SUPPORT PLATE
Price
N/A
269
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
270
CONVEYOR MOTOR COVER DOOR
Price
N/A
271
CONVEYOR MOTOR COVER
272

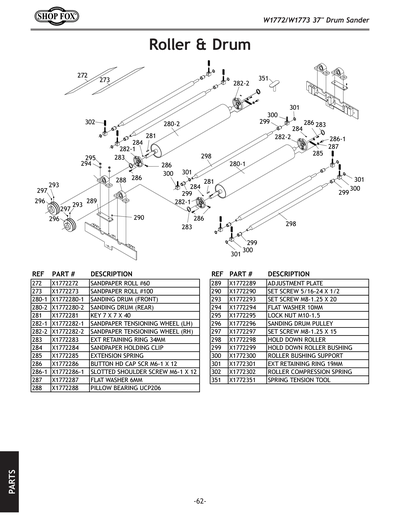

SANDING PAPER ROLLS #60
Price
N/A
273
SANDING PAPER ROLLS #100
Price
N/A
274
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
277
INFEED GUARD
Price
N/A
278
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
279
Now: PW03M
FLAT WASHER 6MM
Price
N/A
280-1
SANDING DRUM, FRONT (STEEL)
Price
N/A
280-2
SANDING DRUM, REAR (RUBBER)
Price
N/A
281
Now: PK55M
KEY 7 X 7 X 40
Price
N/A
282-1
SANDPAPER TENSIONING WHEEL (LH)
Price
N/A
282-2
SANDPAPER TENSIONING WHEEL (RH)
Price
N/A
283
Now: PR84M
EXT RETAINING RING 34MM
Price
N/A
284
CLIP
Price
N/A
285
EXTENSION SPRING
Price
N/A
286
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
286-1
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
287
Now: PW03M
FLAT WASHER 6MM
Price
N/A
288
PILLOW BEARING UCP206
289
ADJUSTMENT PLATE
Price
N/A
290
Now: PSS51
SET SCREW 5/16-24 X 1/2
Price
N/A
293
SET SCREW M8-1.25 X 20
Price
N/A
294
Now: PW04M
FLAT WASHER 10MM
Price
N/A
295
LOCK NUT M10-1.5
Price
N/A
296
SANDING DRUM PULLEY
Price
N/A
297
SET SCREW M8-1.25 X 15
Price
N/A
298
HOLD DOWN ROLLER
Price
N/A
299
HOLD DOWN ROLLER BUSHING
300
ROLLER BUSHING SUPPORT
Price
N/A
301
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
302
ROLLER COMPRESSION SPRING
Price
N/A
303
STRAIN RELIEF
304
STRAIN RELIEF M25 TYPE-6 ST
Price
N/A
305
CABLE CLAMP
Price
N/A
306
ELECTRICAL BOX V1
306V2
ELECTRICAL BOX V2.08.13
Price
N/A
307
Now: PW01M
FLAT WASHER 8MM
Price
N/A
308
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
309
CONTROL PANEL PEDESTAL ARM V1
309V2
CONTROL PANEL PEDESTAL ARM V2.08.13
Price
N/A
310
SUPPORT STRAP
Price
N/A
311
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
312
Now: PN03M
HEX NUT M8-1.25
Price
N/A
313
GEARBOX
Price
N/A
314
CONNECTING SHAFT
Price
N/A
315
BUSHING
Price
N/A
316
GEAR 20T
Price
N/A
317
SET SCREW M6-1 X 10
Price
N/A
318
Now: PW04M
FLAT WASHER 10MM
Price
N/A
319
WORM SHAFT
Price
N/A
320
BUSHING
Price
N/A
321
WORM GEAR
Price
N/A
322
SET SCREW M6-1 X 6
Price
N/A
323
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
324
HEX WRENCH 4MM
Price
N/A
324-1
SET SCREW M6-1 X 10
Price
N/A
325
HEX WRENCH 5MM
Price
N/A
340
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
348
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
351
SPRING TENSION TOOL
Price
N/A
351-1
Now: PN06M
HEX NUT M5-.8
Price
N/A
351-2
CAP SCREW M5-.8 X 15
Price
N/A
352
GAS STRUT PIVOT SCREW
Price
N/A
353
ELECTRICAL PANEL 240V
Price
N/A
353-1
SANDING MOTOR CORD 10G 4W 98"
Price
N/A
353-2
FEED MOTOR CORD 14G 3W 79"
Price
N/A
353-3
CORD 16G 2W 98"
Price
N/A
354
CORD 6G 3W 98"
Price
N/A
355
GROUND WIRE 8G 1C 2.5" (GREEN)
Price
N/A
356
CONTROL PANEL PLATE
Price
N/A
356-1
CONTROL PANEL ASSEMBLY BOX
363
POWER JUNCTION BOX COVER
Price
N/A
364
POWER JUNCTION BOX
Price
N/A
366
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
367
FLANGE SCREW M5-.8 X 10
Price
N/A
369
CORD 6G 3W 86"
Price
N/A
370
Now: PW08M
FLAT WASHER 16MM
Price
N/A
371
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
373
TERMINAL BAR 1P
Price
N/A
374
GROUND TERMINAL BAR 1P
Price
N/A
375
TERMINAL BAR LOCKING SEGMENT
Price
N/A
376
TERMINAL BAR MOUNT
Price
N/A
377
Now: PN01M
HEX NUT M6-1
Price
N/A
378
POWER CORD CONDUIT COVER
Price
N/A
379
POWER CORD CONDUIT
Price
N/A
380
STRAIN RELIEF PGB 29-25 ST PLASTIC
Price
N/A
381
EXT TOOTH WASHER 5/16
Price
N/A
382
Now: PN02
HEX NUT 5/16-18
Price
N/A
402
MICRO-ADJUST SCREW 1/4-20
Price
N/A
403
BEVEL GEAR A 25T
Price
N/A
404
BEVEL GEAR B 25T
Price
N/A
405
STEP BOLT 5/16-18
Price
N/A
406
MOUNTING BRACKET
Price
N/A
407
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
408
THRUST BEARING 51101
Price
N/A
409
THRUST BEARING SEAT
Price
N/A
410
Now: PSS34
SET SCREW 10-24 X 1/2
Price
N/A
411
Now: PN07
HEX NUT 10-24
Price
N/A
412
DUST COVER
Price
N/A
413
TAP SCREW #10 X 3/8
Price
N/A
414
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
415
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
416
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
417
CAP SCREW 1/4-20 X 5/8
Price
N/A
418
DRIVE SHAFT BRACKET
Price
N/A
419
Now: PW07
FLAT WASHER 5/16
Price
N/A
420
LOCK COLLAR
Price
N/A
421
LOCK LEVER
Price
N/A
422
DRIVE SHAFT
Price
N/A
423
CONTROL KNOB
Price
N/A
424
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
425
Now: PN02
HEX NUT 5/16-18
Price
N/A
426
Now: PW07
FLAT WASHER 5/16
Price
N/A
427
LOCK HANDLE
Price
N/A

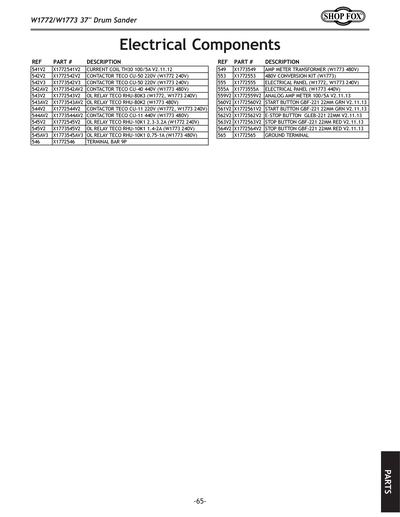

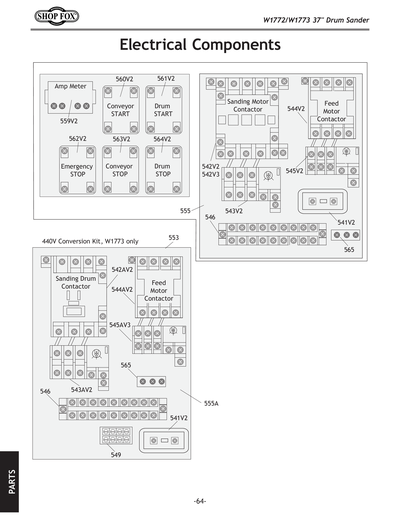

541
CURRENT COIL TH30 150/5A CT V1
541V2
CURRENT COIL TH30 100/5A V2.11.12
Price
N/A
542
CONTACTOR SDE MA-55 220V V1
Price
N/A
542V2
CONTACTOR TECO CU-50R 220V V2.10.10
Price
N/A
543
OL RELAY SDE RA-60 32-50A V1
Price
N/A
543V2
OL RELAY TECO RHU-80K3 35-47A V2.10.10
Price
N/A
544
CONTACTOR SDE MA-09 220V
Price
N/A
544V2
CONTACTOR TECO CU-11 V2.10.10
Price
N/A
545
OL RELAY SDE RA-20 2.7-4.4A V1
Price
N/A
545V2
OL RELAY TECO RHU-10K 2.3-3.2A V2.10.10
Price
N/A
546
TERMINAL BAR 10P
Price
N/A
547
INCOMING POWER TERMINAL BLOCK
549
AMP METER TRANSFORMER
553
440V CONVERSION KIT
Price
N/A
555
ELECTRICAL PANEL 240V
Price
N/A
556
CONTROL PANEL PLATE
Price
N/A
559
DIGITAL AMP METER V1
559V2
AMP METER, ANALOG 100/5A V2.11.13
Price
N/A
560
START BUTTON GBF-221 22MM GRN V2.11.13
Price
N/A
560V2
START BUTTON GBF-221 22MM GRN V2.11.13
Price
N/A
561
DRUM START BUTTON 22MM GRN V1
561V2
START BUTTON GBF-221 22MM GRN V2.11.13
Price
N/A
562
E-STOP BUTTON 22MM V1
Price
N/A
562V2
E-STOP BUTTON GLEB-221 22MM V2.11.13
Price
N/A
563
CONVEYOR STOP BUTTON 22MM RED V1
Price
N/A
563V2
STOP BUTTON GBF-221 22MM RED V2.11.13
Price
N/A
564
DRUM STOP BUTTON 22MM RED V1
564V2
STOP BUTTON GBF-221 22MM RED V2.11.13
Price
N/A
565
GROUND TERMINAL
Price
N/A
566
EMERGENCY STOP SWITCH MJ2-1307 15A/250V
Price
N/A

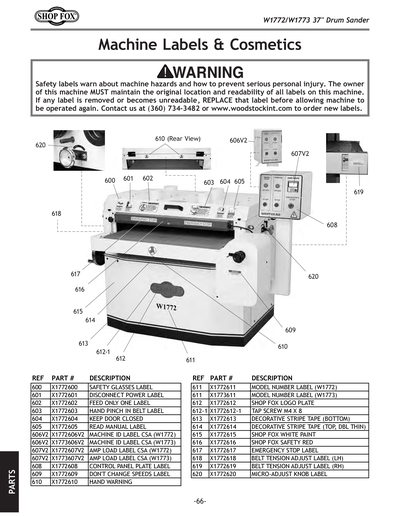

600
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
601
DISCONNECT POWER LABEL
602
FEED ONLY ONE LABEL
603
HAND PINCH IN BELT LABEL
604
KEEP DOOR CLOSED
605
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
606
MACHINE ID LABEL NON-CSA V1
606V2
MACHINE ID LABEL CSA V2.08.13
607
AMP LOAD LABEL NON-CSA V1
607V2
AMP LOAD LABEL CSA V2.08.13
608
CONTROL PANEL PLATE LABEL
609
DON'T CHANGE SPEEDS LABEL
Price
N/A
610
HAND WARNING LABEL
Price
N/A
611
MODEL NUMBER LABEL
612
Now: D3377
Nameplate - Large
Price
N/A
612-1
TAP SCREW M4 X 8
Price
N/A
613
DECORATIVE STRIPE TAPE (BOTTOM)
614
DECORATIVE STRIPE TAPE (TOP, DBL THIN)
615
SHOP FOX WHITE M1006
Price
N/A
616
RED REF TOOL BOXES
Price
N/A
617
EMERGENCY STOP LABEL
Price
N/A
618
BELT TENSION ADJUST LABEL (LH)
Price
N/A
619
BELT TENSION ADJUST LABEL (RH)
Price
N/A
620
MICRO-ADJUST KNOB LABEL
Price
N/A
MAN
MANUAL FOR W1772
MANV2
MANUAL W1772-73 MFD-8/13+ V2.04.15
