Parts for W1804 - 11-1/4" Dovetail Machine

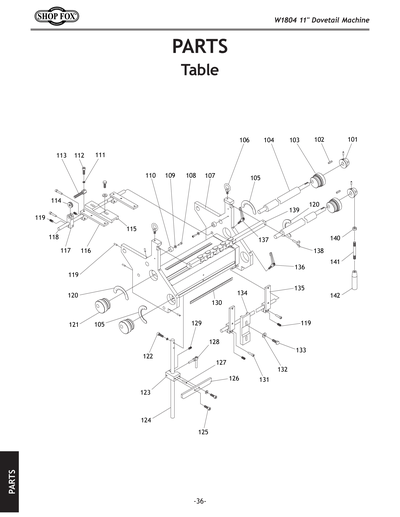

Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804
Part Diagram for W1804

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

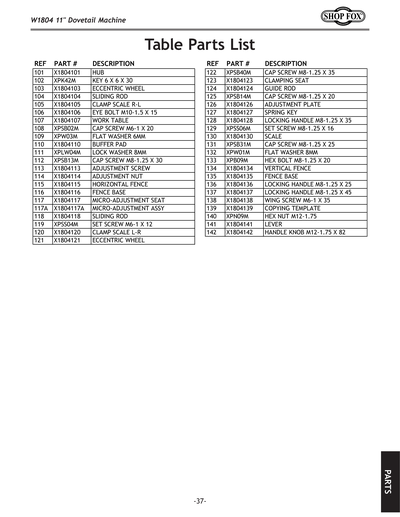

Ref #
Part #
Description
101
LEVER HUB
Price
N/A
102
KEY 6 X 6 X 30
Price
N/A
103
ECCENTRIC WHEEL
Price
N/A
104
SLIDING ROD
Price
N/A
105
CLAMP SCALE RL
Price
N/A
106
EYE BOLT M10-1.5 X 15
Price
N/A
107
WORK TABLE
Price
N/A
108
CAP SCREW M6-1 X 20
Price
N/A
109
FLAT WASHER 6MM
Price
N/A
110
BUFFER PAD
Price
N/A
111
LOCK WASHER 8MM
Price
N/A
112
CAP SCREW M8-1.25 X 30
Price
N/A
113
ADJUSTMENT SCREW
Price
N/A
114
ADJUSTMENT NUT
Price
N/A
115
BUFFER PAD
Price
N/A
116
FENCE BASE
Price
N/A
117
MIRCO-ADJUSTMENT SEAT
Price
N/A
117A
MIRCO ADJUSTMENT ASSY
Price
N/A
118
SLIDING ROD
Price
N/A
119
SET SCREW M6-1 X 12
Price
N/A
120
CLAMP SCALE LR
Price
N/A
121
ECCENTRIC WHEEL
Price
N/A
122
CAP SCREW M8-1.25 X 35
Price
N/A
123
CLAMPING SEAT
Price
N/A
124
GUIDE ROD
Price
N/A
125
CAP SCREW M8-1.25 X 20
Price
N/A
126
ADJUSTMENT PLATE
Price
N/A
127
SPRING KEY
Price
N/A
128
LOCK HANDLE M8-1.25 X 35
Price
N/A
129
SET SCREW M8-1.25 X 16
Price
N/A
130
SCALE
Price
N/A
131
CAP SCREW M8-1.25 X 25
Price
N/A
132
FLAT WASHER 8MM
Price
N/A
133
HEX BOLT M8-1.25 X 20
Price
N/A
134
BUFFER PAD
Price
N/A
135
FENCE BASE
Price
N/A
136
LOCK HANDLE M8-1.25 X 25
Price
N/A
137
LOCK HANDLE M8-1.25 X 45
Price
N/A
138
WING SCREW M6-1 X 35
Price
N/A
139
COPYING TEMPLATE
Price
N/A
140
HEX NUT M12-1.75
Price
N/A
141
LEVER M12-1.75 X 82
Price
N/A
142
HANDLE KNOB M12-1.75
Price
N/A

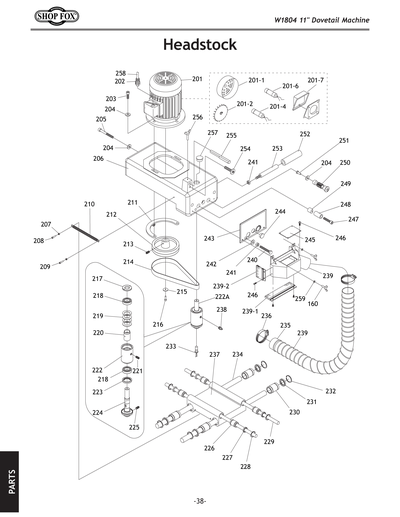

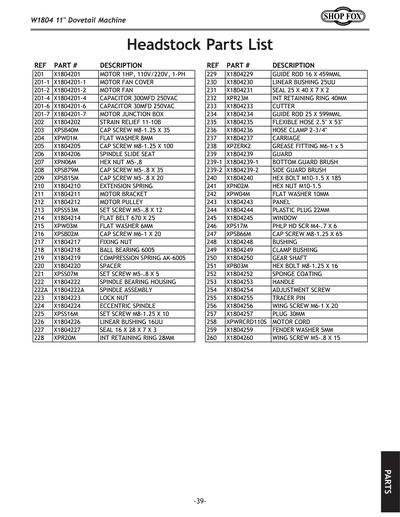

201
MOTOR 1HP 110V/220V 1-PH
Price
N/A
201-1
MOTOR FAN COVER
Price
N/A
201-2
MOTOR FAN
Price
N/A
201-4
CAPACITOR COVER
Price
N/A
201-6
***USE P0610101-3***
Price
N/A
201-7
MOTOR JUNCTION BOX
Price
N/A
202
STRAIN RELIEF PG11 TYPE-6 ST
Price
N/A
203
CAP SCREW M8-1.25 X 35
Price
N/A
204
FLAT WASHER 8MM
Price
N/A
205
CAP SCREW M8-1.25 X 100
Price
N/A
206
HEADSTOCK CASTING
Price
N/A
207
HEX NUT M5-.8
Price
N/A
208
CAP SCREW M5-.8 X 35
Price
N/A
209
CAP SCREW M5-.8 X 20
Price
N/A
210
EXTENSION SPRING
Price
N/A
211
MOTOR BRACKET
Price
N/A
212
MOTOR PULLEY
Price
N/A
213
SET SCREW M5-.8 X 12
Price
N/A
214
FLAT BELT 670 X 25
Price
N/A
215
FLAT WASHER 6MM
Price
N/A
216
CAP SCREW M6-1 X 20
Price
N/A
217
SPANNER NUT
Price
N/A
218
COMPRESSION SPRING AK-6005
Price
N/A
219
SPINDLE BEARING HOUSING W/ SPACER
Price
N/A
220
SPINDLE BEARING HOUSING W/ SPACER
Price
N/A
221
SET SCREW M5-.8 X 5
Price
N/A
222
SPINDLE ASSEMBLY
Price
N/A
222A
SPINDLE ASSEMBLY
Price
N/A
223
LOCK RING
Price
N/A
224
COMPLETE SPINDLE ASSY
Price
N/A
225
SET SCREW M8-1.25 X 10
Price
N/A
226
LINEAR BUSHING 16UU
Price
N/A
227
SEAL 16 X 28 X 7 X 3
Price
N/A
228
INT RETAINING RING 28MM
Price
N/A
229
GUIDE ROD 16 X 459MML
Price
N/A
230
LINEAR BUSHING 25UU
Price
N/A
231
SEAL 25 X 40 X 7 X 2
Price
N/A
232
INT RETAINING RING 40MM
Price
N/A
233
Dovetail Bit for G0610 & G0611X
Price
N/A
234
GUIDE ROD 25 X 599MML
Price
N/A
235
FLEXIBLE HOSE 2.5" X 53"
Price
N/A
236
HOSE CLAMP 2-3/4"
Price
N/A
237
CARRIAGE
Price
N/A
238
GREASE FITTING M6-1 X 5
Price
N/A
239
GUARD
Price
N/A
239-1
BOTTOM GUARD BRUSH
Price
N/A
239-2
SIDE GUARD BRUSH
Price
N/A
240
HEX BOLT M10-1.5 X 185
Price
N/A
241
HEX NUT M10-1.5
Price
N/A
242
FLAT WASHER 10MM
Price
N/A
243
PANEL
Price
N/A
244
PLASTIC PLUG 22MM
Price
N/A
245
WINDOW
Price
N/A
246
PHLP HD SCR M4-.7 X 6
Price
N/A
247
CAP SCREW M8-1.25 X 65
Price
N/A
248
CUTTER LOCK SLEEVE
Price
N/A
249
CUTTER LOCK CLAMP SLEEVE
Price
N/A
250
GEAR SHAFT
Price
N/A
251
HEX BOLT M8-1.25 X 16
Price
N/A
252
SPONGE COATING
Price
N/A
253
HANDLE
Price
N/A
254
ADJUSTMENT SCREW
Price
N/A
255
TRACER PIN
Price
N/A
256
WING SCREW M6-1 X 20
Price
N/A
257
PLUG 30MM
Price
N/A
258
POWER CORD 16G X 3W 24"L
Price
N/A
259
FLAT WASHER 5MM
Price
N/A
260
WING SCREW M5-.8 X 15
Price
N/A

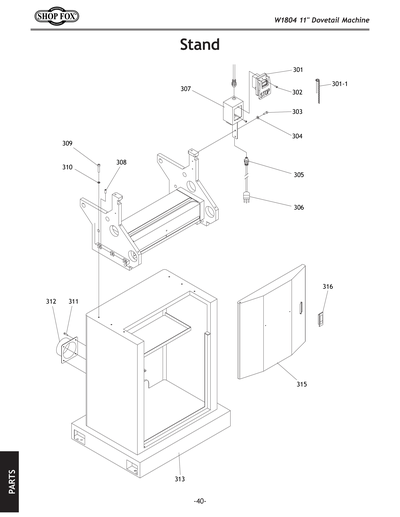

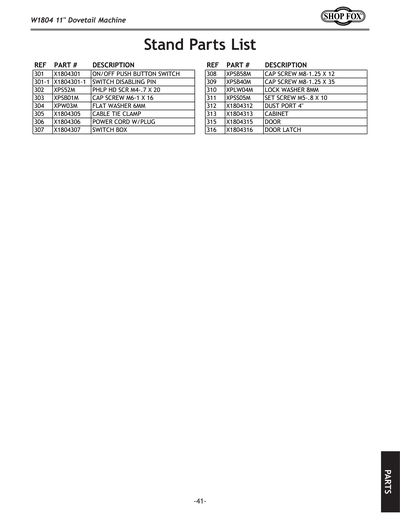

301
110/220V Paddle On/Off Switch
Price
N/A
301-1
Price
$1.60
302
PHLP HD SCR M4-.7 X 20
Price
N/A
303
CAP SCREW M6-1 X 16
Price
N/A
304
FLAT WASHER 6MM
Price
N/A
305
CABLE TIE CLAMP
Price
N/A
306
POWER CORD 14G 3W 5-15 PLUG
Price
N/A
307
Price
$44.50
308
CAP SCREW M8-1.25 X 12
Price
N/A
309
CAP SCREW M8-1.25 X 35
Price
N/A
310
LOCK WASHER 8MM
Price
N/A
311
SET SCREW M5-.8 X 10
Price
N/A
312
Price
$17.60
313
Price
$524.65
314
Price
$7.45
315
Price
$318.10
316
DOOR LATCH
Price
N/A
317
Price
$1.80

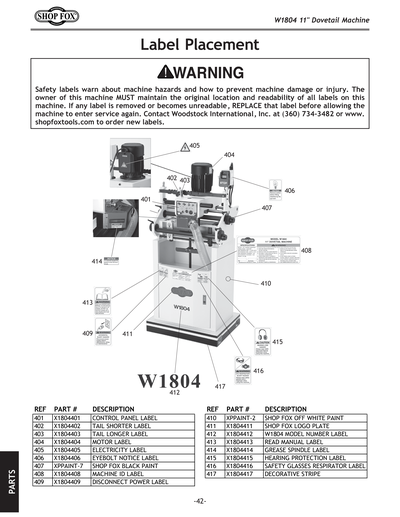

401
Price
$6.05
402
TAIL SHORTER LABEL
Price
N/A
403
TAIL LONGER LABEL
Price
N/A
404
MOTOR LABEL
Price
N/A
405
ELECTRICITY 1.4W X 1.2H
Price
N/A
406
EYE BOLT NOTICE LABEL
Price
N/A
407
GLOSSY BLACK
Price
N/A
408
Price
$16.40
409
Price
$0.95
410
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
411
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
412
Price
$19.55
413
Price
$0.95
414
GREASE SPINDLE LABEL
Price
N/A
415
HEARING PROTECTION LABEL
Price
$0.95
416
SAFETY GLASSES RESPIRATOR LABEL
Price
$0.95
417
Price
$10.45
