Parts for W1811 - 10" 5 HP Sliding Table Saw

Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811
Part Diagram for W1811

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

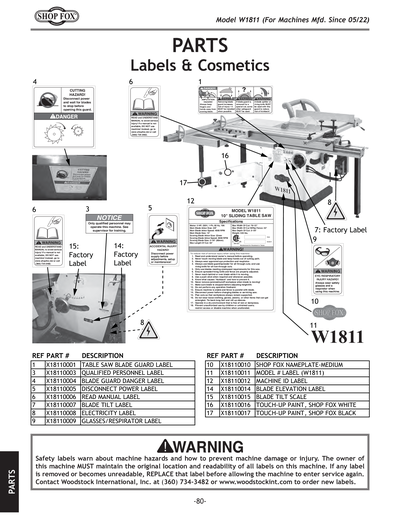

1
TABLE SAW BLADE GUARD LABEL
Price
$4.25
2
KICKBACK HAZARD LABEL
Price
$4.25
3
QUALIFIED PERSONNEL LABEL
Price
$4.25
4
BLADE GUARD DANGER LABEL
Price
$4.25
5
DISCONNECT POWER LABEL
Price
$4.25
6
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
7
BLADE TILT LABEL
Price
$4.25
8
ELECTRICITY 0.7W X 0.6H
Price
N/A
9
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
10
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
11
MODEL NUMBER LABEL
Price
$57.10
12
MACHINE ID LABEL
Price
$16.40
13
ELECTRICITY 1.4W X 1.2H
Price
N/A
14
BLADE ELEVATION LABEL
Price
$4.25
15
BLADE TILT SCALE
Price
N/A
16
SHOP FOX WHITE M1006
Price
N/A
17
GLOSSY BLACK
Price
N/A

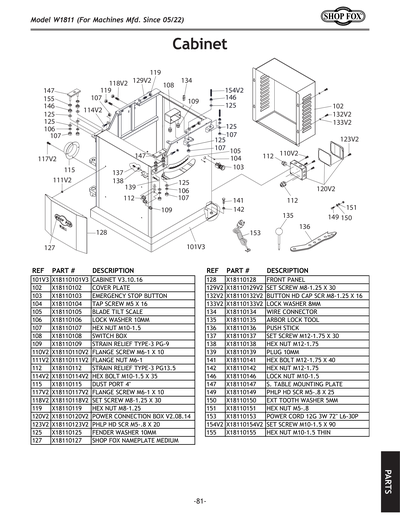

101
CABINET
Price
$871.60
101V2
CABINET V2.07.16
Price
$822.10
101V3
CABINET V3.10.16
Price
$822.10
102
COVER PLATE
Price
$134.20
103
EMERGENCY STOP BUTTON
Price
N/A
104
TAP SCREW M5 X 16
Price
N/A
106
LOCK WASHER 10MM
Price
N/A
107
HEX NUT M10-1.5
Price
N/A
108
SWITCH BOX
Price
N/A
109
STRAIN RELIEF TYPE-3 PG-9
Price
N/A
110
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
110V2
FLANGE SCREW M6-1 X 10
Price
N/A
111
HEX NUT M6-1
Price
N/A
112
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
113
HEX NUT M10-1.5
Price
N/A
114
SET SCREW M10-1.5 X 35
Price
N/A
114V2
HEX BOLT M10-1.5 X 35
Price
N/A
115
DUST PORT 4"
Price
$14.25
116
LOCK WASHER 6MM
Price
N/A
117
PHLP HD SCR M6-1 X 16
Price
N/A
117V2
FLANGE SCREW M6-1 X 10
Price
N/A
118
SET SCREW M8-1.25 X 35
Price
N/A
118V2
SET SCREW M8-1.25 X 30
Price
N/A
119
HEX NUT M8-1.25
Price
N/A
120
JUNCTION BOX ASSEMBLY
Price
N/A
120V2
JUNCTION BOX V2.08.14
Price
N/A
121
TERMINAL
Price
N/A
122
PHLP HD SCR M3.5-.6 X 20
Price
$1.49
123
BUTTON HD CAP SCR M5-.8 X 35
Price
N/A
123V2
PHLP HD SCR M5-.8 X 20
Price
N/A
124
HEX BOLT M10-1.5 X 30
Price
N/A
125
FENDER WASHER 10MM
Price
N/A
126
LOCK WASHER 10MM
Price
N/A
127
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
128
FRONT PANEL
Price
$115.30
129
SET SCREW M8-1.25 X 35
Price
N/A
129V2
SET SCREW M8-1.25 X 30
Price
N/A
130
HEX NUT M8-1.25
Price
N/A
131
HEX NUT M6-1
Price
N/A
132
CAP SCREW M8-1.25 X 16
Price
N/A
132V2
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
133
FLAT WASHER 8MM
Price
N/A
133V2
LOCK WASHER 8MM
Price
N/A
134
WIRE CONNECTOR
Price
N/A
135
ARBOR LOCK TOOL
Price
N/A
136
PUSH STICK
Price
$11.70
137
SET SCREW M12-1.75 X 30
Price
N/A
138
HEX NUT M12-1.75
Price
N/A
139
PLUG 10MM
Price
N/A
140
GROUND RETURN WIRE
Price
$3.55
141
HEX BOLT M12-1.75 X 40
Price
N/A
142
HEX NUT M12-1.75
Price
N/A
144
SET SCREW M10-1.5 X 25
Price
N/A
145
SET SCREW M6-1 X 10
Price
N/A
146
LOCK NUT M10-1.5
Price
N/A
147
S. TABLE MOUNTING PLATE
Price
N/A
148
LOCK NUT M10-1.5
Price
N/A
149
PHLP HD SCR M5-.8 X 25
Price
N/A
150
EXT TOOTH WASHER 5MM
Price
N/A
151
HEX NUT M5-.8
Price
N/A
152
LOCK WASHER 5MM
Price
N/A
153
POWER CORD 12AWG 3W L6-30
Price
N/A
154
SET SCREW M10-1.5 X 80
Price
N/A
154V2
SET SCREW M10-1.5 X 90
Price
N/A
155
HEX NUT M10-1.5 THIN
Price
N/A
201
CHANNEL BASE BLADE SHROUD V1
Price
N/A
201V2
CHANNEL BASE BLADE SHROUD V2.12.12
Price
N/A

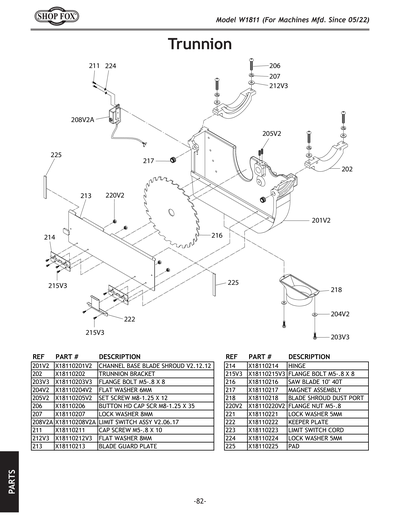

202
TRUNNION BRACKET
Price
N/A
203
CAP SCREW M6-1 X 10
Price
N/A
203V2
FLANGE SCREW M5-.8 X 8
Price
N/A
203V3
FLANGE BOLT M5-.8 X 8
Price
N/A
204
LOCK WASHER 6MM
Price
N/A
204V2
FLAT WASHER 6MM
Price
N/A
205
CAP SCREW M8-1.25 X 16
Price
N/A
205V2
SET SCREW M8-1.25 X 12
Price
N/A
206
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
207
LOCK WASHER 8MM
Price
N/A
208
LIMIT SWITCH ASSEMBLY
Price
N/A
208V2A
LIMIT SWITCH ASSEMBLY
Price
N/A
209
LIMIT SWITCH ASSEMBLY
Price
N/A
210
PHLP HD SCR M4-.7 X 25
Price
N/A
211
CAP SCREW M5-.8 X 10
Price
N/A
212
LOCK WASHER 5MM
Price
N/A
212V2
FLAT WASHER 5MM
Price
N/A
212V3
FLAT WASHER 8MM
Price
N/A
213
BLADE GUARD PLATE
Price
N/A
214
HINGE
Price
N/A
215
PHLP HD SCR M5-.8 X 10
Price
N/A
215V2
PHLP HD SCR M5-.8 X 8
Price
N/A
215V3
FLANGE BOLT M5-.8 X 8
Price
N/A
216
SAW BLADE 10" 40T
Price
N/A
217
MAGNET ASSEMBLY
Price
N/A
218
BLADE SHROUD DUST PORT
Price
N/A
219
PHLP HD SCR M5-.8 X 25
Price
N/A
219V2
PHLP HD SCR M5-.8 X 8
Price
N/A
220
LOCK NUT M5-.8
Price
N/A
220V2
FLANGE NUT M5-.8
Price
N/A
221
LOCK WASHER 5MM
Price
N/A
222
KEEPER PLATE
Price
N/A
223
LIMIT SWITCH ASSEMBLY
Price
N/A
225
PAD
Price
N/A
226
WRENCH 19-22 CLOSED END
Price
$34.80

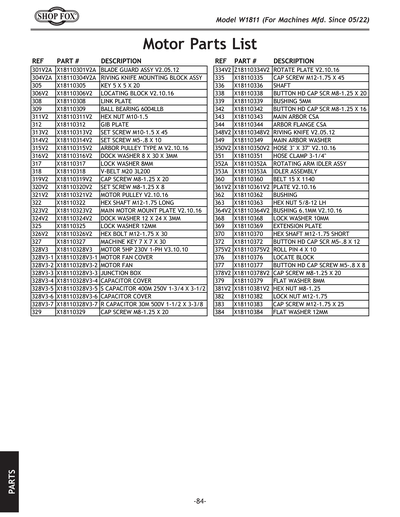

301
BLADE GUARD ASSY V2.02.12
Price
N/A
301V2
BLADE GUARD ASSY V2.02.12
Price
N/A
301V2A
BLADE GUARD ASSY V2.02.12
Price
N/A
302
FENDER WASHER 8MM
Price
N/A
302V2
LOCK NUT M10-1.5
Price
N/A
303
BUTTON HD CAP SCR M8-1.25 X 40
Price
N/A
303V2
CAP SCREW M10-1.5 X 25
Price
N/A
304
RIVING KNIFE MOUNTING BLOCK V1
Price
$84.55
304V2
MOUNTING BLOCK ASSY. V2.04.12
Price
N/A
304V2A
MOUNTING BLOCK ASSY. V2.04.12
Price
N/A
305
KEY 5 X 5 X 20
Price
N/A
306
LOCATING BLOCK ASSEMBLY V2.10.16
Price
N/A
306V2
LOCATING BOLOCK V2.08.10
Price
N/A
306V2A
LOCATING BLOCK ASSEMBLY V2.10.16
Price
$84.15
307
HEX NUT M12-1.75
Price
N/A
308
LINK PLATE
Price
N/A
309
BALL BEARING 6004LLB
Price
N/A
310
WAVE WASHER 26 X 34MM
Price
N/A
311
COLLAR
Price
$1.80
311V2
HEX NUT M10-1.5
Price
N/A
312
GIB PLATE
Price
N/A
313
BUTTON HD CAP SCR M10-1.5 X 35
Price
N/A
313V2
SET SCREW M10-1.5 X 45
Price
N/A
313V3
SET SCREW M10-1.5 X 45
Price
N/A
314
SET SCREW M6-1 X 8
Price
N/A
314V2
SET SCREW M5-.8 X 10
Price
N/A
315
ARBOR PULLEY TYPE M V1
Price
$57.00
315V2
MOTOR PULLEY (TYPE-M20) V2.01.08
Price
N/A
316
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
316V2
WHEEL FLAT WASHER 8MM
Price
N/A
317
LOCK WASHER 8MM
Price
N/A
318
V-BELT M20 3L200
Price
N/A
319
CAP SCREW M8-1.25 X 20
Price
N/A
319V2
CAP SCREW M8-1.25 X 20
Price
N/A
320
SET SCREW M6-1 X 6
Price
N/A
320V2
SET SCREW M8-1.25 X 8
Price
N/A
320V3
SET SCREW M8-1.25 X 16
Price
N/A
321
MOTOR PULLEY TYPE M V1
Price
$63.00
321V2
MOTOR PULLEY (TYPE-M20) V2.01.08
Price
N/A
322
HEX SHAFT M12-1.75 LONG
Price
N/A
323
MAIN MOTOR MOUNTING PLATE V1
Price
$125.75
323V2
MOTOR MOUNT PLATE V2.06.12
Price
N/A
324
FLAT WASHER 12MM
Price
N/A
324V2
DOCK WASHER 12 X 24 X 3MM
Price
N/A
325
LOCK WASHER 12MM
Price
N/A
326
HEX BOLT M12-1.75 X 25
Price
N/A
327
KEY 7 X 7 X 30
Price
N/A

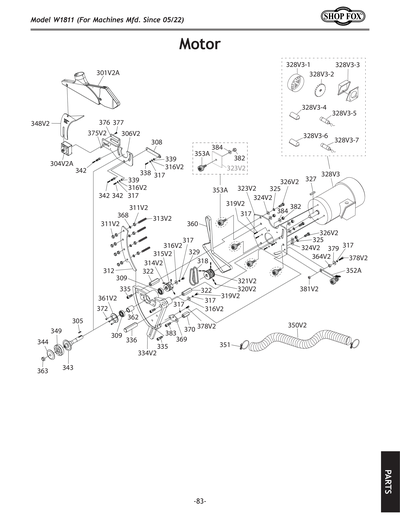

328
MOTOR 5HP 220V 1PH V1.11.08
Price
$1,303.25
328-1
MOTOR FAN COVER V1.11.08
Price
$14.35
328-2
MOTOR FAN V1.11.08
Price
$6.60
328-3
JUNCTION BOX V1.11.08
Price
$3.95
328-4
CAPACITOR COVER V1.11.08
Price
$3.05
328-5
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
328-6
CAPACITOR COVER V1.11.08
Price
$5.20
328-7
R CAPACITOR 30M 500V 1-1/2 X 3-3/8 V1
Price
$41.65
328V2
MOTOR 5HP 220V 1PH V1.11.08
Price
N/A
328V2-1
MOTOR FAN COVER
Price
$14.35
328V2-2
MOTOR FAN
Price
$6.60
328V2-3
JUNCTION BOX
Price
$3.95
328V2-4
CAPACITOR COVER
Price
$3.05
328V2-5
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
328V2-6
CAPACITOR COVER
Price
$5.20
328V2-7
R CAPACITOR 30M 440V 1-1/2 X 3-3/8
Price
$39.75
328V3
MOTOR 5HP 230V 1-PH
Price
N/A
328V3-
R CAPACITOR 30M 500V 2 X 4-1/2
Price
N/A
328V3-1
MOTOR FAN COVER
Price
N/A
328V3-2
MOTOR FAN
Price
N/A
328V3-3
JUNCTION BOX
Price
N/A
328V3-4
CAPACITOR COVER
Price
N/A
328V3-5
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
328V3-6
CAPACITOR COVER
Price
N/A
328V3-7
R CAPACITOR 30M 500V 2 X 4-1/2
Price
N/A
329
CAP SCREW M8-1.25 X 20
Price
N/A
330
LOCK WASHER 8MM
Price
N/A
331
CAP SCREW M8-1.25 X 20
Price
N/A
332
LOCK WASHER 8MM
Price
N/A
333
FENDER WASHER 8MM
Price
N/A
334
ROTATE PLATE V1
Price
N/A
334V2
ROTATE PLATE V2.12.12
Price
N/A
335
CAP SCREW M12-1.75 X 30
Price
N/A
336
SHAFT
Price
N/A
337
BUSHING
Price
N/A
338
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
339
BUSHING
Price
N/A
340
FENDER WASHER 8MM
Price
N/A
341
LOCK WASHER 8MM
Price
N/A
342
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
343
MAIN ARBOR CSA
Price
N/A
344
ARBOR FLANGE CSA
Price
N/A
345
LOCATING PIN
Price
N/A
346
HEX BOLT M10-1.5 X 50
Price
N/A
347
RIVING KNIFE WASHER 10MM
Price
N/A
348
RIVING KNIFE V1
Price
N/A
348V2
RIVING KNIFE V2.05.12
Price
N/A
349
ARBOR WASHER
Price
N/A
350
HOSE 3" X 24" V1
Price
N/A
350V2
HOSE 3" X 37" V2.10.16
Price
N/A
351
HOSE CLAMP 3-1/4"
Price
N/A
352
CAP SCREW M12-1.75 X 55
Price
N/A
352A
ROTATING ARM IDLER ASSY
Price
N/A
352V2
ROTATING ARM IDLER ASSY
Price
N/A
353
IDLER PULLEY ASSY
Price
N/A
353A
IDLER PULLEY ASSY
Price
N/A
355
HEX NUT M12-1.75
Price
N/A
356
HEX NUT M12-1.75 THIN
Price
N/A
357
ROTATE PLATE
Price
N/A
358
INT RETAINING RING 28MM
Price
N/A
359
BUSHING
Price
N/A
360
BELT 15 X 1140MM
Price
N/A
361
PLATE V1
Price
$16.05
361V2
PLATE V2.08.14
Price
N/A
362
BUSHING
Price
N/A
363
HEX NUT 5/8-18
Price
N/A
363V2
HEX NUT 5/8-12 LH V2.02.07
Price
$12.15
364
BUSHING 5.5MM V1
Price
N/A
364V2
BUSHING 6.1MM V2.10.16
Price
N/A
365
LOCK WASHER 12MM
Price
N/A
366
BALL BEARING 6001ZZ
Price
N/A
367
EXTENSION SPRING
Price
N/A
368
LOCK WASHER 10MM
Price
N/A
369
MOUNTING PLATE
Price
N/A
370
HEX SHAFT M12-1.75 SHORT
Price
N/A
372
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
375
ROLL PIN 3 X 12
Price
N/A
375V2
ROLL PIN 4 X 10
Price
N/A
376
SECONDARY BLOCK
Price
N/A
377
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
378
CAP SCREW M8-1.25 X 25
Price
N/A
378V2
CAP SCREW M8-1.25 X 20
Price
N/A
379
FLAT WASHER 8MM
Price
N/A
381
LOCK NUT M8-1.25
Price
N/A
381V2
HEX NUT M8-1.25
Price
N/A
382
LOCK NUT M12-1.75
Price
N/A
383
CAP SCREW M12-1.75 X 45
Price
N/A
384
FLAT WASHER 12MM
Price
N/A

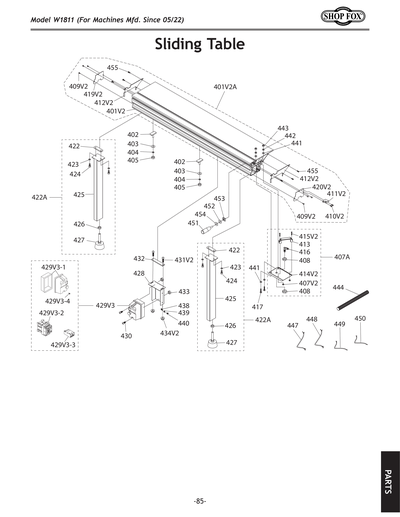

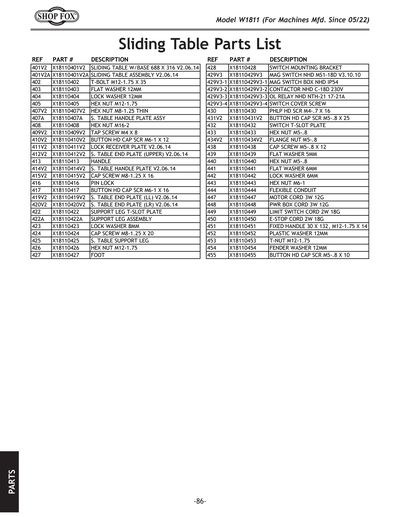

401
SLIDING TABLE V1
Price
$2,702.60
401V2
SLIDING TABLE W/BASE 688 X 316 V2.06.14
Price
$1,729.80
401V2A
SLIDING TABLE ASSEMBLY V2.06.14
Price
$2,573.90
402
T-SCREW M12-1.75 X 35
Price
N/A
403
FLAT WASHER 12MM
Price
N/A
404
LOCK WASHER 12MM
Price
N/A
405
HEX NUT M12-1.75
Price
N/A
406
LOCK WASHER 6MM
Price
N/A
407
HEX NUT M6-1
Price
N/A
407A
SLIDING TABLE HANDLE PLATE ASSY
Price
N/A
407V2
HEX NUT M8-1.25 THIN
Price
N/A
408
HEX NUT M16-2
Price
N/A
409
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
409V2
TAP SCREW M4 X 8
Price
N/A
410
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
410V2
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
411
LOCK RECEIVER PLATE V1
Price
$12.10
411V2
LOCK RECEIVER PLATE V2.06.14
Price
$11.25
412
S. TABLE END PLATE (UPPER) V1
Price
$16.05
412V2
S. TABLE END PLATE (UPPER) V2.06.14
Price
$12.10
413
HANDLE
Price
N/A
414
S. TABLE HANDLE PLATE V1
Price
$44.90
414V2
S. TABLE HANDLE PLATE V2.06.14
Price
$23.60
415
CAP SCREW M6-1 X 16
Price
N/A
415V2
CAP SCREW M8-1.25 X 16
Price
N/A
416
PIN LOCK
Price
N/A
417
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
418
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
419
S. TABLE END PLATE (LL) V1
Price
$13.50
419V2
S. TABLE END PLATE (LL) V2.06.14
Price
$8.25
420
S. TABLE END PLATE (LR) V1
Price
$16.05
420V2
S. TABLE END PLATE (LR) V2.06.14
Price
$14.30
422
SUPPORT LEG T-SLOT PLATE
Price
N/A
422A
SUPPORT LEG ASSEMBLY
Price
$92.75
423
LOCK WASHER 8MM
Price
N/A
424
CAP SCREW M8-1.25 X 20
Price
N/A
425
S. TABLE SUPPORT LEG
Price
$90.15
426
HEX NUT M12-1.75
Price
N/A
427
ADJUST FOOT
Price
N/A
428
SWITCH MOUNTING BRACKET
Price
$33.75
429
MAG SWITCH NHD MS 1-18D V2.09.10
Price
N/A
429-1
SWITCH BOX NHD
Price
N/A
429-2
CONTACTOR NHD C-18D 230V
Price
N/A
429-3
OL RELAY NHD NTH-21 17-21A
Price
N/A
429-4
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
429V2
MAG SWITCH NHD MS1-18D V2.09.09
Price
$279.95
429V2-1
SWITCH BOX NHD
Price
N/A
429V2-2
CONTACTOR NHD C-18D 220V
Price
$63.00
429V2-3
OL RELAY NHD NTH-25 21-25A
Price
$50.55
429V2-4
SWITCH BOX NHD
Price
N/A
429V3
MAG SWITCH NHD MS 1-18D V2.09.10
Price
N/A
429V3-1
SWITCH BOX NHD
Price
N/A
429V3-2
CONTACTOR NHD C-18D 230V
Price
N/A
429V3-3
OL RELAY NHD NTH-21 17-21A
Price
N/A
429V3-4
SWITCH BOX NHD
Price
N/A
430
PHLP HD SCR M4-.7 X 16
Price
N/A
431
CAP SCREW M5-.8 X 12
Price
N/A
431V2
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
432
LOCATE PLATE
Price
N/A
433
HEX NUT M5-.8
Price
N/A
434
FLAT WASHER 5MM
Price
N/A
434V2
FLANGE NUT M5-.8
Price
N/A
435
LOCK NUT M10-1.5
Price
N/A
436
FENDER WASHER 10MM
Price
N/A
437
FLANGE NUT M6-1
Price
N/A
438
CAP SCREW M5-.8 X 12
Price
N/A
439
FLAT WASHER 5MM
Price
N/A
440
HEX NUT M5-.8
Price
N/A
441
FLAT WASHER 6MM
Price
N/A
442
LOCK WASHER 6MM
Price
N/A
443
HEX NUT M6-1
Price
N/A
444
FLEXIBLE CONDUIT
Price
N/A
445
S. TABLE END PLATE (UPPER) V1
Price
$16.05
445V2
S. TABLE END PLATE (UPPER) V2.06.14
Price
N/A
447
MOTOR CORD 12G 4W
Price
N/A
448
PWR BOX CORD 12G 3W
Price
N/A
449
LIMIT SWITCH CORD 18G 2W
Price
N/A
450
E-STOP CORD 18G 2W
Price
N/A
451
FIXED HANDLE 30 X 132, M12-1.75 X 14
Price
N/A
452
PLASTIC WASHER 12MM
Price
N/A
453
T-NUT M12-1.75
Price
N/A
455
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A

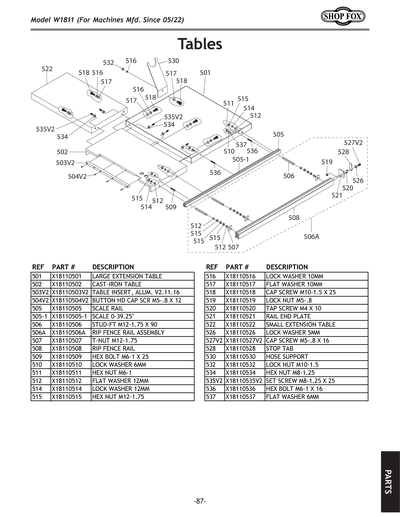

501
LARGE EXTENSION TABLE
Price
N/A
502
CAST-IRON TABLE
Price
$565.75
503
***SEE EXT. DESCRIPTION***
Price
N/A
503V2
TABLE INSERT (ALUM.) V2.11.16
Price
N/A
504
CAP SCREW M5-.8 X 20
Price
N/A
504V2
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
505
SCALE RAIL
Price
N/A
505-1
SCALE 0~39.25"
Price
N/A
506
STUD-FT M12-1.75 X 90
Price
N/A
506A
RIP FENCE RAIL ASSEMBLY
Price
N/A
507
T-NUT M12-1.75
Price
N/A
508
RIP FENCE RAIL
Price
N/A
509
HEX BOLT M6-1 X 25
Price
N/A
510
LOCK WASHER 6MM
Price
N/A
511
HEX NUT M6-1
Price
N/A
512
FLAT WASHER 12MM
Price
N/A
513
FLAT WASHER 12MM
Price
N/A
514
LOCK WASHER 12MM
Price
N/A
515
HEX NUT M12-1.75
Price
N/A
516
LOCK WASHER 10MM
Price
N/A
517
FLAT WASHER 10MM
Price
N/A
518
CAP SCREW M10-1.5 X 25
Price
N/A
519
LOCK NUT M5-.8
Price
N/A
520
TAP SCREW M4 X 10
Price
N/A
521
RAIL END PLATE
Price
N/A
522
SMALL EXTENSION TABLE
Price
$123.10
523
FLAT WASHER 10MM
Price
N/A
524
LOCK WASHER 10MM
Price
N/A
525
CAP SCREW M10-1.5 X 25
Price
N/A
526
LOCK WASHER 5MM
Price
N/A
527
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
527V2
CAP SCREW M5-.8 X 16
Price
N/A
528
STOP TAB
Price
N/A
529
CAP SCREW M10-1.5 X 25
Price
N/A
530
DUST HOSE SUPPORT
Price
N/A
531
LOCK WASHER 10MM
Price
N/A
532
LOCK NUT M10-1.5
Price
N/A
533
FLAT WASHER 10MM
Price
N/A
534
HEX NUT M8-1.25
Price
N/A
535
CAP SCREW M8-1.25 X 25
Price
N/A
535V2
SET SCREW M8-1.25 X 25
Price
N/A
536
HEX BOLT M6-1 X 16
Price
N/A
537
FLAT WASHER 6MM
Price
N/A

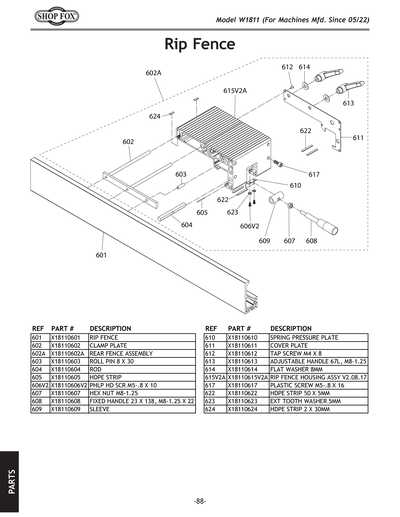

601
RIP FENCE
Price
N/A
602
CLAMP PLATE
Price
N/A
602A
REAR FENCE ASSEMBLY
Price
$239.50
603
STEEL PIN 6MM
Price
N/A
604
ROD
Price
N/A
605
HDPE STRIP
Price
N/A
606
FLANGE SCREW M5-.8 X 10
Price
N/A
606V2
PHLP HD SCR M5-.8 X 10
Price
N/A
607
HEX NUT M8-1.25
Price
N/A
608
FIXED HANDLE 23 X 138, M8-1.25 X 22
Price
N/A
609
SLEEVE
Price
N/A
610
SPRING PRESSURE PLATE
Price
N/A
611
COVER PLATE
Price
$25.65
612
TAP SCREW M4 X 8
Price
N/A
613
ADJ. HANDLE 67L, M8-1.25
Price
N/A
614
FLAT WASHER 8MM
Price
N/A
615
RIP FENCE FRONT BASE V1
Price
$157.95
615V2A
RIP FENCE HOUSING ASSEMBLY
Price
N/A
616
RIP FENCE REAR BASE V1
Price
$50.55
617
PLASTIC SCREW
Price
N/A
618
LOCK WASHER 8MM
Price
N/A
619
CAP SCREW M8-1.25 X 20
Price
N/A
620
FLAT HD SCR M6-1 X 12
Price
N/A
621
WAVY WASHER 12MM
Price
N/A
622
HDPE STRIP 50 X 5MM
Price
N/A
623
EXT TOOTH WASHER 5MM
Price
N/A
624
NYLON PIECE
Price
N/A

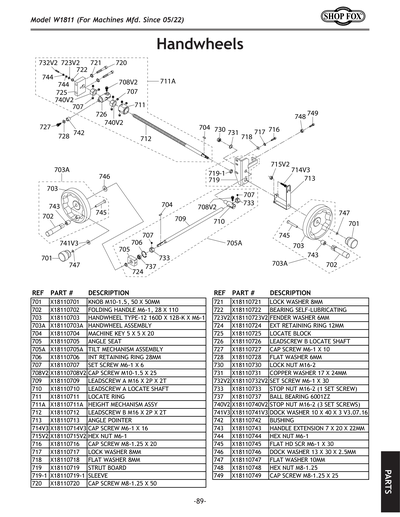

701
LOCK KNOB M10-1.5, D50
Price
N/A
702
HANDWHEEL ASSY
Price
N/A
703
HANDWHEEL TYPE-12 160D X 12B-K X M6-1
Price
N/A
703A
HANDWHEEL ASSEMBLY
Price
N/A
704
KEY 5 X 5 X 20
Price
N/A
705
ANGLE SEAT
Price
N/A
705A
TILT MECHANISM ASSEMBLY
Price
N/A
706
INT RETAINING RING 28MM
Price
N/A
707
SET SCREW M6-1 X 6
Price
N/A
708
CAP SCREW M10-1.5 X 20
Price
N/A
708V2
CAP SCREW M10-1.5 X 25
Price
N/A
709
LEADSCREW M16 X 2P X 2T
Price
N/A
710
LEADSCREW CAM
Price
N/A
711
LOCATE RING
Price
N/A
711A
HEIGHT MECHANISM ASSY
Price
N/A
712
JACK SCREW M16 X 2P X 2T
Price
N/A
713
FINGER GUIDE
Price
N/A
714
CAP SCREW M6-1 X 10
Price
N/A
714V2
CAP SCREW M6-1 X 20
Price
N/A
714V3
CAP SCREW M6-1 X 16
Price
N/A
715
LOCK WASHER 6MM
Price
N/A
715V2
HEX NUT M6-1
Price
N/A
716
CAP SCREW M8-1.25 X 20
Price
N/A
717
LOCK WASHER 8MM
Price
N/A
718
FLAT WASHER 8MM
Price
N/A
719
STRUT BOARD
Price
N/A
720
CAP SCREW M8-1.25 X 50
Price
N/A
721
LOCK WASHER 8MM
Price
N/A
722
BEARING SELF LUBRICATING
Price
N/A
723
FLAT WASHER 6MM
Price
N/A
723V2
FENDER WASHER 6MM
Price
N/A
724
EXT RETAINING RING 12MM
Price
N/A
725
LOCATE BLOCK
Price
N/A
726
JACK SCREW CAM
Price
N/A
727
CAP SCREW M6-1 X 10
Price
N/A
728
FLAT WASHER 6MM
Price
N/A
729
SLEEVE
Price
N/A
730
LOCK NUT M16-2
Price
N/A
731
FLAT WASHER 17 X 24MM, COPPER
Price
N/A
732
CAP SCREW M6-1 X 12
Price
N/A
732V2
SET SCREW M6-1 X 30
Price
N/A
733
STOP NUT M16-2 (1 SET SCREW)
Price
N/A
734
HEX NUT M12-1.75
Price
N/A
736
KEY 5 X 5 X 20
Price
N/A
737
BEARING
Price
N/A
738
SET SCREW M12-1.75 X 35
Price
N/A
739
SET SCREW M6-1 X 6
Price
N/A
740
HEX NUT M16-2
Price
N/A
740V2
STOP NUT M16-2 V2 (3 SET SCREWS)
Price
N/A
741
HANDWHEEL FLAT WASHER 10 X 20 V1
Price
N/A
741V2
DOCK WASHER 10 X 27 X 3MM V2.12.12
Price
$1.80
741V3
DOCK WASHER 10 X 40 X 3 V3.09.17
Price
N/A
742
BUSHING
Price
N/A
743
*DISCD*HANDLE EXTENSION 7 X 20 X 22MM
Item is no longer available
Price
N/A
744
HEX NUT M6-1
Price
N/A
745
FLAT HD SCR M6-1 X 30
Price
N/A
746
DOCK WASHER 13 X 30 X 2.5MM
Price
N/A
747
FLAT WASHER 10MM
Price
N/A
748
HEX NUT M8-1.25
Price
N/A
749
CAP SCREW M8-1.25 X 25
Price
N/A

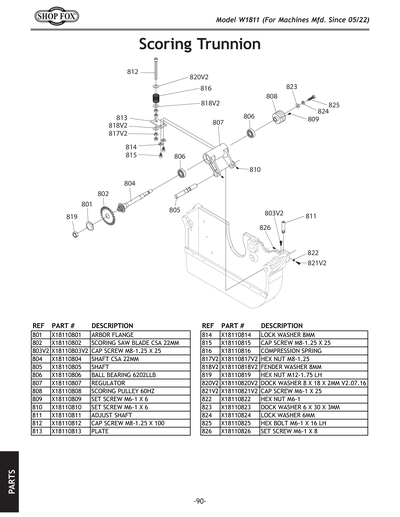

801
ARBOR FLANGE
Price
N/A
802
Replacement Scoring Blade for G0623 Series
Price
N/A
803
CAP SCREW M8-1.25 X 20
Price
N/A
803V2
CAP SCREW M8-1.25 X 25
Price
N/A
804
SHAFT CSA 22MM
Price
N/A
805
SHAFT
Price
N/A
806
REGULATOR
Price
N/A
807
SCORING PULLEY 60HZ
Price
N/A
808
ADJUST SHAFT
Price
N/A
809
SET SCREW M6-1 X 6
Price
N/A
810
SET SCREW M6-1 X 6
Price
N/A
811
ADJUST SCREW M8-1.25 X 100
Price
N/A
812
CAP SCREW M8-1.25 X 100
Price
N/A
813
PLATE
Price
N/A
814
LOCK WASHER 8MM
Price
N/A
815
CAP SCREW M8-1.25 X 25
Price
N/A
816
LOCK COMPRESSION SPRING
Price
N/A
817
LOCK NUT M8-1.25
Price
N/A
817V2
HEX NUT M8-1.25
Price
N/A
818
FLAT WASHER 8MM
Price
N/A
818V2
FENDER WASHER 8MM
Price
N/A
819
SCORING ARBOR NUT
Price
$2.45
820
FLAT WASHER 8MM
Price
N/A
820V2
DOCK WASHER 8 X 18 X 2MM
Price
N/A
821
CAP SCREW M6-1 X 20
Price
N/A
821V2
CAP SCREW M6-1 X 25
Price
N/A
822
HEX NUT M6-1
Price
N/A
823
DOCK WASHER 6 X 30 X 3MM
Price
N/A
824
LOCK WASHER 6MM
Price
N/A
825
HEX BOLT M6-1 X 16 LH
Price
N/A
826
SET SCREW M6-1 X 8
Price
N/A

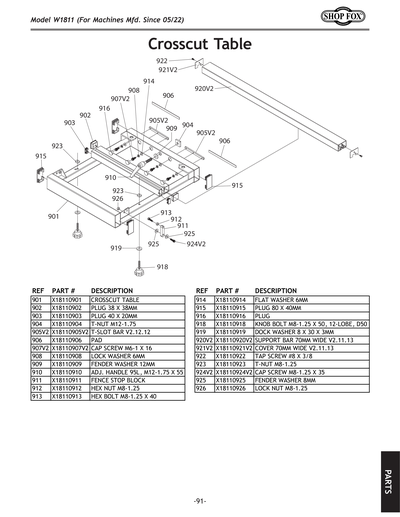

901
CROSSCUT TABLE
Price
$174.80
901-1
ANGLE SCALE SET (LH/RH)
Price
N/A
902
PLUG 38 X 38MM
Price
N/A
903
PLUG 40 X 20MM
Price
N/A
904
T-NUT M12-1.75
Price
N/A
905
T-SLOT BAR V1
Price
N/A
905V2
T-SLOT BAR V2.12.12
Price
N/A
906
PAD
Price
N/A
907
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
907V2
CAP SCREW M6-1 X 16
Price
N/A
908
LOCK WASHER 6MM
Price
N/A
909
FENDER WASHER 12MM
Price
N/A
910
ADJ. HANDLE 95L, M12-1.75 X 55
Price
N/A
911
FENCE ADJUSTMENT CAM
Price
N/A
912
HEX NUT M8-1.25
Price
N/A
913
HEX BOLT M8-1.25 X 40
Price
N/A
914
FLAT WASHER 6MM
Price
N/A
915
PLUG 80 X 40MM
Price
N/A
916
PLUG
Price
N/A
917
PIN 3 X 14
Price
N/A
918
KNOB BOLT M8-1.25 X 50
Price
N/A
919
WHEEL FLAT WASHER 8MM
Price
N/A
920
SQUARE BRACE 60MM WIDE V1
Price
N/A
920V2
SQUARE BRACE 70MM WIDE V2.11.13
Price
N/A
921
COVER 60MM WIDE V1
Price
N/A
921V2
COVER 70MM WIDE V2.11.13
Price
N/A
922
TAP SCREW #8 X 3/8
Price
N/A
923
T-NUT M8-1.25
Price
N/A
924
CAP SCREW M8-1.25 X 30
Price
N/A
924V2
CAP SCREW M8-1.25 X 35
Price
N/A
925
FENDER WASHER 8MM
Price
N/A
926
LOCK NUT M8-1.25
Price
N/A

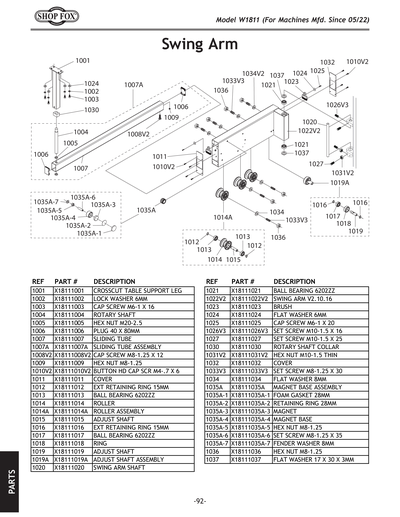

1001
CROSSCUT TABLE SUPPORT LEG
Price
$48.85
1002
LOCK WASHER 6MM
Price
N/A
1003
CAP SCREW M6-1 X 16
Price
N/A
1004
ROTARY SHAFT
Price
N/A
1005
HEX NUT M20-2.5
Price
N/A
1006
PLUG 40 X 80MM
Price
N/A
1007
SLIDING TUBE
Price
N/A
1007A
SLIDING TUBE ASSEMBLY
Price
N/A
1008
HEX BOLT M8-1.25 X 30
Price
N/A
1008V2
CAP SCREW M8-1.25 X 12
Price
N/A
1009
HEX NUT M8-1.25
Price
N/A
1010
TAP SCREW M4 X 10
Price
N/A
1010V2
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
1011
COVER
Price
$19.10
1012
EXT RETAINING RING 15MM
Price
N/A
1013
BALL BEARING 6202ZZ
Price
N/A
1014
ROLLER
Price
N/A
1014A
ROLLER ASSEMBLY
Price
N/A
1015
ADJUST SHAFT
Price
N/A
1016
EXT RETAINING RING 15MM
Price
N/A
1017
BALL BEARING 6202ZZ
Price
N/A
1018
RING
Price
N/A
1019
ADJUST SHAFT
Price
N/A
1019A
ADJUST SHAFT ASSEMBLY
Price
N/A
1020
SWING ARM SHAFT
Price
N/A
1021
BALL BEARING 6202ZZ
Price
N/A
1022
SWING ARM V1
Price
$168.50
1022V2
SWING ARM V2.10.16
Price
$151.70
1023
BRUSH
Price
N/A
1024
FLAT WASHER 6MM
Price
N/A
1025
CAP SCREW M6-1 X 20
Price
N/A
1026
SET SCREW M6-1 X 10
Price
N/A
1026V2
SET SCREW M10-1.5 X 10
Price
N/A
1026V3
SET SCREW M10-1.5 X 16
Price
N/A
1027
SET SCREW M10-1.5 X 25
Price
N/A
1029
HEX BOLT M10-1.5 X 35
Price
N/A
1030
ROTARY SHAFT COLLAR
Price
N/A
1031
HEX NUT M10-1.5
Price
N/A
1031V2
HEX NUT M10-1.5 THIN
Price
N/A
1032
COVER
Price
$19.10
1033
HEX BOLT M8-1.25 X 20
Price
N/A
1033V2
SET SCREW M8-1.25 X 20
Price
N/A
1033V3
SET SCREW M8-1.25 X 30
Price
N/A
1034
FLAT WASHER 8MM
Price
N/A
1034V2
LOCK WASHER 8MM
Price
N/A
1035
MAGNETIC BASE ASSEMBLY
Price
N/A
1035A
MAGNETIC BASE ASSEMBLY
Price
N/A
1035A-1
FOAM GASKET 28MM
Price
N/A
1035A-2
RETAINING RING 28MM
Price
N/A
1035A-3
MAGNET
Price
N/A
1035A-4
MAGNET BASE
Price
N/A
1035A-5
HEX NUT M8-1.25
Price
N/A
1035A-6
SET SCREW M8-1.25 X 35
Price
N/A
1035A-7
FENDER WASHER 8MM
Price
N/A
1036
HEX NUT M8-1.25
Price
N/A
1037
SET SCREW M8-1.25 X 25
Price
N/A

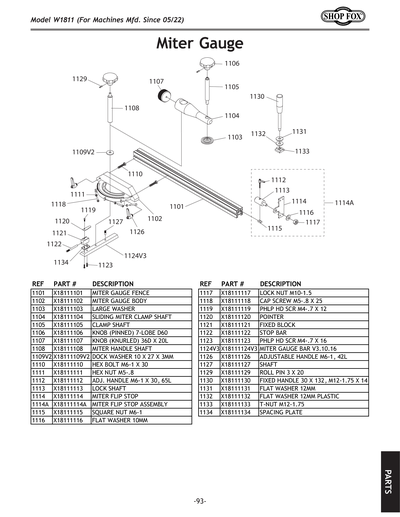

1101
MITER GAUGE FENCE
Price
N/A
1102
MITER GAUGE BODY
Price
N/A
1103
LARGE WASHER
Price
N/A
1104
SLIDING MITER CLAMP SHAFT
Price
N/A
1105
CLAMP SHAFT
Price
N/A
1106
KNOB 10MM
Price
N/A
1107
KNOB (KNURLED) 36D X 20L
Price
N/A
1108
MITER HANDLE SHAFT ASSY
Price
N/A
1109
FENDER WASHER 8MM
Price
N/A
1109V2
FENDER WASHER 10MM
Price
N/A
1110
HEX BOLT M6-1 X 30
Price
N/A
1111
HEX NUT M5-.8
Price
N/A
1112
ADJ. HANDLE 65L, M6-1 X 30
Price
N/A
1113
LOCK SHAFT
Price
N/A
1114
STOP PLATE
Price
N/A
1114A
MITER FLIP STOP ASSEMBLY
Price
$29.65
1115
SQUARE NUT M6-1
Price
N/A
1116
FLAT WASHER 10MM
Price
N/A
1117
LOCK NUT M10-1.5
Price
N/A
1118
CAP SCREW M5-.8 X 25
Price
N/A
1119
PHLP HD SCR M4-.7 X 12
Price
N/A
1120
POINTER
Price
N/A
1121
FIXED BLOCK
Price
N/A
1122
STOP BAR
Price
N/A
1123
PHLP HD SCR M4-.7 X 16
Price
N/A
1124
MITER GUIDE BAR V1
Price
$20.35
1124V2
MITER GUIDE BAR V2.03.14
Price
$40.20
1124V3
MITER GAUGE BAR V3.10.16
Price
N/A
1125
SET SCREW M4-.7 X 10
Price
N/A
1126
ADJ HANDLE M6-1 X 30, 44L
Price
N/A
1127
SHAFT
Price
N/A
1128
SET SCREW M8-1.25 X 45
Price
N/A
1129
ROLL PIN 3 X 20
Price
N/A
1130
FIXED HANDLE 30 X 132, M12-1.75 X 14
Price
N/A
1131
FLAT WASHER 12MM
Price
N/A
1132
PLASTIC WASHER 12MM
Price
N/A
1133
T-NUT M12-1.75
Price
N/A
1134
SPACING PLATE
Price
N/A

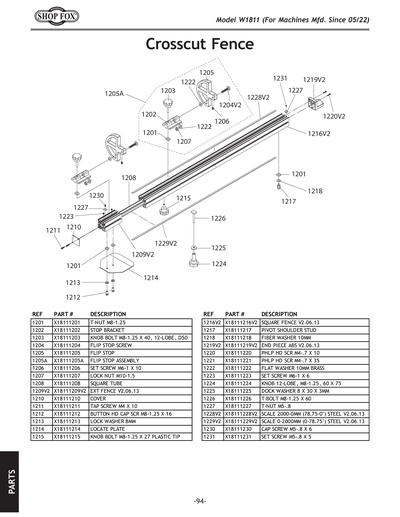

1201
T-NUT M8-1.25
Price
N/A
1202
STOP BRACKET
Price
N/A
1203
KNOB BOLT M8-1.25 X 40
Price
N/A
1204
SCREW V1
Price
N/A
1205
***USE P08531801-1***
Price
N/A
1205A
***USE P07641301***
Price
N/A
1206
SET SCREW M6-1 X 10
Price
N/A
1207
LOCK NUT M10-1.5
Price
N/A
1208
SQUARE TUBE
Price
N/A
1209
EXT FENCE V1
Price
N/A
1209V2
EXT FENCE V2.06.13
Price
N/A
1210
COVER
Price
N/A
1211
TAP SCREW M4 X 10
Price
N/A
1212
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
1213
LOCK WASHER 8MM
Price
N/A
1214
LOCATE PLATE
Price
N/A
1215
KNOB BOLT M8-1.25 X 27 PLASTIC TIP
Price
N/A
1216
SQUARE FENCE V1
Price
$146.30
1216V2
SQUARE FENCE V2.06.13
Price
N/A
1217
***USE P06990917***
Price
N/A
1218
FIBER WASHER 10MM
Price
N/A
1219
END PIECE ABS V2.06.13
Price
N/A
1219V2
END PIECE ABS V2.06.13
Price
N/A
1220
PHLP HD SCR M4-.7 X 10
Price
N/A
1220V2
TAP SCREW M4 X 8
Price
N/A
1221
PHLP HD SCR M4-.7 X 35
Price
N/A
1222
FLAT WASHER 10MM BRASS
Price
N/A
1223
SET SCREW M6-1 X 6
Price
N/A
1224
KNOB M8-1.25 X 50
Price
N/A
1225
WHEEL FLAT WASHER 8MM
Price
N/A
1226
T-BOLT M8-1.25 X 60
Price
N/A
1227
T-NUT M5-.8
Price
N/A
1228
SCALE 1380-40MM (54.5-1.5") STEEL V1
Price
$50.10
1228V2
SCALE 2000-0MM (78.75-0") STEEL V2.06.13
Price
N/A
1229
SCALE 1260-2000MM (49.5-78.75") STEEL V1
Price
$50.10
1229V2
SCALE 0~39.25"
Price
N/A
1230
CAP SCREW M5-.8 X 6
Price
N/A
1231
SET SCREW M5-.8 X 5
Price
N/A
BOX2
COMPLETE SLIDING TABLE ASSEMBLY BOX 2
Price
$3,998.05
MAN
MAN FOR W1811 MFG-08.08-10.13 V1.11.08
Price
$19.40
MANV2
MANUAL W1811 MFG-11.13+ V2.11.13
Price
$20.25
MANV3
MANUAL W1811 MFG-06.14+ V3.09.14
Price
$20.25
MANV4
MANUAL W1811 MFD-09.17+V4.02.18
Price
$22.90
