Parts for W1812 - 2 HP 7" Planer / Moulder with Stand

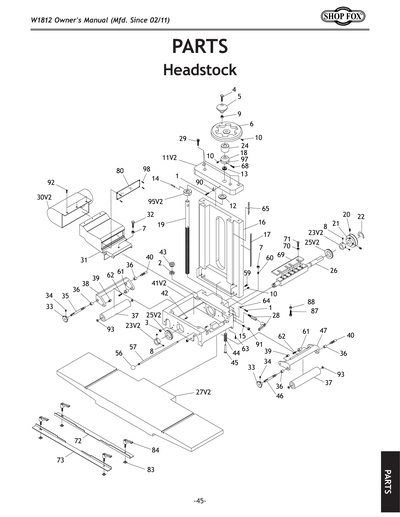

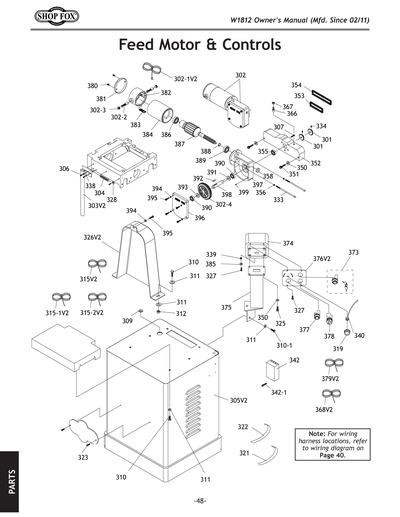

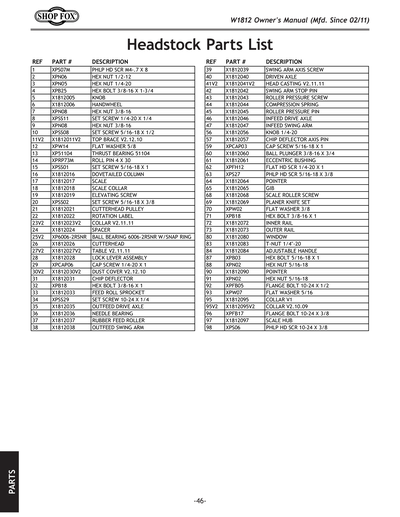

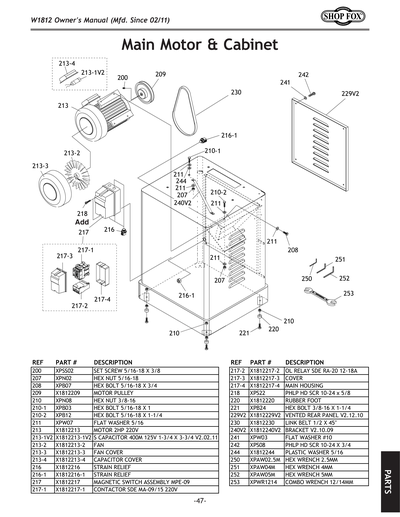

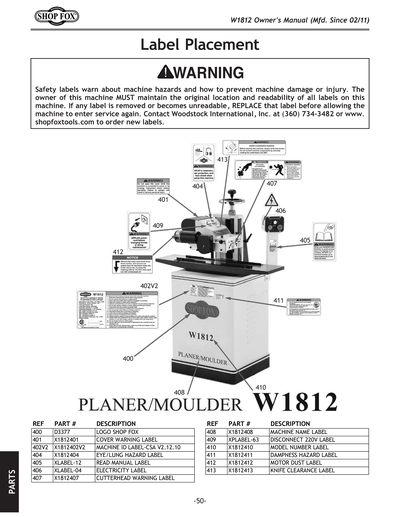

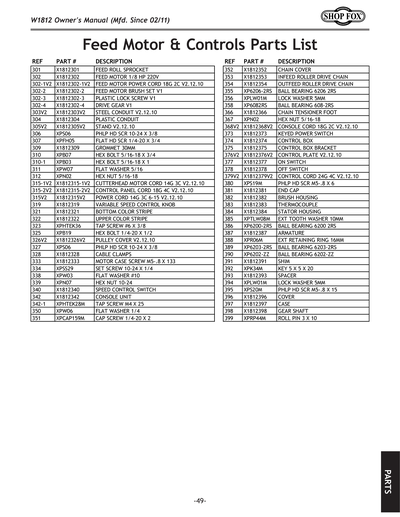

Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812
Part Diagram for W1812

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 8
Price
N/A
2
X1812002
Now: PN06
HEX NUT 1/2-12
Price
N/A
3
X1812003
Now: PN05
HEX NUT 1/4-20
Price
N/A
4
X1812004
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
5
KNOB
Price
$4.40
6
HANDWHEEL
Price
$57.30
7
X1812007
Now: PN08
HEX NUT 3/8-16
Price
N/A
8
SET SCREW 1/4-20 X 1/4
Price
N/A
9
X1812009
Now: PN08
HEX NUT 3/8-16
Price
N/A
10
SET SCREW 3/8-16 X 1/2
Price
N/A
11
TOP BRACE V1
Price
$41.55
11V2
TOP BRACE V2.12.10
Price
$44.95
12
X1812012
Now: PW14
FLAT WASHER 5/8
Price
N/A
13
THRUST BEARING 51104
Price
N/A
14
ROLL PIN 4 X 30
Price
N/A
15
SET SCREW 5/16-18 X 1
Price
N/A
16
DOVETAILED COLUMN
Price
$137.70
17
SCALE
Price
$1.70
18
SCALE COLLAR
Price
$26.90
19
ELEVATING SCREW
Price
$24.50
20
SET SCREW 5/16-18 X 3/8
Price
N/A
21
CUTTERHEAD PULLEY
Price
$12.20
22
ROTATION LABEL
Price
$1.90
23
COLLAR V1
Price
$3.00
23V2
COLLAR V2.11.11
Price
$8.00
24
SPACER
Price
$5.05
25
BALL BEARING 6206-2RSNR W/SNAP RING
Price
N/A
25V2
BALL BEARING 6006-2RSNR W/SNAP RING
Price
N/A
26
CUTTERHEAD
Price
$126.80
27
TABLE V1
Price
$148.65
27V2
TABLE V2.11.11
Price
$354.15
28
LOCK LEVER ASSEMBLY
Price
$3.40
29
CAP SCREW 1/4-20 X 1
Price
N/A
30
*DISCD*DUST COVER V1
Item is no longer available
Price
N/A
30V2
DUST COVER V2.12.10
Price
$16.20
31
CHIP DEFLECTOR
Price
$141.30
32
X1812032
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
33
FEED ROLL SPROCKET
Price
$4.30
34
SET SCREW 10-24 X 1/4
Price
N/A
35
OUTFEED DRIVE AXLE
Price
$6.25
36
NEEDLE BEARING
Price
$5.10
37
RUBBER FEED ROLLER
Price
$81.15
38
OUTFEED SWING ARM
Price
$36.60
39
SWING ARM AXIS SCREW
Price
$3.65
40
DRIVEN AXLE
Price
$6.60
41
*DISCD*HEAD CASTING V1
Item is no longer available
Price
N/A
41V2
HEAD CASTING V2.11.11
Price
$275.65
42
SWING ARM STOP PIN
Price
$4.60
43
ROLLER PRESSURE SCREW
Price
$5.50
44
COMPRESSION SPRING
Price
$1.60
45
ROLLER PRESSURE PIN
Price
$4.85
46
INFEED DRIVE AXLE
Price
$8.00
47
INFEED SWING ARM
Price
$47.60
53
INFEED ROLLER DRIVE CHAIN
Price
N/A
56
KNOB 1/4-20
Price
$2.50
57
CHIP DEFLECTOR AXIS PIN
Price
$5.80
59
CAP SCREW 5/16-18 X 1
Price
N/A
60
BALL PLUNGER 3/8-16 X 3/4
Price
$4.00
61
ECCENTRIC BUSHING
Price
$4.50
62
FLAT HD SCR 1/4-20 X 1
Price
N/A
63
X1812063
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
64
POINTER
Price
$1.60
65
GIB
Price
$3.85
68
SCALE ROLLER SCREW
Price
$1.95
69
PLANER KNIFE SET
Price
$83.05
70
X1812070
Now: PW02
FLAT WASHER 3/8
Price
N/A
71
X1812071
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
71V2
BUTTON HD CAP SCR 3/8-16 X 1 V2.07.22
Price
$4.40
72
INNER RAIL
Price
$44.25
73
OUTER RAIL
Price
$42.90
80
WINDOW
Price
$6.10
81
EXTENSION WING
Price
$202.90
82
X1812082
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
83
T-SLOT NUT 1/4-20
Price
N/A
84
ADJUSTABLE HANDLE 1/4" - 20
Price
$11.70
86
*DISCD*SAFETY GUARD
Item is no longer available
Price
N/A
87
X1812087
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
88
X1812088
Now: PN02
HEX NUT 5/16-18
Price
N/A
90
POINTER
Price
$2.20
91
X1812091
Now: PN02
HEX NUT 5/16-18
Price
N/A
92
FLANGE SCREW 10-24 X 1/2
Price
N/A
93
X1812093
Now: PW07
FLAT WASHER 5/16
Price
N/A
95
COLLAR V1
Price
$2.35
95V2
COLLAR V2.10.09
Price
$3.65
96
FLANGE BOLT 10-24 X 3/8
Price
N/A
97
SCALE HUB
Price
$12.85
98
X1812098
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
99
LOCK WASHER 3/8
Price
N/A
142
PC BOARD CONSOLE UNIT 220V
Price
$112.95
200
SET SCREW 5/16-18 X 3/8
Price
N/A
202
***USE PX1812302V2***
Price
N/A
207
X1812207
Now: PN02
HEX NUT 5/16-18
Price
N/A
208
X1812208
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
209
MOTOR PULLEY
Price
$24.65
210
X1812210
Now: PN08
HEX NUT 3/8-16
Price
N/A
210-1
HEX BOLT 5/16-18 X 1
Price
N/A
210-2
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
211
X1812211
Now: PW07
FLAT WASHER 5/16
Price
N/A
213
MOTOR 2HP 220V
Price
$411.20
213-1
S CAPACITOR 400M 250V 1-3/4 X 3-3/4
Price
N/A
213-2
FAN
Price
$2.80
213-3
FAN COVER
Price
$7.65
213-4
CAPACITOR COVER
Price
$2.45
216
STRAIN RELIEF
Price
$5.65
216-1
STRAIN RELIEF
Price
$5.50
217
MAGNETIC SWITCH ASSEMBLY MPE-09
Price
$101.45
217-1
CONTACTOR SDE MA-09/15 220V
Price
$86.45
217-2
OL RELAY SDE RA-20 12-18A
Price
$41.40
217-3
COVER
Price
$24.25
217-4
MAIN HOUSING
Price
$17.40
218
X1812218
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
220
RUBBER FOOT
Price
$1.60
221
X1812221
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
229
*DISCD*VENTED REAR PANEL V1
Item is no longer available
Price
N/A
229-1
LATCH ASSEMBLY
Price
$17.40
229-2
SPACER
Price
$4.95
229-3
FLANGE SCREW M4-.7 X 4
Price
$2.25
229-4
PHLP HD SCR M4-.7 X 6
Price
N/A
229V2
VENTED REAR PANEL V2.12.10
Price
$55.00
230
Power Twist V-Belt, 1/2" x 4'
Price
N/A
240
BRACKET V1
Price
$3.15
240V2
BRACKET V2.10.09
Price
$4.20
241
X1812241
Now: PW03
FLAT WASHER #10
Price
N/A
242
X1812242
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
244
PLASTIC WASHER
Price
$1.60
250
HEX WRENCH 2.5MM
Price
N/A
251
HEX WRENCH 4MM
Price
N/A
252
HEX WRENCH 5MM
Price
N/A
253
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
301
FEED ROLL SPROCKET
Price
$3.45
302
FEED MOTOR 1/8 HP 220V V2.01.25
Price
N/A
302-1
*DISCD*FEED MOTOR POWER CORD V1
Price
$9.90
302-1V2
FEED MOTOR POWER CORD 18G 2W 3-3/8"
Price
N/A
302-2
FEED MOTOR BRUSH SET
Price
$15.25
302-3
PLASTIC LOCK SCREW
Price
$2.25
302-4
DRIVE GEAR
Price
$42.60
302-5
BRUSH HOLDER 1PC
Price
$5.20
302V2
FEED MOTOR 1/8 HP 220V V2.01.25
Price
$762.15
302V2-1
FEED MOTOR POWER CORD 18G 2W 3-3/8"
Price
$16.70
302V2-2
FEED MOTOR BRUSH SET
Price
$17.45
302V2-3
MOTOR BRUSH CAP
Price
$4.75
302V2-4
DRIVE GEAR
Price
$80.80
303
STEEL CONDUIT V1
Price
$6.45
303V2
STEEL CONDUIT V2.12.10
Price
$6.95
304
PLASTIC CONDUIT
Price
$5.20
305
*DISCD*STAND V1
Price
$315.95
305A
COMPLETE STAND ASSY BOX 2
Price
$1,174.75
305V2
STAND V2.12.10
Price
$615.25
306
FLANGE SCREW 10-24 X 3/8
Price
N/A
307
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
309
GROMMET 30MM
Price
$1.60
310
X1812310
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
310-1
HEX BOLT 5/16-18 X 1
Price
N/A
311
X1812311
Now: PW07
FLAT WASHER 5/16
Price
N/A
312
X1812312
Now: PN02
HEX NUT 5/16-18
Price
N/A
315
MACHINE POWER CORD 220V V1
Price
$21.00
315-1
CUTTERHEAD MOTOR POWER CORD V1
Price
$9.80
315-1V2
CUTTERHEAD MOTOR CORD 14G 3C V2.12.10
Price
$15.70
315-2
CONTROL PANEL POWER CORD V1
Price
$14.60
315-2V2
CONTROL PANEL CORD 18G 4C V2.12.10
Price
$17.40
315V2
POWER CORD 14G 3C 6-15 V2.12.10
Price
$38.40
316
STRAIN RELIEF PG6N-4
Price
$3.45
317
BALL BEARING 6201LU
Price
$12.90
318
SPRING PLATE BWW-6201
Price
$4.40
319
VARIABLE SPEED CONTROL KNOB
Price
$4.75
320
MOTOR COVER FRONT
Price
$33.55
321
BOTTOM COLOR STRIPE
Price
$5.35
322
UPPER COLOR STRIPE
Price
$8.75
323
*DISCD*TAP SCREW #6 X 3/8
Price
N/A
324
WORM GEAR
Price
$14.05
325
X1812325
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
326
PULLEY COVER V1
Price
$32.35
326V2
PULLEY COVER V2.12.10
Price
$32.30
327
X1812327
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
328
CABLE CLAMPS
Price
$2.20
329
GEARBOX COVER REAR
Price
$33.55
331
MAGNET
Price
$83.35
333
MOTOR CASE SCREW M5-.8 X 133
Price
$1.80
333V2
PHLP HD SCR M4-.7 X 115 V2.01.25
Price
$3.45
334
SET SCREW 10-24 X 1/4
Price
N/A
338
X1812338
Now: PW03
FLAT WASHER #10
Price
N/A
339
X1812339
Now: PN07
HEX NUT 10-24
Price
N/A
340
SPEED CONTROL SWITCH
Price
$49.90
342
CONSOLE UNIT
Price
$148.55
342-1
TAP SCREW M4 X 25
Price
N/A
350
X1812350
Now: PW06
FLAT WASHER 1/4
Price
N/A
351
CAP SCREW 1/4-20 X 2
Price
N/A
352
CHAIN COVER
Price
$67.45
353
INFEED ROLLER DRIVE CHAIN
Price
$7.25
354
OUTFEED ROLLER DRIVE CHAIN
Price
$10.25
355
BALL BEARING 6206-2RS
Price
N/A
356
LOCK WASHER 5MM
Price
N/A
358
BALL BEARING 608-2RS
Price
N/A
366
CHAIN TENSIONER FOOT
Price
$5.80
367
X1812367
Now: PN02
HEX NUT 5/16-18
Price
N/A
368
*DISCD*CONSOLE UNIT POWER CORD V1
Price
$5.50
368V2
CONSOLE POWER CORD 18G 2C V2.12.10
Price
$10.35
373
KEYED POWER SWITCH
Price
$50.75
374
CONTROL BOX
Price
$23.25
375
CONTROL BOX BRACKET
Price
$28.30
376
*DISCD*CONTROL PLATE V1
Item is no longer available
Price
N/A
376V2
CONTROL PANEL LABEL V2.12.10
Price
$18.25
377
ON SWITCH
Price
$15.25
378
OFF SWITCH
Price
$22.65
379
*DISCD*CONTROL CORD V1
Item is no longer available
Price
N/A
379V2
CONTROL CORD 24G 4C V2.12.10
Price
$11.15
380
PHLP HD SCR M5-.8 X 6
Price
N/A
381
END CAP
Price
$72.65
382
BRUSH HOUSING
Price
$8.40
382V2
MOTOR BRUSH HOUSING V2.01.25
Price
$60.55
383
*DISCD*THERMOCOUPLE
Item is no longer available
Price
N/A
384
STATOR HOUSING
Price
$31.15
384V2
STATOR HOUSING V2.01.25
Price
$101.00
385
EXT TOOTH WASHER 10MM
Price
N/A
386
BALL BEARING 6200-2RS
Price
N/A
387
*DISCD*ARMATURE
Item is no longer available
Price
N/A
387V2
ARMATURE V2.01.25
Price
$235.50
388
EXT RETAINING RING 16MM
Price
N/A
389
BALL BEARING 6203-2RS
Price
N/A
389V2
BALL BEARING 6000RS V2.01.25
Price
$11.65
390
BALL BEARING 6202ZZ
Price
N/A
391
*DISCD*SHIM
Item is no longer available
Price
N/A
392
KEY 5 X 5 X 20
Price
N/A
393
SPACER
Price
$1.60
393V2
SPACER 12 X 16 X 6MM, COPPER V2.01.25
Price
$12.15
394
LOCK WASHER 5MM
Price
N/A
395
PHLP HD SCR M5-.8 X 15
Price
N/A
396
COVER
Price
$17.05
396V2
GEAR BOX COVER FRONT V2.01.25
Price
$35.20
397
*DISCD*CASE
Item is no longer available
Price
N/A
397V2
GEARBOX V2.01.25
Price
$125.20
398
*DISCD*GEAR SHAFT
Price
$18.10
398V2
GEAR SHAFT V2.01.25
Price
$27.60
399
ROLL PIN 3 X 10
Price
N/A
400
Nameplate - Large
Price
N/A
401
COVER WARNING LABEL
Price
$0.90
402
ID LABEL V1
Price
$2.45
402V2
MACHINE ID LABEL - CSA V2.12.10
Price
$16.40
402V3
MACHINE ID LABEL-CSA V3.01.25
Price
$17.25
403
DISCONNECT 220V 2W X 3.3H
Price
N/A
404
EYE/LUNG HAZARD LABEL
Price
$2.25
405
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
406
ELECTRICITY 1.4W X 1.2H
Price
N/A
407
CUTTERHEAD WARNING LABEL
Price
$0.95
408
MACHINE NAME LABEL
Price
$1.75
409
DISCONNECT 220V 2W X 3.3H
Price
N/A
410
MODEL NUMBER LABEL
Price
$18.60
411
*DISCD*PATENTS PENDING LABEL
Item is no longer available
Price
N/A
412
MOTOR DUST LABEL
Price
$0.95
413
KNIFE CLEARANCE LABEL
Price
$3.65
500
CARTON FOR W1812 2PC
Price
$34.60
500-1
CARTON FOR W1812 MACHINE
Price
$20.80
500-2
CARTON FOR W1812 STAND
Price
$13.90
501
STYROFOAM FOR W1812 2PC
Price
$32.90
501-1
STYROFOAM FOR W1812 MACHINE BOX 1
Price
$19.10
501-2
STYROFOAM FOR W1812 STAND BOX 2
Price
$13.90
502
HARDWARE BAG
Price
$60.10
BOX1
COMPLETE MACHINE ASSEMBLY BOX 1
Price
$1,520.20
BOX2
COMPLETE STAND ASSY BOX 2
Price
N/A
MAN
MANUAL FOR W1812 12/10
Price
$17.95
