Parts for W1827 - 5 HP Shaper

Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827
Part Diagram for W1827

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

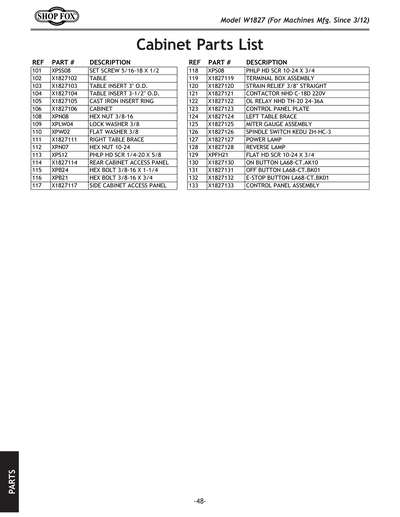

Ref #
Part #
Description

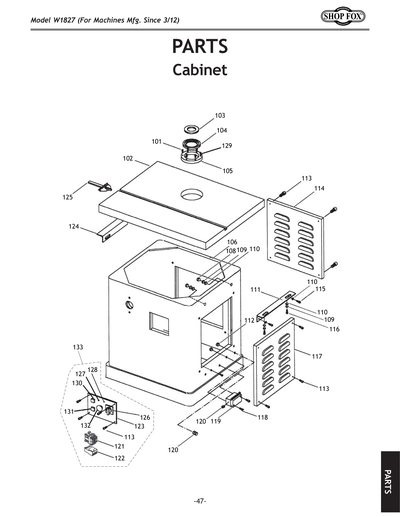

101
SET SCREW 5/16-18 X 1/2
Price
N/A
102
TABLE
Price
N/A
103
SMALL INNER
Price
N/A
104
MID-SIZED INSERT
Price
N/A
105
LARGE INSERT
Price
N/A
106
Price
$836.40
108
X1827108
Now: PN08
HEX NUT 3/8-16
Price
N/A
109
LOCK WASHER 3/8
Price
N/A
110
X1827110
Now: PW02
FLAT WASHER 3/8
Price
N/A
111
Price
$52.90
112
X1827112
Now: PN07
HEX NUT 10-24
Price
N/A
113
X1827113
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
114
REMOVABLE DUST DOOR
Price
N/A
115
X1827115
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
116
X1827116
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
117
SIDE CABINET ACCESS PANEL
Price
$225.65
118
X1827118
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
119
TERMINAL BOX ASSY
Price
N/A
120
CORD CLIP
Price
N/A
121
CONTACTOR
Price
N/A
122
OL RELAY
Price
N/A
123
Price
$29.50
124
Price
$52.90
125
Cast-Iron Miter Gauge
Price
N/A
126
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
N/A
127
Price
$11.95
128
Price
$11.95
129
FLAT HD SCR 10-24 X 3/4
Price
N/A
130
ON SWITCH ROUND V2.03.06
Price
N/A
131
OFF SWITCH ROUND V2.03.06
Price
N/A
132
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
133
CONTROL PANEL ASSY V2.03.06
Price
N/A

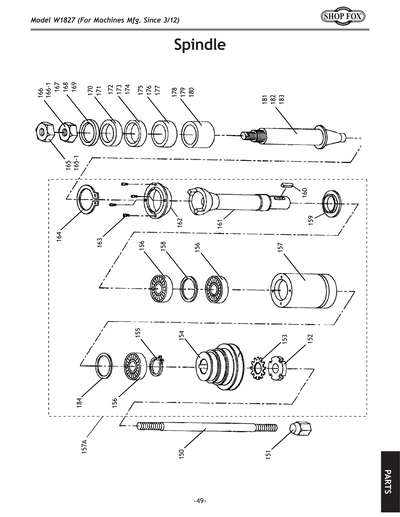

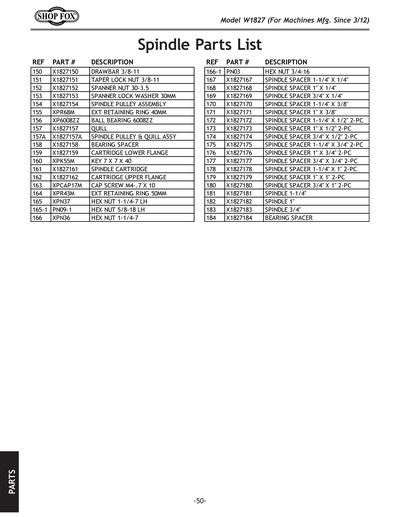

150
LOCK BOLT 5/8-11
Price
N/A
151
TAPER LOCK NUT
Price
N/A
152
Price
$19.10
153
SPANNER LOCK WASHER 30MM
Price
$7.85
154
SPINDLE PULLEY ASSEMBLY
Price
N/A
155
EXT RETAINING RING 40MM
Price
N/A
156
BALL BEARING 6008ZZ
Price
N/A
157
QUILL 7-3/4" LONG V2.01.02
Price
N/A
157A
PULLEY AND QUILL ASSEMBLY
Price
N/A
158
WAVY WASHER
Price
N/A
159
INNER DUST COVER
Price
N/A
160
KEY 7 X 7 X 40
Price
N/A
161
SPINDLE PULLEY ASSEMBLY
Price
N/A
162
OUTER DUST COVER
Price
N/A
163
CAP SCREW M4-.7 X 10
Price
N/A
164
EXT RETAINING RING 50MM
Price
N/A
165
HEX NUT 3/4-16 LH
Price
N/A
165-1
HEX NUT 5/8-18 LH
Price
N/A
166
X1827166
Now: PN32
HEX NUT 1-14
Price
N/A
166-1
HEX NUT 3/4-16
Price
N/A
167
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
168
COLLAR 1" X 1/4"
Price
N/A
169
COLLAR 3/4" X 1/4"
Price
N/A
170
COLLAR 1-1/4" X 3/8" 1PC
Price
N/A
171
COLLAR 1" X 3/8"
Price
N/A
172
COLLAR 1-1/4" X 1/2 2PC
Price
N/A
173
COLLAR 1" X 1/2"
Price
N/A
174
COLLAR 3/4" X 1/2"
Price
N/A
175
COLLAR 1-1/4" X 3/4" (2PC)
Price
N/A
176
COLLAR 1" X 3/4" 2PC
Price
N/A
177
SPINDLE 3/4" ASSY
Price
N/A
178
COLLAR 1-1/4" X 1" 2PC
Price
N/A
179
COLLAR 1" X 1" 2PC
Price
N/A
180
COLLAR 3/4" X 1" 2PC
Price
N/A
181
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
182
SPINDLE 1" ASSY
Price
N/A
183
***USE P5912Z036A-1***
Price
N/A
184
WAVY WASHER
Price
N/A

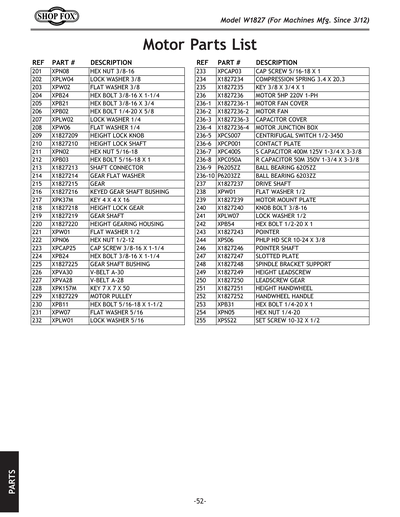

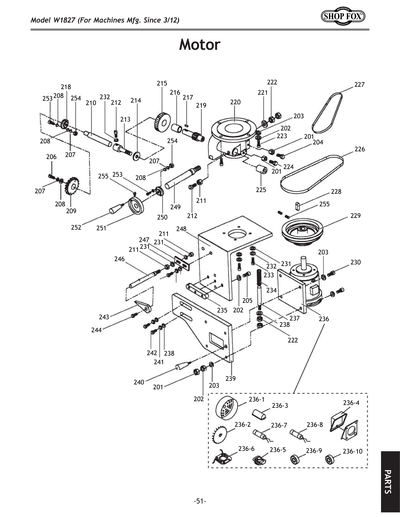

201
X1827201
Now: PN08
HEX NUT 3/8-16
Price
N/A
202
LOCK WASHER 3/8
Price
N/A
203
X1827203
Now: PW02
FLAT WASHER 3/8
Price
N/A
204
X1827204
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
205
X1827205
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
206
X1827206
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
207
LOCK WASHER 1/4
Price
N/A
208
X1827208
Now: PW06
FLAT WASHER 1/4
Price
N/A
209
LOCK KNOB
Price
N/A
210
BAR LOCK
Price
N/A
211
X1827211
Now: PN02
HEX NUT 5/16-18
Price
N/A
212
X1827212
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
213
SCREW LOCK
Price
N/A
214
WASHER GEAR
Price
N/A
215
GEAR
Price
N/A
216
COLLAR
Price
N/A
217
KEY 4 X 4 X 16
Price
N/A
218
BASE GEAR SHAFT
Price
N/A
219
SHAFT GEAR
Price
N/A
220
BASE SPINDLE
Price
N/A
221
X1827221
Now: PW01
FLAT WASHER 1/2
Price
N/A
222
X1827222
Now: PN06
HEX NUT 1/2-12
Price
N/A
223
CAP SCREW 5/16-18 X 1-3/4
Price
N/A
224
X1827224
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
225
COLLAR
Price
N/A
226
V-BELT A30
Price
N/A
227
V-BELT A28
Price
N/A
228
KEY 7 X 7 X 50
Price
N/A
229
MOTOR PULLEY
Price
N/A
230
X1827230
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
231
X1827231
Now: PW07
FLAT WASHER 5/16
Price
N/A
232
LOCK WASHER 5/16
Price
N/A
233
CAP SCREW 5/16-18 X 1
Price
N/A
234
COMPRESSION SPRING 3.4 X 20.3
Price
N/A
235
Price
$17.10
236
Price
$562.70
236-1
MOTOR FAN COVER
Price
N/A
236-10
BALL BEARING 6203ZZ
Price
N/A
236-2
MOTOR FAN
Price
N/A
236-3
CAPACITOR COVER
Price
N/A
236-4
MOTOR JUNCTION BOX
Price
N/A
236-5
CENT SWITCH 1/2-3450
Price
N/A
236-6
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
236-7
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
236-8
R CAPACITOR 50M 250V 1-3/4 X 2-3/4
Price
N/A
236-9
BALL BEARING 6205ZZ
Price
N/A
237
SHAFT
Price
N/A
238
X1827238
Now: PW01
FLAT WASHER 1/2
Price
N/A
239
MOTOR BASE
Price
N/A
240
KNOB
Price
N/A
241
LOCK WASHER 1/2
Price
N/A
242
X1827242
Now: PB54
HEX BOLT 1/2-20 X 1
Price
N/A
243
POINTER
Price
N/A
244
X1827244
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
246
SHAFT GUIDE
Price
N/A
247
PLATE
Price
N/A
248
MOTOR PLATE
Price
N/A
249
SHAFT GEAR
Price
N/A
250
BASE GEAR SHAFT
Price
N/A
251
METAL HANDWHEEL
Price
N/A
252
HANDLE
Price
N/A
253
X1827253
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
254
X1827254
Now: PN05
HEX NUT 1/4-20
Price
N/A
255
SET SCREW 10-32 X 1/2
Price
N/A
256
SET SCREW 3/8-16 X 1
Price
N/A
257
SET SCREW 3/8-16 X 1/2
Price
N/A

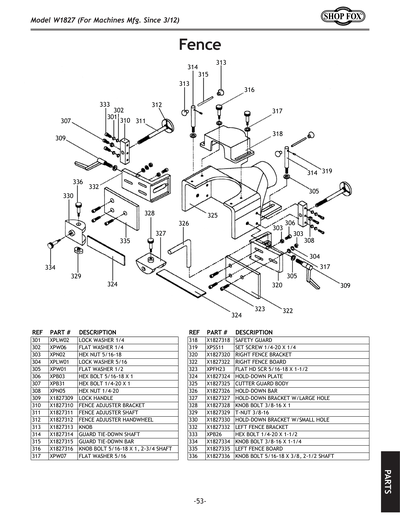

301
LOCK WASHER 1/4
Price
N/A
302
X1827302
Now: PW06
FLAT WASHER 1/4
Price
N/A
303
X1827303
Now: PN02
HEX NUT 5/16-18
Price
N/A
304
LOCK WASHER 5/16
Price
N/A
305
X1827305
Now: PW01
FLAT WASHER 1/2
Price
N/A
306
X1827306
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
307
X1827307
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
308
X1827308
Now: PN05
HEX NUT 1/4-20
Price
N/A
309
ADJ HANDLE 1/2" - 12
Price
N/A
310
BRACKET SCREW GUIDE
Price
N/A
311
SCREW GUIDE ASSY
Price
N/A
312
HANDLE WHEEL
Price
N/A
313
BALL KNOB 3/8-16 (PLASTIC)
Price
N/A
314
SHAFT GUIDE
Price
N/A
315
BAR
Price
N/A
316
KNOB 5/16-18 V1
Price
N/A
317
X1827317
Now: PW07
FLAT WASHER 5/16
Price
N/A
318
CUTTER GUARD COVER V2.01.17
Price
N/A
319
SET SCREW 1/4-20 X 1/4
Price
N/A
320
BRACKET ASSY FENCE RH
Price
N/A
322
BRACKET ASSY FENCE LH
Price
N/A
323
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
324
HOLD DOWN PLATE
Price
N/A
325
GUARD/DUST HOOD
Price
N/A
326
BAR
Price
N/A
327
RETAINER L 5/8"
Price
N/A
328
KNOB BOLT 3/8-16 X 1 V2.10.02
Price
N/A
329
NUT 3/8
Price
N/A
330
RETAINER S 1/2"
Price
N/A
332
BRACKET ASSY FENCE LH
Price
N/A
333
X1827333
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
334
KNOB BOLT 3/8-16 X 1
Price
N/A
335
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
336
KNOB
Price
N/A
337
KNOB BOLT 1/4-20 X 1/2
Price
N/A
338
FRONT GUARD EXTENSION PLATE
Price
N/A
339
FRONT SPINDLE ENCLOSURE GUARD
Price
N/A
401

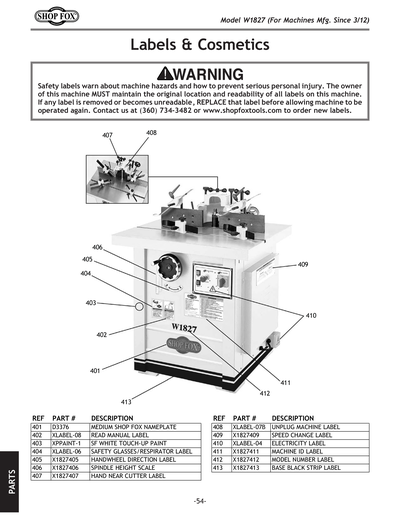

SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
402
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
403
SHOP FOX WHITE M1006
Price
N/A
404
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
405
ROTATION DIRECTION LABEL
Price
N/A
406
Price
$7.65
407
HAND NEAR CUTTER LABEL
Price
N/A
408
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
409
SPEED CHANGE LABEL
Price
N/A
410
ELECTRICITY 1.4W X 1.2H
Price
N/A
411
Price
$16.40
412
Price
$7.35
413
Price
$15.10
MAN
MANUAL W1827 MFG 3/12 V1.08.12
Price
$17.80
