Parts for W1830 - Hanging Air Filter

1/4

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

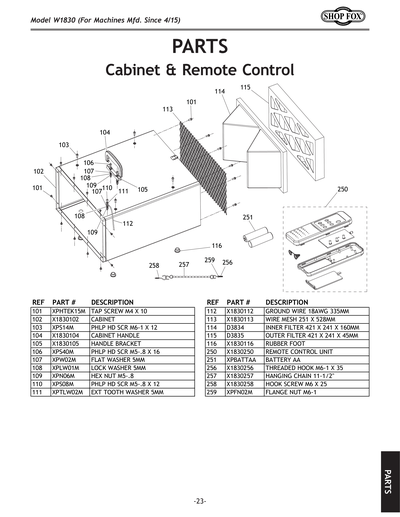

101
TAP SCREW M4 X 10
Price
N/A
102
CABINET
Price
$50.60
103
PHLP HD SCR M6-1 X 12
Price
N/A
104
CABINET HANDLE
Price
N/A
105
HANDLE BRACKET
Price
N/A
106
PHLP HD SCR M5-.8 X 16
Price
N/A
107
FLAT WASHER 5MM
Price
N/A
108
LOCK WASHER 5MM
Price
N/A
109
HEX NUT M5-.8
Price
N/A
110
PHLP HD SCR M5-.8 X 12
Price
N/A
111
EXT TOOTH WASHER 5MM
Price
N/A
112
GROUND WIRE 18AWG 335MM
Price
N/A
113
WIRE MESH 251 X 528MM
Price
N/A
114
Inner Filter for W1830
Price
N/A
115
Outer Filter for W1830
Price
N/A
116
RUBBER FOOT
Price
N/A
150
POWER CORD 18G 3W 72" 5-15
Price
N/A
151
STRAIN RELIEF 6P-4
Price
$0.90
152
PHLP HD SCR M5-.8 X 20
Price
N/A

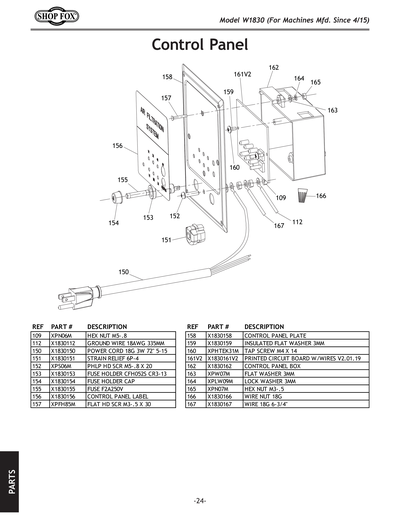

153
FUSE HOLDER CFTH052S CR3-13 W/CAP
Price
N/A
153A
FUSE HOLDER CFTH052S CR3-13 W/CAP
Price
$4.15
154
FUSE HOLDER CFTH052S CR3-13 W/CAP
Price
N/A
155
FUSE F2A250V
Price
$0.50
156
CONTROL PANEL LABEL
Price
$0.95
157
FLAT HD SCR M3-.5 X 30
Price
N/A
158
CONTROL PANEL PLATE
Price
$3.00
159
INSULATED FLAT WASHER 3MM
Price
$0.95
160
TAP SCREW M4 X 14
Price
N/A
161
PRINTED CIRCUIT BOARD W/WIRES V2.01.19
Price
$1.70
161V2
PRINTED CIRCUIT BOARD W/WIRES V2.01.19
Price
$1.45
162
CONTROL PANEL BOX
Price
N/A
163
FLAT WASHER 3MM
Price
N/A
164
LOCK WASHER 3MM
Price
N/A
165
HEX NUT M3-.5
Price
N/A
166
WIRE NUT 18G
Price
$1.49
167
WIRE 18G 6-3/4"
Price
$1.49

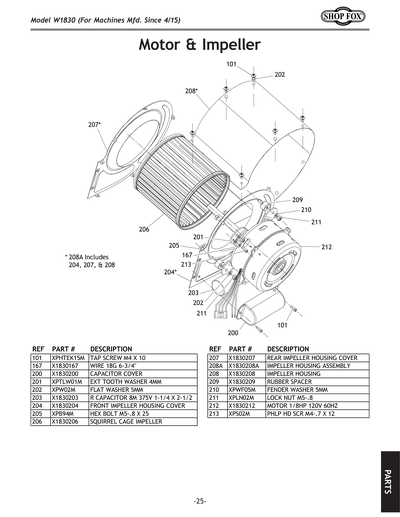

200
CAPACITOR COVER
Price
N/A
201
EXT TOOTH WASHER 4MM
Price
N/A
202
FLAT WASHER 5MM
Price
N/A
203
R CAPACITOR 8M 375V 1-1/4 X 2-1/2
Price
N/A
204
***USE P0738108***
Price
N/A
205
HEX BOLT M5-.8 X 25
Price
N/A
206
SQUIRREL CAGE IMPELLER
Price
N/A
207
***USE P0738108***
Price
N/A
208
***USE P0738108***
Price
N/A
208A
IMPELLER HOUSING ASSY
Price
N/A
209
RUBBER SPACER
Price
N/A
210
FENDER WASHER 5MM
Price
N/A
211
LOCK NUT M5-.8
Price
N/A
212
MOTOR 1/8HP 120V 60HZ
Price
$50.30
213
PHLP HD SCR M4-.7 X 12
Price
N/A
250
REMOTE CONTROL UNIT
Price
$7.65
251
BATTERY AA 12PK
Price
N/A
256
THREADED HOOK M6-1 X 35
Price
$0.80
257
HANGING CHAIN 11-1/2"
Price
$2.30
258
HOOK SCREW M6 X 25
Price
$0.70
259
FLANGE NUT M6-1
Price
N/A

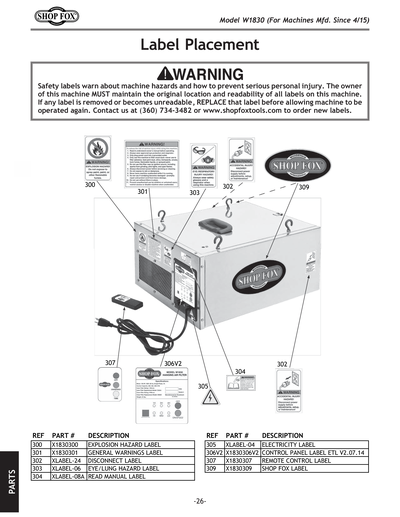

300
EXPLOSION HAZARD LABEL
Price
N/A
301
GENERAL WARNINGS LABEL
Price
N/A
302
DISCONNECT 110V 2W X 3.3H
Price
N/A
303
RESPIRATOR/GLASSES 2W X 3.3H
Price
N/A
304
READ MANUAL 2.8W X 1.5H
Price
N/A
305
ELECTRICITY 1.4W X 1.2H
Price
N/A
306
CONTROL PANEL LABEL CSA V1
Price
$0.90
306V2
CONTROL PANEL LABEL ETL V2.07.14
Price
$1.45
307
REMOTE CONTROL LABEL
Price
$2.00
309
SHOP FOX LABEL
Price
$0.90
MAN
MANUAL W1803 MFG 1/12 V1.02.12
Price
$1.30
PKG1
CARTON FOR W1830
Price
$8.90
