Parts for W1834 20" Universal Knife Sharpener

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

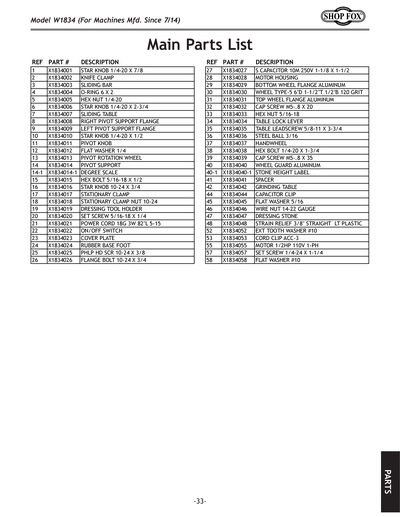

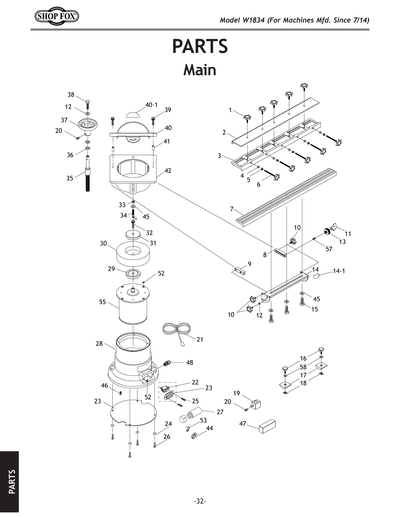

1
STAR KNOB 1/4-20 X 7/8
2
KNIFE CLAMP
3
SLIDING BAR
Price
N/A
4
O-RING 6 X 2
Price
N/A
5
Now: PN05
HEX NUT 1/4-20
Price
N/A
6
STAR KNOB 1/4-20 X 2-3/4
7
SLIDING TABLE
8
RIGHT PIVOT SUPPORT FLANGE
Price
N/A
9
LEFT PIVOT SUPPORT FLANGE
Price
N/A
10
STAR KNOB 1/4-20 X 1/2
11
PIVOT KNOB
Price
N/A
12
Now: PW06
FLAT WASHER 1/4
Price
N/A
13
PIVOT ROTATION WHEEL
14
PIVOT SUPPORT
Price
N/A
14-1
DEGREE SCALE
15
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
16
STAR KNOB 10-24 X 3/4
Price
N/A
17
STATIONARY CLAMP
Price
N/A
18
STATIONARY CLAMP NUT 10-24
Price
N/A
19
DRESSING TOOL HOLDER
Price
N/A
20
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
21
POWER CORD 18G 3W 82"L 5-15
Price
N/A
22
ON/OFF SWITCH V1
Price
N/A
23
COVER PLATE
Price
N/A
24
RUBBER BASE FOOT
Price
N/A
25
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
26
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
27
S CAPACITOR 10M 250V 1-1/8 X 1-1/2
28
MOTOR HOUSING
29
STEEL BOTTOM WHL FLANGE V1
Price
N/A
30
WHEEL TYPE-5 6"D 1-1/2"T 1/2"B 120 GRIT
31
***SEE EXT. DESCRIPTION***
Price
N/A
32
CAP SCREW M5-.8 X 15
Price
N/A
33
Now: PN02
HEX NUT 5/16-18
Price
N/A
34
TABLE LOCK LEVER
Price
N/A
35
TABLE LEADSCREW 5/8-11 X 3-3/4
36
*DISCD*STEEL BALL 3/16"
Price
N/A
37
HANDWHEEL
38
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
39
CAP SCREW M5-.8 X 35
Price
N/A
40
STEEL WHEEL GUARD V1
Price
N/A
40-1
STONE HEIGHT LABEL
41
SPACER
Price
N/A
42
GRINDING TABLE
42V2
GRINDING TABLE V2.07.24
44
CAPACITOR CLIP
Price
N/A
45
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
WIRE NUT 14-22 AWG
Price
N/A
47
DRESSING STONG
48
STRAIN RELIEF 3/8" STRAIGHT LT PLASTIC
49

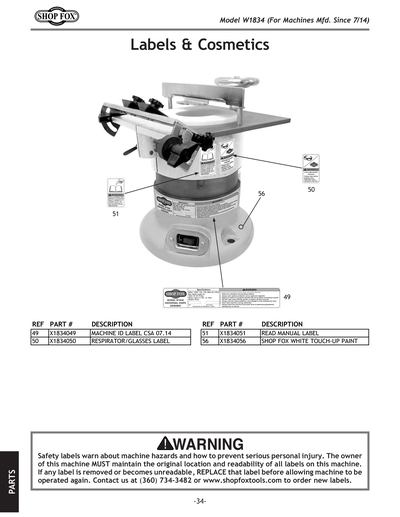

MACHINE ID LABEL CSA 07.14
50
RESPIRATOR/GLASSES
51
READ MANUAL 1.5W X 2.5H
Price
N/A
52
EXT TOOTH WASHER #10
Price
N/A
53
CORD CLIP ACC-3
Price
N/A
54
Now: PW08
FLAT WASHER #8
Price
N/A
55
MOTOR 1/2HP 110V 1-PH
Price
N/A
56
SHOP FOX WHITE M1006
Price
N/A
57
SET SCREW 1/4-24 X 1-1/4
BOX2
COMPLETE BOX 2 OF 2 FOR W1834
MANUAL
MANUAL W1834 MFD-07.14+ V1.10.14
