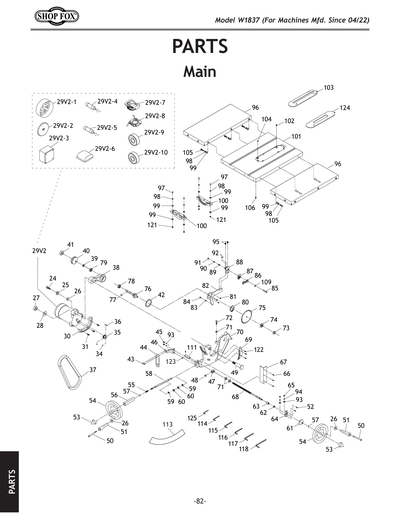

Parts for W1837 10" 2 HP Open Stand Hybrid Table Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

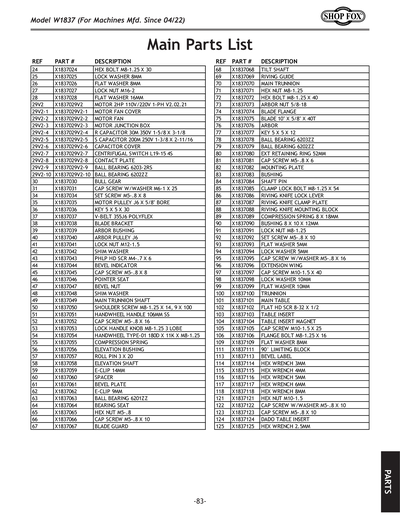

24
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
25
LOCK WASHER 8MM
Price
N/A
26
Now: PW01M
FLAT WASHER 8MM
Price
N/A
27
LOCK NUT M16-2
Price
N/A
28
Now: PW08M
FLAT WASHER 16MM
Price
N/A
29
MOTOR 2HP 110V/220V 1-PH
Price
N/A
29-1
MOTOR FAN COVER
Price
N/A
29-10
BALL BEARING 6202ZZ
Price
N/A
29-1V2
MOTOR FAN COVER
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
Price
N/A
29-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
N/A
29-6
CAPACITOR COVER
Price
N/A
29-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-8
***USE P0771029-7***
29-9
BALL BEARING 6203-2RS
Price
N/A
29V2
MOTOR 2HP 120/240V 1-PH V2.07.18
Price
N/A
29V2-1
MOTOR FAN COVER
Price
N/A
29V2-2
MOTOR FAN
29V2-3
MOTOR JUNCTION BOX
Price
N/A
29V2-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29V2-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
N/A
29V2-6
CAPACITOR COVER
Price
N/A
29V2-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29V2-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
30
BULL GEAR
Price
N/A
31
CAP SCREW M6-1 X 25
Price
N/A
34
SET SCREW M5-.8 X 8
Price
N/A
35
MOTOR PULLEY J6 X 5/8" BORE V2.06.15
Price
N/A
36
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
37
POLY-V BELT 355J6
Price
N/A
38
BLADE BRACKET
Price
N/A
39
ARBOR BUSHING
Price
N/A
40
ARBOR PULLEY
Price
N/A
41
LOCK NUT M12-1.5
Price
N/A
42
THRUST WASHER 52MM BLACK
Price
N/A
43
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
44
BEVEL INDICATOR
Price
N/A
45
CAP SCREW M5-.8 X 8
Price
N/A
46
POINTER SEAT
Price
N/A
47
BEVEL NUT
Price
N/A
48
SHIM WASHER
Price
N/A
49
MAIN TRUNNION SHAFT
Price
N/A
50
HANDLE BOLT
Price
N/A
51
HANDWHEEL HANDLE 106MM SS
52
CAP SCREW M5-.8 X 16
Price
N/A
53
LOCK HANDLE
Price
N/A
54
HANDWHEEL TYPE 1 180D X 11B-K X M8-1.25
Price
N/A
55
COMPRESSION SPRING
Price
N/A
56
ELEVATION BUSHING
Price
N/A
57
ROLL PIN 3 X 20
Price
N/A
58
ELEVATION SHAFT
Price
N/A
59
E-CLIP 14MM
Price
N/A
60
SPACER
61
BEVEL PLATE
Price
N/A
62
E-CLIP 9MM
Price
N/A
63
BALL BEARING 6201ZZ
Price
N/A
64
BEARING SEAT
Price
N/A
65
Now: PN06M
HEX NUT M5-.8
Price
N/A
66
CAP SCREW M5-.8 X 10
Price
N/A
67

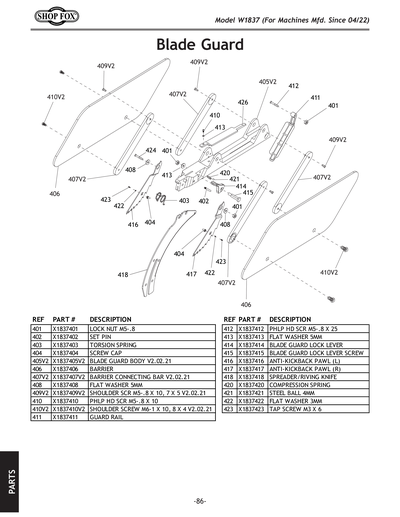

BLADE GUARD
Price
N/A
68
TILT SHAFT
Price
N/A
69
RIVING GUIDE
Price
N/A
70
MAIN TRUNNION
Price
N/A
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
73
Now: PN09
HEX NUT 5/8-18
Price
N/A
74
BLADE FLANGE
Price
N/A
75
BLADE 10" X 5/8" X 40T
Price
N/A
76
ARBOR
Price
N/A
77
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
78
BALL BEARING 6203ZZ
Price
N/A
79
BALL BEARING 6202ZZ
Price
N/A
80
Now: PR76M
EXT RETAINING RING 52MM
Price
N/A
81
CAP SCREW M5-.8 X 6
Price
N/A
82
MOUNTING PLATE
Price
N/A
83
BUSHING
Price
N/A
84
SHAFT PIN
Price
N/A
85
RIVING CLAMP LOCK BOLT M8-1.25 X 53
Price
N/A
86
RIVING LOCK LEVER
Price
N/A
87
RIVING CLAMP
Price
N/A
88
RIVING DECK
Price
N/A
89
COMPRESSION SPRING
Price
N/A
90
RIVING SEAT
Price
N/A
91
LOCK NUT M8-1.25
Price
N/A
92
SET SCREW M5-.8 X 10
Price
N/A
93
Now: PW02M
FLAT WASHER 5MM
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
CAP SCREW W/WASHER M5-.8 X 16
Price
N/A
96
EXTENSION WING
97
CAP SCREW M10-1.5 X 40
Price
N/A
98
LOCK WASHER 10MM
Price
N/A
99
Now: PW04M
FLAT WASHER 10MM
Price
N/A
100
TRUNNION
Price
N/A
101
MAIN TABLE
Price
N/A
102
Now: PFH43
FLAT HD SCR 8-32 X 1/2
Price
N/A
103
TABLE INSERT
Price
N/A
104
TABLE INSERT MAGNET
Price
N/A
105
CAP SCREW M10-1.5 X 25
Price
N/A
106
FLANGE BOLT M8-1.25 X 16
Price
N/A
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
111
90 DEG LIMITING BLOCK
Price
N/A
113

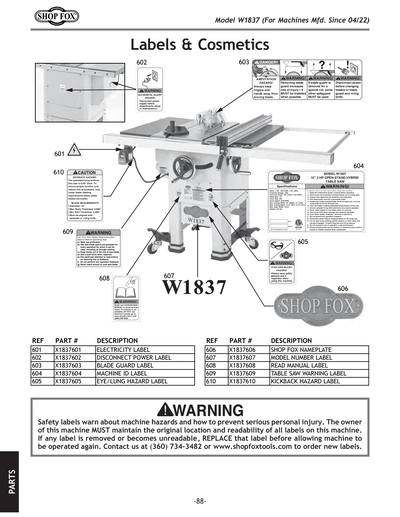

BEVEL LABEL
Price
N/A
114
HEX WRENCH 3MM
Price
N/A
115
HEX WRENCH 4MM
Price
N/A
116
HEX WRENCH 5MM
Price
N/A
117
HEX WRENCH 6MM
Price
N/A
118
HEX WRENCH 8MM
Price
N/A
119
SET SCR M8-1.25 X 20 CUP-PT NYLOCK
120
SET SCR M8-1.25 X 25 CUP-PT NYLOCK
121
Now: PN02M
HEX NUT M10-1.5
Price
N/A
122
CAP SCREW M5-.8 X 10
Price
N/A
123
CAP SCREW M5-.8 X 10
Price
N/A
124
DADO TABLE INSERT
Price
N/A
125
HEX WRENCH 2.5MM
Price
N/A
201
CAP SCREW M8-1.25 X 25
Price
N/A
201V2
CAP SCREW M10-1.5 X 40
Price
N/A
202
LOCK WASHER 8MM
Price
N/A
202V2
LOCK WASHER 10MM
Price
N/A
203
Now: PW01M
FLAT WASHER 8MM
Price
N/A
203V2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
204
Now: PN03M
HEX NUT M8-1.25
Price
N/A
204V2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
205

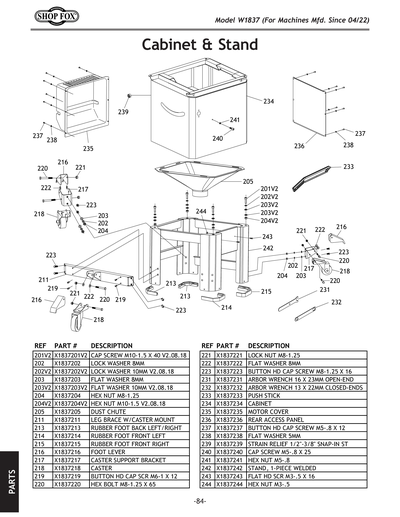

DUST CHUTE
206
SUPPORT LEG BACK LEFT
207
SUPPORT LEG BACK RIGHT
208
SUPPORT LEG FRONT LEFT
209
SUPPORT LEG FRONT RIGHT
210
LEG BRACE
211
LEG BRACE W/CASTER MOUNT
212
SHOP FOX LEG BRACE
213
RUBBER FOOT BACK LEFT/RIGHT
214
RUBBER FOOT FRONT LEFT
215
RUBBER FOOT FRONT RIGHT
216
FOOT LEVER
217
CASTER SUPPORT BRACKET
218
CASTER
219
CAP SCREW M6-1 X 12
Price
N/A
220
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
221
LOCK NUT M8-1.25
Price
N/A
222
Now: PW01M
FLAT WASHER 8MM
Price
N/A
223
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
224
LOCK NUT M3-.5
Price
N/A
225
Now: PS98M
PHLP HD SCR M3-.5 X 16
Price
N/A
231
ARBOR WRENCH 16 X 23MM OPEN-END
Price
N/A
232
ARBOR WRENCH 13 X 22MM CLOSED-ENDS
Price
N/A
233
PUSH STICK
Price
N/A
234
CABINET
235
MOTOR COVER
Price
N/A
236
REAR PANEL
Price
N/A
237
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
237V2
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
238
Now: PW02M
FLAT WASHER 5MM
Price
N/A
239
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
240
CAP SCREW M5-.8 X 25
Price
N/A
241
Now: PN06M
HEX NUT M5-.8
Price
N/A
242
STAND, 1-PIECE WELDED
243
FLAT HD SCR M3-.5 X 16
244
Now: PN07M
HEX NUT M3-.5
Price
N/A
300
COMPLETE FENCE AND RAIL ASSEMBLY V1
Price
N/A
300V2
COMPLETE FENCE AND RAIL ASSY V2.06.19
Price
N/A
300V2-1
REAR RAIL
Price
N/A
300V2-10
LIMIT SHAFT M12-1.75 X 25, 40L V1
Price
N/A
300V2-11
BALL BEARING 696-2RS
Price
N/A
300V2-12
CAP SCREW M6-1 X 12
Price
N/A
300V2-13
FENCE BASE V1
Price
N/A
300V2-14
FENCE FACE
300V2-15
FENCE FACE CAP V1
Price
N/A
300V2-16
CAP SCREW M8-1.25 X 85
Price
N/A
300V2-17
FENCE HANDLE END COVER
Price
N/A
300V2-18
FENCE HANDLE 19ID X 32OD X 90L
Price
N/A
300V2-19
HANDLE BASE SCR M8-1.25 X 8, 11 X 11
Price
N/A
300V2-2
REAR RAIL CAP
Price
N/A
300V2-20
FENCE HANDLE CAM
Price
N/A
300V2-21
SET SCREW M8-1.25 X 8
Price
N/A
300V2-22
COMPRESSION SPRING .8 X 5 X 15
Price
N/A
300V2-23
STEEL BALL 6MM
Price
N/A
300V2-24
SCALE LABEL V2.03.18
Price
N/A
300V2-25
TAP SCREW M3.5 X 8
Price
N/A
300V2-26
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
300V2-27
FRONT RAIL CAP RIGHT
Price
N/A
300V2-28
FRONT RAIL
Price
N/A
300V2-29
FRONT RAIL CAP LEFT
Price
N/A
300V2-3
CAP SCREW M8-1.25 X 25
Price
N/A
300V2-30
INDICATOR
Price
N/A
300V2-31
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
300V2-32
HEX BOLT M10-1.5 X 45
Price
N/A
300V2-33
LOCK NUT M10-1.5
Price
N/A
300V2-34
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
300V2-35
LOCK NUT M6-1
Price
N/A
300V2-36
SPRING PLATE
Price
N/A
300V2-37
SLIDE PLATE 30 X 24 X 2
Price
N/A
300V2-38
SLIDE PLATE 50 X 20 X 2
Price
N/A
300V2-39
KNURLED NUT M10-1.5
Price
N/A
300V2-4
Now: PN03M
HEX NUT M8-1.25
Price
N/A
300V2-40
SET SCREW M10-1.5 X 15, PLASTIC TIP
Price
N/A
300V2-41
SCALE LABEL (R)
300V2-42
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
300V2-43
CAP SCREW M8-1.25 X 16
Price
N/A
300V2-44
CONNECTION PLATE (L)
300V2-45
CONNECTION PLATE (R)
300V2-46
RAIL BRACE
300V2-5
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
300V2-6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
300V2-7
Now: PN01M
HEX NUT M6-1
Price
N/A
300V2-8
FENCE ASSEMBLY CAP V2.06.19
Price
N/A
300V2-9
Now: PN58M
HEX NUT M12-1.75 THIN
Price
N/A
300V3
COMPLETE FENCE AND RAIL ASSY V2.06.19
Price
N/A
300V3-1
***USE P0771Z301***
Price
N/A
300V3-10
LIMIT SHAFT M6-1
300V3-11
BALL BEARING 696-2RS
Price
N/A
300V3-12
CAP SCREW M5-.8 X 12
Price
N/A
300V3-13
FENCE BASE V2.06.19
Price
N/A
300V3-15
FENCE FACE CAP V2.06.19
Price
N/A
300V3-16
CAP SCREW M8-1.25 X 85
Price
N/A
300V3-17
FENCE HANDLE END COVER
Price
N/A
300V3-18
FENCE HANDLE 19ID X 32OD X 90L
Price
N/A
300V3-19
HANDLE BASE SCR M8-1.25 X 8, 11 X 11
Price
N/A
300V3-2
REAR RAIL CAP
Price
N/A
300V3-20
FENCE HANDLE CAM
Price
N/A
300V3-21
SET SCREW M8-1.25 X 8
Price
N/A
300V3-22
COMPRESSION SPRING .8 X 5 X 15
Price
N/A
300V3-23
STEEL BALL 6MM
Price
N/A
300V3-24
SCALE LABEL V2.03.18
Price
N/A
300V3-25
TAP SCREW M3.5 X 8
Price
N/A
300V3-26
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
300V3-27
FRONT RAIL CAP RIGHT
Price
N/A
300V3-28
FRONT RAIL
Price
N/A
300V3-29
FRONT RAIL CAP LEFT
Price
N/A
300V3-3
CAP SCREW M8-1.25 X 25
Price
N/A
300V3-30
INDICATOR
Price
N/A
300V3-31
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
300V3-32
HEX BOLT M10-1.5 X 45
Price
N/A
300V3-33
LOCK NUT M10-1.5
Price
N/A
300V3-34
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
300V3-35
LOCK NUT M6-1
Price
N/A
300V3-36
SPRING PLATE
Price
N/A
300V3-37
SLIDE PLATE 30 X 24 X 2
Price
N/A
300V3-38
SLIDE PLATE 50 X 20 X 2
Price
N/A
300V3-39
KNURLED NUT M10-1.5
Price
N/A
300V3-4
Now: PN03M
HEX NUT M8-1.25
Price
N/A
300V3-40
SET SCREW M10-1.5 X 15, PLASTIC TIP
Price
N/A
300V3-42
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
300V3-43
CAP SCREW M8-1.25 X 16
Price
N/A
300V3-44
CONNECTION PLATE (L)
Price
N/A
300V3-45
CONNECTION PLATE (R)
Price
N/A
300V3-46
RAIL BRACE
Price
N/A
300V3-47
FENCE FIXED SEAT
Price
N/A
300V3-48
CAP SCREW M8-1.25 X 16
Price
N/A
300V3-49
TAP SCREW M4.2 X 13
Price
N/A
300V3-50
FENCE PLATE
Price
N/A
300V3-8
FENCE ASSEMBLY CAP
300V3-9
Now: PN01M
HEX NUT M6-1
Price
N/A
300V4-19
HANDLE BASE SCR M10-1.5 X 8 V2.01.21
300V4-20
FENCE HANDLE CAM M10-1.5 V2.01.21
301
TAP SCREW M4 X 10
Price
N/A
302
LEFT FRONT RAIL CAP
303
LEFT FRONT RAIL
304
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
305
LOCK WASHER 8MM
Price
N/A
306
Now: PN03M
HEX NUT M8-1.25
Price
N/A
307
SWITCH BRACKET
307-1
LOCKOUT PIN AND CHAIN
308
SWITCH BOX V1
308V2
SWITCH BOX V2.08.17
308V3
SWITCH BOX V3.06.24
309
SWITCH PANEL
310
TAP SCREW M4 X 14
Price
N/A
311
SWITCH PADDLE V1
311V2
SWITCH PADDLE V2.09.17
312
SWITCH KEDU HY18-20 V1
312V2
SWITCH KEDU HY56-3 V2.09.17
312V3
SWITCH KEDU KJD17B V3.06.24
312X
SWITCH KEDU KJD17B/240V
314
CAP SCREW M6-1 X 12
Price
N/A
315
Now: PW03M
FLAT WASHER 6MM
Price
N/A
316
*DISCD*UPPER FENCE CASTING
Price
N/A
317
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
318
*DISCD*INDICATOR
Price
N/A
319
LOWER FENCE CASTING
Price
N/A
320
SLIDER
Price
N/A
321
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
322
FENCE HANDLE SEAT
Price
N/A
323
FENCE LOCKING CAM SHAFT
Price
N/A
324
INNER PAD
Price
N/A
325
OUTER PAD
Price
N/A
326
FENCE HANDLE
Price
N/A
327
*DISCD*FENCE HANDLE BOLT
Price
N/A
328
FENCE HANDLE END CAP
Price
N/A
329
RIGHT FRONT RAIL
Price
N/A
330
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
332
RIGHT FRONT RAIL CAP
Price
N/A
333
FENCE
Price
N/A
333A
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
334
FENCE END CAP
Price
N/A
336
*DISCD*INNER LOCK PLATE
Price
N/A
337
SPRING PLATE
Price
N/A
338
OUTER LOCK PLATE
Price
N/A
339
TAP SCREW M4 X 20
Price
N/A
339V2
TAP SCREW M4 X 25
Price
N/A
340
LEFT REAR RAIL CAP
Price
N/A
341
LEFT REAR RAIL
342
CAP SCREW M8-1.25 X 20
Price
N/A
343
CONNECTING BAR
Price
N/A
343-1
SET SCREW M6-1 X 8
Price
N/A
344
RIGHT REAR RAIL
Price
N/A
345
RIGHT REAR RAIL CAP
Price
N/A
346
LOCK NUT M8-1.25
Price
N/A
347
Now: PW01M
FLAT WASHER 8MM
Price
N/A
348
LINKAGE SHAFT
Price
N/A
350
Now: PW05M
FLAT WASHER 4MM
Price
N/A
351
RAIL BRACE
Price
N/A
352
SET SCREW M8-1.25 X 20 PLASTIC
Price
N/A
353
CAP SCREW M6-1 X 12
Price
N/A
354
FENCE LOCK PLATE
Price
N/A
355
SQUARE NUT M6-1
Price
N/A
356
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
357
POWER CORD 14G 3W 72" 5-15P
Price
N/A
357V2
MOTOR CORD 14G 3W 47" V2.06.24
357X
POWER CORD 14G 3W 78" 6-15P
358
MOTOR CORD 14G 3W 39"
Price
N/A
358V2
POWER CORD 14G 3W 78" 5-15P V2.06.24
359
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
360
LOCK WASHER 5MM
Price
N/A
361
INT TOOTH WASHER 5MM
Price
N/A
362
LEFT FENCE SCALE
Price
N/A
363
RIGHT FENCE SCALE
Price
N/A
364
ADJUSTABLE CABLE CLAMP
Price
N/A
401
LOCK NUT M5-.8
Price
N/A
402
SET PIN
Price
N/A
403
TORSION SPRING
Price
N/A
404
SCREW CAP
Price
N/A
405
BLADE GUARD BODY
Price
N/A
405V2
BLADE GUARD BODY V2.01.21
Price
N/A
406
BARRIER
Price
N/A
407
BARRIER CONNECTING BAR
Price
N/A
407V2
BARRIER CONNECTING BAR V2.01.21
Price
N/A
408
Now: PW02M
FLAT WASHER 5MM
Price
N/A
409
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
409V2
SHOULDER SCR M5-.8 X 10, 7 X 5 V2.01.21
Price
N/A
410
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
410V2
SHOULDER SCREW M6-1 X 10, 8 X 4 V2.01.21
Price
N/A
411
GUARD RAIL
Price
N/A
412
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
413
Now: PW02M
FLAT WASHER 5MM
Price
N/A
414
BLADE GUARD LOCK LEVER
Price
N/A
415
BLADE GUARD LOCK LEVER SCREW
Price
N/A
416
ANTI-KICKBACK PAWL (L)
Price
N/A
417
ANTI-KICKBACK PAWL (R)
Price
N/A
418
SPREADER/RIVING KNIFE
Price
N/A
420
COMPRESSION SPRING
Price
N/A
421
STEEL BALL 4MM
Price
N/A
422
Now: PW07M
FLAT WASHER 3MM
Price
N/A
423
TAP SCREW M3 X 6
Price
N/A
424
CAP SCREW M5-.8 X 30
Price
N/A
426
BLADE GUARD WINDOW COVER
Price
N/A
501
FLAT PLATE
Price
N/A
502
SPRING PLATE COVER
Price
N/A

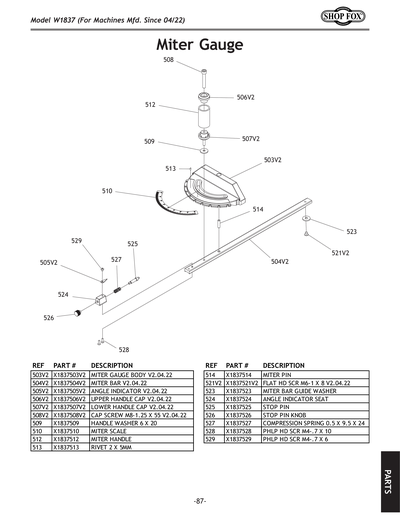

503
MITER GAUGE BODY
Price
N/A
503V2
MITER GAUGE BODY V2.04.22
Price
N/A
504
MITER BAR
Price
N/A
504V2
MITER BAR V2.04.22
Price
N/A
505
ANGLE INDICATOR
Price
N/A
505V2
ANGLE INDICATOR V2.04.22
Price
N/A
506
UPPER HANDLE CAP
Price
N/A
506V2
UPPER HANDLE CAP V2.04.22
Price
N/A
507
LOWER HANDLE CAP
Price
N/A
507V2
LOWER HANDLE CAP V2.04.22
Price
N/A
508
CAP SCREW M8-1.25 X 50
Price
N/A
509
FENDER WASHER 6MM
Price
N/A
510
MITER SCALE
Price
N/A
511
SPRING PLATE
Price
N/A
512
MITER HANDLE
Price
N/A
513
RIVET
Price
N/A
514
MITER PIN
Price
N/A
515
FLAT HD SCR 4-40 X 3/16
Price
N/A
516
Now: PSS34
SET SCREW 10-24 X 1/2
Price
N/A
517
THREADED STOP PIN
Price
N/A
518
Now: PW07M
FLAT WASHER 3MM
Price
N/A
519
Now: PS80
PHLP HD SCR 10-32 X 1/4
Price
N/A
520
Now: PS121
PHLP HD SCR 6-32 X 7/16
Price
N/A
521
FLAT HD SCR 1/4-28 X 5/16
Price
N/A
521V2
FLAT HD SCR M6-1 X 8
Price
N/A
522
SET SCREW 10-32 X 1/4
Price
N/A
523
FENDER WASHER 6MM
Price
N/A
524
ANGLE INDICATOR SEAT
Price
N/A
525
STOP PIN
Price
N/A
526
STOP PIN KNOB
Price
N/A
527
COMPRESSION SPRING 0.5 X 9.5 X 24
Price
N/A
528
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
529
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
601
ELECTRICITY 0.7W X 0.6H
Price
N/A
602
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
603
BLADE GUARD LABEL
604
***SEE EXT DESC***
Item is no longer available
Price
N/A
604-1
MACHINE ID LABEL (CN)
604-2
MACHINE ID LABEL (TW)
605
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
606
Now: D3376
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
607
MODEL NUMBER LABEL
608
READ MANUAL 2.8W X 1.5H
Price
N/A
609
TABLE SAW WARNING LABEL
610
KICKBACK HAZARD LABEL
BOX2
*** USE BXW183702***
MAN
MANUAL W1837 MFD-01.15-05.17 V1.10.15 CN
MANV2
MANUAL W1837 MFD-06.17-08.17 V2.08.17 CN
MANV3
MANUAL W1837 MFD-09.17-07.18 V3.10.17 CN
MANV4
MANUAL W1837 MFD-08.18-05.19 V4.08.18 CN
MANV5
MANUAL W1837 MFD-06.19-01.21 V5.10.19 CN
MANV6
MANUAL W1837 MFD-02.21-03.22 V6.05.21 TW
MANV7
MANUAL W1837 MFD-07.21+ V7.07.21 CN
MANV8
MANUAL W1837 MFD-04.22-05.24 V8.03.22
MANV9
MANUAL W1837 MFD-06.24+ V9.06.24
PKG1
CARTON FOR W1837 BOX 1 OF 2
PKG2
CARTON FOR W1837 BOX 2 OF 2
