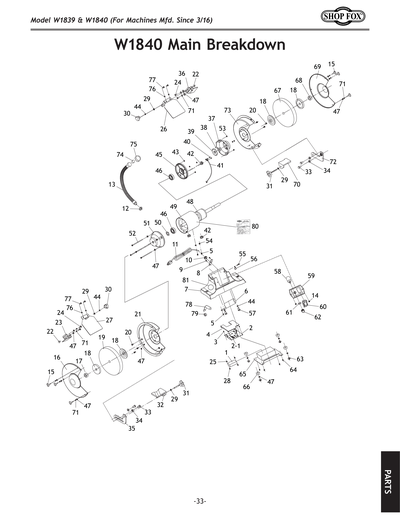

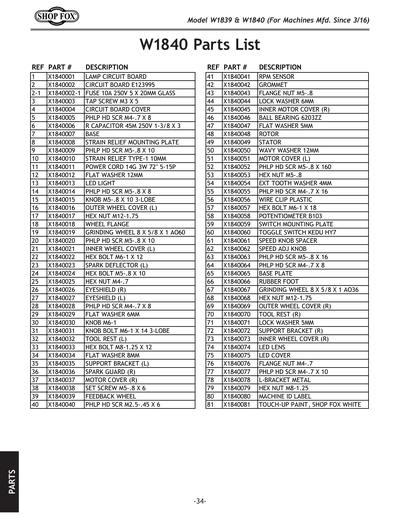

Parts for W1840 8" Variable-Speed Grinder with Work Light

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
LAMP CIRCUIT BOARD
Price
N/A
2
CIRCUIT BOARD
3
TAP SCREW M3 X 5
Price
N/A
4
CIRCUIT BOARD COVER
Price
N/A
5
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
6
R CAPACITOR 45M 250V 1-3/8 X 3
7
BASE
8
STRAIN RELIEF MOUNTING PLATE
Price
N/A
9
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
10
STRAIN RELIEF TYPE-1 10MM
Price
N/A
11
POWER CORD 14G 3W 72" 5-15P
Price
N/A
12
Now: PW06M
FLAT WASHER 12MM
Price
N/A
13
LED LIGHT
Price
N/A
14
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
15
KNOB BOLT M5-.8 X 10 3-LOBE
Price
N/A
16
OUTER WHEEL COVER (L)
17
Now: PN09M
HEX NUT M12-1.75
Price
N/A
18
WHEEL FLANGE
19
GRINDING WHEEL 8 X 5/8 X 1 AO60
20
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
21
INNER WHEEL COVER (L)
22
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
23
SPARK DEFLECTOR (L)
Price
N/A
24
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
25
Now: PN04M
HEX NUT M4-.7
Price
N/A
26
EYESHIELD (R)
Price
N/A
27
EYESHIELD (L)
Price
N/A
28
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
29
Now: PW03M
FLAT WASHER 6MM
Price
N/A
30
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
31
KNOB BOLT M6-1 X 14 3-LOBE
Price
N/A
32
TOOL REST (L)
Price
N/A
33
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
34
Now: PW01M
FLAT WASHER 8MM
Price
N/A
35
SUPPORT BRACKET (L)
Price
N/A
36
SPARK DEFLECTOR (R)
Price
N/A
37
MOTOR COVER (R)
38
SET SCREW M5-.8 X 6
Price
N/A
39
FEEDBACK WHEEL
Price
N/A
40
PHLP HD SCR M2.5 - .45 X 6
Price
N/A
41
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
42
GROMMET
Price
N/A
43
FLANGE NUT M5-.8
Price
N/A
44
LOCK WASHER 6MM
Price
N/A
45
INNER MOTOR COVER (R)
46
BALL BEARING 6203ZZ
Price
N/A
47
Now: PW02M
FLAT WASHER 5MM
Price
N/A
48
ROTOR
49
STATOR
50
WAVY WASHER 12MM
Price
N/A
51
MOTOR COVER (L)
52
PHLP HD SCR M5-.8 X 160
53
Now: PN06M
HEX NUT M5-.8
Price
N/A
54
EXT TOOTH WASHER 4MM
Price
N/A
55
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
56
WIRE CLIP PLASTIC
Price
N/A
57
Now: PB91M
HEX BOLT M6-1 X 18
Price
N/A
58
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
59
SWITCH MOUNTING PLATE
Price
N/A
60
TOGGLE SWITCH KEDU HY7
Price
N/A
61
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
62
SPEED ADJ KNOB
63
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
64
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
65
BASE PLATE
66
RUBBER FOOT
Price
N/A
67
GRINDING WHEEL 8 X 5/8 X 1 AO36
68
Now: PN09M
HEX NUT M12-1.75
Price
N/A
69
OUTER WHEEL COVER (R)
70
TOOL REST (RIGHT)
Price
N/A
71
LOCK WASHER 5MM
Price
N/A
72
SUPPORT BRACKET (R)
Price
N/A
73
INNER WHEEL COVER (R)
74
LED LENS AND COVER
Price
N/A
75
LED LENS AND COVER
Price
N/A
76
FLANGE NUT M4-.7
Price
N/A
77
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
78
L-BRACKET METAL
Price
N/A
79
Now: PN03M
HEX NUT M8-1.25
Price
N/A
80
MACHINE ID LABEL
81
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1839/W1840 MFD-05.16 V1.05.16
Price
N/A
PKG1
BOX FOR W1840
