Parts for W1847 1 HP Buffing System

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

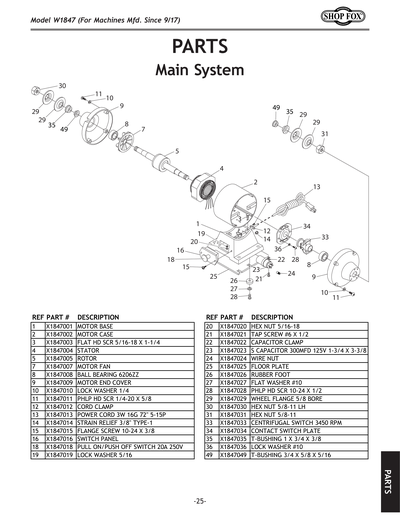

1
MOTOR BASE
2
MOTOR CASE
3
Now: PFH07
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
4
STATOR
5
ROTOR
7
MOTOR FAN
8
BALL BEARING 6206ZZ
Price
N/A
9
MOTOR END COVER
10
Now: PLW02
LOCK WASHER 1/4
Price
N/A
11
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
12
CORD CLAMP
13
POWER CORD 3W 16G 72" 5-15P
14
STRAIN RELIEF 3/8" TYPE-1
15
Now: PFS17
FLANGE SCREW 10-24 X 1/2
Price
N/A
16
SWITCH PANEL
18
PULL ON/PUSH OFF SWITCH 20A 250V
19
Now: PLW01
LOCK WASHER 5/16
Price
N/A
20
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
TAP SCREW #6 X 1/2
Price
N/A
22
CAPACITOR CLAMP
23
S CAPACITOR 300MFD 125V 1-3/4 X 3-3/8
24
WIRE NUT
25
FLOOR PLATE
26
FENDER WASHER #10
27
Now: PW03
FLAT WASHER #10
Price
N/A
28
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
29
WHEEL FLANGE 5/8" BORE
Price
N/A
30
Now: PN27
HEX NUT 5/8-11 LH
Price
N/A
31
Now: PN04
HEX NUT 5/8-11
Price
N/A
33
CENTRIFUGAL SWITCH 3450 RPM
34
CONTACT SWITCH PLATE
35
T-BUSHING 1 X 3/4 X 3/8
36
Now: PLW03
LOCK WASHER #10
Price
N/A
49
T-BUSHING 3/4 X 5/8 X 5/16

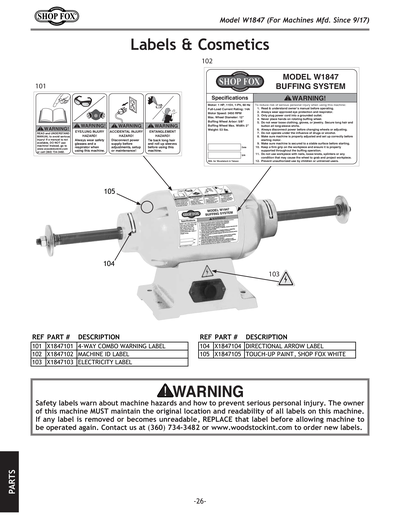

101
4-WAY COMBO WARNING LABEL
102
MACHINE ID LABEL
103
ELECTRICITY 0.7W X 0.6H
Price
N/A
104
DIRECTIONAL ARROW LABEL
105
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1847 MFD-03.17 V1.07.17
