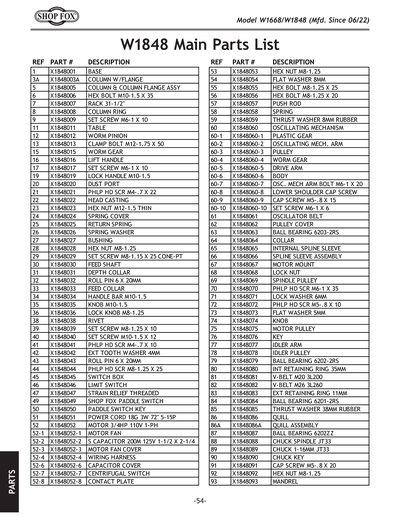

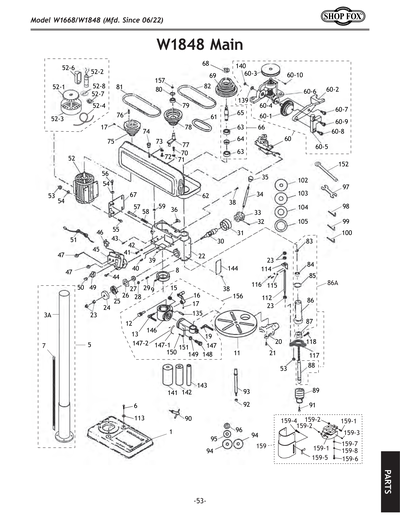

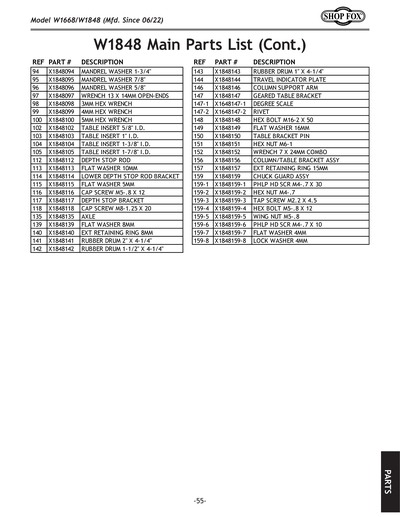

Parts for W1848 13-1/4" Oscillating Floor Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
COLUMN W/FLANGE
Price
N/A
3
COLUMN W/FLANGE
Price
N/A
3A
COLUMN W/FLANGE
5
COLUMN & COLUMN FLANGE ASSY
6
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
7
RACK 31-1/2"
8
COLUMN RING
Price
N/A
9
SET SCREW M6-1 X 10
Price
N/A
11
TABLE V2.05.03
Price
N/A
12
WORM PINION
Price
N/A
13
CLAMP BOLT M12-1.75 X 50
Price
N/A
15
WORM GEAR
Price
N/A
16
LIFT HANDLE
Price
N/A
17
SET SCREW M6-1 X 10
Price
N/A
19
LOCK HANDLE M10-1.5
Price
N/A
20
DUST PORT
Price
N/A
21
Now: PS36M
PHLP HD SCR M4-.7 X 22
Price
N/A
22
HEAD CASTING
Price
N/A
24
SPRING COVER
Price
N/A
25
RETURN SPRING
Price
N/A
26
SPRING WASHER
Price
N/A
27
BUSHING
Price
N/A
28
Now: PN03M
HEX NUT M8-1.25
Price
N/A
29
SET SCREW M8-1.25 X 25 CONE-PT
Price
N/A
30
FEED SHAFT
Price
N/A
31
DEPTH COLLAR V1.08.00
Price
N/A
32
ROLL PIN 6 X 20
Price
N/A
33
FEED COLLAR
Price
N/A
34
HANDLE BAR M10-1.5
Price
N/A
35
KNOB M10-1.5
Price
N/A
36
LOCK KNOB M8-1.25
Price
N/A
38
RIVET
Price
N/A
39
SET SCREW M8-1.25 X 10
Price
N/A
40
SET SCREW M10-1.5 X 12
Price
N/A
41
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
42
EXT TOOTH WASHER 4MM
Price
N/A
43
ROLL PIN 6 X 20
Price
N/A
44
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
45
SWITCH BOX
Price
N/A
46
LIMIT SWITCH
Price
N/A
47
STRAIN RELIEF THREADED V2.08.09
Price
N/A
49
Now: D2751
Paddle Switch 125V/250V
Price
N/A
50
PADDLE SWITCH KEY
Price
N/A
51
POWER CORD 18G 3W 108" 5-15P
Price
N/A
52
MOTOR 3/4HP 110V 1-PH
Price
N/A
52-1
MOTOR FAN
Price
N/A
52-2
S CAPACITOR 200M 125V 1-1/2 X 2-1/4
Price
N/A
52-3
MOTOR FAN COVER
Price
N/A
52-4
WIRING HARNESS
Price
N/A
52-6
CAPACITOR COVER
Price
N/A
52-7
CENTRIFUGAL SWITCH
Price
N/A
52-8
CONTACT PLATE
Price
N/A
53
Now: PN03M
HEX NUT M8-1.25
Price
N/A
54
Now: PW01M
FLAT WASHER 8MM
Price
N/A
55
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
56
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
57
PUSH ROD
Price
N/A
58
SPRING
Price
N/A
59
THRUST WASHER 8MM RUBBER
Price
N/A
60
OSCILLATING MECHANISM
Price
N/A
60-1
PLASTIC GEAR
Price
N/A
60-10
SET SCREW M6-1 X 6
Price
N/A
60-2
OSCILLATING MECH. ARM
Price
N/A
60-3
PULLEY
Price
N/A
60-4
WORM GEAR
Price
N/A
60-5
DRIVE ARM
Price
N/A
60-6
BODY
Price
N/A
60-7
OSC. MECH ARM BOLT M6-1 X 20
Price
N/A
60-8
LOWER SHOULDER CAP SCREW
Price
N/A
60-9
CAP SCREW M5-.8 X 15
Price
N/A
61
OSCILLATOR BELT
Price
N/A
62
PULLEY COVER
Price
N/A
63
BALL BEARING 6203-2RS
Price
N/A
64
COLLAR
Price
N/A
65
INTERNAL SPLINE SLEEVE
Price
N/A
66
SPLINE SLEEVE ASSEMBLY
Price
N/A
67
MOTOR MOUNT
Price
N/A
68
LOCK NUT M17-1.25 LH
Price
N/A
69
SPINDLE PULLEY
Price
N/A
70
Now: PS31M
PHLP HD SCR M6-1 X 35
Price
N/A
71
LOCK WASHER 6MM
Price
N/A
72
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
73
Now: PW02M
FLAT WASHER 5MM
Price
N/A
74
KNOB
Price
N/A
75
MOTOR PULLEY
Price
N/A
76
KEY
Price
N/A
77
IDLER ARM
Price
N/A
78
IDLER PULLEY
Price
N/A
79
BALL BEARING 6202-2RS
Price
N/A
80
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
81
Now: PVM20
V-BELT M20 3L200
Price
N/A
82
Now: PVM26
V-BELT M26 3L260
Price
N/A
83
Now: PR48M
EXT RETAINING RING 11MM
Price
N/A
84
BALL BEARING 6201-2RS
Price
N/A
85
THRUST WASHER 38MM RUBBER
Price
N/A
86
QUILL V1.08.00
Price
N/A
86A
QUILL ASSEMBLY V3.06.01
Price
N/A
87
BALL BEARING 6202ZZ
Price
N/A
88
CHUCK SPINDLE JT33 V2.01.05
Price
N/A
89
CHUCK W/KEY
Price
N/A
90
CHUCK KEY
Price
N/A
91
CAP SCREW M5-.8 X 20
Price
N/A
92
Now: PN03M
HEX NUT M8-1.25
Price
N/A
93
MANDREL
Price
N/A
94
MANDREL WASHER 5/8" X 1-3/4"
Price
N/A
95
MANDREL WASHER 3/8" X 7/8"
Price
N/A
96
MANDREL WASHER 3/8" X 5/8"
Price
N/A
97
WRENCH 13 X 14MM OPEN-ENDS
Price
N/A
98
HEX WRENCH 3MM
Price
N/A
99
HEX WRENCH 4MM
Price
N/A
100
HEX WRENCH 5MM
Price
N/A
102
TABLE INSERT 5/8" I.D.
Price
N/A
103
TABLE INSERT 1" I.D.
Price
N/A
104
TABLE INSERT 1-3/8" I.D.
Price
N/A
105
TABLE INSERT 1-7/8" I.D.
Price
N/A
112
DEPTH STOP ROD V2.04.02
Price
N/A
113
Now: PW04M
FLAT WASHER 10MM
Price
N/A
114
LOWER DEPTH STOP ROD BRACKET
Price
N/A
115
Now: PW02M
FLAT WASHER 5MM
Price
N/A
116
CAP SCREW M5-.8 X 12
Price
N/A
117
DEPTH STOP BRACKET V2.12.12
Price
N/A
118
CAP SCREW M8-1.25 X 20
Price
N/A
135
AXLE
Price
N/A
139
Now: PW01M
FLAT WASHER 8MM
Price
N/A
140
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
141
*DISCD*DRUM 2" X 4 1/4"
Price
N/A
142
*DISCD*DRUM 1 1/2" X 4 1/4"
Price
N/A
143
*DISCD*DRUM 1" X 4 1/4"
Price
N/A
144
TRAVEL INDICATOR PLATE
146
COLUMN SUPPORT ARM V1.09.02
Price
N/A
147
GEARED TABLE BRACKET V2.02.04
Price
N/A
147-1
DEGREE SCALE
Price
N/A
147-2
RIVET
Price
N/A
148
Now: PB51M
HEX BOLT M16-2 X 50
Price
N/A
149
Now: PW08M
FLAT WASHER 16MM
Price
N/A
150
TABLE BRACKET PIN
Price
N/A
151
Now: PN01M
HEX NUT M6-1
Price
N/A
152
WRENCH 7 X 24MM COMBO
Price
N/A
156
COLUMN/TABLE BRACKET ASSY V2.02.04
Price
N/A
157
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
159
CHUCK GUARD ASSY
159-1
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
159-2
Now: PN04M
HEX NUT M4-.7
Price
N/A
159-3
TAP SCREW M2.2 X 4.5
Price
N/A
159-4
HEX BOLT M5-.8 X 12
Price
N/A
159-5
WING NUT M5-.8
Price
N/A
159-6
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
159-7
Now: PW05M
FLAT WASHER 4MM
Price
N/A
159-8
LOCK WASHER 4MM
Price
N/A
160
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
161
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
162
READ MANUAL 2.8W X 1.5H
Price
N/A
162V2
COMBO WARNING LABEL V3.04.24
Price
N/A
163
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
164
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
164V2
CLOSE DOOR LABEL V2.06.22
Price
N/A
165
ELECTRICITY 0.7W X 0.6H
Price
N/A
166
MACHINE ID LABEL V2.06.22
Price
N/A
166V2
MACHINE ID LABEL V2.06.22
167
SHOP FOX WHITE M1006
Price
N/A
168
GLOSSY BLACK
Price
N/A
