Parts for W1849 - 14" 2 HP Resaw Bandsaw

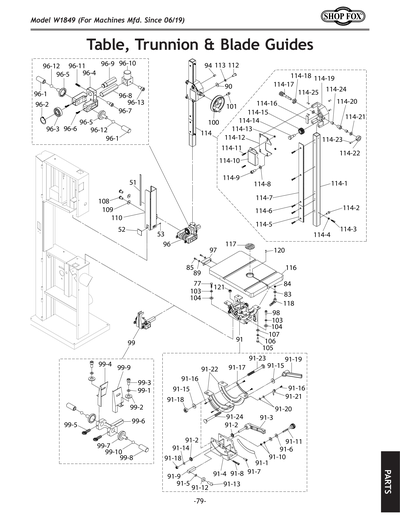

Part Diagram for W1849

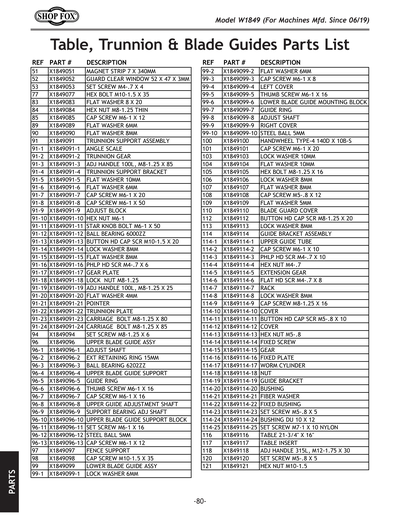

Part Diagram for W1849

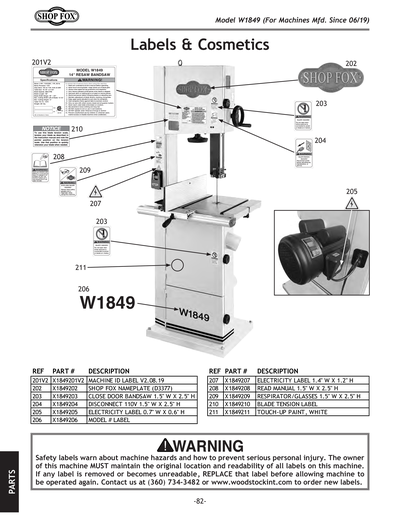

Part Diagram for W1849

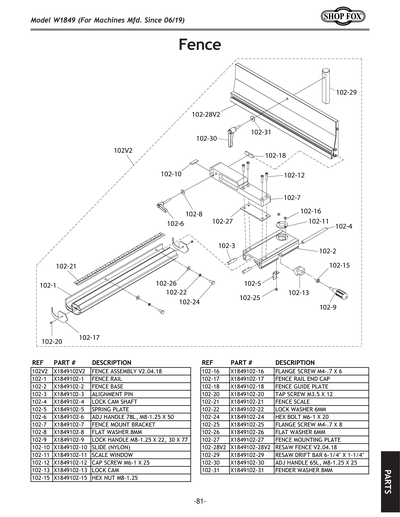

Part Diagram for W1849

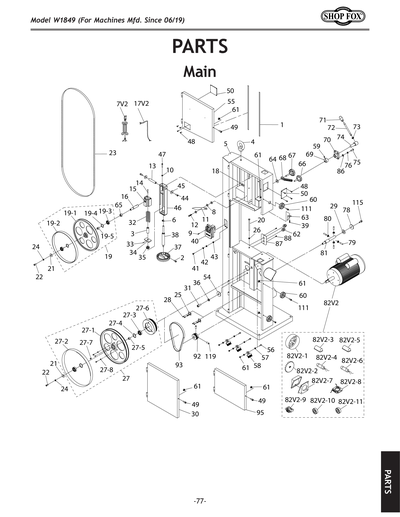

Part Diagram for W1849

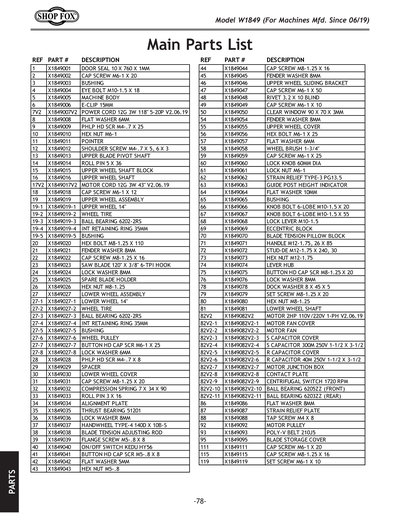

Part Diagram for W1849
Part Diagram for W1849
Part Diagram for W1849
Part Diagram for W1849
Part Diagram for W1849
Part Diagram for W1849
Part Diagram for W1849

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
DOOR SEAL 10 X 760 X 1MM
Price
N/A
2
CAP SCREW M6-1 X 20
Price
N/A
3
BUSHING
Price
N/A
4
EYE BOLT M10-1.5
Price
N/A
5
MACHINE BODY
Price
$798.15
6
E-CLIP 15MM
Price
N/A
7
POWER CORD 14G 3W 118" 5-15P V1
Price
$38.45
7V2
POWER CORD 12G 3W 118" 5-20P V2.06.19
Price
$48.30
8
FLAT WASHER 6MM
Price
N/A
9
PHLP HD SCR M4-.7 X 25
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
SHOULDER SCREW M4-.7 X 5, 6 X 3
Price
N/A
13
UPPER BLADE PIVOT SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT BLOCK
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
MOTOR CORD 14G 3W 43" V1
Price
$20.35
17V2
MOTOR CORD 12G 3W 43" V2.06.19
Price
$24.15
18
CAP SCREW M6-1 X 12
Price
N/A
19
UPPER WHEEL ASSEMBLY
Price
N/A
19-1
UPPER WHEEL ASSEMBLY
Price
N/A
19-2
WHEEL TIRE
Price
N/A
19-3
BALL BEARING 6202-2RS
Price
N/A
19-4
INT RETAINING RING 35MM
Price
N/A
19-5
BUSHING
Price
N/A
21
FENDER WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 120" X 3/8" 6-TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
SPARE BLADE HOLDER
Price
N/A
26
HEX NUT M8-1.25
Price
N/A
27
LOWER WHEEL ASSEMBLY
Price
$139.85
27-1
LOWER WHEEL 14" W/PULLEY
Price
$111.80
27-2
WHEEL TIRE
Price
N/A
27-3
BALL BEARING 6202-2RS
Price
N/A
27-4
INT RETAINING RING 35MM
Price
N/A
27-5
BUSHING
Price
N/A
27-6
LOWER WHEEL 14" W/PULLEY
Price
N/A
27-7
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
27-8
LOCK WASHER 6MM
Price
N/A
28
PHLP HD SCR M4-.7 X 8
Price
N/A
29
SPACER
Price
N/A
30
LOWER WHEEL COVER
Price
$84.15
30A
LOWER WHEEL COVER W/LABELS
Price
$62.50
31
CAP SCREW M8-1.25 X 20
Price
N/A
32
COMPRESSION SPRING 7 X 34 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
LOCK WASHER 8MM
Price
N/A
37
HANDWHEEL TYPE-4 140D X 10B-S
Price
N/A
38
BLADE TENSION ADJUSTING ROD
Price
N/A
39
FLANGE SCREW M5-.8 X 8
Price
N/A
40
Paddle Switch 120/230V
Price
N/A
41
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
42
LOCK WASHER 5MM
Price
N/A
43
HEX NUT M5-.8
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M6-1 X 50
Price
N/A
48
RIVET 3.2 X 10 BLIND
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW 90 X 70 X 3MM
Price
N/A
51
MAGNET STRIP 7 X 340MM
Price
N/A
52
GUARD CLEAR WINDOW
Price
N/A
53
SET SCREW M4-.7 X 4
Price
N/A
54
FENDER WASHER 8MM
Price
N/A
55
UPPER WHEEL COVER
Price
$84.15
55A
UPPER WHEEL COVER W/LABELS & WINDOW
Price
$60.80
56
HEX BOLT M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
BRUSH
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
63
GUIDE POST HEIGHT INDICATOR
Price
N/A
64
FLAT WASHER 10MM
Price
N/A
65
BUSHING
Price
N/A
66
KNOB BOLT 6-LOBE M10-1.5 X 20
Price
N/A
67
KNOB BOLT 6-LOBE M10-1.5 X 53
Price
N/A
68
LOCK LEVER M10-1.5
Price
N/A
69
CAM
Price
N/A
70
BLADE TENSION PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75, 26 X 85
Price
N/A
72
STUD-DE M12-1.75 X 240, 30
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
HEX BOLT M10-1.5 X 35
Price
N/A
78
DOCK WASHER 8 X 45 X 5
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 2HP 110V/220V 1-PH V2.06.19
Price
N/A
82-1
MOTOR FAN COVER
Price
$32.85
82-10
BALL BEARING 6205ZZ
Price
N/A
82-11
BALL BEARING 6203ZZ
Price
N/A
82-2
MOTOR FAN
Price
$12.10
82-3
S CAPACITOR COVER
Price
$16.05
82-4
S CAPACITOR 200M 250V 1-1/2 X 3-1/2
Price
$22.05
82-5
R CAPACITOR COVER
Price
$16.05
82-6
R CAPACITOR 50M 250V 1-1/2 X 3-1/2
Price
$44.05
82-7
MOTOR JUNCTION BOX
Price
$16.05
82-8
CONTACT PLATE W/CNTRIFUGAL SWTCH 1720RPM
Price
$32.00
82-9
CONTACT PLATE W/CNTRIFUGAL SWTCH 1720RPM
Price
N/A
82V2
MOTOR 2HP 110V/220V 1-PH V2.06.19
Price
$853.20
82V2-1
MOTOR FAN COVER
Price
N/A
82V2-10
BALL BEARING 6205ZZ
Price
N/A
82V2-11
BALL BEARING 6203ZZ
Price
N/A
82V2-2
MOTOR FAN
Price
N/A
82V2-3
S CAPACITOR COVER
Price
$14.30
82V2-4
S CAPACITOR 300M 250V 1-1/2 X 3-1/2
Price
$22.05
82V2-5
R CAPACITOR COVER
Price
$14.30
82V2-6
R CAPACITOR 40M 250V 1-1/2 X 3-1/2
Price
$30.20
82V2-7
MOTOR JUNCTION BOX
Price
$14.30
82V2-8
CONTACT PLATE
Price
$16.05
82V2-9
CENTRIFUGAL SWITCH 1720 RPM
Price
$16.05
83
FLAT WASHER 8 X 20
Price
$2.25
84
HEX NUT M8-1.25 THIN
Price
N/A
85
CAP SCREW M6-1 X 12
Price
N/A
86
FLAT WASHER 8MM
Price
N/A
87
STRAIN RELIEF PLATE
Price
$6.05
88
TAP SCREW M4 X 8
Price
N/A
89
FLAT WASHER 6MM
Price
N/A
90
FLAT WASHER 8MM
Price
N/A
91
TRUNNION SUPPORT ASSEMBLY
Price
$99.85
91-1
ANGLE SCALE
Price
$3.05
91-10
HEX NUT M6-1
Price
N/A
91-11
STAR KNOB BOLT M6-1 X 50
Price
$2.65
91-12
BALL BEARING 6000ZZ
Price
N/A
91-13
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
91-14
LOCK WASHER 8MM
Price
N/A
91-15
FLAT WASHER 8MM
Price
N/A
91-16
PHLP HD SCR M4-.7 X 6
Price
N/A
91-17
GEAR PLATE
Price
N/A
91-18
LOCK NUT M8-1.25
Price
N/A
91-19
ADJ HANDLE M8-1.25, 100L
Price
N/A
91-2
TRUNNION GEAR
Price
N/A
91-20
FLAT WASHER 4MM
Price
N/A
91-21
POINTER
Price
N/A
91-22
TRUNNION PLATE
Price
$10.00
91-23
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
91-24
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
91-3
ADJ HANDLE M8-1.25 X 85, 100L
Price
N/A
91-4
TRUNNION SUPPORT BRACKET
Price
$32.00
91-5
FLAT WASHER 10MM
Price
N/A
91-6
FLAT WASHER 6MM
Price
N/A
91-7
CAP SCREW M6-1 X 20
Price
N/A
91-8
CAP SCREW M6-1 X 50
Price
N/A
91-9
ADJUST BLOCK
Price
$7.85
92
MOTOR PULLEY
Price
$21.65
93
POLY-V BELT 210J5
Price
$19.10
94
SET SCREW M8-1.25 X 6
Price
N/A
95
BLADE STORAGE COVER
Price
$48.30
96
UPPER BLADE GUIDE SUPPORT
Price
N/A
96-1
ADJUST SHAFT
Price
$10.00
96-10
UPPER BLADE GUIDE SUPPORT BLOCK
Price
N/A
96-11
SET SCREW M6-1 X 16
Price
N/A
96-12
STEEL BALL 5MM
Price
N/A
96-13
CAP SCREW M6-1 X 12
Price
N/A
96-2
EXT RETAINING RING 15MM
Price
N/A
96-3
BALL BEARING 6202ZZ
Price
N/A
96-4
UPPER BLADE GUIDE SUPPORT
Price
$13.90
96-5
GUIDE RING
Price
$2.60
96-6
THUMB SCREW M6-1 X 16
Price
N/A
96-7
CAP SCREW M6-1 X 16
Price
N/A
96-8
UPPER GUIDE ADJUSTMENT SHAFT
Price
N/A
96-9
UPPER SUPPORT BEARING ADJ SHAFT
Price
N/A
97
TABLE END BRACKET
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
LOWER BLADE GUIDE ASSY
Price
$46.55
99-1
LOCK WASHER 6MM
Price
N/A
99-10
STEEL BALL 5MM
Price
N/A
99-2
FLAT WASHER 6MM
Price
N/A
99-3
CAP SCREW M6-1 X 8
Price
N/A
99-4
LEFT COVER
Price
$3.05
99-5
THUMB SCREW M6-1 X 16
Price
N/A
99-6
LOWER BLADE GUIDE MOUNTING BLOCK
Price
$13.05
99-7
GUIDE RING
Price
$2.90
99-8
ADJUST SHAFT
Price
$5.35
99-9
RIGHT COVER
Price
$3.35
100
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
101
CAP SCREW M6-1 X 20
Price
N/A
102
***USE P0555XH200***
Price
N/A
102-1
FRONT RAIL 640MM
Price
N/A
102-10
SLIDE (NYLON)
Price
N/A
102-11
SCALE WINDOW
Price
N/A
102-12
CAP SCREW M6-1 X 25
Price
N/A
102-13
LOCK CAM
Price
N/A
102-15
HEX NUT M8-1.25
Price
N/A
102-16
FLANGE SCREW M4-.7 X 6
Price
N/A
102-17
FENCE RAIL END CAP
Price
N/A
102-18
FENCE GUIDE PLATE
Price
N/A
102-2
FENCE BASE
Price
N/A
102-20
TAP SCREW M3.5 X 12
Price
N/A
102-21
SCALE
Price
N/A
102-22
LOCK WASHER 6MM
Price
N/A
102-24
HEX BOLT M6-1 X 20
Price
N/A
102-25
FLANGE SCREW M4-.7 X 8
Price
N/A
102-26
FLAT WASHER 6MM
Price
N/A
102-27
FENCE MOUNTING PLATE
Price
N/A
102-28
FENCE
Price
N/A
102-28V2
RESAW FENCE V2.04.18
Price
$69.95
102-29
RESAW DRIFT BAR 6-1/4" X 1-1/4"
Price
$26.00
102-3
ALIGNMENT PIN
Price
N/A
102-30
ADJ HANDLE 65L, M8-1.25 X 25
Price
$10.40
102-31
FENDER WASHER 8MM
Price
N/A
102-4
LOCK CAM SHAFT
Price
N/A
102-5
SPRING PLATE
Price
N/A
102-6
ADJUSTABLE HANDLE M8-1.25 X 50, 78L
Price
N/A
102-7
SUPPORT TUBE
Price
N/A
102-8
FLAT WASHER 8MM
Price
N/A
102-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
102V2
FENCE ASSEMBLY V2.04.18
Price
$255.45
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
105
HEX BOLT M8-1.25 X 16
Price
N/A
106
LOCK WASHER 8MM
Price
N/A
107
FLAT WASHER 8MM
Price
N/A
108
CAP SCREW M5-.8 X 12
Price
N/A
109
FLAT WASHER 5MM
Price
N/A
110
BLADE COVER
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
112
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
113
LOCK WASHER 8MM
Price
N/A
114
GUIDE POST ASSEMBLY
Price
N/A
114-1
UPPER GUIDE TUBE
Price
$84.25
114-10
PINION HOUSING
Price
$7.00
114-11
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
114-12
HOUSING COVER PLATE
Price
$3.95
114-13
HEX NUT M5-.8
Price
N/A
114-14
SHOULDER SCREW
Price
$6.60
114-15
PINION GEAR
Price
$22.50
114-16
FIXED PLATE
Price
$1.80
114-17
WORM GEAR SHAFT
Price
$24.15
114-18
PINION NUT
Price
$3.55
114-19
PINION HOUSING
Price
$35.40
114-2
CAP SCREW M6-1 X 10
Price
N/A
114-20
BUSHING
Price
$16.45
114-21
FIBER WASHER
Price
$1.80
114-22
FIXED BUSHING
Price
$4.40
114-23
SET SCREW M5-.8 X 5
Price
N/A
114-24
BUSHING DU 10 X 12
Price
$3.05
114-25
SET SCREW M7-1 X 10 NYLON
Price
$1.80
114-3
PHLP HD SCR M4-.7 X 10
Price
N/A
114-4
HEX NUT M4-.7
Price
N/A
114-5
EXTENSION GEAR
Price
$6.15
114-6
FLAT HD SCR M4-.7 X 8
Price
N/A
114-7
RACK
Price
$13.05
114-8
LOCK WASHER 8MM
Price
N/A
114-9
CAP SCREW M8-1.25 X 16
Price
N/A
115
CAP SCREW M8-1.25 X 16
Price
N/A
116
TABLE 21-3/4" X 16"
Price
$509.75
117
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
118
ADJUSTABLE HANDLE M8-1.25 X 35, 76L
Price
N/A
119
SET SCREW M6-1 X 10
Price
N/A
120
SET SCREW M5-.8 X 5
Price
N/A
121
HEX NUT M10-1.5
Price
N/A
122
FLAT WASHER 5MM
Price
N/A
201
MACHINE ID LABEL V1
Price
$16.40
201V2
MACHINE ID LABEL V2.08.19
Price
$16.40
202
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
203
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
204
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
205
ELECTRICITY 0.7W X 0.6H
Price
N/A
206
MODEL # LABEL
Price
$10.50
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
READ MANUAL 2.8W X 1.5H
Price
N/A
209
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
210
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
211
SHOP FOX WHITE M1006
Price
N/A
212
MANUAL W1849 MFD.-11.16 V1.01.17
Price
$30.45
MAN
W1849 MANUAL MFD-11.16-03.18 V1.01.17
Price
$19.60
MANV2
MANUAL W1849 MFD-04.18-05.19 V2.06.18
Price
$19.30
MANV3
MANUAL W1849 MFD-06.19+ V3.08.19
Price
$19.60
