Parts for W1854 - 18" 1-1/2 HP Open-End Drum Sander w/ VS Feed

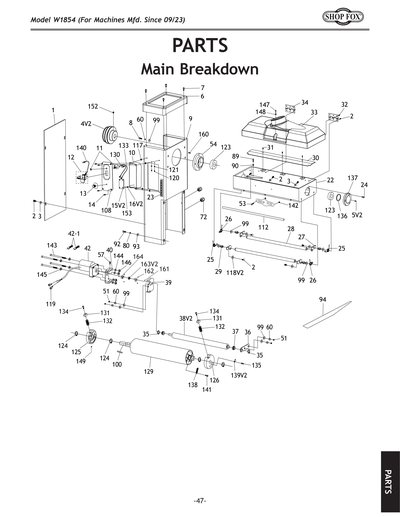

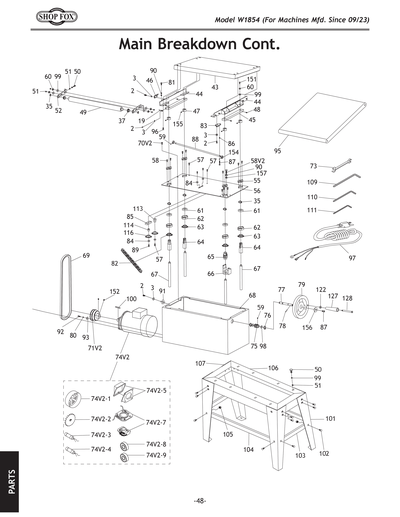

Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854
Part Diagram for W1854

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

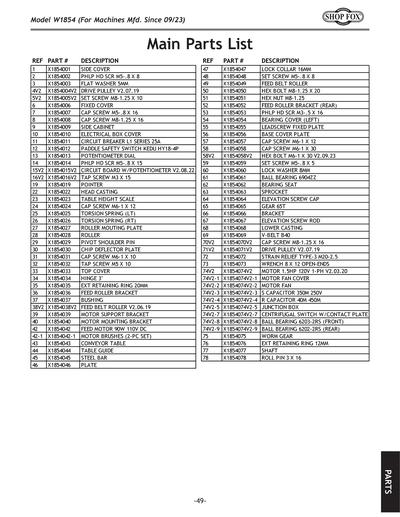

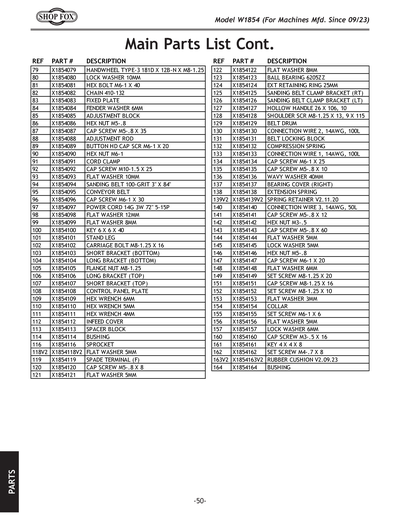

Ref #
Part #
Description
1
SIDE COVER
Price
$25.70
2
PHLP HD SCR M5-.8 X 8
Price
N/A
3
FLAT WASHER 5MM
Price
N/A
4
DRUM PULLEY V1
Price
$76.40
4V2
DRUM PULLEY V2.07.19
Price
$76.40
5
SET SCREW M6-1 X 10
Price
N/A
5V2
SET SCREW M8-1.25 X 10
Price
N/A
6
FIXED COVER
Price
$7.15
7
CAP SCREW M5-.8 X 16
Price
N/A
8
CAP SCREW M8-1.25 X 16
Price
N/A
9
SIDE CABINET
Price
$96.35
10
ELECTRICAL BOX COVER
Price
$4.85
11
CIRCUIT BREAKER L1 SERIES 25A
Price
$8.80
12
PADDLE SAFETY SWITCH KEDU HY18-4P
Price
$9.80
13
POTENTIOMETER DAIL
Price
$2.20
14
PHLP HD SCR M5-.8 X 15
Price
N/A
15
CIRCUIT BOARD W/POTENTIOMETER V1
Price
$48.15
15V2
CIRCUIT BOARD W/POTENTIOMETER V2.08.22
Price
$40.10
16
TAP SCREW M3.5 X 8
Price
N/A
16V2
TAP SCREW M3 X 15
Price
N/A
19
POINTER
Price
$1.60
22
HEAD CASTING
Price
$125.05
23
TABLE HEIGHT SCALE
Price
$1.60
24
CAP SCREW M6-1 X 12
Price
N/A
25
TORSION SPRING (LT)
Price
$1.85
26
TORSION SPRING (RT)
Price
$1.85
27
ROLLER MOUTING PLATE
Price
$4.60
28
ROLLER
Price
$26.90
29
PIVOT SHOULDER PIN
Price
$3.65
30
CHIP DEFLECTOR PLATE
Price
$17.95
31
CAP SCREW M6-1 X 10
Price
N/A
32
TAP SCREW M5 X 10
Price
N/A
33
TOP COVER
Price
$70.70
34
HINGE 3"
Price
$2.20
35
EXT RETAINING RING 20MM
Price
N/A
36
FEED ROLLER BRACKET
Price
$3.65
37
BUSHING
Price
$6.10
38
FEED BELT ROLLER
Price
$36.00
38V2
FEED BELT ROLLER V2.06.19
Price
$47.10
39
MOTOR SUPPORT BRACKET
Price
$23.30
40
MOTOR MOUNTING BRACKET
Price
$14.50
42
***USE P0458ZX042***
Price
$202.60
42-1
MOTOR BRUSHES (2-PC SET)
Price
$30.55
43
CONVEYOR TABLE
Price
$58.95
44
TABLE GUIDE
Price
$48.05
45
STEEL BAR
Price
$23.30
46
PLATE
Price
$2.45
47
LOCK COLLAR 16MM
Price
$5.50
48
SET SCREW M5-.8 X 8
Price
N/A
49
FEED BELT ROLLER
Price
$36.00
50
HEX BOLT M8-1.25 X 20
Price
N/A
51
HEX NUT M8-1.25
Price
N/A
52
FEED ROLLER BRACKET (REAR)
Price
$4.30
53
CARRIAGE BOLT M3-.5 X 16
Price
$1.60
54
BEARING COVER (LEFT)
Price
$33.25
55
LEADSCREW FIXED PLATE
Price
$2.50
56
BASE COVER PLATE
Price
$44.70
57
CAP SCREW M6-1 X 12
Price
N/A
58
CAP SCREW M6-1 X 15
Price
N/A
58V2
HEX BOLT M6-1 X 30
Price
N/A
59
SET SCREW M5-.8 X 5
Price
N/A
60
LOCK WASHER 8MM
Price
N/A
61
BALL BEARING 6904ZZ
Price
N/A
62
BEARING SEAT
Price
$3.80
63
SPROCKET
Price
$4.85
64
ELEVATION SCREW CAP
Price
$10.90
65
GEAR 65T
Price
$36.90
66
BRACKET
Price
$13.60
67
ELEVATION SCREW ROD
Price
$13.95
68
LOWER CASTING
Price
$142.80
69
V-BELT B40
Price
N/A
70
CAP SCREW M8-1.25 X 12
Price
N/A
70V2
CAP SCREW M8-1.25 X 16
Price
N/A
71
DRIVE PULLEY V1
Price
$156.75
71V2
DRIVE PULLEY V2.07.19
Price
$61.60
72
STRAIN RELIEF TYPE-3 M20-2.5
Price
$4.85
73
WRENCH 8 X 12 OPEN-ENDS
Price
$12.40
74
MOTOR 1.5HP 120V 1-PH
Price
$343.25
74-1
MOTOR FAN COVER
Price
$12.75
74-2
MOTOR FAN
Price
$9.20
74-3
S CAPACITOR 350UF 125V 1-5/16" X 3-1/2"
Price
$31.10
74-4
R CAPACITOR 40M 250V 1-5/8" X 3-1/8"
Price
$11.85
74-5
JUNCTION BOX
Price
$17.25
74-6
CONTACT PLATE
Price
$6.70
74-7
CENTRIFUGAL SWITCH
Price
$7.25
74-8
BALL BEARING 6204-2RS
Price
N/A
74V2
MOTOR 1.5HP 120V 1-PH V2.03.20
Price
$271.85
74V2-1
MOTOR FAN COVER
Price
$6.70
74V2-2
MOTOR FAN
Price
$10.00
74V2-3
S CAPACITOR 350M 250V
Price
$32.35
74V2-4
R CAPACITOR 40M 450V
Price
$16.35
74V2-5
JUNCTION BOX
Price
$17.25
74V2-6
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
74V2-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
$11.50
74V2-8
BALL BEARING 6203-2RS
Price
N/A
74V2-9
BALL BEARING 6202-2RS
Price
N/A
75
WORM GEAR
Price
$40.20
76
EXT RETAINING RING 12MM
Price
N/A
77
SHAFT
Price
$5.40
78
ROLL PIN 3 X 16
Price
N/A
79
HANDWHEEL TYPE-3 181D X 12B-N X M8-1.25
Price
$23.30
80
LOCK WASHER 10MM
Price
N/A
81
HEX BOLT M6-1 X 45
Price
N/A
82
CHAIN 410-132
Price
$36.00
83
FIXED PLATE
Price
$4.60
84
FENDER WASHER 6MM
Price
N/A
85
ADJUSTMENT BLOCK
Price
$3.95
86
HEX NUT M5-.8
Price
N/A
87
CAP SCREW M5-.8 X 35
Price
N/A
88
ADJUSTMENT ROD
Price
$6.40
89
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
90
HEX NUT M6-1
Price
N/A
91
CORD CLAMP
Price
$1.60
92
CAP SCREW M10-1.5 X 25
Price
N/A
93
FLAT WASHER 10MM
Price
N/A
94
SANDING BELT 100-GRIT 3" X 84"
Price
$14.65
95
*DISCD*CONVEYOR BELT
Price
$86.25
96
CAP SCREW M6-1 X 30
Price
N/A
97
POWER CORD 14G 3W 72" 5-15P
Price
$24.50
98
FLAT WASHER 12MM
Price
N/A
99
FLAT WASHER 8MM
Price
N/A
100
KEY 6 X 6 X 40
Price
N/A
101
STAND LEG
Price
$29.65
102
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
103
SHORT BRACKET (BOTTOM)
Price
$11.10
104
LONG BRACKET (BOTTOM)
Price
$23.30
105
FLANGE NUT M8-1.25
Price
N/A
106
LONG BRACKET (TOP)
Price
$32.35
107
SHORT BRACKET (TOP)
Price
$13.60
108
CONTROL PANEL PLATE
Price
$3.05
109
HEX WRENCH 6MM
Price
N/A
110
HEX WRENCH 5MM
Price
N/A
111
HEX WRENCH 4MM
Price
N/A
112
INFEED COVER
Price
$19.65
113
SPACER BLOCK
Price
$2.75
114
BUSHING
Price
$1.85
116
SPROCKET
Price
$2.45
117
HEX NUT M5-.8
Price
N/A
118
FENDER WASHER 6MM
Price
N/A
118V2
FLAT WASHER 5MM
Price
N/A
119
SPADE TERMINAL (F)
Price
$1.60
120
CAP SCREW M5-.8 X 8
Price
N/A
121
FLAT WASHER 5MM
Price
N/A
122
FLAT WASHER 8MM
Price
N/A
123
BALL BEARING 6205ZZ
Price
N/A
124
EXT RETAINING RING 25MM
Price
N/A
125
SANDING BELT CLAMP BRACKET (RT)
Price
$30.85
126
SANDING BELT CLAMP BRACKET (LT)
Price
$30.20
127
HOLLOW HANDLE 26 X 106, 10
Price
$2.85
128
SHOULDER SCREW M8-1.25 X 13, 9 X 115
Price
$2.80
129
BELT DRUM
Price
N/A
130
CONNECTION WIRE 2, 14AWG, 100L
Price
$1.85
131
BELT LOCKING BLOCK
Price
$2.45
132
COMPRESSION SPRING
Price
$1.49
133
CONNECTION WIRE 1, 14AWG, 100L
Price
$1.85
134
CAP SCREW M6-1 X 25
Price
N/A
135
CAP SCREW M5-.8 X 10
Price
N/A
136
WAVY WASHER 40MM
Price
$1.60
137
BEARING COVER (RIGHT)
Price
$19.85
138
EXTENSION SPRING
Price
N/A
139
***USE P0458Z139V2***
Price
N/A
139V2
SPRING RETAINER V2.11.20
Price
N/A
140
CONNECTION WIRE 3, 14AWG, 50L
Price
$1.85
141
CAP SCREW M5-.8 X 12
Price
N/A
142
HEX NUT M3-.5
Price
N/A
143
CAP SCREW M5-.8 X 65
Price
N/A
144
FLAT WASHER 5MM
Price
N/A
145
LOCK WASHER 5MM
Price
N/A
146
HEX NUT M5-.8
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
148
FLAT WASHER 6MM
Price
N/A
149
SET SCREW M8-1.25 X 20
Price
N/A
150
HEX BOLT M5-.8 X 25
Price
N/A
153
FLAT WASHER 3MM
Price
N/A
154
COLLAR
Price
$7.00
155
SET SCREW M6-1 X 6
Price
N/A
157
LOCK WASHER 6MM
Price
N/A
160
CAP SCREW M3-.5 X 6
Price
N/A
161
KEY 4 X 4 X 8
Price
N/A
162
SET SCREW M4-.7 X 8
Price
N/A
163
RUBBER CUSHION
Price
$1.60
163V2
RUBBER CUSHION V2.09.23
Price
$1.60
164
BUSHING
Price
$3.40

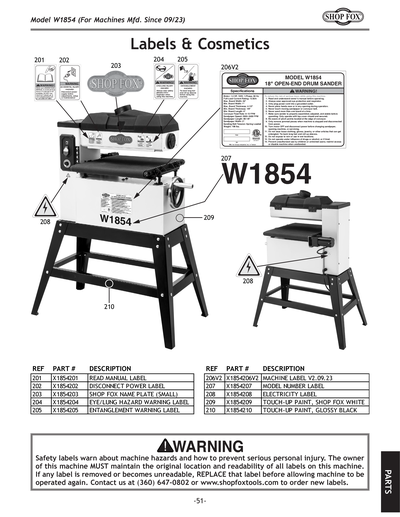

201
READ MANUAL 1.5W X 2.5H
Price
N/A
202
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
203
Shop Fox Nameplate - Small
Price
N/A
204
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
205
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
206
MACHINE ID LABEL
Price
$16.40
206V2
MACHINE ID LABEL V2.09.23
Price
$10.95
207
MODEL NUMBER LABEL
Price
$2.40
208
ELECTRICITY 1.4W X 1.2H
Price
N/A
209
SHOP FOX WHITE M1006
Price
N/A
210
GLOSSY BLACK
Price
N/A
MAN
MANUAL W1854 MFD-02.18 V1.04.18
Price
$14.65
MANV2
MANUAL W1854 MFD-04.18-06.19 V2.12.18
Price
$14.65
MANV3
MANUAL W1854 MFD-07.19-08.23 V3.02.21
Price
$14.65
MANV4
MANUAL W1854 MFD-09.23+ V4.09.23
Price
$14.65
