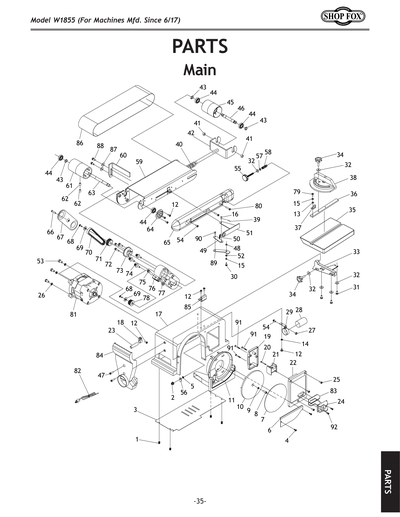

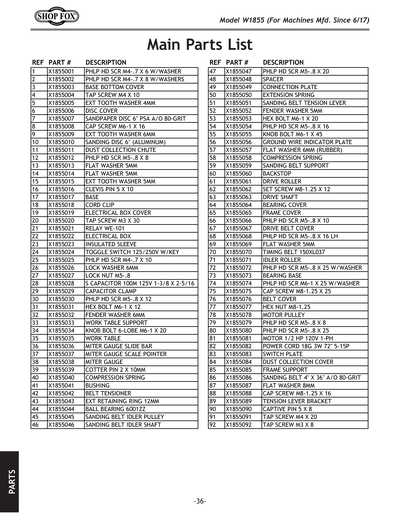

Parts for W1855 4" x 36" Horizontal/Vertical Belt Sander with 6" Disc

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PHLP HD SCR M4-.7 X 6 W/WASHER
Price
N/A
2
PHLP HD SCR M4-.7 X 8 W/WASHERS
Price
N/A
3
BASE BOTTOM COVER
Price
N/A
4
TAP SCREW M4 X 10
Price
N/A
5
EXT TOOTH WASHER 4MM
Price
N/A
6
DISC COVER
Price
N/A
7
SANDPAPER DISC 6" PSA A/O 80-GRIT
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
EXT TOOTH WASHER 6MM
Price
N/A
10
SANDING DISC 6" (ALUMINUM)
Price
N/A
11
DUST COLLECTION CHUTE
Price
N/A
12
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
13
Now: PW02M
FLAT WASHER 5MM
Price
N/A
14
Now: PW02M
FLAT WASHER 5MM
Price
N/A
15
EXT TOOTH WASHER 5MM
Price
N/A
16
CLEVIS PIN 5 X 10
Price
N/A
17
BASE
18
CORD CLIP
Price
N/A
19
ELECTRICAL BOX COVER
Price
N/A
20
TAP SCREW M3 X 30
Price
N/A
21
RELAY WE-101
Price
N/A
22
ELECTRICAL BOX
Price
N/A
23
INSULATED SLEEVE
Price
N/A
24
Now: D4163
Toggle Safety Switch
Price
N/A
25
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
LOCK NUT M5-.8
Price
N/A
28
Now: PC100
S CAPACITOR 100M 125V 1-3/8 X 2-5/16
Price
N/A
29
CAPACITOR CLAMP
Price
N/A
30
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
31
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
32
FENDER WASHER 6MM
Price
N/A
33
WORK TABLE SUPPORT
34
MITER GAUGE KNOB M6-1 X 20
Price
N/A
35
WORK TABLE
Price
N/A
35-1
WORK TABLE SIDES, PLASTIC (2PC)
35-2
TAP SCREW 3.5 X 9.5
36
MITER GAUGE SLIDE BAR
Price
N/A
37
MITER GAUGE SCALE POINTER
Price
N/A
38
MITER GAUGE
Price
N/A
39
COTTER PIN 2 X 10MM
Price
N/A
40
COMPRESSION SPRING
Price
N/A
41
BUSHING
Price
N/A
42
BELT TENSIONER
Price
N/A
43
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
44
BALL BEARING 6001ZZ
Price
N/A
45
SANDING BELT IDLER PULLEY/SHAFT
46
SANDING BELT IDLER PULLEY/SHAFT
Price
N/A
47
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
48
SPACER
Price
N/A
49
CONNECTION PLATE
Price
N/A
50
EXTENSION SPRING
Price
N/A
51
SANDING BELT TENSION LEVER
Price
N/A
52
FENDER WASHER 5MM
Price
N/A
53
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
54
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
55
TRACKING CONTROL KNOB M6-1 X 45
Price
N/A
56
GROUND WIRE INDICATOR PLATE
Price
N/A
57
RUBBER WASHER 6MM
Price
N/A
58
COMPRESSION SPRING
Price
N/A
59
SANDING BELT SUPPORT
60
BACKSTOP
Price
N/A
61
DRIVE ROLLER
Price
N/A
62
SET SCREW M8-1.25 X 12
Price
N/A
63
DRIVE SHAFT
Price
N/A
64
BEARING COVER
Price
N/A
65
FRAME COVER
66
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
67
DRIVE BELT COVER
68
PHLP HD SCR M5-.8 X 16 LH
Price
N/A
69
Now: PW02M
FLAT WASHER 5MM
Price
N/A
70
TIMING BELT 150XL037
Price
N/A
71
IDLER ROLLER
Price
N/A
72
PHLP HD SCR M5-.8 X 25 W/WASHER
Price
N/A
73
BEARING BASE
Price
N/A
74
PHLP HD SCR M6-1 X 25 W/WASHER
Price
N/A
75
CAP SCREW M8-1.25 X 25
Price
N/A
76
BELT COVER
77
Now: PN03M
HEX NUT M8-1.25
Price
N/A
78
MOTOR PULLEY
Price
N/A
79
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
80
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
81
MOTOR 1/2 HP 120V 1-PH
Price
N/A
82
POWER CORD 18G 3W 72" 5-15P
Price
N/A
83
SWITCH PLATE
Price
N/A
84
DUST COLLECTION COVER
85
FRAME SUPPORT
Price
N/A
86
SANDING BELT 4 X 36" A/O 80-GRIT
Price
N/A
87
Now: PW01M
FLAT WASHER 8MM
Price
N/A
88
CAP SCREW M8-1.25 X 16
Price
N/A
89
TENSION LEVER BRACKET
Price
N/A
90
CAPTIVE PIN 5 X 8
Price
N/A
91
TAP SCREW M4 X 20
Price
N/A
92
TAP SCREW M3 X 8
Price
N/A
93
READ MANUAL 2.8W X 1.5H
Price
N/A
94
BELT/DISC ROTATION LABEL
Price
N/A
95
MACHINE ID LABEL
96
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
97
ELECTRICITY 0.7W X 0.6H
Price
N/A
98
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
99
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1855 MFD-06.17 V1.07.17
