Parts for W1858 - 8" x 72" Dovetail Jointer w/ Helical Cutterhead & Mobile Base

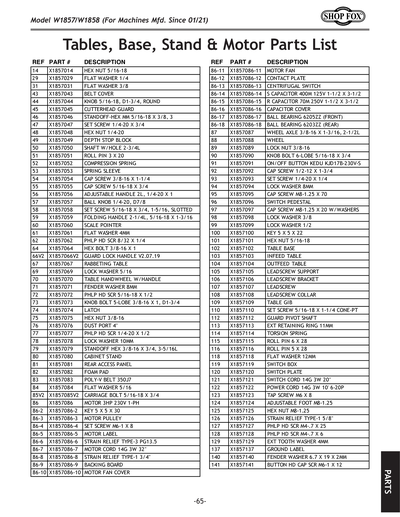

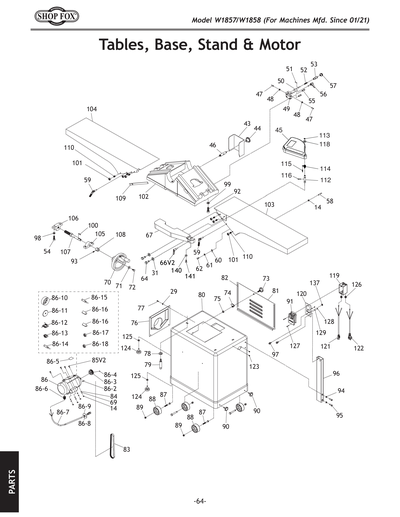

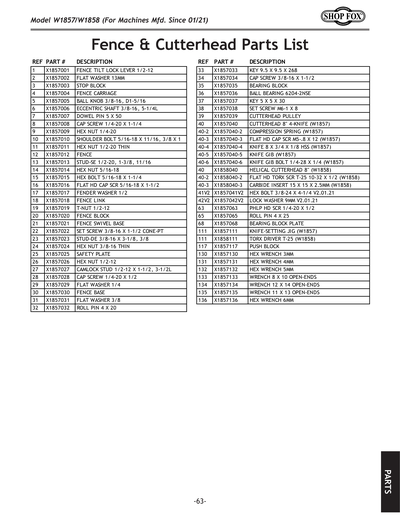

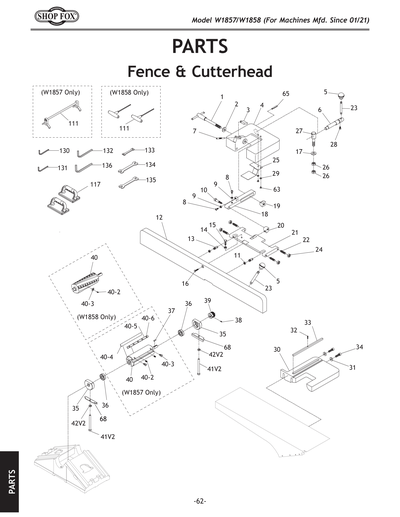

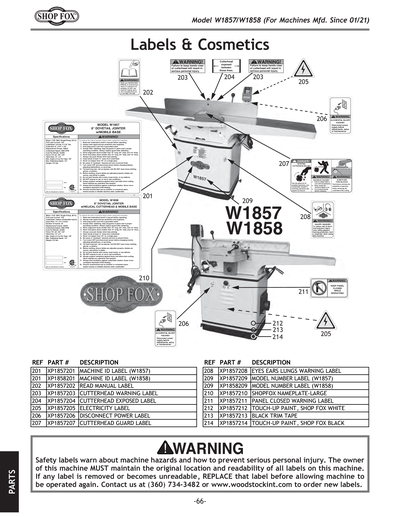

Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858
Part Diagram for W1858

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FENCE TILT LOCK LEVER 1/2-12
Price
N/A
2
FLAT WASHER 13MM
Price
N/A
3
STOP BLOCK
Price
N/A
4
*** USE P0855004***
Price
N/A
5
ROUND FEMALE KNOB
Price
N/A
6
ECCENTRIC SHAFT 3/8-16, 5-1/4L
Price
N/A
7
DOWEL PIN 5 X 50
Price
N/A
8
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
9
X1858009
Now: PN05
HEX NUT 1/4-20
Price
N/A
10
SHOULDER BOLT 5/16-18 X 11/16, 3/8 X 1
Price
N/A
11
X1858011
Now: PN50
HEX NUT 1/2-20 THIN
Price
N/A
12
*** USE PX1859031***
Price
N/A
13
STUD-SE 1/2-20, 1-3/8, 11/16
Price
N/A
14
X1858014
Now: PN02
HEX NUT 5/16-18
Price
N/A
15
X1858015
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
16
FLAT HD CAP SCR 5/16-18 X 1-1/2
Price
N/A
17
FENDER WASHER 1/2
Price
N/A
18
FENCE LINK
Price
N/A
19
T-NUT 1/2-12
Price
N/A
20
FENCE BLOCK
Price
N/A
21
FENCE SWIVEL BASE
Price
N/A
22
SET SCR 3/8-16 X 1-1/2, CONE-PT, SLOTTED
Price
N/A
23
STUD-DE 3/8-16 X 3-1/8, 3/8
Price
N/A
24
HEX NUT 3/8-16 THIN
Price
N/A
25
SAFETY PLATE
Price
N/A
26
X1858026
Now: PN06
HEX NUT 1/2-12
Price
N/A
27
CAMLOCK STUD 1/2-12 X 1-1/2, 3-1/2L
Price
N/A
28
CAP SCREW 1/4-20 X 1/2
Price
N/A
29
X1858029
Now: PW06
FLAT WASHER 1/4
Price
N/A
30
FENCE BASE
Price
N/A
31
X1858031
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
ROLL PIN 4 X 20
Price
N/A
33
KEY 9.5 X 9.5 X 268
Price
N/A
34
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
35
BEARING BLOCK
Price
N/A
36
BALL BEARING 6204-2NSE
Price
N/A
37
KEY 5 X 5 X 30
Price
N/A
38
SET SCREW M6-1 X 8
Price
N/A
39
CUTTERHEAD PULLEY
Price
N/A
40
HELICAL CUTTERHEAD 8"
Price
N/A
40-2
FLAT HD TORX SCR T-25 10-32 X 1/2
Price
N/A
40-3
Replacement Inserts for Helical Cutterheads - 15 x 15 x 2.5mm, 10 Pk.
Price
N/A
41
STUD-DE 3/8-24 X 4-3/4, 1/2
Price
N/A
41V2
HEX BOLT 3/8-24 X 4-1/4 V2.01.21
Price
N/A
42
X1858042
Now: PN11
HEX NUT 3/8-24
Price
N/A
42V2
LOCK WASHER 9MM V2.01.21
Price
N/A
43
BELT COVER
Price
N/A
44
KNOB 5/16-18 LOBED
Price
N/A
45
*SEE EXTENDED DESCRIPTION*
Price
N/A
45V2
CUTTERHEAD GUARD V2.07.19
Price
N/A
46
STANDOFF-HEX MM 5/16-18 X 1/2, 2-5/16
Price
N/A
47
SET SCREW 1/4-20 X 3/4
Price
N/A
48
X1858048
Now: PN05
HEX NUT 1/4-20
Price
N/A
49
DEPTH STOP BLOCK
Price
N/A
50
SHAFT W/HOLE 2-3/4L
Price
N/A
51
ROLL PIN 3 X 20
Price
N/A
52
COMPRESSION SPRING
Price
N/A
53
SPRING SLEEVE
Price
N/A
54
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
55
CAP SCREW 5/16-18 X 3/4
Price
N/A
56
ADJUSTABLE HANDLE 2L, 1/4-20 X 1
Price
N/A
57
KNOB 1/4-20, D7/8, BALL
Price
N/A
58
SET SCR 5/16-18 X 3/4, 1-5/16, SLOTTED
Price
N/A
59
FOLDING HANDLE 2-1/4L, 5/16-18 X 1-3/16
Price
N/A
60
SCALE POINTER
Price
N/A
61
FLAT WASHER 4MM
Price
N/A
62
X1858062
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
63
X1858063
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
64
X1858064
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
65
ROLL PIN 4 X 25
Price
N/A
66
SET SCREW 5/16-18 X 1/2
Price
N/A
66V2
ADJUSTABLE HANDLE 5/16-18 X 1", 1-1/2"L
Price
N/A
67
RABBETING TABLE
Price
N/A
68
BEARING BLOCK PLATE
Price
N/A
69
LOCK WASHER 5/16
Price
N/A
70
HANDWHEEL W/HANDLE
Price
N/A
71
FENDER WASHER 8MM
Price
N/A
72
X1858072
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
73
KNOB BOLT 5-LOBE 3/8-16 X 1, D1-3/4
Price
N/A
74
LATCH
Price
N/A
75
X1858075
Now: PN08
HEX NUT 3/8-16
Price
N/A
76
DUST PORT
Price
N/A
77
X1858077
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
78
LOCK WASHER 10MM
Price
N/A
79
STANDOFF HEX 3/8-16 X 3/4, 3-5/16L
Price
N/A
80
CABINET STAND
Price
N/A
81
REAR ACCESS PANEL
Price
N/A
82
COVER PAD
Price
N/A
83
POLY-V BELT 350J-7 35"
Price
N/A
84
X1858084
Now: PW07
FLAT WASHER 5/16
Price
N/A
85
X1858085
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
85V2
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
86
MOTOR 3HP 230V 1-PH
Price
N/A
86-10
MOTOR FAN COVER
Price
N/A
86-11
MOTOR FAN
Price
N/A
86-12
CONTACT PLATE
Price
N/A
86-13
CENTRIFUGAL SWITCH
Price
N/A
86-14
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
86-15
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
86-16
CAPACITOR COVER (RUN)
Price
N/A
86-17
BALL BEARING 6205ZZ
Price
N/A
86-18
BALL BEARING 6203ZZ
Price
N/A
86-2
KEY 5 X 5 X 30
Price
N/A
86-3
MOTOR PULLEY
Price
N/A
86-3V2
MOTOR PULLEY V2.02.22
Price
N/A
86-4
SET SCREW M6-1 X 8
Price
N/A
86-5
MOTOR LABEL
Price
N/A
86-6
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
86-7
MOTOR CORD 14G 3W 32"
Price
N/A
86-8
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
86-9
BACKING BOARD
Price
N/A
87
WHEEL AXLE 3/8-16 X 1-3/16, 2-1/2L
Price
N/A
88
WHEEL
Price
N/A
89
LOCK NUT 3/8-16
Price
N/A
90
KNOB BOLT 6-LOBE 5/16-18 X 3/4
Price
N/A
91
***USE D4159***
Price
N/A
92
CAP SCREW 1/2-12 X 1-3/4
Price
N/A
93
SET SCREW 1/4-20 X 1/4
Price
N/A
94
LOCK WASHER 8MM
Price
N/A
95
CAP SCREW M8-1.25 X 70
Price
N/A
96
SWITCH PEDESTAL
Price
N/A
97
CAP SCREW M8-1.25 X 20 W/WASHERS
Price
N/A
98
LOCK WASHER 3/8
Price
N/A
99
LOCK WASHER 1/2
Price
N/A
100
KEY 5 X 5 X 22
Price
N/A
101
X1858101
Now: PN02
HEX NUT 5/16-18
Price
N/A
102
TABLE BASE
Price
N/A
103
INFEED TABLE
Price
N/A
104
OUTFEED TABLE
Price
N/A
105
LEADSCREW SUPPORT
Price
N/A
106
LEADSCREW BRACKET
Price
N/A
107
LEADSCREW
Price
N/A
108
LEADSCREW COLLAR
Price
N/A
109
TABLE GIB
Price
N/A
110
SET SCREW 5/16-18 X 1-1/4 CONE-PT
Price
N/A
111
***USE P0495X186V2***
Price
N/A
112
GUARD PIVOT SHAFT V1
Price
N/A
112V2
GUARD PIVOT SHAFT V2.02.19
Price
N/A
112V3
GUARD PIVOT SHAFT V3.07.19
Price
N/A
113
EXT RETAINING RING 11MM
Price
N/A
114
TORSION SPRING
Price
N/A
114V2
TORSION SPRING V2.07.19
Price
N/A
115
ROLL PIN 6 X 28
Price
N/A
115V2
ROLL PIN 6 X 25
Price
N/A
115V3
ROLL PIN 6 X 28
Price
N/A
116
ROLL PIN 5 X 28
Price
N/A
116V2
ROLL PIN 5 X 20
Price
N/A
116V3
ROLL PIN 5 X 26
Price
N/A
117
Safety Push Block - Small
Price
N/A
118
FLAT WASHER 12MM
Price
N/A
119
ON/OFF SWITCH BOX
Price
N/A
120
SWITCH PLATE
Price
N/A
121
SWITCH CORD 14G 3W 20"
Price
N/A
122
POWER CORD 14G 3W 10' 6-20P
Price
N/A
123
TAP SCREW M6 X 8
Price
N/A
124
ADJUSTABLE FOOT M8-1.25
Price
N/A
125
HEX NUT M8-1.25
Price
N/A
126
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
127
PHLP HD SCR M4-.7 X 25
Price
N/A
128
PHLP HD SCR M4-.7 X 6
Price
N/A
129
EXT TOOTH WASHER 4MM
Price
N/A
130
HEX WRENCH 3MM
Price
N/A
131
HEX WRENCH 4MM
Price
N/A
132
HEX WRENCH 5MM
Price
N/A
133
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
134
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
135
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
136
HEX WRENCH 6MM
Price
N/A
137
GROUND LABEL
Price
N/A
138
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
139
CUTTERHEAD GUARD WASHER 5.3 X 14 X 1
Price
N/A
140
FENDER WASHER 6.7 X 19 X 2MM
Price
N/A
141
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
142
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
201
MACHINE ID LABEL
Price
$16.40
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
CUTTERHEAD WARNING LABEL
Price
N/A
204
CUTTERHEAD EXPOSED LABEL
Price
N/A
205
ELECTRICITY 1.4W X 1.2H
Price
N/A
206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
207
CUTTERHEAD GUARD LABEL
Price
N/A
208
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
209
MODEL NUMBER LABEL
Price
$2.50
210
Nameplate - Large
Price
N/A
211
PANEL CLOSED WARNING LABEL
Price
N/A
212
SHOP FOX WHITE M1006
Price
N/A
213
BLACK TRIM TAPE
Price
N/A
214
GLOSSY BLACK
Price
N/A
BOX2
COMPLETE STAND BOX 2
Price
$1,087.70
MAN
MANUAL W1857/W1858 MFD-09.18+ V1.10.18
Price
N/A
MANV2
MANUAL W1857/W1858 MFD-02.19+ V2.01.19
Price
N/A
MANV3
MANUAL W1857/W1858 MFD-07.19+ V3.07.19
Price
N/A
MANV4
MANUAL W1857/W1858 MFD-01.21+ V4.05.21
Price
N/A
