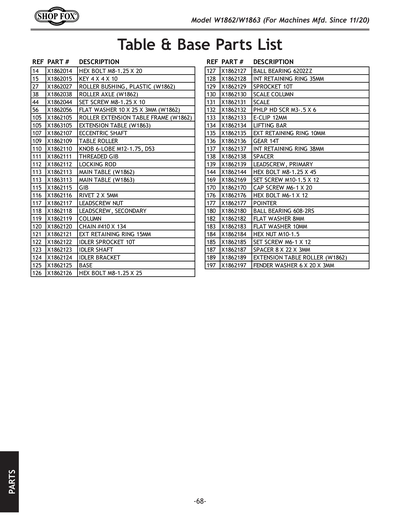

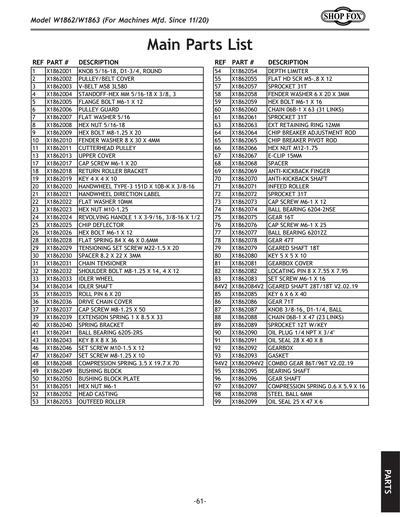

Parts for W1862 15" 3 HP Planer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

MANUAL W1862/W1863 MFD-02.19+ V2.02.19
Item is no longer available
Price
N/A

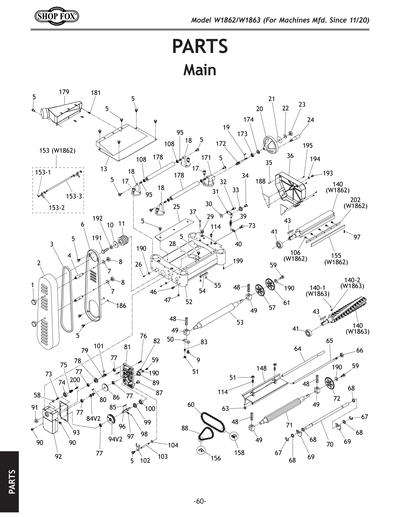

1
KNOB 5/16-18, D1-3/4, ROUND
2
PULLEY/BELT COVER
3
Now: PVM58
V-BELT M58 3L580
Price
N/A
4
STANDOFF-HEX MM 5/16-18 X 3/8, 3
5
FLANGE BOLT M6-1 X 12
Price
N/A
6
PULLEY GUARD
7
Now: PW07
FLAT WASHER 5/16
Price
N/A
8
Now: PN02
HEX NUT 5/16-18
Price
N/A
9
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
10
FENDER WASHER 8 X 30 X 4MM
11
CUTTERHEAD PULLEY
12
STRAIN RELIEF TYPE-1 7/16
13
UPPER COVER
14
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
15
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
16
Now: PN08M
HEX NUT M10-1.25
Price
N/A
17
CAP SCREW M6-1 X 20
Price
N/A
18
RETURN ROLLER BRACKET
19
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
20
HANDWHEEL TYPE-3 151D X 10B-K X 3/8-16
Price
N/A
21
HANDWHEEL DIRECTION LABEL
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
Now: PN08M
HEX NUT M10-1.25
Price
N/A
24
REVOLVING HANDLE 1 X 3-9/16,3/8-16 X 1/2
25
CHIP DEFLECTOR
26
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
27
ROLLER BUSHING, PLASTIC
28
FLAT SPRING 84 X 46 X 0.6MM
29
TENSIONING SET SCREW M22-1.5 X 20
30
SPACER 8.2 X 22 X 3MM
31
CHAIN TENSIONER
32
SHOULDER BOLT M8-1.25 X 14, 4 X 12
33
IDLER WHEEL
34
IDLER SHAFT
35
ROLL PIN 6 X 20
Price
N/A
36
PULLEY COVER V1
Price
N/A
37
CAP SCREW M8-1.25 X 50
Price
N/A
38
ROLLER AXLE
39
EXTENSION SPRING 1 X 8.5 X 33
40
SPRING BRACKET
41
BALL BEARING 6205RS
Price
N/A
42
FLAT WASHER 8 X 22 X 3MM
43
KEY 8 X 8 X 36
Price
N/A
44
SET SCREW M8-1.25 X 10
Price
N/A
45
MAGNETIC SWITCH ASSY MP-18
45-1
MAGNETIC SWITCH COVER (FRONT)
45-2
MAGNETIC SWITCH COVER (REAR)
45-3
CONTACTOR SDE MA-18 220-240V
45-4
OL RELAY SDE RA-20 12-18A
46
SET SCREW M10-1.5 X 12
Price
N/A
47
SET SCREW M8-1.25 X 10
Price
N/A
48
COMPRESSION SPRING 3.5 X 19.7 X 70
49
BUSHING BLOCK
50
BUSHING BLOCK PLATE
51
Now: PN01M
HEX NUT M6-1
Price
N/A
52
HEAD CASTING
53
OUTFEED ROLLER
54
DEPTH LIMITER
55
FLAT HD SCR M5-.8 X 12
Price
N/A
56
FLAT WASHER 10 X 25 X 3MM
57
SPROCKET 31T
58
FENDER WASHER 6 X 20 X 3MM
59
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
60
CHAIN 06B-1 X 63 (31 LINKS)
61
SPROCKET 31T
62
Now: PN03M
HEX NUT M8-1.25
Price
N/A
63
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
64
CHIP BREAKER ADJUSTMENT ROD
65
CHIP BREAKER PIVOT ROD
66
Now: PN09M
HEX NUT M12-1.75
Price
N/A
67
E-CLIP 15MM
Price
N/A
68
SPACER
69
ANTI-KICKBACK FINGER
70
ANTI-KICKBACK SHAFT
71
INFEED ROLLER
72
SPROCKET 31T
73
CAP SCREW M6-1 X 12
Price
N/A
74
BALL BEARING 6204-2NSE
Price
N/A
75
GEAR 16T
76
CAP SCREW M6-1 X 25
Price
N/A
77
BALL BEARING 6201ZZ
Price
N/A
78
GEAR 47T
79
GEARED SHAFT 18T
80
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
81
GEARBOX COVER
82
LOCATING PIN 8 X 7.55 X 7.95
83
SET SCREW M6-1 X 16
Price
N/A
84
GEARED SHAFT 22T/18T V1
84V2
GEARED SHAFT 28T/18T V2.02.19
85
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
86
GEAR 71T
87
KNOB 3/8-16, D1-1/4, BALL
Price
N/A
88
CHAIN 06B-1 X 47 (23 LINKS)
89
SPROCKET 12T W/KEY
90
OIL PLUG 1/4 NPT X 3/4"
91
OIL SEAL 28 X 40 X 8
92
GEARBOX
93
GASKET
94
COMBO GEAR 92T/96T V1
94V2
COMBO GEAR 86T/96T V2.02.19
95
BEARING SHAFT
96
GEAR SHAFT
97
COMPRESSION SPRING 0.6 X 5.9 X 16
98
STEEL BALL 6MM
Price
N/A
99
OIL SEAL 25 X 47 X 6
100
BALL BEARING 6204ZZ
Price
N/A
101
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
102
SHIFTING FORK
103
SHIFTING SHAFT
104
O-RING 12 X 1.5 S12.5
Price
N/A
105
ROLLER EXTENSION TABLE FRAME
106
GIB BOLT M8-1.25 X 10
107
ECCENTRIC SHAFT
108
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
109
TABLE ROLLER
110
KNOB 6-LOBE M12-1.75, D53
111
THREADED GIB
112
LOCKING ROD
113
MAIN TABLE
114
SET SCREW M6-1 X 12
Price
N/A
115
GIB
116
RIVET 2 X 5MM
117
LEADSCREW NUT
118
LEADSCREW, SECONDARY
119
COLUMN 14-1/2
Price
N/A
120
CHAIN #410 X 134
121
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
122
IDLER SPROCKET 10T
123
IDLER SHAFT
124
IDLER BRACKET
125
BASE
126
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
127
BALL BEARING 6202ZZ
Price
N/A
128
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
129
SPROCKET 10T
130
SCALE COLUMN
131
SCALE
132
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
133
E-CLIP 12MM
Price
N/A
134
LIFTING BAR
135
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
136
GEAR 14T
137
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
138
SPACER
139
LEADSCREW, PRIMARY
140

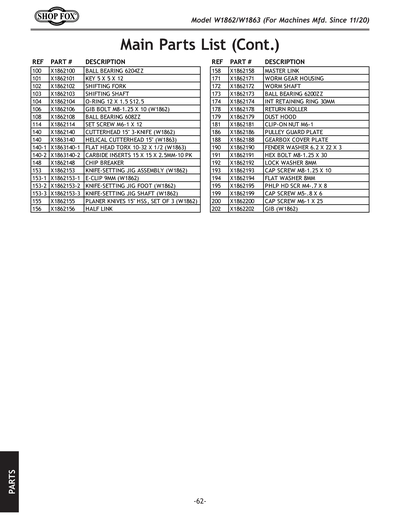

CUTTERHEAD 15" 3-KNIFE
141
CABINET STAND
142
MOTOR ACCESS PANEL
143
FLAT HD SCR M6-1 X 20
Price
N/A
144
HEX BOLT M8-1.25 X 45
Price
N/A
145
SWITCH MOUNT BRACKET
146
MOTOR MOUNT PLATE
147
SET SCREW M6-1 X 12
Price
N/A
148
CHIP BREAKER
149

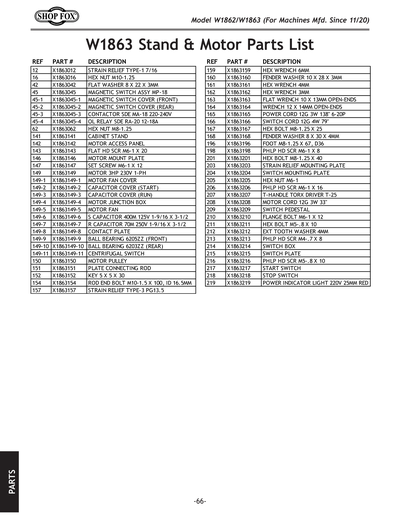

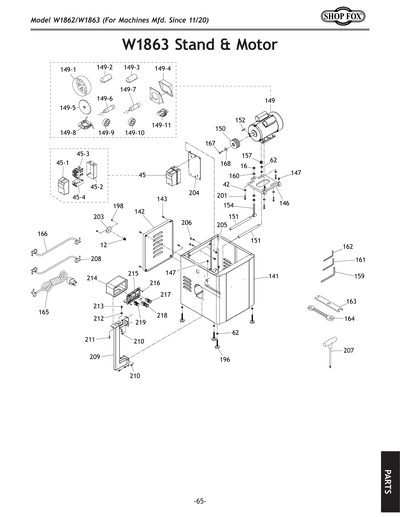

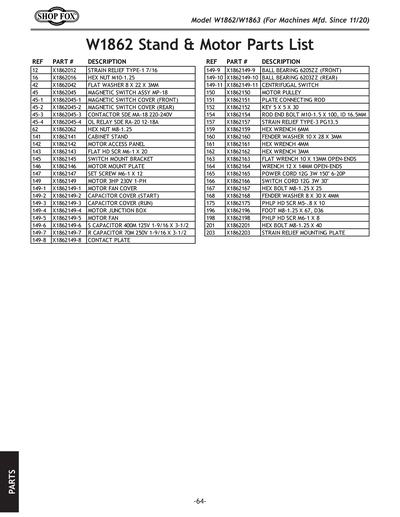

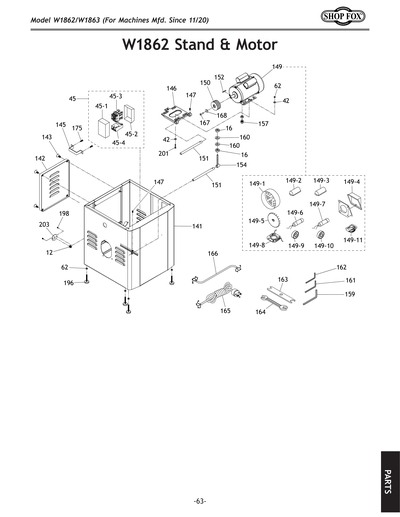

MOTOR 3HP 230V 1-PH
149-1
MOTOR FAN COVER
149-10
BALL BEARING 6203ZZ
Price
N/A
149-11
CENTRIFUGAL SWITCH
149-2
CAPACITOR COVER (START)
149-3
CAPACITOR COVER (RUN)
149-4
MOTOR JUNCTION BOX
149-5
MOTOR FAN
149-6
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
149-7
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
149-8
CONTACT PLATE
149-9
BALL BEARING 6205ZZ
Price
N/A
150
MOTOR PULLEY
151
PLATE CONNECTING ROD
152
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
153
KNIFE-SETTING JIG ASSEMBLY
153-1
E-CLIP 9MM
Price
N/A
153-2
KNIFE-SETTING JIG FOOT
153-3
KNIFE-SETTING JIG SHAFT
154
ROD END BOLT M10-1.5 X 100, ID 16.5MM
155
Now: D3301
15" Planer Knives - Set of 3 for W1692
Price
N/A
157
STRAIN RELIEF TYPE-3 PG13.5
159
HEX WRENCH 6MM
Price
N/A
160
FENDER WASHER 10 X 28 X 3MM
161
HEX WRENCH 4MM
Price
N/A
162
HEX WRENCH 3MM
Price
N/A
163
FLAT WRENCH 10 X 13MM OPEN-ENDS
164
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
165
POWER CORD 12G 3W 150" 6-20P
166
SWITCH CORD 12G 3W 30"
167
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
168
FENDER WASHER 8 X 30 X 4MM
169
SET SCREW M10-1.5 X 12
Price
N/A
170
CAP SCREW M6-1 X 20
Price
N/A
171
WORM GEAR HOUSING
172
WORM SHAFT
173
BALL BEARING 6200ZZ
Price
N/A
174
Now: PR35M
INT RETAINING RING 30MM
Price
N/A
175
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
176
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
177
POINTER
178
RETURN ROLLER
179
DUST HOOD
180
BALL BEARING 608-2RS
Price
N/A
181
CLIP-ON NUT M6-1
182
Now: PW01M
FLAT WASHER 8MM
Price
N/A
183
Now: PW04M
FLAT WASHER 10MM
Price
N/A
184
Now: PN02M
HEX NUT M10-1.5
Price
N/A
185
SET SCREW M6-1 X 12
Price
N/A
186
PULLEY GUARD PLATE
187
SPACER 8 X 22 X 3MM
188
GEARBOX COVER PLATE
189
EXTENSION TABLE ROLLER
190
FENDER WASHER 6.2 X 22 X 3
191
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
192
LOCK WASHER 8MM
Price
N/A
193
CAP SCREW M8-1.25 X 10
Price
N/A
194
Now: PW01M
FLAT WASHER 8MM
Price
N/A
195
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
196
FOOT M8-1.25 X 67, D36
197
FENDER WASHER 6 X 20 X 3MM
198
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
199
CAP SCREW M5-.8 X 6
Price
N/A
200
CAP SCREW M6-1 X 25
Price
N/A
201
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
202
GIB
203
STRAIN RELIEF MOUNTING PLATE

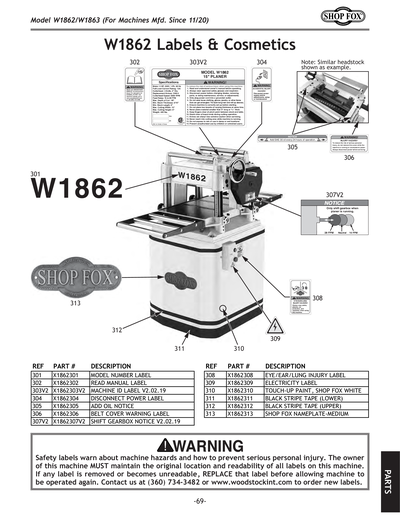

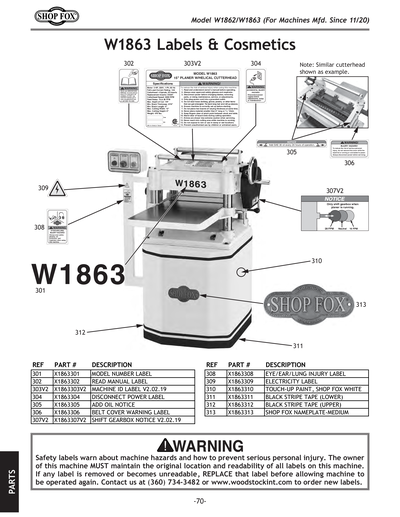

301
MODEL NUMBER LABEL
302
READ MANUAL 2.8W X 1.5H
Price
N/A
303
MACHINE ID LABEL V1
303V2
MACHINE ID LABEL V2.02.19
304
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
305
ADD OIL NOTICE
306
BELT COVER WARNING LABEL
307
SHIFT GEARBOX NOTICE V1
307V2
SHIFT GEARBOX NOTICE V2.02.19
308
EYE/EAR/LUNG INJURY LABEL
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
SHOP FOX WHITE M1006
Price
N/A
311
BLACK STRIPE TAPE (UPPER & LOWER) 3-PC
312
BLACK STRIPE TAPE UPPER 2-PC
313
Now: D3376
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
MAN
MANUAL W1862/63 MFD-10.18-1.19 V1.12.18
MANV2
MANUAL W1862/W1863 MFD-02.19+ V2.02.19
MANV3
MANUAL W1862/W1863 MFD-11.20+ V3.04.21
