Parts for W1864 - 20" 5 HP Planer

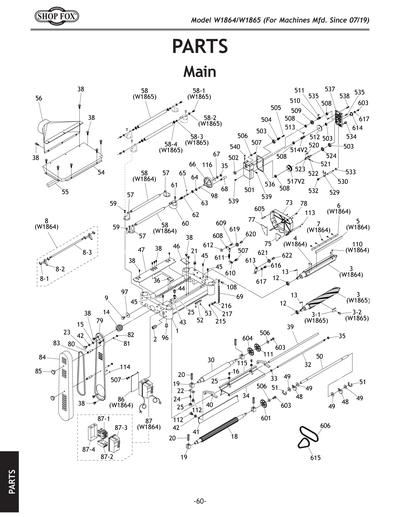

Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864
Part Diagram for W1864

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

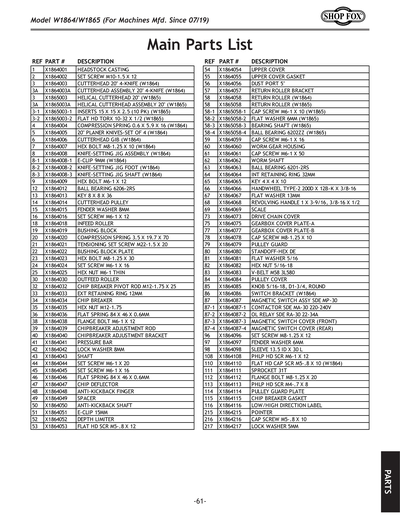

Ref #
Part #
Description
1
HEADSTOCK CASTING
Price
$536.30
2
SET SCREW M10-1.5 X 12
Price
N/A
3
CUTTERHEAD 20" 4-KNIFE
Price
$398.10
3A
CUTTERHEAD ASSEMBLY 20" 4-KNIFE
Price
$484.45
4
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
5
20" x 1" x 1/8" HSS Planer Knives, Set of 4
Price
N/A
6
CUTTERHEAD GIB
Price
$10.65
7
HEX BOLT M8-1.25 X 10
Price
N/A
8
KNIFE-SETTING JIG ASSEMBLY
Price
$14.60
8-1
E-CLIP 9MM
Price
N/A
8-2
KNIFE-SETTING JIG FOOT
Price
$2.35
8-3
KNIFE-SETTING JIG SHAFT
Price
$4.10
9
HEX BOLT M6-1 X 12
Price
N/A
12
BALL BEARING 6206-2RS
Price
N/A
13
KEY 8 X 8 X 36
Price
N/A
14
CUTTERHEAD PULLEY
Price
$18.40
15
FENDER WASHER 8MM
Price
N/A
16
SET SCREW M6-1 X 12
Price
N/A
17
MOTOR PULLEY
Price
$34.80
18
INFEED ROLLER
Price
$128.25
19
BUSHING BLOCK
Price
$6.65
20
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
$1.90
21
TENSIONING SET SCREW M22-1.5 X 20
Price
$2.70
22
BUSHING BLOCK PLATE
Price
$2.20
23
HEX BOLT M8-1.25 X 30
Price
N/A
24
SET SCREW M6-1 X 16
Price
N/A
25
HEX NUT M6-1 THIN
Price
$1.60
30
OUTFEED ROLLER
Price
$109.60
32
CHIP BREAKER PIVOT ROD M12-1.75 X 25
Price
$7.05
33
EXT RETAINING RING 12MM
Price
N/A
34
CHIP BREAKER
Price
N/A
35
HEX NUT M12-1.75
Price
N/A
36
FLAT SPRING 84 X 46 X 0.6MM
Price
$1.95
38
FLANGE BOLT M6-1 X 12
Price
N/A
39
CHIPBREAKER ADJUSTMENT ROD
Price
$11.00
40
CHIPBREAKER ADJUSTMENT BRACKET
Price
$9.40
41
PRESSURE BAR
Price
$26.10
42
LOCK WASHER 8MM
Price
N/A
43
SHAFT
Price
$3.65
44
SET SCREW M6-1 X 20
Price
N/A
45
SET SCREW M6-1 X 16
Price
N/A
46
FLAT SPRING 84 X 46 X 0.6MM
Price
$1.80
47
CHIP DEFLECTOR
Price
$31.00
48
ANTI-KICKBACK FINGER
Price
$1.60
49
***USE PX1862068***
Price
$1.60
50
ANTI-KICKBACK SHAFT
Price
$16.05
51
E-CLIP 15MM
Price
N/A
52
DEPTH LIMITER
Price
$1.60
53
FLAT HD SCR M5-.8 X 12
Price
N/A
54
UPPER COVER
Price
$52.60
55
UPPER COVER GASKET
Price
$2.20
56
DUST PORT 5"
Price
$47.40
57
RETURN ROLLER BRACKET
Price
$13.45
58
RETURN ROLLER
Price
$26.10
59
CAP SCREW M6-1 X 16
Price
N/A
60
WORM GEAR HOUSING
Price
$29.25
61
CAP SCREW M6-1 X 50
Price
N/A
62
WORM SHAFT
Price
$12.75
63
BALL BEARING 6201-2RS
Price
N/A
64
INT RETAINING RING 32MM
Price
N/A
65
KEY 4 X 4 X 10
Price
N/A
66
HANDWHEEL TYPE-2 200D X 12B-K X 3/8-16
Price
$47.75
67
FLAT WASHER 13MM
Price
N/A
68
REVOLVING HANDLE 1 X 3-9/16,3/8-16 X 1/2
Price
$12.45
69
SCALE
Price
$3.90
73
DRIVE CHAIN COVER
Price
$11.30
75
GEARBOX COVER PLATE-A
Price
$2.55
77
GEARBOX COVER PLATE-B
Price
$5.65
78
CAP SCREW M8-1.25 X 10
Price
N/A
79
PULLEY GUARD
Price
$43.75
80
STANDOFF-HEX DE
Price
$2.75
81
X1864081
Now: PW07
FLAT WASHER 5/16
Price
N/A
82
X1864082
Now: PN02
HEX NUT 5/16-18
Price
N/A
83
V-BELT M58 3L580
Price
N/A
84
PULLEY COVER
Price
$53.15
85
KNOB 5/16-18, D1-3/4, ROUND
Price
$2.55
86
SWITCH BRACKET (W1864)
Price
$5.95
87
MAGNETIC SWITCH ASSY SDE MP-30
Price
$121.70
87-1
CONTACTOR SDE MA-30 220-240V
Price
$61.20
87-2
OL RELAY SDE RA-30 22-34A
Price
$37.05
87-3
MAGNETIC SWITCH COVER (FRONT)
Price
$18.85
87-4
MAGNETIC SWITCH COVER (REAR)
Price
$4.75
93
MOTOR CORD 10G 3W 57"
Price
$15.45
96
SET SCREW M8-1.25 X 12
Price
N/A
97
FENDER WASHER 6MM
Price
N/A
98
SLEEVE 13.5 ID X 30 L
Price
$2.20
108
PHLP HD SCR M6-1 X 12
Price
N/A
110
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
111
SPROCKET 31T
Price
$9.00
112
FLANGE BOLT M8-1.25 X 20
Price
N/A
113
PHLP HD SCR M4-.7 X 8
Price
N/A
114
PULLEY GUARD PLATE
Price
$1.60
115
CHIP BREAKER GASKET
Price
$1.60
116
LOW/HIGH DIRECTION LABEL
Price
$1.35

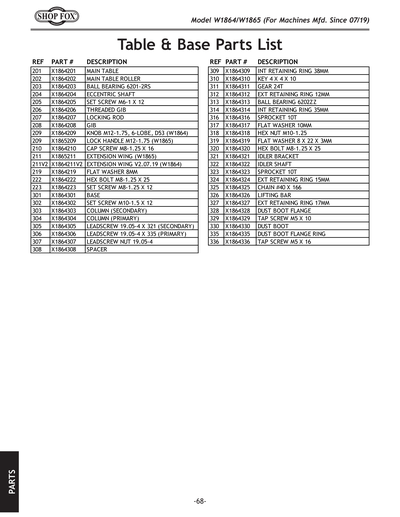

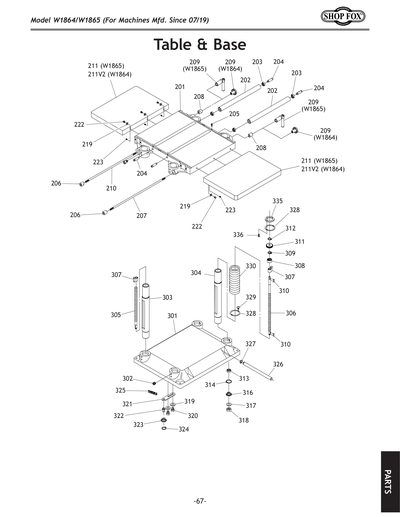

201
MAIN TABLE
Price
$476.15
202
MAIN TABLE ROLLER
Price
$28.45
203
BALL BEARING 6201-2RS
Price
N/A
204
ECCENTRIC SHAFT
Price
$3.40
205
SET SCREW M6-1 X 12
Price
N/A
206
THREADED GIB
Price
$3.65
207
LOCKING ROD
Price
$7.60
208
GIB
Price
$3.65
209
KNOB M12-1.75, 6-LOBE, D53
Price
$3.90
210
CAP SCREW M8-1.25 X 16
Price
N/A
211
ROLLER EXTENSION TABLE FRAME V1
Price
$7.90
211V2
EXTENSION WING
Price
N/A
212
EXTENSION TABLE ROLLER
Price
$9.60
213
HEX BOLT M10-1.5 X 25
Price
N/A
214
FENDER WASHER 13MM
Price
$1.60
215
POINTER
Price
$1.60
216
CAP SCREW M5-.8 X 10
Price
N/A
217
LOCK WASHER 5MM
Price
N/A
218
HEX BOLT M6-1 X 12
Price
N/A
219
FLAT WASHER 8MM
Price
N/A
220
EXTENSION ROLLER AXLE
Price
$11.35
221
EXTENSION ROLLER BUSHING, PLASTIC
Price
$1.60
222
HEX BOLT M8-1.25 X 25
Price
N/A
223
SET SCREW M8-1.25 X 12
Price
N/A
301
BASE
Price
$358.40
302
SET SCREW M10-1.5 X 12
Price
N/A
303
COLUMN (SECONDARY)
Price
$80.25
304
COLUMN, PRIMARY
Price
N/A
305
LEADSCREW 19.05-4 X 321 (SECONDARY)
Price
$9.60
306
LEADSCREW 19.05-4 X 335 (PRIMARY)
Price
$18.80
307
LEADSCREW NUT 19.05-4
Price
$6.00
308
SPACER
Price
$4.45
309
INT RETAINING RING 38MM
Price
N/A
310
KEY 4 X 4 X 10
Price
N/A
311
GEAR 24T
Price
$11.15
312
EXT RETAINING RING 12MM
Price
N/A
313
BALL BEARING 6202ZZ
Price
N/A
314
INT RETAINING RING 35MM
Price
N/A
316
SPROCKET 10T
Price
$3.65
317
FLAT WASHER 10MM
Price
N/A
318
HEX NUT M10-1.25
Price
N/A
319
FLAT WASHER 8 X 22 X 3MM
Price
$1.60
320
HEX BOLT M8-1.25 X 25
Price
N/A
321
IDLER BRACKET
Price
$3.65
322
IDLER SHAFT
Price
$3.10
323
SPROCKET 10T
Price
$3.00
324
EXT RETAINING RING 15MM
Price
N/A
325
CHAIN #40 X 166
Price
$26.70
326
LIFTING BAR
Price
$12.35
327
EXT RETAINING RING 17MM
Price
N/A
328
DUST BOOT FLANGE
Price
$1.60
329
TAP SCREW M5 X 10
Price
N/A
330
DUST BOOT
Price
$1.85
331
HEX BOLT M12-1.75 X 50
Price
N/A
332
FLAT WASHER 12MM
Price
N/A
334
HEX NUT M12-1.75
Price
N/A
335
DUST BOOT FLANGE RING
Price
$11.50
336
TAP SCREW M5 X 16
Price
N/A

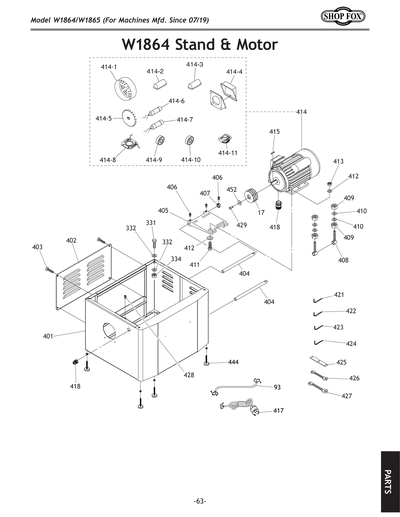

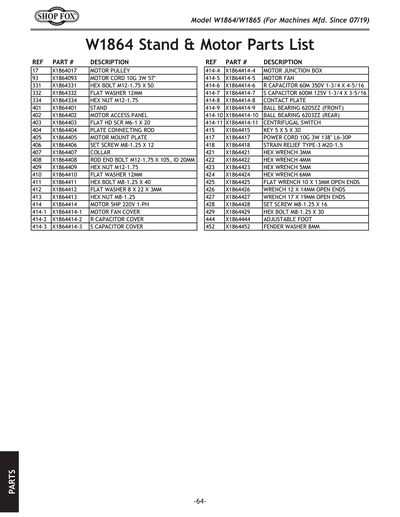

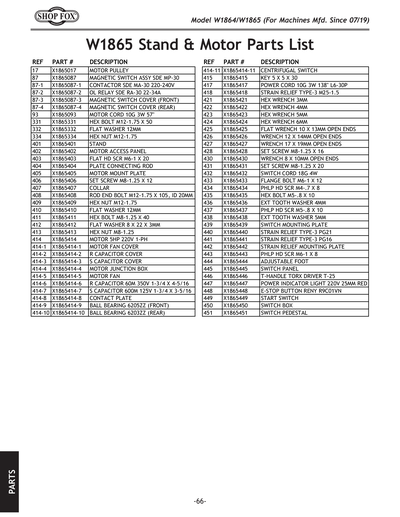

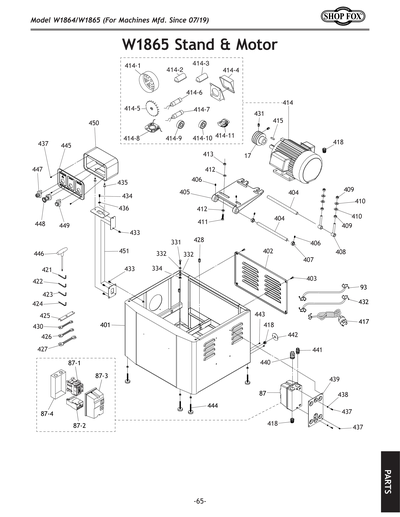

401
STAND
Price
$370.45
402
MOTOR ACCESS PANEL
Price
$39.30
403
FLAT HD SCR M6-1 X 20
Price
N/A
404
PLATE CONNECTING ROD
Price
$7.65
405
MOTOR MOUNT PLATE
Price
$31.15
406
SET SCREW M8-1.25 X 12
Price
N/A
407
COLLAR
Price
$2.80
408
ROD END BOLT M12-1.75 X 105, ID 20MM
Price
$5.05
409
HEX NUT M12-1.75
Price
N/A
410
FLAT WASHER 12MM
Price
N/A
411
HEX BOLT M8-1.25 X 40
Price
N/A
412
FLAT WASHER 8 X 22 X 3MM
Price
$1.60
413
HEX NUT M8-1.25
Price
N/A
414
MOTOR 5HP 220V 1-PH
Price
$622.60
414-1
MOTOR FAN COVER
Price
$15.40
414-10
BALL BEARING 6203ZZ
Price
N/A
414-11
CENTRIFUGAL SWITCH
Price
$9.40
414-2
R CAPACITOR COVER
Price
$5.65
414-3
S CAPACITOR COVER
Price
$5.65
414-4
MOTOR JUNCTION BOX
Price
$12.85
414-5
MOTOR FAN
Price
$5.65
414-6
R CAPACITOR 60M 350V 1-3/4 X 4-5/16
Price
$30.10
414-7
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
414-8
CONTACT PLATE
Price
$7.65
414-9
BALL BEARING 6205ZZ
Price
N/A
415
KEY 5 X 5 X 30
Price
N/A
417
POWER CORD 10G 3W 138" L6-30P
Price
$40.90
418
STRAIN RELIEF TYPE-3 M20-1.5
Price
$6.00
421
HEX WRENCH 3MM
Price
N/A
422
HEX WRENCH 4MM
Price
N/A
423
HEX WRENCH 5MM
Price
N/A
424
HEX WRENCH 6MM
Price
N/A
425
FLAT WRENCH 10 X 13MM OPEN-ENDS
Price
$3.15
426
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
427
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
428
SET SCREW M8-1.25 X 16
Price
N/A
429
HEX BOLT M8-1.25 X 30
Price
N/A
444
ADJUSTABLE FOOT
Price
$2.25
452
FENDER WASHER 8MM
Price
N/A

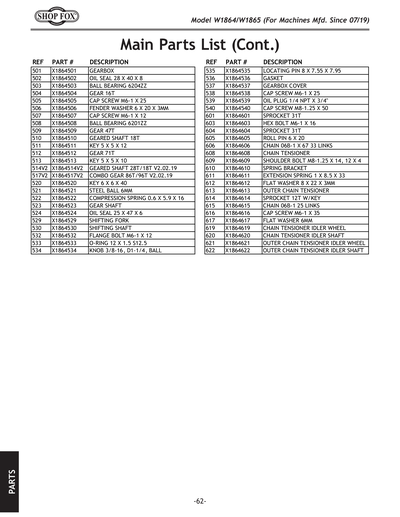

501
GEARBOX
Price
$33.10
502
OIL SEAL 28 X 40 X 8
Price
$1.90
503
BALL BEARING 6204ZZ
Price
N/A
504
GEAR 16T
Price
$9.00
505
CAP SCREW M6-1 X 25
Price
N/A
506
FENDER WASHER 6MM
Price
N/A
507
CAP SCREW M6-1 X 12
Price
N/A
508
BALL BEARING 6201ZZ
Price
N/A
509
GEAR 47T
Price
$11.00
510
GEARED SHAFT 18T
Price
$8.65
511
KEY 5 X 5 X 12
Price
N/A
512
GEAR 71T
Price
$14.85
513
KEY 5 X 5 X 10
Price
N/A
514
GEARED SHAFT 22T/18T
Price
$12.45
514V2
GEARED SHAFT 28T/18T V2.02.19
Price
$16.40
517
COMBO GEAR 92T/96T
Price
$34.30
517V2
COMBO GEAR 86T/96T V2.02.19
Price
$38.00
520
KEY 6 X 6 X 40
Price
N/A
521
STEEL BALL 6MM
Price
N/A
522
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
$1.60
523
GEAR SHAFT
Price
$10.65
524
OIL SEAL 25 X 47 X 6
Price
$2.20
529
SHIFTING FORK
Price
$10.65
530
SHIFTING SHAFT
Price
$3.15
532
FLANGE BOLT M6-1 X 12
Price
N/A
533
O-RING 12 X 1.5 S12.5
Price
N/A
534
KNOB 3/8-16, D1-1/4, BALL
Price
N/A
535
LOCATING PIN 8 X 7.55 X 7.95
Price
$1.60
536
GASKET
Price
$3.65
537
GEARBOX COVER
Price
$23.30
538
CAP SCREW M6-1 X 25
Price
N/A
539
OIL PLUG 1/4 NPT X 3/4"
Price
$1.60
540
CAP SCREW M8-1.25 X 50
Price
N/A
601
SPROCKET 31T
Price
$8.60
603
HEX BOLT M6-1 X 16
Price
N/A
604
SPROCKET 31T
Price
$7.95
605
ROLL PIN 6 X 20
Price
N/A
606
CHAIN 06B-1 X 67 33 LINKS
Price
$12.85
608
CHAIN TENSIONER
Price
$1.95
609
SHOULDER BOLT M8-1.25 X 14, 12 X 4
Price
$2.20
610
SPRING BRACKET
Price
$1.60
611
EXTENSION SPRING 1 X 8.5 X 33
Price
$1.60
612
FENDER WASHER 8MM
Price
N/A
613
OUTER CHAIN TENSIONER
Price
$1.60
613V2
BRACKET
Price
N/A
614
SPROCKET 12T W/KEY
Price
$2.80
615
CHAIN 06B-1 25 LINKS
Price
$9.15
616
CAP SCREW M6-1 X 30
Price
N/A
617
FLAT WASHER 6MM
Price
N/A
619
CHAIN TENSIONER IDLER WHEEL
Price
$2.35
620
CHAIN TENSIONER IDLER SHAFT
Price
$2.20
621
OUTER CHAIN TENSIONER IDLER WHEEL
Price
$2.35
622
OUTER CHAIN TENSIONER IDLER SHAFT
Price
$2.20
623
EXTENSION SPRING 1 X 8.5 X 33
Price
N/A
624
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
625
BUSHING 6.2 x 10.2 X 11
Price
N/A

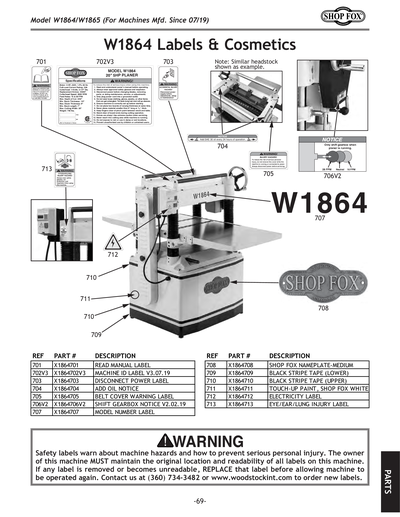

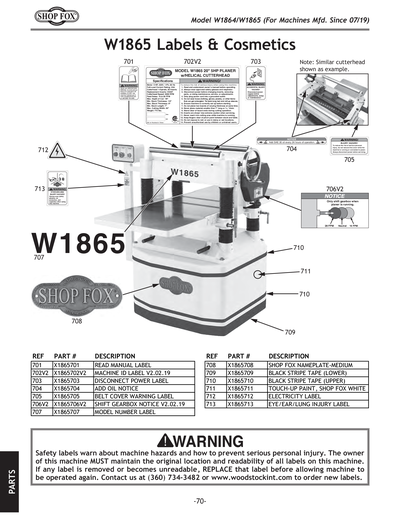

701
READ MANUAL 2.8W X 1.5H
Price
N/A
702
MACHINE ID LABEL
Price
$16.40
702V2
MACHINE ID LABEL V2.02.19
Price
$16.40
702V3
MACHINE ID LABEL V3.07.19
Price
$16.40
703
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
704
ADD OIL NOTICE
Price
N/A
705
BELT COVER WARNING LABEL
Price
N/A
706
SHIFT GEARBOX NOTICE V1
Price
N/A
706V2
SHIFT GEARBOX NOTICE V2.02.19
Price
$1.60
707
MODEL NUMBER LABEL
Price
$2.50
708
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
709
BLACK STRIPE TAPE (UPPER & LOWER) 3-PC
Price
N/A
710
BLACK STRIPE TAPE UPPER 2-PC
Price
N/A
711
SHOP FOX WHITE M1006
Price
N/A
712
ELECTRICITY 1.4W X 1.2H
Price
N/A
713
EYE/EAR/LUNG INJURY LABEL
Price
N/A
MAN
MANUAL W1864-65 MFD-11.18-01.19 V1.12.18
Price
$19.75
MANV2
MANUAL W1864-65 MFD-02.19-06.19 V2.02.19
Price
$19.75
MANV3
MANUAL W1864-65 MFD-07.19+ V3.07.19
Price
$19.75
PKG1
BOX FOR W1854
Price
$1.60
