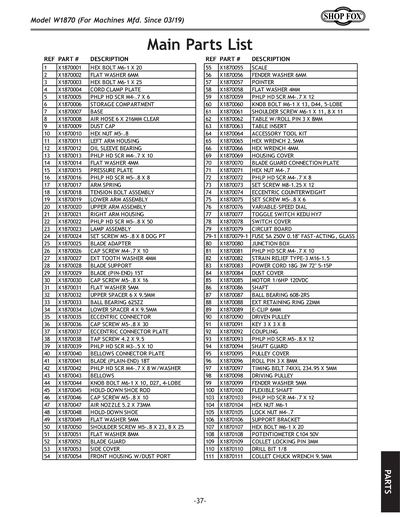

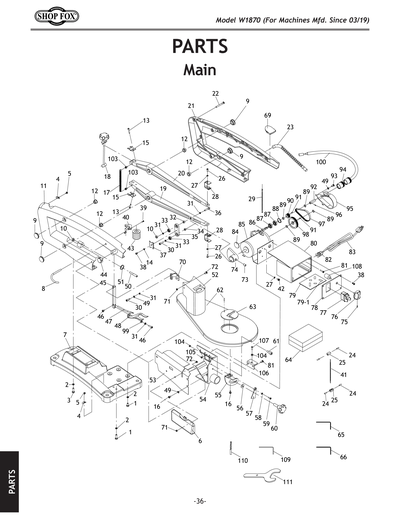

Parts for W1870 18" Variable-Speed Scroll Saw with LED and Rotary Tool Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
3
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
4
CORD CLAMP PLATE
5
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
6
STORAGE COMPARTMENT
7
BASE
8
AIR HOSE 6 X 216MM CLEAR
9
DUST CAP
10
Now: PN06M
HEX NUT M5-.8
Price
N/A
11
ARM HOUSING ASSEMBLY
Price
N/A
11A
ARM HOUSING ASSEMBLY
12
OIL SLEEVE BEARING
13
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
14
Now: PW05M
FLAT WASHER 4MM
Price
N/A
15
PRESSURE PLATE
16
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
17
ARM SPRING
18
TENSION BOLT ASSEMBLY
19
LOWER ARM ASSEMBLY
20
UPPER ARM ASSEMBLY
21
ARM HOUSING ASSEMBLY
Price
N/A
22
PHLP HD SCR M5-.8 X 50
Price
N/A
23
LAMP ASSEMBLY
24
SET SCREW M5-.8 X 8 DOG-PT
Price
N/A
25
BLADE ADAPTER
26
CAP SCREW M4-.7 X 10
Price
N/A
27
EXT TOOTH WASHER 4MM
Price
N/A
28
BLADE SUPPORT
29
BLADE (PIN-END) 15T
30
CAP SCREW M5-.8 X 16
Price
N/A
31
Now: PW02M
FLAT WASHER 5MM
Price
N/A
32
UPPER SPACER 6 X 9.5MM
33
Router Bit Bearing 5/8" x 5mm
Price
N/A
34
LOWER SPACER 4 X 9.5MM
35
ECCENTRIC CONNECTOR
36
CAP SCREW M5-.8 X 30
Price
N/A
37
ECCENTRIC CONNECTOR PLATE
38
TAP SCREW 4.2 X 9.5
39
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
40
BELLOWS CONNECTOR PLATE
41
BLADE (PLAIN-END) 18T
42
PHLP HD SCR M4-.7 X 8 W/WASHER
43
BELLOWS
44
KNOB BOLT M6-1 X 10, D27, 4-LOBE
45
HOLD-DOWN SHOE ROD
46
CAP SCREW M5-.8 X 10
Price
N/A
47
AIR NOZZLE 5.2 X 73MM
48
HOLD-DOWN SHOE
49
Now: PW02M
FLAT WASHER 5MM
Price
N/A
50
SHOULDER SCREW M5-.8 X 23, 8 X 25
51
Now: PW01M
FLAT WASHER 8MM
Price
N/A
52
BLADE GUARD
53
SIDE COVER
54
FRONT HOUSING W/DUST PORT
55
SCALE
56
FENDER WASHER 6MM
Price
N/A
57
POINTER
58
Now: PW05M
FLAT WASHER 4MM
Price
N/A
59
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
60
KNOB BOLT M6-1 X 13, D44, 5-LOBE
61
SHOULDER SCREW M6-1 X 11, 8 X 11
62
TABLE W/ROLL PIN 3 X 8MM
63
TABLE INSERT
64
ACCESSORY TOOL KIT
65
HEX WRENCH 2.5MM
Price
N/A
66
HEX WRENCH 4MM
Price
N/A
69
HOUSING COVER
70
BLADE GUARD CONNECTION PLATE
71
Now: PN04M
HEX NUT M4-.7
Price
N/A
72
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
73
SET SCREW M8-1.25 X 12
Price
N/A
74
ECCENTRIC COUNTERWEIGHT
75
SET SCREW M5-.8 X 6
Price
N/A
76
VARIABLE-SPEED DIAL
77
TOGGLE SWITCH KEDU HY7
78
SWITCH COVER
79
CIRCUIT BOARD
79-1
FUSE 5A 250V 5 x 20MM FAST-ACTING, GLASS
80
JUNCTION BOX
81
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
82
STRAIN RELIEF TYPE-3 M16-1.5
83
POWER CORD 18G 3W 72" 5-15P
84
DUST COVER
85
MOTOR 1/6HP 110VDC
86
SHAFT
87
BALL BEARING 608-OPEN
Price
N/A
88
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
89
E-CLIP 6MM
Price
N/A
90
DRIVEN PULLEY
91
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
92
COUPLING
93
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
94
SHAFT GUARD
95
PULLEY COVER
96
ROLL PIN 3 X 8
Price
N/A
97
TIMING BELT 74XXL 234.95 X 5MM
98
DRIVING PULLEY
99
FENDER WASHER 5MM
Price
N/A
100
FLEXIBLE SHAFT
103
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
104
Now: PN01M
HEX NUT M6-1
Price
N/A
105
LOCK NUT M4-.7
Price
N/A
106
SUPPORT BRACKET
107
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
108
POTENTIOMETER C104 50V
109
WRENCH SET 2PC
Price
N/A
109A
WRENCH SET 2PC
110
DRILL BIT 1/8
111
WRENCH SET 2PC
Price
N/A
201
BLADE TENSION KNOB LABEL
202
SHOP FOX WHITE M1006
Price
N/A
203
GLOSSY BLACK
Price
N/A
204
READ MANUAL 2.8W X 1.5H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
VARIABLE-SPEED DIAL LABEL
208
MACHINE ID LABEL
209
EAR PROTECTION/RESPIRATOR 2.8W X 1.5H
Price
N/A
210
SHOP FOX LOGO
MAN
MANUAL W1870 MFD-12.18 V1.02.19
PKG1
BOX FOR W1870
P
MACHINE ID LABEL V2.09.17
