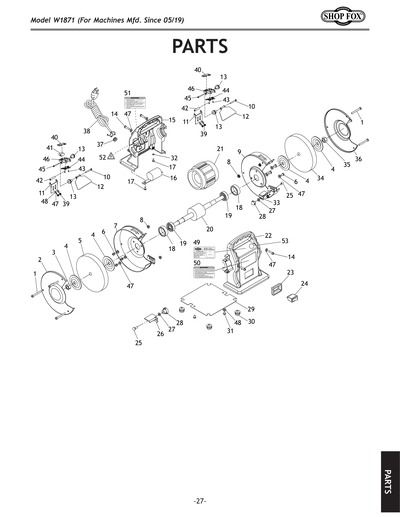

Parts for W1871 6" Portable Bench Grinder with LEDs

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

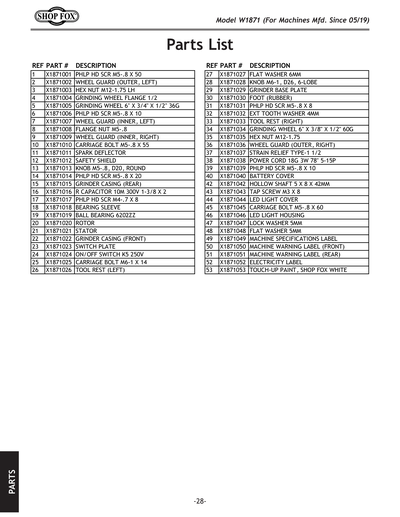

1
PHLP HD SCR M5-.8 X 50
Price
N/A
2
WHEEL GUARD (OUTER, LEFT)
3
Now: PN16M
HEX NUT M12-1.75 LH
Price
N/A
4
GRINDING WHEEL FLANGE 1/2
5
GRINDING WHEEL 6" X 3/4" X 1/2" 36G
6
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
7
WHEEL GUARD (INNER, LEFT)
8
FLANGE NUT M5-.8
Price
N/A
9
WHEEL GUARD (INNER, RIGHT)
10
CARRIAGE BOLT M5-.8 X 55
11
SPARK DEFLECTOR
12
SAFETY SHIELD
13
KNOB M5-.8, D20, ROUND
14
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
15
GRINDER CASING (REAR)
16
R CAPACITOR 10M 300V 1-3/8 X 2
17
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
18
BEARING SLEEVE
19
BALL BEARING 6202ZZ
Price
N/A
20
ROTOR
21
STATOR
22
GRINDER CASING (FRONT)
23
SWITCH PLATE
24
ON/OFF SWITCH K5 250V
25
CARRIAGE BOLT M6-1 X 14
26
TOOL REST (LEFT)
27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
28
KNOB M6-1, D26, 6-LOBE
29
GRINDER BASE PLATE
30
FOOT (RUBBER)
31
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
32
EXT TOOTH WASHER 4MM
Price
N/A
33
TOOL REST (RIGHT)
34
GRINDING WHEEL 6" X 3/8" X 1/2" 60G
35
Now: PN09M
HEX NUT M12-1.75
Price
N/A
36
WHEEL GUARD (OUTER, RIGHT)
37
STRAIN RELIEF TYPE-1 1/2
38
POWER CORD 18G 3W 78" 5-15P
39
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
40
LED LIGHT ASSEMBLY
Price
N/A
42
HOLLOW SHAFT 5 X 8 X 42MM
43
TAP SCREW M3 X 8
Price
N/A
44
LED LIGHT ASSEMBLY
Price
N/A
45
CARRIAGE BOLT M5-.8 X 60
46
LED LIGHT ASSEMBLY
47
LOCK WASHER 5MM
Price
N/A
48
Now: PW02M
FLAT WASHER 5MM
Price
N/A
49
MACHINE SPECIFICATIONS LABEL
50
MACHINE WARNING LABEL (FRONT)
51
MACHINE WARNING LABEL (REAR)
52
ELECTRICITY 0.7W X 0.6H
Price
N/A
53
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1871 MFD-02.19+ V1.03.19
