Parts for W1872 - 16" VS Scroll Saw w/ Foot Switch, LED, Miter Gauge, & Rotary Shaft

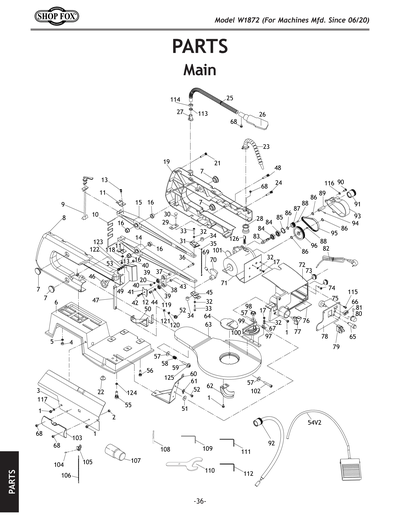

Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872
Part Diagram for W1872

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

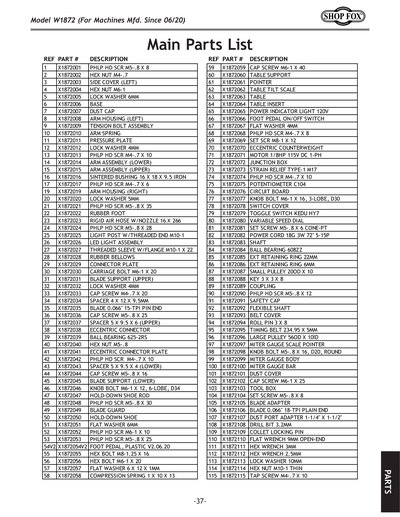

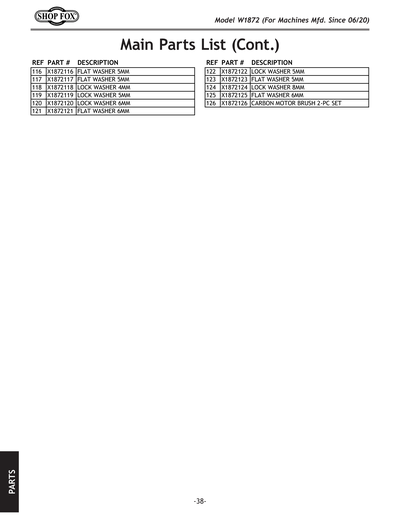

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 8
Price
$1.90
2
HEX NUT M4-.7
Price
N/A
3
SIDE COVER (LEFT)
Price
$4.70
4
HEX NUT M6-1
Price
N/A
5
LOCK WASHER 6MM
Price
N/A
6
BASE
Price
$44.95
7
DUST CAP
Price
$1.90
8
ARM HOUSING (L/R)
Price
$49.95
9
TENSION BOLT ASSEMBLY
Price
$5.45
10
ARM SPRING
Price
$1.90
11
PRESSURE PLATE
Price
$1.90
12
LOCK WASHER 4MM
Price
N/A
13
PHLP HD SCR M4-.7 X 10
Price
$1.90
14
ARM ASSEMBLY (LOWER)
Price
$18.00
15
ARM ASSEMBLY (UPPER)
Price
$18.00
16
SINTERED BUSHING 16 X 18 X 9.5 IRON
Price
$1.90
17
PHLP HD SCR M4-.7 X 6
Price
N/A
19
ARM HOUSING (L/R)
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
PHLP HD SCR M5-.8 X 35
Price
N/A
22
RUBBER FOOT
Price
$1.90
23
RIGID AIR HOSE W/NOZZLE 16 X 266
Price
$3.90
24
PHLP HD SCR M5-.8 X 28
Price
$1.90
25
LIGHT POST W/THREADED END M10-1
Price
$5.75
26
LED LIGHT ASSEMBLY
Price
$9.75
27
THREADED SLEEVE W/FLANGE M10-1 X 22
Price
$1.90
28
RUBBER BELLOWS
Price
$1.90
29
CONNECTOR PLATE
Price
$1.90
30
CARRIAGE BOLT M6-1 X 20
Price
N/A
31
BLADE SUPPORT (UPPER)
Price
$1.90
32
LOCK WASHER 4MM
Price
N/A
33
CAP SCREW M4-.7 X 20
Price
N/A
34
SPACER 4 X 12 X 9.5MM
Price
$1.90
35
BLADE 0.066" 15-TPI PIN END
Price
$1.90
36
CAP SCREW M5-.8 X 25
Price
N/A
37
SPACER 5 X 9.5 X 6 (UPPER)
Price
$1.90
38
ECCENTRIC CONNECTOR
Price
$1.90
39
BALL BEARING 625-2RS
Price
N/A
40
HEX NUT M5-.8
Price
N/A
41
ECCENTRIC CONNECTOR PLATE
Price
$1.90
42
PHLP HD SCR M4-.7 X 10
Price
N/A
43
SPACER 5 X 9.5 X 4 (LOWER)
Price
$1.90
44
CAP SCREW M5-.8 X 16
Price
$1.90
45
BLADE SUPPORT (LOWER)
Price
$1.90
46
KNOB BOLT M6-1 X 12, 6-LOBE, D34
Price
$1.90
47
HOLD-DOWN SHOE ROD
Price
$4.70
48
PHLP HD SCR M5-.8 X 30
Price
N/A
49
BLADE GUARD
Price
$5.45
50
HOLD-DOWN SHOE
Price
$1.90
51
FLAT WASHER 6MM
Price
N/A
52
PHLP HD SCR M6-1 X 10
Price
N/A
53
PHLP HD SCR M5-.8 X 25
Price
N/A
54
FOOT PEDAL, PLASTIC V2.06.20
Price
N/A
54V2
FOOT PEDAL, PLASTIC V2.06.20
Price
$21.25
55
HEX BOLT M8-1.25 X 16
Price
$1.90
56
HEX BOLT M6-1 X 20
Price
N/A
57
FLAT WASHER 6 X 12 X 1MM
Price
$1.90
58
COMPRESSION SPRING 1 X 10 X 13
Price
$1.90
59
CAP SCREW M6-1 X 40
Price
$1.90
60
TABLE SUPPORT
Price
$15.85
61
POINTER
Price
$1.90
62
TABLE TILT SCALE
Price
$1.90
63
TABLE
Price
$25.20
64
TABLE INSERT
Price
$1.90
65
POWER INDICATOR LIGHT 120V
Price
$1.90
66
FOOT PEDAL ON/OFF SWITCH
Price
$2.60
67
FLAT WASHER 4MM
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
SET SCREW M8-1.25 X 12
Price
N/A
70
ECCENTRIC COUNTERWEIGHT
Price
$2.90
71
MOTOR 1/8HP 115V DC 1-PH
Price
$75.85
72
JUNCTION BOX
Price
$5.45
73
STRAIN RELIEF TYPE-1 M17
Price
$1.90
74
PHLP HD SCR M4-.7 X 10
Price
N/A
75
POTENTIOMETER C104
Price
$2.60
76
CIRCUIT BOARD
Price
$24.75
77
KNOB BOLT M6-1 X 16, 3-LOBE, D30
Price
$1.90
78
SWITCH COVER
Price
$1.90
79
Toggle Safety Switch
Price
N/A
80
VARIABLE SPEED DIAL
Price
$1.90
81
SET SCREW M5-.8 X 6 CONE-PT
Price
N/A
82
POWER CORD 18G 3W 72" 5-15P
Price
$9.75
83
SHAFT
Price
$1.90
84
Bearing - 22mm x 8mm
Price
N/A
85
EXT RETAINING RING 22MM
Price
N/A
86
EXT RETAINING RING 6MM
Price
N/A
87
SMALL PULLEY 20OD X 10
Price
$1.90
88
KEY 3 X 3 X 8
Price
N/A
89
COUPLING
Price
$1.90
90
PHLP HD SCR M5-.8 X 12
Price
$1.90
91
SAFETY CAP
Price
$1.90
92
FLEXIBLE SHAFT
Price
$18.00
93
BELT COVER
Price
$1.90
94
ROLL PIN 3 X 8
Price
N/A
95
TIMING BELT 234.95 X 5MM
Price
$2.20
96
LARGE PULLEY 56OD X 10ID
Price
$1.90
97
MITER GAUGE SCALE POINTER
Price
$1.90
98
KNOB BOLT M5-.8 X 16, D20, ROUND
Price
$1.90
99
MITER GAUGE BODY
Price
$1.90
100
MITER GAUGE BAR
Price
$1.90
101
DUST COVER
Price
$1.90
102
CAP SCREW M6-1 X 25
Price
N/A
103
TOOL BOX
Price
$2.25
104
SET SCREW M5-.8 X 8
Price
N/A
105
BLADE ADAPTER
Price
$2.20
106
BLADE 0.066" 18-TPI PLAIN END
Price
$1.90
107
DUST PORT ADAPTER 1-1/4" X 1-1/2"
Price
$1.90
108
DRILL BIT 3.2MM
Price
$1.90
109
FLAT WRENCH 9MM OPEN-END W/COLLET LOCKING PIN
Price
N/A
110
FLAT WRENCH 9MM OPEN-END W/COLLET LOCKING PIN
Price
$1.90
111
HEX WRENCH 3MM
Price
N/A
112
HEX WRENCH 2.5MM
Price
N/A
113
LOCK WASHER 10MM
Price
N/A
114
HEX NUT M10-1 THIN
Price
$1.90
115
TAP SCREW M4 X 10
Price
N/A
116
FLAT WASHER 5MM
Price
N/A
117
FLAT WASHER 5MM
Price
N/A
118
LOCK WASHER 4MM
Price
N/A
119
LOCK WASHER 5MM
Price
N/A
120
LOCK WASHER 6MM
Price
N/A
121
FLAT WASHER 6MM
Price
N/A
122
LOCK WASHER 5MM
Price
N/A
123
FLAT WASHER 5MM
Price
N/A
124
LOCK WASHER 8MM
Price
N/A
125
FLAT WASHER 6MM
Price
N/A
126
CARBON MOTOR BRUSH 2-PC SET
Price
$2.25

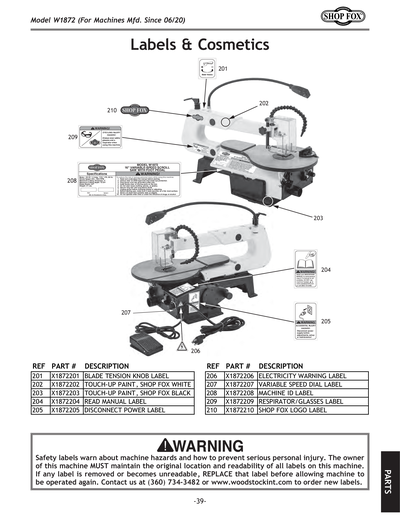

201
BLADE TENSION KNOB LABEL
Price
$2.85
202
SHOP FOX WHITE M1006
Price
N/A
203
GLOSSY BLACK
Price
N/A
204
READ MANUAL 2.8W X 1.5H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
VARIABLE SPEED DIAL LABEL
Price
$2.85
208
MACHINE ID LABEL
Price
$16.40
209
EAR PROTECTION/RESPIRATOR 2.8W X 1.5H
Price
N/A
210
SHOP FOX LOGO LABEL
Price
$2.85
MAN
MANUAL W1872 MFD-12.18+ V1.03.19
Price
$17.90
PKG1
CARTON FOR W1872
Price
$27.00
