Parts for W1873 - 15'' 3 HP Fixed-Table Planer

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

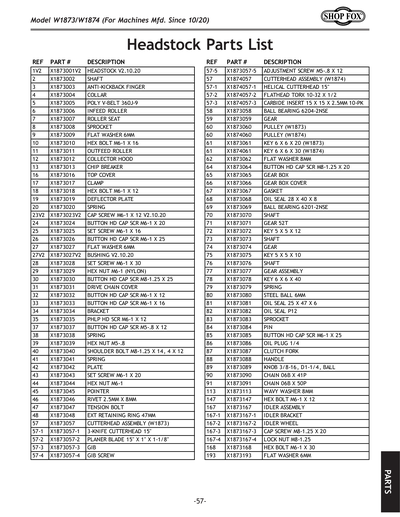

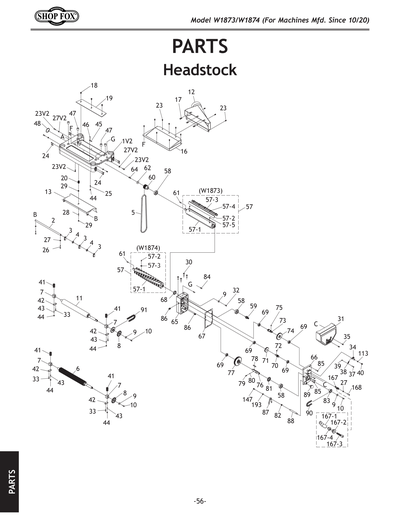

1 X1873001 HEADSTOCK $130.80
2 X1873002 SHAFT $7.90
3 X1873003 ANTI-KICKBACK FINGER $1.25
4 X1873004 COLLAR $1.25
5 X1873005 POLY V-BELT 360J-9 $16.90
6 X1873006 INFEED ROLLER $52.65
7 X1873007 ROLLER SEAT $2.75
8 X1873008 SPROCKET $3.00
9 X1873009
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
10 X1873010
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
11 X1873011 OUTFEED ROLLER $48.50
12 X1873012 COLLECTOR HOOD $10.60
13 X1873013 CHIP BREAKER $19.20
16 X1873016 TOP COVER $36.35
17 X1873017 CLAMP $1.25
18 X1873018
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
19 X1873019 DEFLECTOR PLATE $2.55
20 X1873020 SPRING $1.25
23 X1873023
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
24 X1873024
Replaced By PBHS05M
BUTTON HD CAP SCR M6-1 X 20
N/A View Replacement
25 X1873025
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
26 X1873026
Replaced By PBHS21M
BUTTON HD CAP SCR M6-1 X 25
N/A View Replacement
27 X1873027
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
28 X1873028
Replaced By PSS28M
SET SCREW M6-1 X 30
N/A View Replacement
29 X1873029 HEX NUT M6-1 (NYLON) $1.25
30 X1873030
Replaced By PBHS23M
BUTTON HD CAP SCR M8-1.25 X 25
N/A View Replacement
31 X1873031 DRIVE CHAIN COVER $7.90
32 X1873032
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
33 X1873033
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
34 X1873034 BRACKET $2.45
35 X1873035
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
37 X1873037
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
38 X1873038 SPRING $1.25
39 X1873039
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
40 X1873040 SHOULDER BOLT M8-1.25 X 14, 4 X 12 $1.25
41 X1873041 SPRING $1.75
42 X1873042 PLATE $1.60
43 X1873043
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
44 X1873044
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
45 X1873045 POINTER $1.30
46 X1873046 RIVET 2.5MM X 8MM $1.25
47 X1873047 TENSION BOLT $2.20
48 X1873048
Replaced By PR94M
EXT RETAINING RING 47MM
N/A View Replacement
57 X1873057 CUTTERHEAD ASSEMBLY $239.50
57-1 X1873057-1 3-KNIFE CUTTERHEAD 15" $143.65
57-2 X1873057-2
Replaced By D3635
15" Planer Knives - Set of 3 for W1742
N/A View Replacement
57-3 X1873057-3 GIB $7.90
57-4 X1873057-4 GIB SCREW $1.25
57-5 X1873057-5 ADJUSTMENT SCREW M5-.8 X 12 $1.25
58 X1873058
Replaced By P6204-2NSE
BALL BEARING 6204-2NSE
N/A View Replacement
59 X1873059 GEAR $8.75
60 X1873060 PULLEY $12.75
61 X1873061
Replaced By PK07M
KEY 6 X 6 X 20
N/A View Replacement
62 X1873062
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
64 X1873064
Replaced By PBHS22M
BUTTON HD CAP SCR M8-1.25 X 20
N/A View Replacement
65 X1873065 GEAR BOX $27.35
66 X1873066 GEAR BOX COVER $19.35
67 X1873067 GASKET $3.00
68 X1873068 OIL SEAL 28 X 40 X 8 $1.55
69 X1873069 BALL BEARING 6201-2NSE $10.45
70 X1873070 SHAFT $7.10
71 X1873071 GEAR 52T $10.60
72 X1873072
Replaced By PK10M
KEY 5 X 5 X 12
N/A View Replacement
73 X1873073 SHAFT $13.55
74 X1873074 GEAR $12.25
75 X1873075
Replaced By PK06M
KEY 5 X 5 X 10
N/A View Replacement
76 X1873076 SHAFT $8.75
77 X1873077 GEAR ASSEMBLY $31.40
78 X1873078
Replaced By PK11M
KEY 6 X 6 X 40
N/A View Replacement
79 X1873079 SPRING $1.25
80 X1873080
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
81 X1873081 OIL SEAL 25 X 47 X 6 $1.75
82 X1873082 OIL SEAL P12 $1.25
83 X1873083 SPROCKET $2.30
84 X1873084 PIN $1.25
85 X1873085
Replaced By PBHS21M
BUTTON HD CAP SCR M6-1 X 25
N/A View Replacement
86 X1873086 OIL PLUG 1/4 $1.25
87 X1873087 CLUTCH FORK $8.75
88 X1873088 HANDLE $2.60
89 X1873089 KNOB 3/8-16, D1-1/4, BALL $1.25
90 X1873090 CHAIN 06B X 41P $7.15
91 X1873091 CHAIN 06B X 50P $7.55

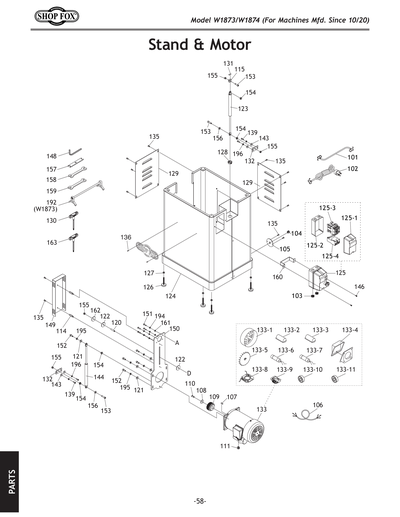

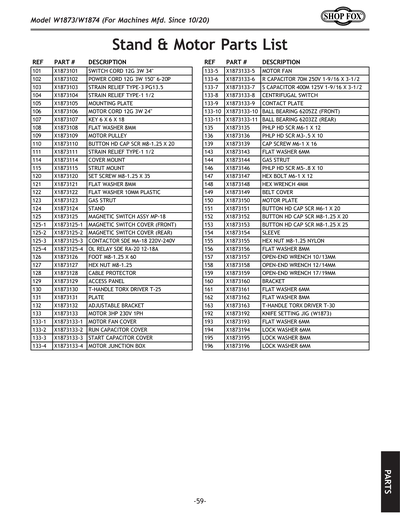

101 X1873101 SWITCH CORD 12G 3W 34" $10.30
102 X1873102 POWER CORD 12G 3W 150" 6-20P $33.20
103 X1873103 STRAIN RELIEF TYPE-3 PG13.5 $3.90
104 X1873104 STRAIN RELIEF TYPE-1 1/2 $1.25
105 X1873105 MOUNTING PLATE $2.05
106 X1873106
Replaced By PX1873133
MOTOR 3HP 230V 1PH
N/A View Replacement
107 X1873107
Replaced By PK147M
KEY 6 X 6 X 18
N/A View Replacement
108 X1873108
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
109 X1873109 MOTOR PULLEY $13.60
110 X1873110
Replaced By PBHS22M
BUTTON HD CAP SCR M8-1.25 X 20
N/A View Replacement
111 X1873111 STRAIN RELIEF TYPE-1 1/2 $1.40
113 X1873113 WAVY WASHER 8MM $1.25
114 X1873114 COVER MOUNT $1.90
115 X1873115 STRUT MOUNT $1.45
120 X1873120
Replaced By PSS74M
SET SCREW M8-1.25 X 35
N/A View Replacement
121 X1873121
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
122 X1873122 FLAT WASHER 10MM PLASTIC $1.25
123 X1873123 GAS STRUT $16.90
124 X1873124 STAND $233.80
125 X1873125 MAGNETIC SWITCH ASSY MP-18 $100.75
125-1 X1873125-1 MAGNETIC SWITCH COVER (FRONT) $15.60
125-2 X1873125-2 MAGNETIC SWITCH COVER (REAR) $3.90
125-3 X1873125-3 CONTACTOR SDE MA-18 220V-240V $50.65
125-4 X1873125-4 OL RELAY SDE RA-20 12-18A $30.65
126 X1873126 FOOT M8-1.25 X 60 $1.45
127 X1873127
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
128 X1873128 CABLE PROTECTOR $1.25
129 X1873129 ACCESS PANEL $6.30
130 X1873130
Replaced By PTDRIV002
T-HANDLE TORX DRIVER T-25
N/A View Replacement
131 X1873131 PLATE $1.25
132 X1873132 ADJUSTABLE BRACKET $1.25
133 X1873133 MOTOR 3HP 230V 1PH $392.60
133-1 X1873133-1 MOTOR FAN COVER $12.70
133-10 X1873133-10
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
133-11 X1873133-11
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
133-2 X1873133-2 RUN CAPACITOR COVER $4.65
133-3 X1873133-3 START CAPACITOR COVER $4.65
133-4 X1873133-4 MOTOR JUNCTION BOX $10.60
133-5 X1873133-5 MOTOR FAN $4.65
133-6 X1873133-6 R CAPACITOR 70M 250V 1-9/16 X 3-1/2 $22.05
133-7 X1873133-7 S CAPACITOR 400M 125V 1-9/16 X 3-1/2 $21.90
133-8 X1873133-8 CENTRIFUGAL SWITCH $7.75
133-9 X1873133-9 CONTACT PLATE $6.30
135 X1873135
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
136 X1873136
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
139 X1873139
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
143 X1873143
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
144 X1873144 GAS STRUT $16.90
146 X1873146
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
147 X1873147
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
148 X1873148
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
149 X1873149 BELT COVER $18.35
150 X1873150 MOTOR PLATE $26.65
151 X1873151
Replaced By PBHS05M
BUTTON HD CAP SCR M6-1 X 20
N/A View Replacement
152 X1873152
Replaced By PBHS22M
BUTTON HD CAP SCR M8-1.25 X 20
N/A View Replacement
153 X1873153
Replaced By PBHS23M
BUTTON HD CAP SCR M8-1.25 X 25
N/A View Replacement
154 X1873154 SLEEVE $1.95
155 X1873155 HEX NUT M8-1.25 NYLON $1.25
156 X1873156
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
157 X1873157 OPEN-END WRENCH 10/13MM $2.60
158 X1873158 OPEN-END WRENCH 12/14MM $3.00
159 X1873159 OPEN-END WRENCH 17/19MM $4.15
160 X1873160 BRACKET $2.55
161 X1873161
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
162 X1873162
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
163 X1873163 T-HANDLE TORX DRIVER T-30 $4.15
192 X1873192 KNIFE SETTING JIG $9.75
193 X1873193
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
194 X1873194
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
195 X1873195
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
196 X1873196
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement

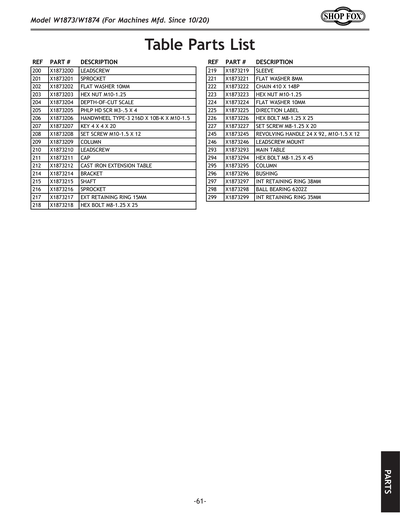

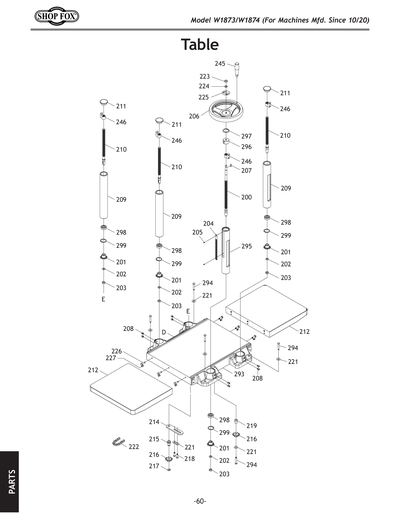

200 X1873200 LEADSCREW $9.60
201 X1873201 SPROCKET $2.20
202 X1873202
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
203 X1873203
Replaced By PN08M
HEX NUT M10-1.25
N/A View Replacement
204 X1873204 DEPTH-OF-CUT SCALE $1.75
205 X1873205
Replaced By PS111M
PHLP HD SCR M3-.5 X 4
N/A View Replacement
206 X1873206 HANDWHEEL TYPE-3 216D X 10B-K X M10-1.5 $43.50
207 X1873207
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
208 X1873208
Replaced By PSS13M
SET SCREW M10-1.5 X 12
N/A View Replacement
209 X1873209 COLUMN $13.60
210 X1873210 LEADSCREW $6.25
211 X1873211 CAP $1.25
212 X1873212 CAST IRON EXTENSION TABLE $83.70
214 X1873214 BRACKET $3.00
215 X1873215 SHAFT $2.55
216 X1873216 SPROCKET $2.20
217 X1873217
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
218 X1873218
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
219 X1873219 SLEEVE $1.90
221 X1873221
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
222 X1873222 CHAIN 410 X 148P $11.20
223 X1873223
Replaced By PN08M
HEX NUT M10-1.25
N/A View Replacement
224 X1873224
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
225 X1873225 DIRECTION LABEL $1.25
226 X1873226
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
227 X1873227
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
245 X1873245 REVOLVING HANDLE 24 X 92, M10-1.5 X 12 $10.30
246 X1873246 LEADSCREW MOUNT $5.45
293 X1873293 MAIN TABLE $315.35
294 X1873294
Replaced By PB118M
HEX BOLT M8-1.25 X 45
N/A View Replacement
295 X1873295 COLUMN $44.65
296 X1873296 BUSHING $3.00
297 X1873297
Replaced By PR22M
INT RETAINING RING 38MM
N/A View Replacement
298 X1873298
Replaced By P6202Z
BALL BEARING 6202Z
N/A View Replacement
299 X1873299
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement

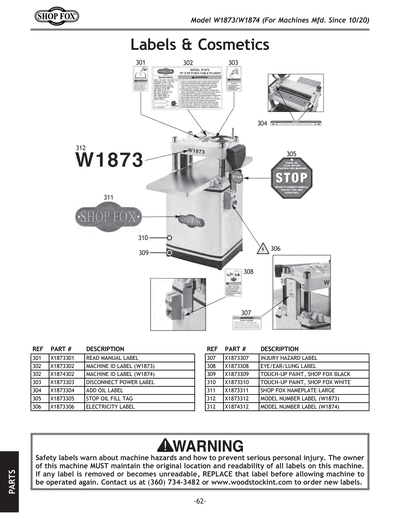

301 X1873301
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
303 X1873303
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
304 X1873304 ADD OIL LABEL $1.25
305 X1873305
Replaced By PLABEL-67
STOP OIL FILL TAG 4W X 4H
N/A View Replacement
306 X1873306
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
307 X1873307 INJURY HAZARD LABEL $1.25
308 X1873308
Replaced By PLABEL-90A
EYE/EAR/LUNG 1.5 X 2.5H
N/A View Replacement
309 X1873309
Replaced By PPAINT-7
GLOSSY BLACK
N/A View Replacement
310 X1873310
Replaced By PXPPAINT-1
SHOP FOX WHITE M1006
N/A View Replacement
311 X1873311
Replaced By D3377
Shop Fox Nameplate - Large
N/A View Replacement
312 X1873312 MODEL NUMBER LABEL $2.35
KIT X1873KIT IDLER ASSEMBLY REPLACEMENT KIT $0.60
MAN X1873MAN MANUAL W1873/W1874 MFD-06.19+ V1.08.19 $18.40
