Parts for W1876 - 6" Benchtop Jointer w/ Spiral-Type Cutterhead

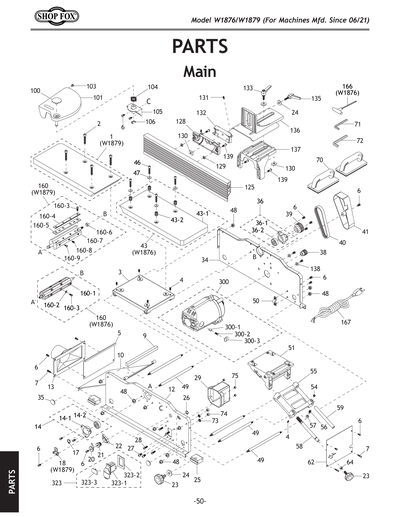

Part Diagram for W1876
Part Diagram for W1876
Part Diagram for W1876
Part Diagram for W1876
Part Diagram for W1876
Part Diagram for W1876

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
3
OUTFEED TABLE SUPPORT V1
Price
N/A
4
SET SCREW M6-1 X 8
Price
N/A
5
DUST CHUTE COVER
Price
$7.25
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
TAP SCREW 1/4 X 5/8
Price
N/A
9
FOAM SEAL
Price
N/A
10
***USE PX1876010***
Price
$10.90
12
FRONT BASE PANEL
Price
$35.05
13
DUST PORT 2-1/2"
Price
N/A
14
FRONT BEARING RETAINER ASSEMBLY
Price
$10.65
14-1
FRONT BEARING RETAINER W/BEARING
Price
N/A
14-2
BALL BEARING 6201ZZ
Price
N/A
17
EXT RETAINING RING 12MM
Price
N/A
20
SCALE POINTER
Price
N/A
21
SCALE GEAR
Price
N/A
22
SCALE PLATE
Price
N/A
23
KNOB BOLT M8-1.25 X 18, 12-LOBE, D49
Price
N/A
24
FENDER WASHER 8MM
Price
N/A
25
FOOT PAD
Price
$1.60
26
EXT RETAINING RING 16MM
Price
N/A
27
PHLP HD SCR M5-.8 X 8
Price
N/A
28
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
29
PADDLE SWITCH BOX
Price
N/A
34
REAR BASE PANEL
Price
$35.05
35
ROUND PLUG 35MM
Price
N/A
36
REAR BEARING RETAINER W/BEARING
Price
N/A
36-1
REAR BEARING RETAINER W/BEARING
Price
N/A
36-2
BALL BEARING 6201ZZ
Price
N/A
38
MOTOR PULLEY
Price
N/A
39
***USE PX1876039***
Price
$6.70
40
POLY-V BELT 125J5
Price
$12.40
41
BELT COVER
Price
$1.60
43
TABLE ASSEMBLY
Price
$72.45
43-1
TABLE
Price
$65.25
43-2
SET SCREW M12-1.25 X 15 HOLE-PT, SLOT
Price
$2.20
46
CAP SCREW M6-1 X 30
Price
N/A
47
FENDER WASHER 6MM
Price
N/A
48
FLANGE NUT M6-1
Price
N/A
49
STUD-DE M6-1 X 100, 12
Price
N/A
50
POWER CORD CLAMP
Price
N/A
51
INFEED TABLE SUPPORT V1
Price
N/A
55
SUPPORT BRACKET V1
Price
N/A
56
SET SCREW M6-1 X 16 DOG-PT
Price
$1.60
58
ADJUSTMENT ROD
Price
N/A
59
ADJUSTMENT SHAFT
Price
N/A
62
RIGHT BASE PANEL V1
Price
$7.25
62V2
RIGHT BASE PANEL V2.07.24
Price
$7.25
64
HEX NUT M8-1.25
Price
N/A
70
Safety Push Block - Small
Price
N/A
71
HEX WRENCH 2.5MM
Price
N/A
72
HEX WRENCH 4MM
Price
N/A
73
EXT TOOTH WASHER 5MM
Price
N/A
74
HEX NUT M5-.8
Price
N/A
75
LOCK NUT M5-.8
Price
N/A
100
ROUND PLUG 42MM
Price
N/A
101
CUTTERHEAD GUARD
Price
$44.10
103
RUBBER BUMPER
Price
N/A
104
TORSION SPRING 1.6 X 23MM
Price
N/A
105
GUARD MOUNTING BRACKET
Price
N/A
125
FENCE
Price
N/A
128
TILT BRACKET
Price
$8.15
129
T-SLOT NUT 7, M6-1
Price
$1.60
130
SQUARE NUT M8-1.25
Price
N/A
131
SET SCREW M5-.8 X 8
Price
N/A
132
TILT SUPPORT BRACKET
Price
$6.40
133
ADJ HANDLE M8-1.25 X 30, 50L
Price
N/A
135
ADJ HANDLE M8-1.25 X 40, 50L V1
Price
N/A
136
FENCE SLIDE BRACKET
Price
N/A
137
FENCE SUPPORT BRACKET
Price
$19.65
138
FLAT WASHER 6MM
Price
N/A
139
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
160
CUTTERHEAD ASSEMBLY
Price
N/A
160-1
SPIRAL CUTTERHEAD 6"
Price
$181.15
160-2
Indexable Carbide Inserts - 14.25 x 14.25 x 2mm, 10-Pk.
Price
N/A
160-3
FLAT HD TORX T25 M5-.8 X 16
Price
N/A
166
T-HANDLE TORX DRIVER T-25
Price
N/A
167
POWER CORD 18G 3W 72" 5-15P
Price
N/A
300
MOTOR 1-1/2HP 120V 1-PH
Price
$217.35
300-1
CARBON BRUSH
Price
N/A
300-2
BRUSH HOLDER
Price
N/A
300-3
BRUSH COVER
Price
N/A
323
***SEE EXT. DESCRIPTION***
Price
N/A
323-1
PADDLE SWITCH KEDU HY18 20A
Price
N/A
323-2
PADDLE SWITCH COVER
Price
N/A
323-3
PADDLE SWITCH KEY
Price
N/A
400
Price
N/A
400V2
MACHINE ID LABEL V2.05.24
Price
$16.40
401
CUTTERHEAD EXPOSURE LABEL
Price
$1.60
402
CUTTERHEAD GUARD LABEL
Price
$1.60
403
ELECTRICITY 0.7W X 0.6H
Price
N/A
404
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
405
COMBO WARNING LABEL
Price
$1.60
406
Price
N/A
406V2
CUTTERHEAD WARNING LABEL V2.05.24
Price
$1.60
407
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1876 MFD-07.20+ V1.08.20
Price
$14.65
MANV2
MANUAL W1876/9 MFD-05.21-06.24 V2.06.21
Price
$21.95
MANV3
MANUAL W1876 MFD-07.24+ V3.05.24
Price
$22.80
