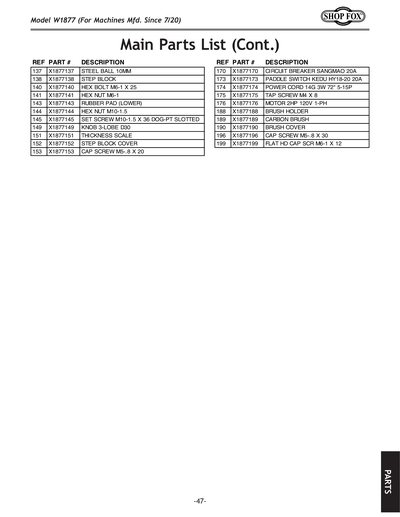

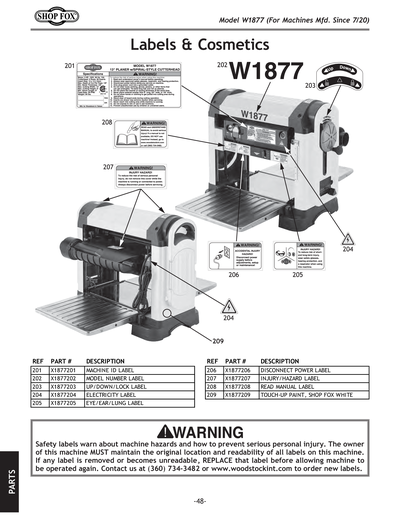

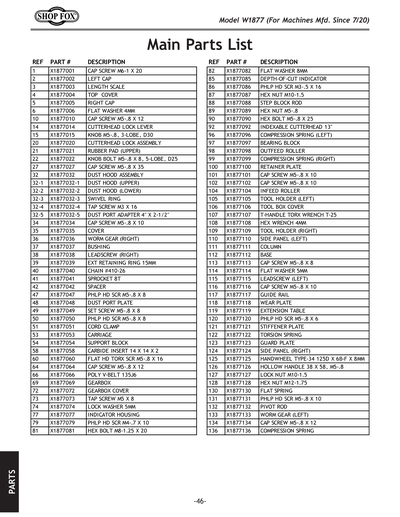

Parts for W1877 - 13" Benchtop Planer w/ Spiral-Type Cutterhead

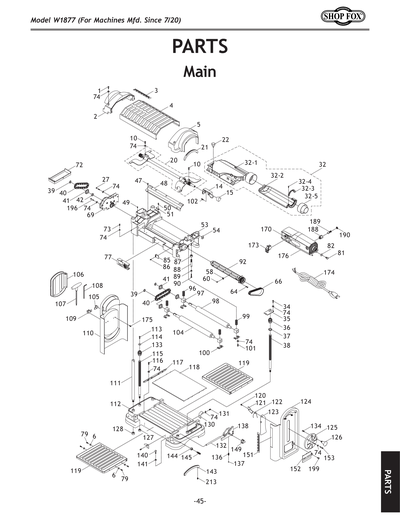

Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877
Part Diagram for W1877

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CAP SCREW M6-1 X 20
Price
N/A
2
Price
$27.55
3
Price
$2.75
4
Price
$35.35
5
Price
$28.45
6
FLAT WASHER 4MM
Price
N/A
10
CAP SCREW M5-.8 X 12
Price
N/A
14
Price
$13.60
15
KNOB M5-.8, 3-LOBE, D30
Price
$1.60
20
CUTTERHEAD LOCK ASSEMBLY
Price
$128.95
21
Price
$1.85
22
KNOB BOLT M5-.8 X 8, 5-LOBE, D25
Price
$3.05
27
CAP SCREW M5-.8 X 35
Price
N/A
32
Price
$39.85
32-1
Price
$17.85
32-2
Price
$10.90
32-3
Price
$1.60
32-4
TAP SCREW M3 X 16
Price
N/A
32-5
DUST PORT ADAPTER 4" X 2-1/2"
Price
$8.20
34
CAP SCREW M5-.8 X 10
Price
N/A
35
Price
$1.60
36
Price
$19.65
37
Price
$2.20
38
Price
$19.65
39
EXT RETAINING RING 15MM
Price
N/A
40
Price
$2.75
41
Price
$1.60
42
Price
$1.60
47
PHLP HD SCR M5-.8 X 8
Price
N/A
48
Price
$4.85
49
SET SCREW M5-.8 X 8
Price
N/A
50
PHLP HD SCR M5-.8 X 8
Price
N/A
51
Price
$1.60
53
Price
$103.00
54
Price
$1.60
58
Indexable Carbide Inserts - 14.25 x 14.25 x 2mm, 10-Pk.
Price
N/A
60
FLAT HD TORX T25 M5-.8 X 16
Price
N/A
64
CAP SCREW M5-.8 X 12
Price
N/A
66
Price
$12.75
69
Price
$79.70
72
Price
$2.45
73
TAP SCREW M5 X 8
Price
N/A
74
LOCK WASHER 5MM
Price
N/A
77
Price
$1.85
79
PHLP HD SCR M4-.7 X 10
Price
N/A
81
HEX BOLT M8-1.25 X 20
Price
N/A
82
FLAT WASHER 8MM
Price
N/A
85
Price
$1.60
86
PHLP HD SCR M3-.5 X 16
Price
N/A
87
HEX NUT M10-1.5
Price
N/A
88
Price
$2.20
89
HEX NUT M5-.8
Price
N/A
90
HEX BOLT M5-.8 X 25
Price
N/A
92
INDEXABLE CUTTERHEAD 13"
Price
$289.80
96
COMPRESSION SPRING (LEFT)
Price
$1.60
97
Price
$2.20
98
Price
$30.20
99
COMPRESSION SPRING (RIGHT)
Price
$1.60
100
Price
$1.60
101
CAP SCREW M5-.8 X 10
Price
N/A
102
CAP SCREW M5-.8 X 10
Price
N/A
104
Price
$30.20
105
Price
$1.60
106
Price
$6.05
107
T-HANDLE TORX DRIVER T-25
Price
N/A
108
HEX WRENCH 4MM
Price
N/A
109
Price
$1.60
110
Price
$26.35
111
Price
$16.95
112
Price
$162.15
113
CAP SCREW M5-.8 X 8
Price
N/A
114
FLAT WASHER 5MM
Price
N/A
115
Price
$11.85
116
CAP SCREW M5-.8 X 10
Price
N/A
117
Price
$2.45
118
Price
$15.15
119
Price
$54.35
120
PHLP HD SCR M5-.8 X 6
Price
N/A
121
Price
$3.05
122
Price
$1.60
123
Price
$2.45
124
Price
$27.80
125
HANDWHEEL TYPE-34 125D X 6B-F X 8MM
Price
$14.50
126
HOLLOW HANDLE 38 X 58, M5-.8
Price
$9.40
127
LOCK NUT M10-1.5
Price
N/A
128
HEX NUT M12-1.75
Price
N/A
130
Price
$1.60
131
PHLP HD SCR M5-.8 X 10
Price
N/A
132
Price
$2.45
133
Price
$11.85
134
CAP SCREW M5-.8 X 12
Price
N/A
136
Price
$1.60
137
STEEL BALL 10MM
Price
N/A
138
Price
$6.05
140
HEX BOLT M6-1 X 25
Price
N/A
141
HEX NUT M6-1
Price
N/A
143
Price
$1.85
144
HEX NUT M10-1.5
Price
N/A
145
SET SCREW M10-1.5 X 36 DOG-PT SLOTTED
Price
$1.60
149
Price
$2.20
151
Price
$3.05
152
Price
$1.85
153
CAP SCREW M5-.8 X 20
Price
N/A
170
CIRCUIT BREAKER SANG MAO 15A
Price
$8.50
173
PADDLE SWITCH KEDU HY18-20 20A
Price
$10.00
174
POWER CORD 14G 3W 72" 5-15P
Price
$7.60
175
TAP SCREW M4 X 8
Price
N/A
176
Price
$207.45
188
Price
$5.80
189
Price
$3.30
190
Price
$1.60
196
CAP SCREW M5-.8 X 30
Price
N/A
199
FLAT HD CAP SCR M6-1 X 12
Price
N/A
201
Price
$16.40
202
Price
$1.05
203
Price
$1.00
204
ELECTRICITY 0.7W X 0.6H
Price
N/A
205
EYE/EAR/LUNG 2.8W X 1.5H
Price
N/A
206
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
207
Price
$1.05
208
READ MANUAL 2.8W X 1.5H
Price
N/A
209
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1877 MFD-07.20+ V1.09.20
Price
$14.65
PX18750022
PHLP HD SCR M5-.8 X 12
Price
N/A
