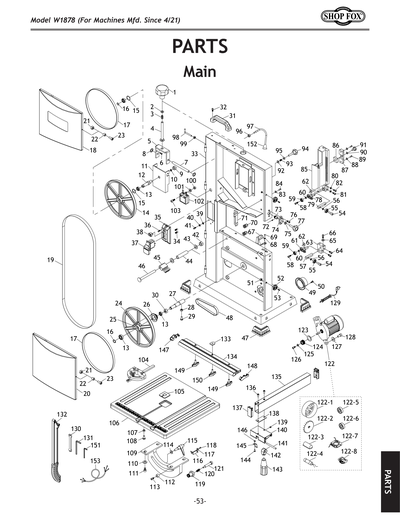

Parts for W1878 9" Benchtop Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

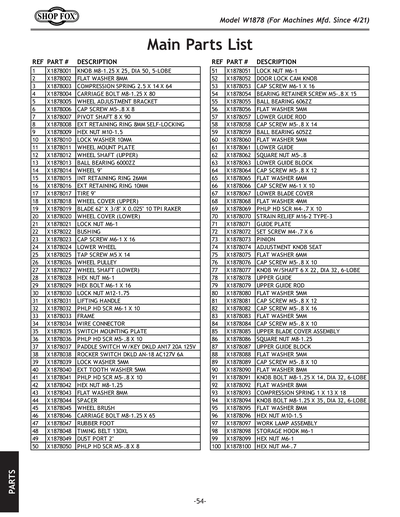

1
KNOB M8-1.25 X 25, DIA 50, 5-LOBE
3
COMPRESSION SPRING 2.5 X 14 X 64
5
WHEEL ADJUSTMENT BRACKET
7
PIVOT SHAFT 8 X 90
8
EXT RETAINING RING 8MM SELF-LOCKING
11
WHEEL MOUNT PLATE
12
WHEEL SHAFT (UPPER)
14
WHEEL 9"
17
TIRE 9"
18
WHEEL COVER (UPPER)
19
BLADE 62" X 3/8" X 0.025" 10 TPI RAKER
20
WHEEL COVER (LOWER)
22
BUSHING
24
LOWER WHEEL
26
WHEEL PULLEY
27
WHEEL SHAFT (LOWER)
31
LIFTING HANDLE
33
FRAME
34
WIRE CONNECTOR
35
SWITCH MOUNTING PLATE
37
PADDLE SWITCH W/KEY DKLD AN17 20A 125V
38
ROCKER SWITCH DKLD AN-18 AC127V 6A
44
SPACER
45
WHEEL BRUSH
46
CARRIAGE BOLT M8-1.25 X 65
47
RUBBER FOOT
48
TIMING BELT 130XL
49
DUST PORT 2"
52
DOOR LOCK CAM KNOB
54
BEARING RETAINER SCREW M5-.8 X 15
57
LOWER GUIDE ROD
61
LOWER GUIDE
63
LOWER GUIDE BLOCK
67
LOWER BLADE COVER
70
STRAIN RELIEF M16-2 TYPE-3
71
GUIDE PLATE
73
PINION
74
ADJUSTMENT KNOB SEAT
77
KNOB W/SHAFT 6 X 22, DIA 32, 6-LOBE
78
UPPER GUIDE
79
UPPER GUIDE ROD
85
UPPER BLADE COVER ASSEMBLY
87
UPPER GUIDE BLOCK
91
KNOB BOLT M8-1.25 X 14, DIA 32, 6-LOBE
93
COMPRESSION SPRING 1 X 13 X 18
94
KNOB BOLT M8-1.25 X 35, DIA 32, 6-LOBE
97
WORK LAMP ASSEMBLY
98
STORAGE HOOK M6-1

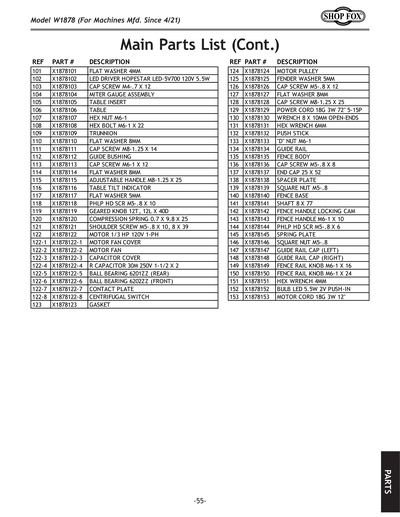

102
LED DRIVER HOPESTAR LED-5V700 120V 5.5W
104
MITER GAUGE ASSEMBLY
105
TABLE INSERT
106
TABLE
109
TRUNNION
112
GUIDE BUSHING
115
ADJUSTABLE HANDLE M8-1.25 X 25
116
TABLE TILT INDICATOR
119
GEARED KNOB 12T, 12L X 40D
120
COMPRESSION SPRING 0.7 X 9.8 X 25
121
SHOULDER SCREW M5-.8 X 10, 8 X 39
122
MOTOR 1/3 HP 120V 1-PH
122-1
MOTOR FAN COVER
122-2
MOTOR FAN
122-3
CAPACITOR COVER
122-4
R CAPACITOR 30M 250V 1-1/2 X 2
123
GASKET
124
MOTOR PULLEY
125
FENDER WASHER 5MM
Price
N/A
126
CAP SCREW M5-.8 X 12
Price
N/A
129
POWER CORD 18G 3W 72" 5-15P
132
Now: D3122
Push Stick
Price
N/A
133
"D" NUT M6-1
134
GUIDE RAIL
135
FENCE BODY
137
END CAP 25 X 52
138
SPACER PLATE
140
FENCE BASE
141
SHAFT 8 X 77
142
FENCE HANDLE LOCKING CAM
143
FENCE HANDLE M6-1 X 10
145
SPRING PLATE
147
GUIDE RAIL CAP (LEFT)
148
GUIDE RAIL CAP (RIGHT)
149
FENCE RAIL KNOB M6-1 X 16
150
FENCE RAIL KNOB M6-1 X 24
152
BULB LED 5.5W 2V PUSH-IN
153
MOTOR CORD 18G 3W 12"

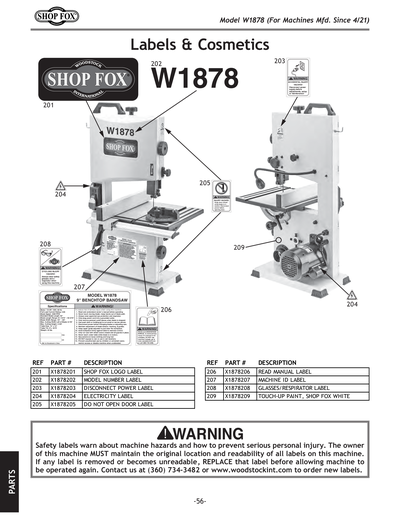

201
SHOP FOX LOGO LABEL
202
MODEL NUMBER LABEL
203
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
204
ELECTRICITY 0.5W X 0.4H
Price
N/A
205
DO NOT OPEN DOOR LABEL
206
READ MANUAL 1.5W X 2.5H
Price
N/A
207
MACHINE ID LABEL
208
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
MAN
MANUAL W1878 MFD-04.21+ V1.04.21
