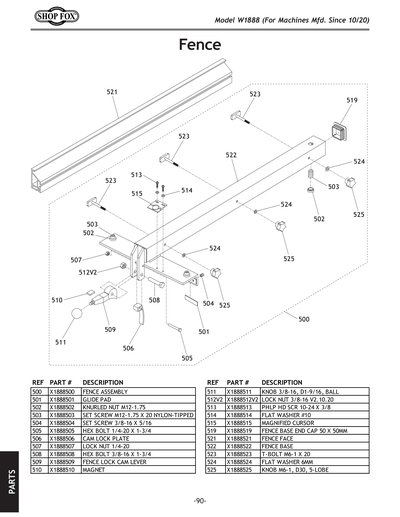

Parts for W1888 - 10" Cabinet Table Saw

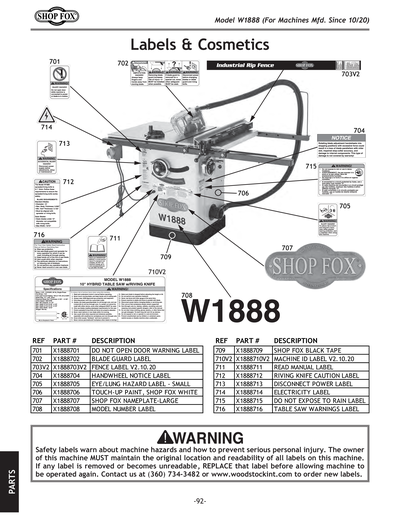

Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888
Part Diagram for W1888

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

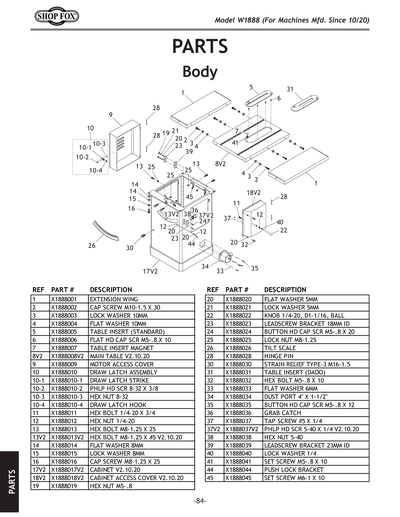

1
EXTENSION WING
Price
N/A
2
CAP SCREW M10-1.5 X 30
Price
N/A
3
LOCK WASHER 10MM
Price
N/A
4
FLAT WASHER 10MM
Price
N/A
5
TABLE INSERT (STANDARD)
Price
N/A
6
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
7
TABLE INSERT MAGNET
Price
N/A
8
MAIN TABLE V1
Price
$459.55
8V2
MAIN TABLE V2.10.20
Price
$586.50
9
MOTOR ACCESS COVER
Price
N/A
10
DRAW LATCH ASSEMBLY
Price
$11.15
10-1
DRAW LATCH STRIKE
Price
N/A
10-2
PHLP HD SCR 8-32 X 3/8
Price
N/A
10-3
HEX NUT 8-32
Price
N/A
10-4
MOTOR ACCESS COVER
Price
N/A
11
X1888011
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
12
X1888012
Now: PN05
HEX NUT 1/4-20
Price
N/A
13
HEX BOLT M8-1.25 X 25
Price
N/A
14
FLAT WASHER 8MM
Price
N/A
15
LOCK WASHER 8MM
Price
N/A
16
CAP SCREW M8-1.25 X 25
Price
N/A
17
CABINET V1
Price
$366.25
17V2
CABINET V2.10.20
Price
N/A
18
CABINET ACCESS COVER V1
Price
$43.30
18V2
CABINET ACCESS DOOR V2.10.20
Price
N/A
19
HEX NUT M5-.8
Price
N/A
20
FLAT WASHER 5MM
Price
N/A
21
LOCK WASHER 5MM
Price
N/A
22
KNOB 1/4-20, D1-1/16, BALL
Price
$1.60
23
LEADSCREW BRACKET 18MM ID
Price
N/A
24
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
25
LOCK NUT M8-1.25
Price
N/A
26
TILT SCALE
Price
$7.50
28
HINGE PIN
Price
N/A
30
STRAIN RELIEF TYPE-3 M16-1.5
Price
$3.40
31
TABLE INSERT (DADO)
Price
N/A
32
HEX BOLT M5-.8 X 10
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
DUST PORT 4" X 1-1/2"
Price
N/A
35
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
36
GRAB CATCH
Price
N/A
37
TAP SCREW #5 X 1/4
Price
N/A
37V2
PHLP HD SCR 5-40 X 1/4
Price
N/A
38
X1888038
Now: PN28
HEX NUT 5-40
Price
N/A
39
LEADSCREW BRACKET 23MM ID
Price
N/A
40
LOCK WASHER 1/4
Price
N/A
41
SET SCREW M5-.8 X 10
Price
N/A
44
PUSH LOCK BRACKET
Price
N/A
45
SET SCREW M6-1 X 10
Price
N/A

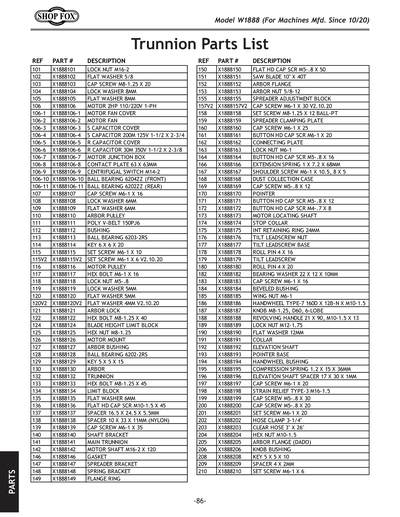

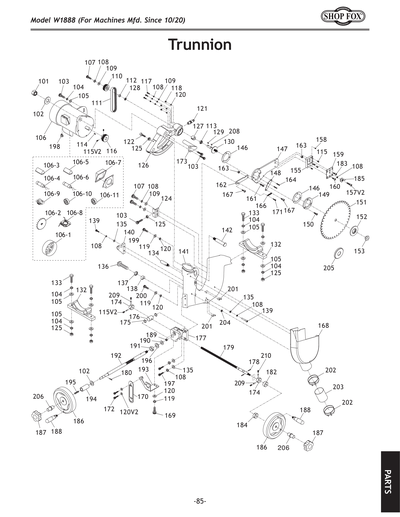

101
LOCK NUT M16-2
Price
N/A
102
X1888102
Now: PW14
FLAT WASHER 5/8
Price
N/A
103
CAP SCREW M8-1.25 X 20
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
105
FLAT WASHER 8MM
Price
N/A
106
MOTOR 2HP 110/220V 1-PH
Price
$572.40
106-1
MOTOR FAN COVER
Price
$7.50
106-10
BALL BEARING 6204ZZ
Price
N/A
106-11
BALL BEARING 6202ZZ
Price
N/A
106-2
MOTOR FAN
Price
$7.85
106-3
S CAPACITOR COVER
Price
$2.80
106-4
S CAPACITOR 200M 125V 1-1/2 X 2-3/4
Price
N/A
106-5
R CAPACITOR COVER
Price
$5.20
106-6
R CAPACITOR 30M 350V 1-1/2 X 2-3/8
Price
$16.95
106-7
MOTOR JUNCTION BOX
Price
$3.40
106-8
CONTACT PLATE 63 X 63MM
Price
N/A
106-9
CENTRIFUGAL SWITCH M14-2
Price
$5.65
107
CAP SCREW M6-1 X 16
Price
N/A
108
LOCK WASHER 6MM
Price
N/A
109
FLAT WASHER 6MM
Price
N/A
110
ARBOR PULLEY
Price
$12.75
111
POLY V-BELT 150PJ6
Price
N/A
112
BUSHING
Price
$2.65
113
BALL BEARING 6203-2RS
Price
N/A
114
KEY 6 X 6 X 20
Price
N/A
115
SET SCREW M6-1 X 10
Price
N/A
115V2
SET SCREW M6-1 X 6
Price
N/A
116
MOTOR PULLEY
Price
$12.75
117
HEX BOLT M6-1 X 16
Price
N/A
118
LOCK NUT M5-.8
Price
N/A
119
LOCK WASHER 5MM
Price
N/A
120
FLAT WASHER 5MM
Price
N/A
120V2
FLAT WASHER 4MM
Price
N/A
121
ARBOR LOCK
Price
N/A
122
HEX BOLT M8-1.25 X 40
Price
N/A
124
BLADE HEIGHT LIMIT BLOCK
Price
$3.20
125
HEX NUT M8-1.25
Price
N/A
126
MOTOR MOUNT
Price
$125.10
127
ARBOR BUSHING
Price
$9.55
128
BALL BEARING 6202-2RS
Price
N/A
129
KEY 5 X 5 X 15
Price
N/A
130
ARBOR
Price
$27.55
132
TRUNNION
Price
$29.10
133
HEX BOLT M8-1.25 X 45
Price
N/A
134
LIMIT BLOCK
Price
$3.75
135
FLAT WASHER 6MM
Price
N/A
136
FLAT HD CAP SCR M10-1.5 X 45
Price
$1.49
137
SPACER 16.5 X 24.5 X 5.5MM
Price
$3.20
138
SPACER 10 X 33 X 11MM (NYLON)
Price
$3.40
139
CAP SCREW M6-1 X 35
Price
N/A
140
SHAFT BRACKET
Price
$16.80
141
MAIN TRUNNION
Price
$137.20
142
MOTOR SHAFT M16-2 X 120
Price
$15.05
146
GASKET
Price
$2.20
147
SPREADER BRACKET
Price
$24.35
148
SPRING BRACKET
Price
$5.65
149
FLANGE RING
Price
$11.35
150
FLAT HD CAP SCR M5-.8 X 50
Price
$1.49
151
SAW BLADE 10" X 40T
Price
$125.65
152
ARBOR FLANGE
Price
N/A
153
ARBOR NUT 5/8-12
Price
N/A
155
SPREADER ADJUSTMENT BLOCK
Price
$15.85
157
HEX BOLT M6-1 X 16
Price
N/A
157V2
CAP SCREW M6-1 X 30
Price
N/A
158
SET SCREW M8-1.25 X 12 BALL-PT
Price
N/A
159
SPREADER CLAMPING PLATE
Price
$6.25
160
CAP SCREW M6-1 X 25
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
162
CONNECTING PLATE
Price
$2.05
163
LOCK NUT M6-1
Price
N/A
164
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
166
EXTENSION SPRING 1 X 7.2 X 68MM
Price
$1.49
167
SHOULDER SCREW M6-1 X 10.5, 8 X 5
Price
$1.70
168
DUST COLLECTION CASE
Price
$30.05
169
CAP SCREW M5-.8 X 12
Price
N/A
170
POINTER
Price
N/A
171
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
172
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
173
MOTOR LOCATING SHAFT
Price
$13.25
174
STOP COLLAR
Price
$8.65
175
INT RETAINING RING 24MM
Price
N/A
176
TILT LEADSCREW NUT
Price
$8.35
177
TILT LEADSCREW BASE
Price
$38.90
178
ROLL PIN 4 X 16
Price
N/A
179
TILT LEADSCREW
Price
N/A
180
ROLL PIN 4 X 20
Price
N/A
182
BEARING WASHER 22 X 12 X 10MM
Price
N/A
183
CAP SCREW M6-1 X 16
Price
N/A
184
BEVELED BUSHING
Price
N/A
185
WING NUT M6-1
Price
N/A
186
HANDWHEEL TYPE-7 160D X 12B-N X M10-1.5
Price
$65.55
187
KNOB M8-1.25, D60, 6-LOBE
Price
$4.80
188
REVOLVING HANDLE 21 X 90, M10-1.5 X 13
Price
$16.05
189
LOCK NUT M12-1.75
Price
N/A
190
FLAT WASHER 12MM
Price
N/A
191
COLLAR
Price
$3.35
192
ELEVATION SHAFT
Price
$22.30
193
POINTER BASE
Price
$7.95
194
HANDWHEEL BUSHING
Price
$5.15
195
COMPRESSION SPRING 1.2 X 15 X 36MM
Price
$1.49
196
ELEVATION SHAFT SPACER 17 X 30 X 1MM
Price
$1.65
197
CAP SCREW M6-1 X 20
Price
N/A
198
STRAIN RELIEF TYPE-3 M16-1.5
Price
$3.80
199
CAP SCREW M5-.8 X 30
Price
N/A
200
CAP SCREW M5-.8 X 20
Price
N/A
201
SET SCREW M6-1 X 20
Price
N/A
202
HOSE CLAMP 3-1/4"
Price
$4.05
203
CLEAR HOSE 3" X 26"
Price
N/A
204
HEX NUT M10-1.5
Price
N/A
205
ARBOR FLANGE (DADO)
Price
$8.50
206
KNOB BUSHING
Price
$9.85
208
KEY 5 X 5 X 10
Price
N/A
209
SPACER 4 X 2MM
Price
$2.30
210
SET SCREW M6-1 X 6
Price
N/A

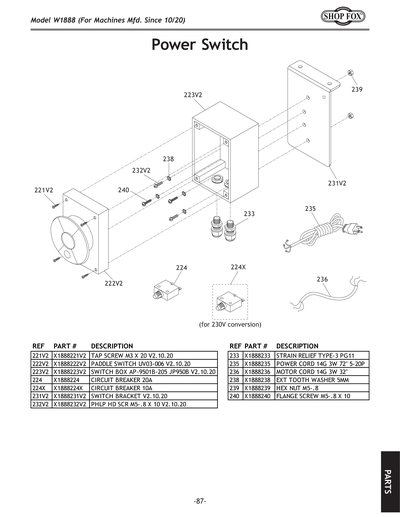

221
TAP SCREW 8 X 1
Price
N/A
221V2
TAP SCREW M3 X 20 V2.06.20
Price
N/A
222
PADDLE SWITCH UV03-005 V1
Price
N/A
222-1
PADDLE SWITCH LOCKOUT PIN
Price
$6.75
222V2
PADDLE SWITCH UV03-006 V2.10.20
Price
$213.75
223
SWITCH BOX V1
Price
$22.35
223V2
SWITCH BOX AP-9501B-205 JP950B V2.06.20
Price
N/A
224
CIRCUIT BREAKER 20A
Price
$13.10
224X
CIRCUIT BREAKER 10A
Price
N/A
226
PHLP HD SCR M4-.7 X 25
Price
N/A
227
FLAT WASHER 4MM
Price
N/A
229
CLAMP-ON RING TERMINAL
Price
N/A
231
SWITCH BRACKET V1
Price
N/A
231V2
SWITCH BRACKET V2.10.20
Price
$10.60
232
PHLP HD SCR M4-.7 X 10
Price
N/A
232V2
PHLP HD SCR M5-.8 X 10
Price
N/A
233
STRAIN RELIEF TYPE-3 PG11
Price
$4.95
235
POWER CORD 14G 3W 72" 5-20P
Price
$30.05
236
MOTOR CORD 14G 3W 32"
Price
$21.20
238
EXT TOOTH WASHER 5MM
Price
N/A
239
HEX NUT M5-.8
Price
N/A
240
FLANGE SCREW M5-.8 X 10
Price
N/A

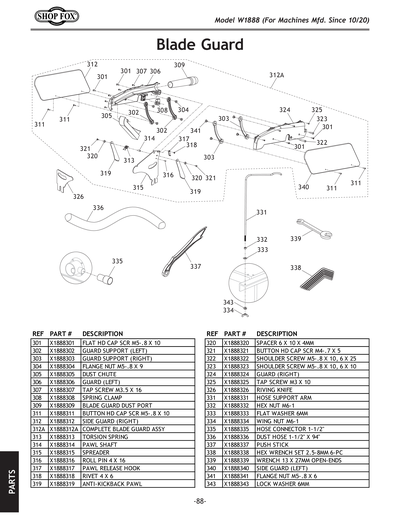

301
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
302
GUARD SUPPORT (LEFT)
Price
$7.80
303
GUARD SUPPORT (RIGHT)
Price
$7.80
304
FLANGE NUT M5-.8 X 9
Price
N/A
305
DUST CHUTE
Price
N/A
306
GUARD (LEFT)
Price
N/A
307
TAP SCREW M3.5 X 16
Price
N/A
308
SPRING CLAMP
Price
N/A
309
BLADE GUARD DUST PORT
Price
$6.05
311
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
312
***USE P0899312***
Item is no longer available
Price
N/A
312A
COMPLETE BLADE GUARD ASSY
Price
$285.10
313
TORSION SPRING
Price
N/A
314
PAWL SHAFT
Price
N/A
315
SPREADER
Price
$36.20
316
ROLL PIN 4 X 16
Price
N/A
317
PAWL RELEASE HOOK
Price
N/A
318
RIVET 4 X 6
Price
N/A
319
ANTI-KICKBACK PAWL
Price
N/A
320
SPACER 6 X 10 X 4MM
Price
N/A
321
BUTTON HD CAP SCR M4-.7 X 5
Price
$6.60
322
SHOULDER SCREW M5-.8 X 10, 6 X 25
Price
N/A
323
SHOULDER SCREW M5-.8 X 10, 6 X 10
Price
N/A
324
GUARD (RIGHT)
Price
N/A
325
TAP SCREW M3 X 10
Price
N/A
326
RIVING KNIFE
Price
$27.15
331
HOSE SUPPORT ARM
Price
N/A
332
HEX NUT M6-1
Price
N/A
333
FLAT WASHER 6MM
Price
N/A
334
WING NUT M6-1
Price
$1.49
335
HOSE CONNECTOR 1-1/2"
Price
$13.55
336
DUST HOSE 1-1/2" X 94"
Price
$39.70
337
Push Stick
Price
N/A
338
HEX WRENCH SET 2.5-8MM 6-PC
Price
$5.85
339
WRENCH 13 X 27MM OPEN-ENDS
Price
N/A
340
SIDE GUARD (RIGHT)
Price
N/A
341
FLANGE NUT M5-.8 X 6
Price
$3.45
343
LOCK WASHER 6MM
Price
N/A

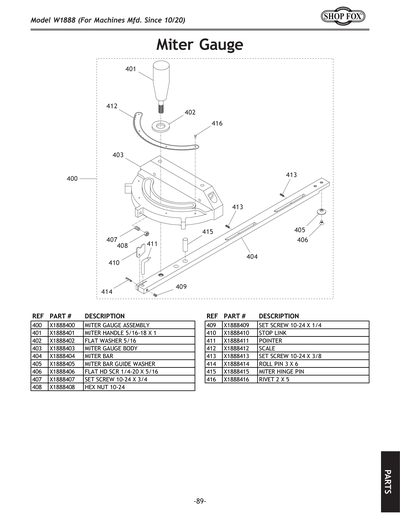

400
MITER GAUGE ASSEMBLY
Price
N/A
401
MITER HANDLE 5/16-18 X 1
Price
N/A
402
X1888402
Now: PW07
FLAT WASHER 5/16
Price
N/A
403
MITER GAUGE BODY
Price
N/A
404
MITER BAR
Price
N/A
405
MITER BAR GUIDE WASHER
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
SET SCREW 10-24 X 3/4
Price
N/A
408
X1888408
Now: PN07
HEX NUT 10-24
Price
N/A
409
SET SCREW 10-24 X 1/4
Price
N/A
410
STOP LINK
Price
N/A
411
POINTER
Price
N/A
412
SCALE
Price
N/A
413
SET SCREW 10-24 X 3/8
Price
N/A
414
ROLL PIN 3 X 6
Price
N/A
415
MITER HINGE PIN
Price
N/A
416
RIVET 2 X 5
Price
N/A
500
FENCE ASSEMBLY
Price
N/A
501
GLIDE PAD
Price
N/A
502
KNURLED NUT M12-1.75
Price
N/A
503
SET SCREW M12-1.75 X 20 NYLON-TIPPED
Price
N/A
504
SET SCREW 3/8-16 X 5/16
Price
N/A
505
X1888505
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
506
CAM LOCK PLATE
Price
N/A
507
LOCK NUT 1/4-20
Price
N/A
508
X1888508
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
509
FENCE LOCK CAM LEVER
Price
N/A
510
MAGNET
Price
N/A
511
KNOB 3/8-16, D1-9/16, BALL
Price
N/A
512
X1888512
Now: PN08
HEX NUT 3/8-16
Price
N/A
512V2
LOCK NUT 3/8-16
Price
N/A
513
X1888513
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
514
X1888514
Now: PW03
FLAT WASHER #10
Price
N/A
515
MAGNIFIED CURSOR
Price
N/A
519
FENCE BASE END CAP 50 X 50MM
Price
N/A
521
FENCE FACE
Price
N/A
522
FENCE BASE
Price
N/A
523
T-BOLT M6-1 X 20
Price
$5.15
524
FLAT WASHER 6MM
Price
N/A
525
KNOB M6-1, D30, 5-LOBE
Price
$3.20
602
FENCE GUIDE TUBE
Price
N/A
603
FENCE RAIL (FRONT)
Price
N/A

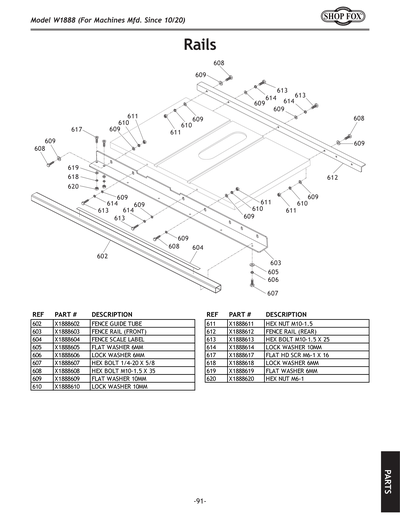

604
FENCE SCALE LABEL
Price
N/A
605
FLAT WASHER 6MM
Price
N/A
606
LOCK WASHER 6MM
Price
N/A
607
X1888607
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
608
HEX BOLT M10-1.5 X 35
Price
N/A
609
FLAT WASHER 10MM
Price
N/A
610
LOCK WASHER 10MM
Price
N/A
611
X1888611
Now: PN08
HEX NUT 3/8-16
Price
N/A
612
FENCE RAIL (REAR)
Price
N/A
613
HEX BOLT M10-1.5 X 25
Price
N/A
614
LOCK WASHER 10MM
Price
N/A
615
FLAT WASHER 10MM
Price
N/A
617
FLAT HD SCR M6-1 X 16
Price
N/A
618
LOCK WASHER 6MM
Price
N/A
619
FLAT WASHER 6MM
Price
N/A
620
HEX NUT M6-1
Price
N/A
701
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
702
BLADE GUARD LABEL
Price
$0.95
703
FENCE LABEL V1
Price
$3.30
703V2
FENCE LABEL V2.10.20
Price
$5.05
704
HANDWHEEL NOTICE LABEL
Price
$0.95
705
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
706
SHOP FOX WHITE M1006
Price
N/A
707
Nameplate - Large
Price
N/A
708
MODEL NUMBER LABEL
Price
$0.95
709
SHOP FOX BLACK TAPE
Price
$15.60
710
MACHINE ID LABEL V1
Price
$16.40
710V2
MACHINE ID LABEL V2.10.20
Price
$16.40
711
READ MANUAL 2.8W X 1.5H
Price
N/A
712
RIVING KNIFE CAUTION LABEL
Price
$0.95
713
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
714
ELECTRICITY 0.7W X 0.6H
Price
N/A
715
DO NOT EXPOSE TO RAIN LABEL
Price
$2.45
716
TABLE SAW WARNINGS LABEL
Price
$2.30
717
TILT SHAFT NOTICE LABEL
Price
$1.60
BOX2
COMPLETE BOX 2 OF 2 FOR W1888
Price
$720.90
MAN
MANUAL W1888 MFD-04.20-09.20 V1.04.20
Price
$21.95
MANV2
MANUAL W1888 MFD-10.20-10.24 V2.10.20
Price
$14.65
MANV3
MANUAL W1888 MFD-11.24+ V3.11.24
Price
$14.65
PX18750051
TAP SCREW M4 X 16
Price
N/A
