Parts for W2000 - The Rebel® Router Table

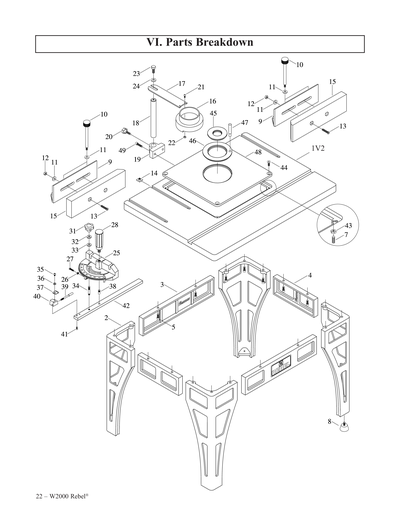

Part Diagram for W2000
Part Diagram for W2000
Part Diagram for W2000
Part Diagram for W2000

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TABLE TOP (ALUMINUM) V1
Price
$126.90
1V2
TABLE TOP (CAST IRON) V2.04.03
Price
$231.55
2
Price
$15.50
2V2
Price
$69.80
3
Price
$7.65
4
Price
$4.20
5
CAP SCREW 1/4-28 X 5/8
Price
N/A
6
CAP SCREW 1/4-28 X 5/8
Price
N/A
7
SET SCREW 10-32 X 5/8
Price
N/A
8
Price
$1.60
9
Price
$7.65
10
Price
$6.15
11
X2000011
Now: PW06
FLAT WASHER 1/4
Price
N/A
12
X2000012
Now: PN05
HEX NUT 1/4-20
Price
N/A
13
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
14
Price
$1.80
15
Price
$3.15
16
Price
$2.75
16A
Price
$7.35
17
Price
$1.80
18
Price
$2.35
19
Price
$2.40
20
Price
$1.80
21
X2000021
Now: PS28
PHLP HD SCR 6-32 X 1/2
Price
N/A
22
X2000022
Now: PN12
HEX NUT 6-32
Price
N/A
23
X2000023
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
24
X2000024
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
Price
$22.70
26
X2000026
Now: PN07
HEX NUT 10-24
Price
N/A
27
X2000027
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
28
Price
$1.85
29
X2000029
Now: PN08
HEX NUT 3/8-16
Price
N/A
31
Price
$5.85
32
X2000032
Now: PW06
FLAT WASHER 1/4
Price
N/A
33
X2000033
Now: PW06
FLAT WASHER 1/4
Price
N/A
34
Price
$1.49
35
X2000035
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
36
X2000036
Now: PW03
FLAT WASHER #10
Price
N/A
37
Price
$1.80
39
Price
$2.10
40
Price
$4.60
41
FLAT HD SCR 10-24 X 3/8
Price
N/A
42
Price
$13.80
43
Price
$1.80
44
TAPER HD ALLEN SCR 1/4-28 X 3/4
Price
$1.60
45
Price
$7.25
46
Price
$6.60
46-1
LARGE INSERT SET SCREW 5-40 X 1/8
Price
$2.20
47
Price
$1.80
48
Price
$84.10
49
CAP SCREW 1/4-28 X 1
Price
N/A
5
CAP SCREW 1/4-28 X 5/8
Price
N/A
50
Price
$22.25
51
Price
$7.35
52
CAP SCREW 1/4-28 X 1/2
Price
N/A
6
CAP SCREW 1/4-28 X 5/8
Price
N/A
7
X200007
Now: PSS22
SET SCREW 10-32 X 1/2
Price
N/A
100
Price
$8.00
101
Price
$8.00
11
X200011
Now: PW07
FLAT WASHER 5/16
Price
N/A
12
X200012
Now: PN05
HEX NUT 1/4-20
Price
N/A
13
X200013
Now: PFH15
FLAT HD SCR 1/4-20 X 1-1/2
Price
N/A
21
X200021
Now: PS28
PHLP HD SCR 6-32 X 1/2
Price
N/A
22
X200022
Now: PN12
HEX NUT 6-32
Price
N/A
23
X200023
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
24
X200024
Now: PW07
FLAT WASHER 5/16
Price
N/A
26
X200026
Now: PN07
HEX NUT 10-24
Price
N/A
27
X200027
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
29
X200029
Now: PN08
HEX NUT 3/8-16
Price
N/A
32
X200032
Now: PW06
FLAT WASHER 1/4
Price
N/A
35
X200035
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
36
X200036
Now: PW03
FLAT WASHER #10
Price
N/A
41
X200041
Now: PFH01
FLAT HD SCR 10-24 X 3/8
Price
N/A
48
Price
$89.15
49
CAP SCREW 8-32 X 7/8
Price
N/A
MAN
Price
$15.30
