Item# D1701 Model# D1701

Woodstock D1701 - 3" Moulding Head with 1" Bore

$58.95
+$0.00  Shipping
+$0.00  Oversize
List Price: $65.50
You Save: $6.55 (10%)
Buy now! Sale ends 11/28/22 (PST)

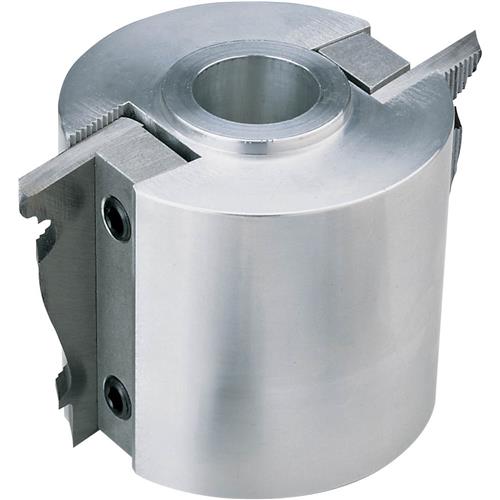

Woodstock D1701 3" Moulding Head with 1" Bore

A 3" moulding head to be used with 4" spindles.

The D1701 3" Moulding Head with 1" Bore from Woodstock is designed to be used on a vertical spindle shaper.

It is made of the highest quality aircraft aluminum and CNC-machined to exact tolerances.

The moulding head accepts matched pairs of interchangeable, corrugated-backed high-speed knives (not included).

The moulding head will use either 60° or 90°–cutting corrugations that are spaced 1/16" apart.

The knives lock into position by wedge-type gibs for maximum safety.

The 3" moulding head is ideal for use with Shop Fox and Grizzly’s larger shapers and allows you to use all of the available 2" and 3" cutters.

A 4" spindle is required when using the 3" cutterhead on the Shop Fox W1702 3HP Shaper or Grizzly G1026 3HP Shaper.

The D4927 4" Long Spindle (1" diameter) is a great option if you do not already have a 4" spindle.

The D1701 comes with a one-year warranty which assures the adapter is free from factory defects.

The Woodstock Customer Service and Technical Support Teams are U.S. based.

View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

Woodstock D1701 3" Moulding Head with 1" Bore

A 3" moulding head to be used with 4" spindles.

The D1701 3" Moulding Head with 1" Bore from Woodstock is designed to be used on a vertical spindle shaper.

It is made of the highest quality aircraft aluminum and CNC-machined to exact tolerances.

The moulding head accepts matched pairs of interchangeable, corrugated-backed high-speed knives (not included).

The moulding head will use either 60° or 90°–cutting corrugations that are spaced 1/16" apart.

The knives lock into position by wedge-type gibs for maximum safety.

The 3" moulding head is ideal for use with Shop Fox and Grizzly’s larger shapers and allows you to use all of the available 2" and 3" cutters.

A 4" spindle is required when using the 3" cutterhead on the Shop Fox W1702 3HP Shaper or Grizzly G1026 3HP Shaper.

The D4927 4" Long Spindle (1" diameter) is a great option if you do not already have a 4" spindle.

The D1701 comes with a one-year warranty which assures the adapter is free from factory defects.

The Woodstock Customer Service and Technical Support Teams are U.S. based.
