Item #: G1071
Model # G1071
Overview

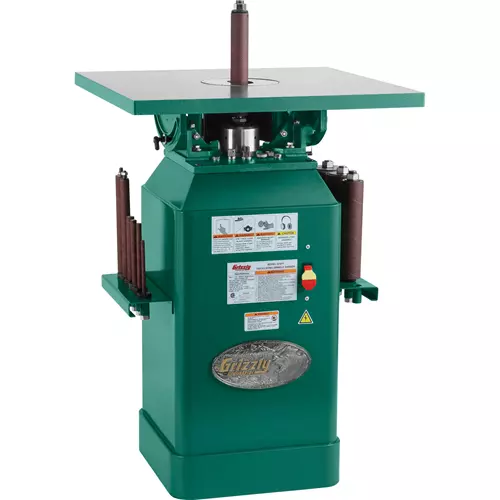

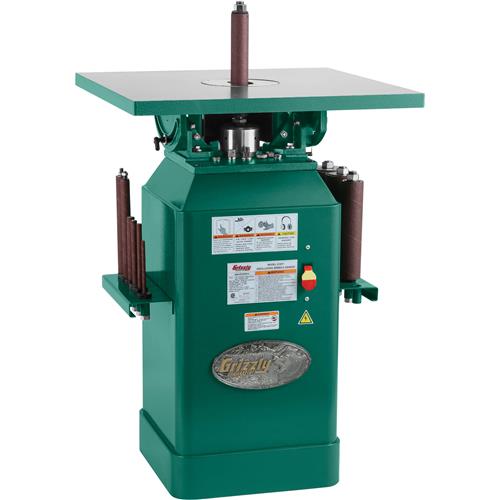

This sander's big 25" x 25" table makes cabinet doors and other large projects a breeze to edge sand - and the wide variety of interchangeable spindles turns custom work into "child's" play. Our spindle sander will satisfy the needs of both the professional and serious hobbyist. We back this up with our warranty, parts, and service. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

Specifications & Features:

  • Motor: Heavy-duty 1 HP, 120V/240V, single-phase, 12A/6A, prewired 120V
  • 25" x 25" cast-iron table tilts 45°L, 15°R
  • Ten spindle sizes: 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3", 4", tapered and threaded
  • Floor to table height: 35-1/2"
  • Spindle speed: 1725 RPM
  • Includes formed and welded steel stand
  • Spindle oscillation: 72 SPM
  • Stroke length: 1-1/2"
  • Built-in 4" dust collection port
  • Lubricated-for-life ball bearings
  • Features ground-steel table inserts and 100-grit sleeve for each spindle
  • Powder-coated finish
  • CSA certified
  • Approximate shipping weight: 296 lbs.
Reviews

17 Customer Reviews (4.6 out of 5 stars) : Sign in to write a review

Anonymous Reviewer
Need customer service . . . 03/31/2019 11:39:56 PM

Missing wiring schematic:
When my Oscillating sander arrived I proceeded to unpack the instructions
and read them.
I wanted to wire the motor from it's factory wired 110VAC and change it to 220VAC.
The instructions said the wiring schematic would be on the inside of the motor wiring cover,
except there were no instructions there.
In fairness to Grizzly, this is the first time I've had a chance to report this.
I will check with Grizzly customer service tomorrow and see what they can do.
I'm familiar with wiring and have done a lot of electrical engineering work for several decades.
That said, there is no easy way to guess which wires are attached internally to which motor fields.
I'm looking forward to getting the correct, exact wiring diagram from Grizzly this coming week.
As for the sander itself, it looks good and I'm expecting it to perform well, as many of my other
Grissly machines do.
Ron Vaughn

Anonymous Reviewer
great spindle sander 03/05/2019 9:17:58 PM

owned this machine with a grizzly base for over a year. I enjoy the easy of switching spindle diameters. highly recommend

Anonymous Reviewer
12/24/2018 2:40:20 AM

The equipment is great. The delivery was awful. UPS sent a huge truck to my dead end street that could only get within a couple hundred feet of my shop. All previous large equipment was delivered directly to my shop. I would have picked up the 300 pound spindle sander in Bellingham had I known how it would be shipped.

Karl R
12/05/2018 3:03:49 PM

I do not like the amount of the metal protection grease on this machine. I completely understand the need on bare metal, especially the table top but many of the painted parts underneath are covered with it as well - hard to reach to clean the goop off but easy to make a mess of my hand when I reach in to change a drum.

Richard F
Excellent machine 11/21/2018 11:24:22 AM

I purchased this spindle sander a month ago and I'm extremely happy with it. Arrived on time in a wooden crate. It was mostly assembled so set up was quick and easy. The large 25" cast iron top is great for supporting large pieces and the various sizes of spindles are quick and easy to change out. Its powerful, yet I was pleasantly supersized at how quiet it is. Another great Grizzly product and I would highly recommend this unit to anyone looking for a quality spindle sander.

Anonymous Reviewer
Good value 08/31/2018 12:40:27 PM

Well made machine. Strong motor. Great dust collection. Removed the protective film on the metal with a citric base cleaner worked good.

Anonymous Reviewer
06/28/2018 10:33:33 PM

No feedback given

Jerry H
04/27/2018 12:05:02 AM

This machine is amazing. I make band saw boxes and wine racks from thick blocks of material which require a great deal of profile sanding of 4.5" to 7" thick material. The results were a very smooth finish and zero wobble in the spindle. The owners manual indicates to hand tighten the spindles, but should emphasize it more (large bold type possibly). I purchased the G0514X2B 19" bandsaw a few months ago, and this sander coupled with this awesome bandsaw is a winning combination. The machine was delivered on time with zero damage. The wood crate certainly minimizes any possibility of shipping damage. The delivery driver even indicated how few problems they have with Grizzly product. Not a great deal of set-up to get the machine up and running. I highly recommend.

Anonymous Reviewer
Good 04/16/2018 5:08:32 AM

The wrenches are a joke and a few other things. Over all very good machine. Communication with Delivery was extremely bad and very late. For a while both shipments were lost. A secondary delivery was used. So the UPS tracking had nothing to do with the delivery as said. And instead of a simple phone call or e-mail. I was 'mailed' a letter (which took 3 days to get here) that it was ready for pickup and to call and schedule delivery. Leaving out the 2 weeks of me trying to figure things out; II contacted UPS 5 times with no answer and lost 2 days pay waiting on it and still had to go retrieve it myself. Grizzly finally cracked down once I called and made a stink about it. Wish they would've done that before.

took a few times to get the machine ordered. First couple of tries by phone they were tad & kinda rude and unhelpful and I ended up telling them never mind as it got to be such an unbelievable hassle. So, I ordered it online myself with NO issues at all. Then the shipping nightmare began. HA! Nice machine though. A few mods and it'll be perfect!

Anonymous Reviewer
A great addition to the shop 03/05/2018 1:43:20 PM

This machine was added to a technology education shop and it has been a great addition. The large table it has is great and makes using it a joy.

Anonymous Reviewer
01/05/2018 1:16:26 PM

Machine arrived with issues. Im sure it hapened during shipping. Coupling between motor and drive shaft was damaged. Grizzly sent me new parts right away and the fix wasnt too bad. I understand the need for Grizzly to ask the buyer to make the repairs but seems like they would have sent me a hat, shirt, gift certificate or something for my trouble. Machine is now operating as it should and I like it. ..... Newbatt2

Anonymous Reviewer
12/07/2017 3:26:29 PM

I am working on large arches with stained glass inserts. the sander provided exactly what I needed to shape the the 86" arch for shaping the edge. Could not have come at a better time for my shop.

Anonymous Reviewer
06/16/2017 12:40:24 PM

Works well, but inserts did not seat properly into the table and had to be filed down in order to be usable. Also, protective coating on the table was practically baked on and took much more than the usual amount of elbow grease in order to remove and properly wax it.

Anonymous Reviewer
Great product 06/15/2017 2:06:37 AM

No feedback given

Brian
Great Product! 06/09/2017 4:44:29 PM

We have had the machine hooked up and running for a few weeks now and we are happy so far!

Andrew R
Good sander 06/07/2017 6:33:44 PM

Good sander with lots of power. The nicest of it's type I have used. Very impressed with the low level of vibration compared to other similar units. Easily turns the largest drum against oak with heavy pressure. My only complaint is with the shipping otherwise I would give 5 stars. It seems like everything I get UPS freight comes scratched and dented. The crate came in pieces and held together with packing tape. The sander luckily only had one small dent and a few scratches, nothing to worry about being that it is a tool after all.

Rod
Great Product 03/05/2016 3:45:07 PM

I bought this a few years ago, works great and saves time. The only issue I have is that the tools that come with the sander are very poor quality and do not fit properly on the spindle nut making it very difficult to change sanding drums. Other than that I am very pleased.
