Item# G0889Z Model# G0889Z

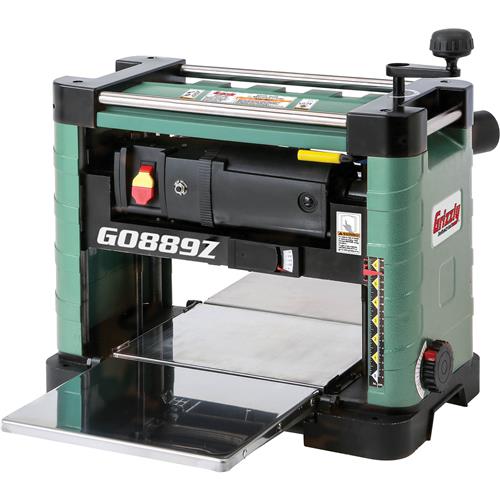

Grizzly G0889Z - 13" 2 HP Benchtop Planer with Spiral Cutterhead

13" 2 HP Benchtop Planer with Spiral Cutterhead-img-0
13" 2 HP Benchtop Planer with Spiral Cutterhead-img-1
$750.00
+$49.00 Freight
+$0.00  Oversize
  • Motor: 2 HP
  • Max cutting width: 13"
  • Max cutting height: 6"
  • Cutter Head Type: Spiral with inserts
  • Cutter Head Diameter: 1-13/16"
  • Min Stock Length: 8"
  • Feed Rate(s): 26 FPM
  • Table size: 33-1/4" x 13"
  • Shipping weight: 71 lbs.

Hover to View Details

Add to Cart
More on the way and expected to arrive on NEEDS IMPLEMENTATION Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Recommended For You

Overview

G0889Z 13" 2 HP Benchtop Planer with Spiral Cutterhead

Top of the line benchtop planing.

The G0889Z 13" 2 HP Benchtop Planer with Spiral Cutterhead comes equipped 36 inserts arranged in a four-row spiral. This allows you to have a cleaner and quieter cut.

Each insert can each be rotated up to 3 times to expose a new sharp edge. No more replacing or sharpening blades every time they get dull or nicked.

The G0889Z comes with a cut depth indicator, an adjustable cutterhead depth stop for repeat planing operations and a built-in chip blower with dust collection bag.

It also features a fixed-height table design, meaning the cutterhead raises and lowers for thickness adjustments, as opposed to the table. This allows for permanent infeed and outfeed roller setups.

Add to all of this the convenient grab handles on the sides of the machine and you've got the ultimate in both precision and portability for your home shop or jobsite.

You can't beat the price, but you can beat the competition with this amazing benchtop planer!

Like all of the Grizzly planers, the G0889Z comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0889Z manual was written by our U.S. based Documentation Department is packed with useful information.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the planer are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in and ISO 9001 factory

Certified to CSA & UL standards

SPECIFICATIONS:

  • Motor: 2 HP, 120V, single-phase, 15A
  • Maximum stock width: 13"
  • Maximum stock thickness: 6"
  • Minimum stock thickness: 1/8"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Cutterhead diameter: 1-13/16"
  • Cutterhead type: 4-row spiral, 36 inserts
  • Insert size & type: 15mm x 15mm x 2.5mm indexable carbide inserts
  • Cutterhead speed: 9000 RPM
  • Feed rate: 26 FPM
  • Table size with extensions: 13" x 33-1/4"
  • Dust port size: 2-1/2"
  • Overall dimensions: 23-1/2" W x 33-1/2" D x 22" H
  • Approximate shipping weight: 71 lbs.

FEATURES:

  • Fixed-height table design; cutterhead raises and lowers, allowing for permanent infeed and outfeed roller setups
  • Board return rollers
  • Built-in dust collection system with see-through chip blower and 2-1/2" dust port
  • Convenient grab handles for mobility
  • Cutting depth stop control
  • Inch and metric depth-of-cut scale
  • Stainless steel table and extensions
  • Cogged drive belt
