Overview

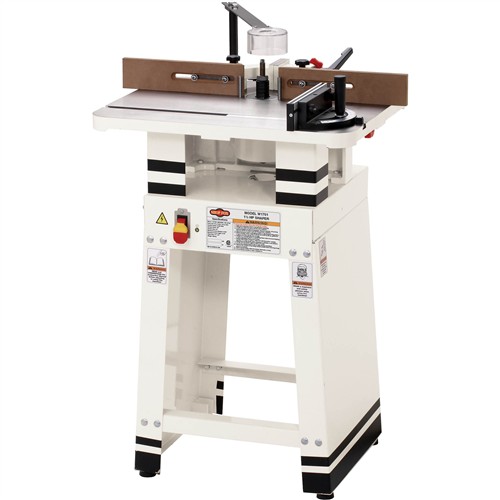

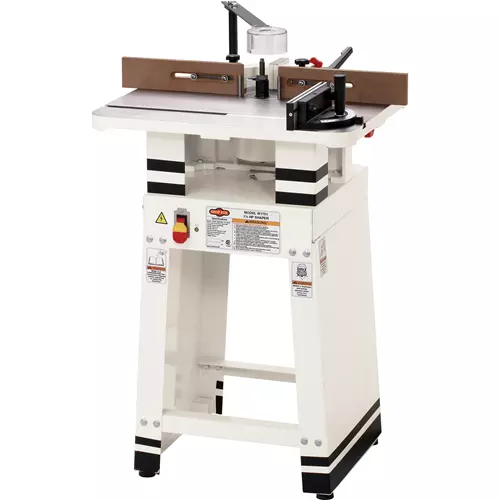

This 1.5 HP Shaper provides the best of all worlds - a rock solid router table, which allows the use of most 1/4" and 1/2" shank router bits, as well as a powerful shaper, which opens up a new realm of 1/2" bore shaper cutters. A split adjustment fence also makes edge jointing and full edge profiling safe and easy. This Shaper should be a part of every woodshop.

CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

Specifications

  • Motor: 1.5 HP, 120V/240V, 15A/7.5A, single-phase, 10A, 3450 RPM, reversible
  • Spindle Speed 13,200 RPM
  • Spindle travel: 7/8"
  • Table height: 34-1/4"
  • Deluxe miter gauge with extruded-aluminum extension
  • Table bore: 3" with 1-3/4" and 1-3/8" inserts
  • Powder-coated finish and all ball bearing construction
  • Spindle: 1/2" diameter x 3" length, 2-1/2" maximum cutter height
  • Router bit spindles: accepts 1/4" and 1/2"
  • Large precision-ground cast-iron table
  • Table size: 24-1/4" wide x 19" deep with 3/4" miter slot
  • Includes 5 spindle bushings for adjusting cutter spacing
  • Maximum cutter diameter: 2-7/8"
  • Footprint: 19" wide x 16-1/2" deep
  • Approx. shipping weight: 195 lbs.
