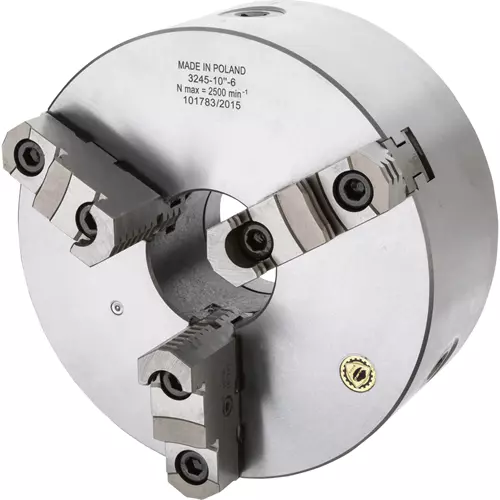

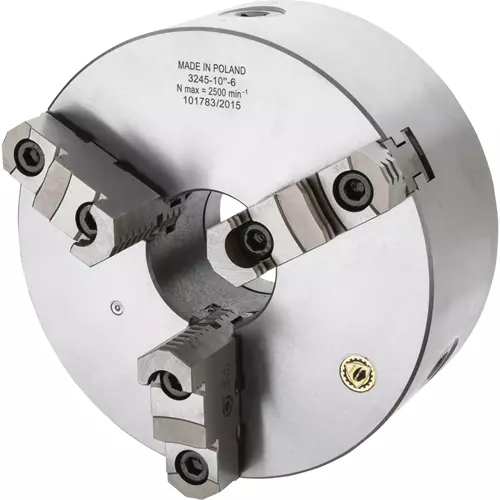

T10402 Bison 10" D1-6 3-Jaw Self-Centering Scroll Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This D1-6 camlock 3-jaw chuck is made with a cast-iron body, 2-piece, hardened jaws, and come complete with a chuck wrench.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 10"
• Mount: D1-6
• Maximum speed: 2000 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 3
• Bolt quantity: 6
• Camlock stud diameter: 7/8"
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Clamping range d1 (min-max): 0.197"–4.65"
• Clamping range d2 (min-max): 3.39"–7.76"
• Clamping range d3 (min-max): 6.30"–9.84"
• Clamping range d4 (min-max): 2.28"–6.50"
• Clamping range d5 (min-max): 4.92"–9.25
• Approximate shipping weight: 43 lbs.
