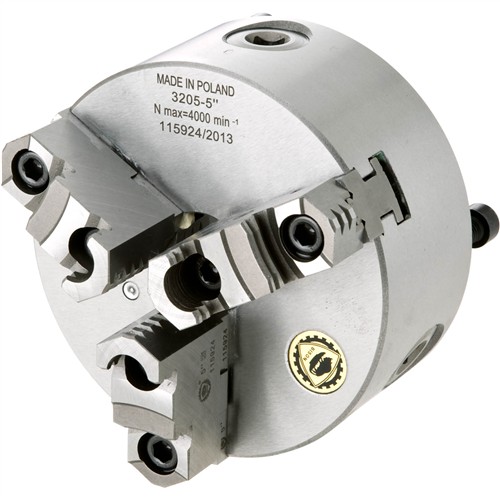

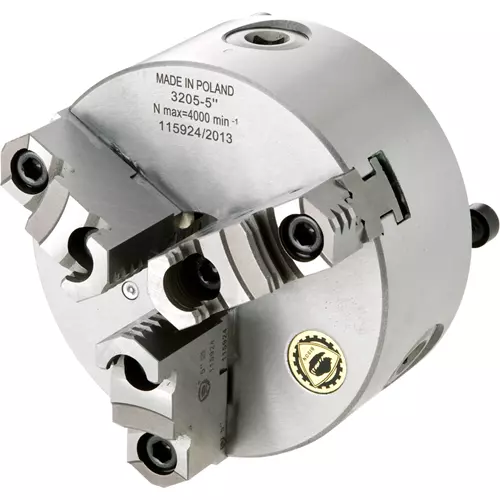

T10392 Bison 5" Plain Back 3-Jaw Self-Centering Scroll Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This plain back 3-jaw chuck is made with a cast-iron body, 2-piece, hardened jaws, and come complete with a chuck wrench.

Check out the Bison back plates for mounting to your lathe.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 5"
• Mount: Plain back
• Maximum speed: 3200 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 3
• Adapter mounting bolt thread: M8x1.25
• Adapter mounting bolt length: 0.98"
• Adapter mounting bolt quantity: 3
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 1.2598"
• F: 4.252"
• E: 3.7402"
• C: 0.1575"
• H: 2.205"
• h: 1.575"
• h1: 0.787"
• Clamping range d1 (min-max): 0.118"–1.97"
• Clamping range d2 (min-max): 2.05"–3.78"
• Clamping range d3 (min-max): 3.74"–4.92"
• Clamping range d4 (min-max): 1.34"–2.99"
• Clamping range d5 (min-max): 2.95"–4.65"
• Approximate shipping weight: 11 lbs.
