Item: T10412 | Model: 7-862-0501
Pricing Information
$720.00
Price: $720.00

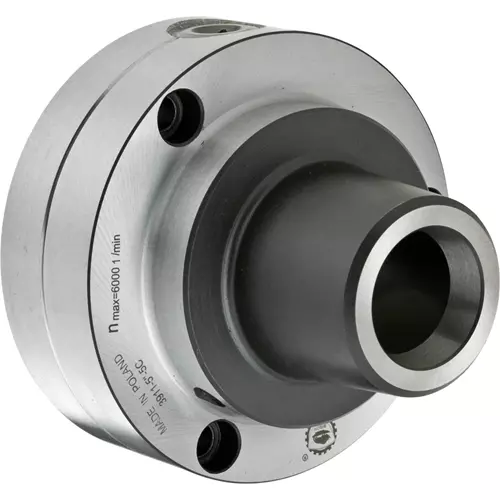

T10412 Bison 5" Plain Back 5-C Collet Chuck Plain Back
Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.
This 5-C collet chuck is made of high-quality steel forgings and has a concentricity of 0.0004" (four ten-thousandths of an inch).
A simple key-operated scroll provides uniform, distortion-free clamping and low collet cycle times.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Chuck diameter: 5"
- Mount: Plain back
- Maximum speed: 6000 RPM
- Jaw type: 5C collet
- Precision class: Standard accuracy chuck
- Body material: Steel
- Bolt quantity: 3
- A: 4.96"
- B: 4.23"
- C: 0.16"
- D: 3.74"
- F: 4.25"
- G: M8x3
- Approximate shipping weight: 12 lbs.
