Item: T10429 | Model: 7-875-084
Image for T10429

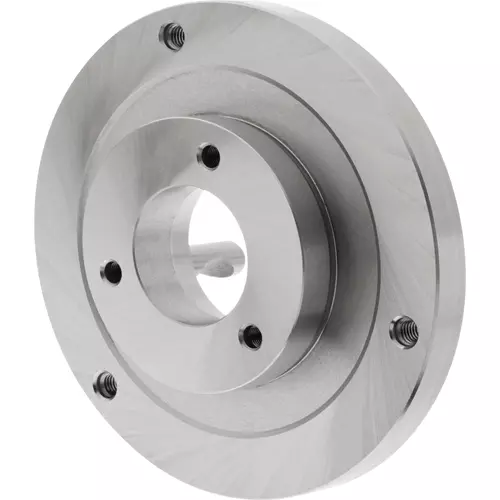

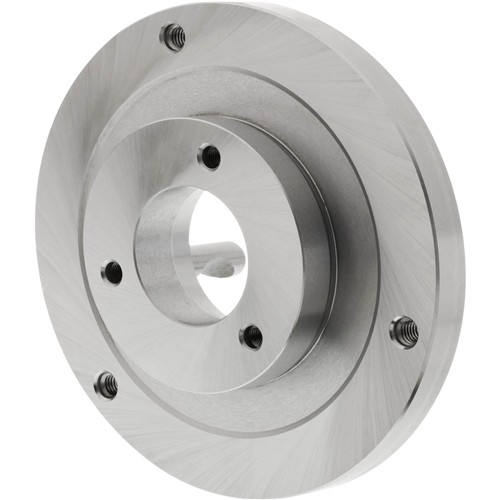

Bison T10429 - 8" D1-4 Back Plate for Set-Tru

No Reviews
$530.00

T10429 8" D1-4 Back Plate for SET-TRU Chuck

We are proud to offer Bison Lathe back plates.

These fully machined Type D Bison back plates are the missing link between your lathe's spindle and SET-TRU chuck, ensuring flawless centering and reduced vibration for superior results.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Chuck diameter: 8"
  • Mount: D1-4
  • Body material: Steel
  • M bolt thread: M10x1.5
  • M bolt quantity: 3
  • Stud diameter: 5/8"
  • F: 3.25"
  • A: 7.87"
  • D: 2.5005"
  • E: 2.165"
  • C: 4.330"
  • H: 6.929"
  • B1: 0.67"
  • B: 1.30"
  • Approximate shipping weight: 11 lbs.
View More Details
Shipping

Accessories

Image for T10294 7 Piece Indexable Carbide Set 1/2" Item# T10294 $117.95 Add Image for G6706 60 TiN Coated Carbide Insert w/ Chip Breaker - TCMT-32.51 Item# G6706 $16.95 Add Image for H5930 4 Pc. Center Drill Set 60 Deg. Item# H5930 $14.95 Add
Overview Reviews Q & A
Overview

T10429 8" D1-4 Back Plate for SET-TRU Chuck

We are proud to offer Bison Lathe back plates.

These fully machined Type D Bison back plates are the missing link between your lathe's spindle and SET-TRU chuck, ensuring flawless centering and reduced vibration for superior results.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Chuck diameter: 8"
  • Mount: D1-4
  • Body material: Steel
  • M bolt thread: M10x1.5
  • M bolt quantity: 3
  • Stud diameter: 5/8"
  • F: 3.25"
  • A: 7.87"
  • D: 2.5005"
  • E: 2.165"
  • C: 4.330"
  • H: 6.929"
  • B1: 0.67"
  • B: 1.30"
  • Approximate shipping weight: 11 lbs.
