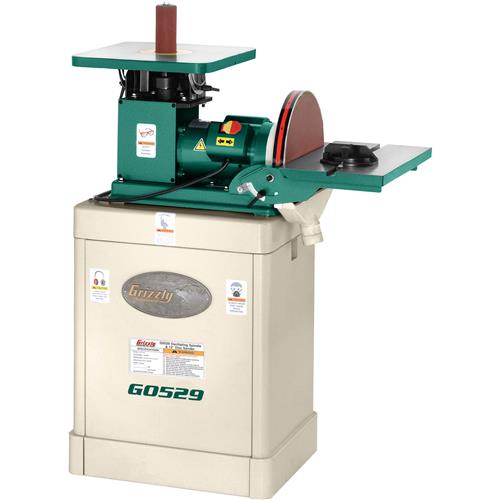

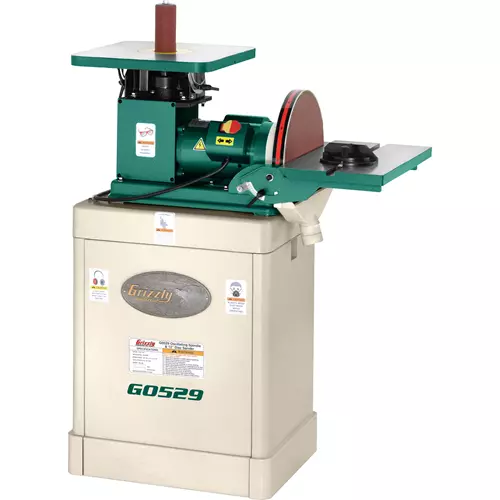

G0529 Oscillating Spindle / 12" Disc Sander
The precision of an oscillating spindle sander and a 12" disc sander for the most useful combination sander on the market today.
The oscillating spindle of the G0529 features 4 spindle sizes, which utilize sleeves of sandpaper for easy changing, availability, and low cost.
The direct-drive 1725 RPM, disc sander yields excellent control without burning the workpiece.
With dual tilting cast-iron tables, this combination Oscillating Spindle/12" Disc Sander does it all!
Replacement PSA sanding discs are available in a variety of grits. The replacement sanding sleeves are listed as accessories to the right.
The G0529 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your machine.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Motor: 1 HP, 110V, single-phase, 10A
- Footprint: 21-1/4" x 16-1/2"
- Overall dimensions: 32" W x 18" D x 47" H
- Approximate shipping weight: 181 lbs.
Disc Sander Info:
- Disc diameter: 12"
- Disc speed: 1725 RPM
- Sandpaper backing: PSA
- Table size: 10" x 17-3/4"
- Table tilt: 0–45°
- Table to floor height: 33"
Spindle Sander Info:
- Drum diameters: 1/4", 5/8", 1-1/2", 2"
- Drum length: 5-1/2"
- Spindle speed: 1725 RPM
- Spindle oscillation: 60 SPM
- Stroke length: 1"
- Table size: 14-1/2" x 14-1/2"
- Table tilt: -10–45°
- Table to floor height: 42"
FEATURES:
- Includes formed and welded steel stand
- Lubricated-for-life ball bearings
- Easy change sandpaper sleeves for spindles
- Miter gauge
- Two 2" dust ports
- Powder-coated finish
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0529 comes with a 1-year warranty.
