Grizzly G1023RLA40 - 10" 5 HP 240V Cabinet Table Saw - 40th Anniversary Edition

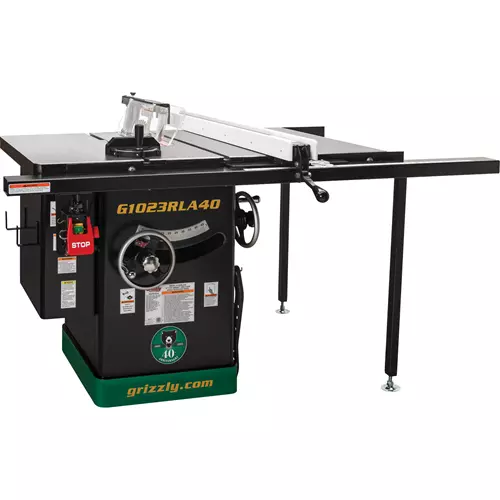

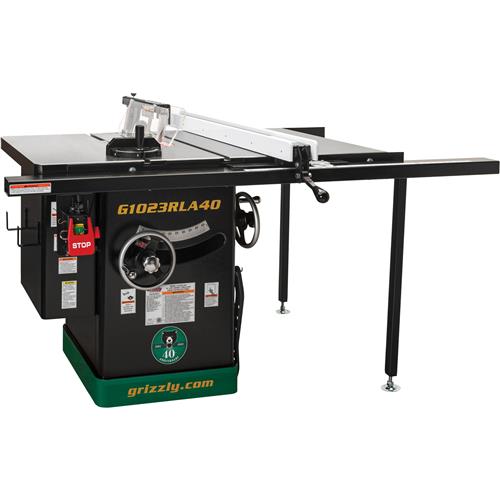

G1023RLA40 40th Anniversary 10" 5 HP 240V Cabinet Table Saw
A limited-edition 5 HP cabinet table saw with built-in router table!
Our 40th Anniversary G1023RLA40 10" Cabinet Table Saw is made to be the cornerstone of your woodworking shop.
It features a built-router table, allowing you to rip a board and route an edge all on the same table. You can even route a dado without having to change blades!
It has a powerful 5 HP motor and a heavy-duty one-piece steel cabinet stand for cutting thick material with plenty of support and stability.
The large, precision-ground cast-iron table is dead-on flat for accuracy and has a beveled front edge for smooth board feeding. It has two T-slots and comes with a heavy-duty miter gauge.
The Shop Fox® Classic fence doubles as the router fence and has replaceable side panels made of HDPE plastic. This tough, abrasion-resistant material is smoother than Teflon®, making your cuts that much easier.
Last but not least, the limited-edition green and black 40th Anniversary paint scheme is a unique look that will add excitement to your shop!
The G1023RLA40 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the table saw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Motor: 5 HP, 240V, single-phase, 23A
- Rip capacity: 32" right, 14" left of blade
- Maximum depth of cut @ 90°: 3"
- Maximum depth of cut @ 45°: 2-1/8"
- Overall table dimensions: 48" W x 27" D
- Distance from front of table to center of blade: 17"
- Floor-to-table height: 34"
- Arbor diameter: 5/8"
- Arbor speed: 4200 RPM
- Maximum width of dado: 13/16"
- Footprint: 20-1/2" x 20-1/2"
- Overall dimensions: 66" W x 47" D x 40" H
- Approximate shipping weight: 575 lbs.
FEATURES:
- Precision-ground cast-iron table with beveled edge
- Fence doubles as guide fence for a router
- Router table doubles as extra-wide extension wing for saw
- Magnetic switch protection
- Extra-large cast-iron handwheels
- One-piece steel cabinet stand
- All sealed ball bearing construction
- Quick change between riving knife and splitter guard
- 1-year limited warranty
