Item: G0771 | Model: G0771
This saw has been replaced by the updated G0771Z.

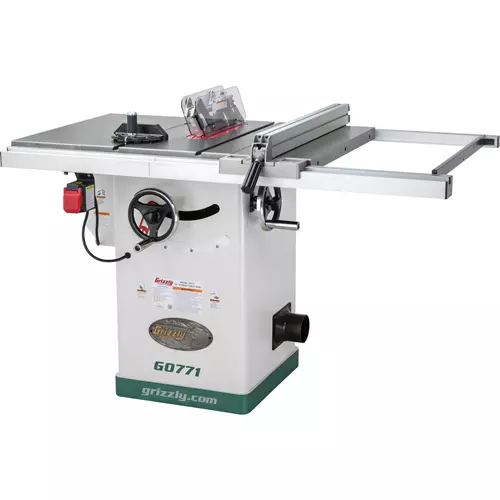

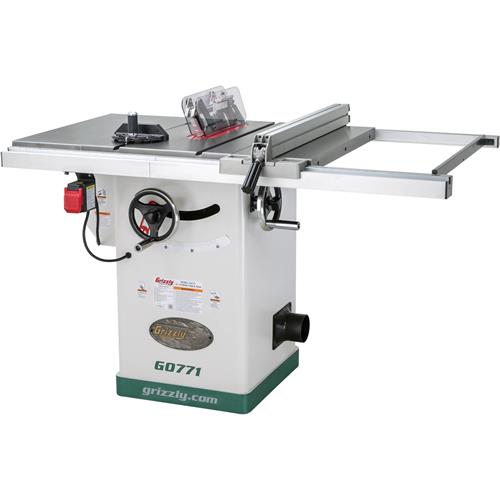

This hybrid is a selective blend of the best features of the contractor-style table saw and cabinet style table saw. Like the cabinet saw, it has an enclosed cabinet with 4" dust port, heavy-duty cast-iron trunnions that mount to the cabinet, and plenty of power (with its 2 HP motor) to easily rip through hardwoods or cut dadoes. Like the contractor-style saw, it's still light enough to move around (it weighs approximately 286 lbs. when fully assembled) and it's easy on the budget. The fence on this machine is also a hybrid of some of the best features we've had on table saws in the last 30+ years. It has the easy lift-off and simple adjustability of the popular T-shape Shop Fox Classic fence, the rock-solid front-and-rear locking ability of the Shop Fox Original fence, and the accessory T-slots of the Shop Fox Aluma-Classic fence. To top it all off, this saw features an innovative quick-release blade guard and riving knife system that can be changed in seconds—and it's prewired to run on an ordinary 120V, 20A circuit!
ETL Listed & CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8th standards!
Features:Cast iron table and extension wings Cast iron trunnions Easy-glide fence system Quick-release blade guard & riving knife 4" Dust port T-slot miter gauge Includes 10" x 40T carbide-tipped blade
Specifications: Motor: 2 HP, 120V/240V, 15A/7.5A, prewired 120V, single-phase, 60 Hz Precision-ground cast iron table with wings measures: 40-1/2" W x 27" D Table height: 35-3/8" Footprint: 21" L x 19-1/2" W Arbor: 5/8" Arbor speed: 3450 RPM Max. depth of cut @ 90 degree: 3-1/4" Max. depth of cut @ 45 degree: 2-1/4" Rip capacity: 30" right, 15" left Overall size: 57-1/4" W x 35-3/8" H x 37-1/2" D Approximate shipping weight: 330 lbs.
This hybrid is a selective blend of the best features of the contractor-style table saw and cabinet style table saw. Like the cabinet saw, it has an enclosed cabinet with 4" dust port, heavy-duty cast-iron trunnions that mount to the cabinet, and plenty of power (with its 2 HP motor) to easily rip through hardwoods or cut dadoes. Like the contractor-style saw, it's still light enough to move around (it weighs approximately 286 lbs. when fully assembled) and it's easy on the budget. The fence on this machine is also a hybrid of some of the best features we've had on table saws in the last 30+ years. It has the easy lift-off and simple adjustability of the popular T-shape Shop Fox Classic fence, the rock-solid front-and-rear locking ability of the Shop Fox Original fence, and the accessory T-slots of the Shop Fox Aluma-Classic fence. To top it all off, this saw features an innovative quick-release blade guard and riving knife system that can be changed in seconds—and it's prewired to run on an ordinary 120V, 20A circuit!
ETL Listed & CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8th standards!
Features:
Specifications:
