Item# G1023SL Model# G1023SL

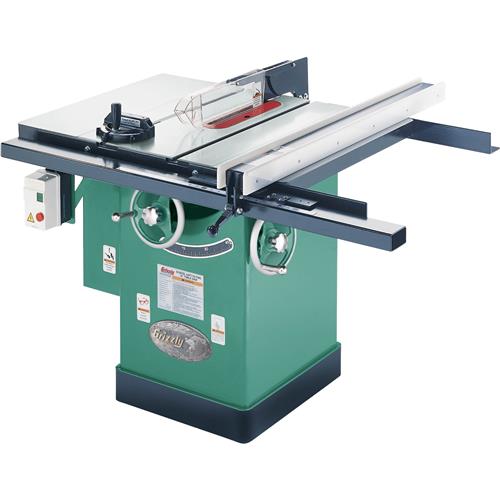

Grizzly G1023SL - 10" Table Saw 3 HP Single-Phase 220V Left-Tilt

Built with the same heavy steel cabinet and cast iron table as the extremely popular Model G1023S, this left-tilting saw became an instant hit when introduced last year. Just as with the G1023S, the motor is 3 H.P., single-phase, 220V and has a triple-belt pulley. The blade splitter has been redesigned from that of the G1023S for even easier adjustments, and the accurate and dependable Shop Fox® Classic fence also comes as standard equipment.

Features:

  • 3 H.P. single-phase, 220V motor
  • Solid cast iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror-like finish
  • Table has T-slots so your miter gauge will not fall off the table when retracted
  • Table size (with 2 solid extension wings attached) is 40-1/8" x 27"
  • Extra-large handwheels are the heaviest in the industry and really ease arbor movement
  • Cutting capacity: 8" left and 26" right of blade
  • Maximum depth of cut @ 90°: 3"
  • Maximum depth of cut @ 45°: 2-1/8"
  • 5/8" diameter arbor is long enough to accept dado blades up to 13/16"
  • One-piece steel cabinet-type stand
  • Magnetic safety switch is standard and protects the motor and operator
  • All sealed ball bearing construction
  • Triple V-belt drive
  • Powder coated paint
  • 4" dust port included
  • Base dimension: 20-1/2" x 20-1/2"
  • Shipping weight approx. 467 lbs.

    PUSH STICK H3308 INCLUDED

View More Details

Accessories

Recommended For You

Videos
Overview
Built with the same heavy steel cabinet and cast iron table as the extremely popular Model G1023S, this left-tilting saw became an instant hit when introduced last year. Just as with the G1023S, the motor is 3 H.P., single-phase, 220V and has a triple-belt pulley. The blade splitter has been redesigned from that of the G1023S for even easier adjustments, and the accurate and dependable Shop Fox® Classic fence also comes as standard equipment.

Features:

  • 3 H.P. single-phase, 220V motor
  • Solid cast iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror-like finish
  • Table has T-slots so your miter gauge will not fall off the table when retracted
  • Table size (with 2 solid extension wings attached) is 40-1/8" x 27"
  • Extra-large handwheels are the heaviest in the industry and really ease arbor movement
  • Cutting capacity: 8" left and 26" right of blade
  • Maximum depth of cut @ 90°: 3"
  • Maximum depth of cut @ 45°: 2-1/8"
  • 5/8" diameter arbor is long enough to accept dado blades up to 13/16"
  • One-piece steel cabinet-type stand
  • Magnetic safety switch is standard and protects the motor and operator
  • All sealed ball bearing construction
  • Triple V-belt drive
  • Powder coated paint
  • 4" dust port included
  • Base dimension: 20-1/2" x 20-1/2"
  • Shipping weight approx. 467 lbs.

    PUSH STICK H3308 INCLUDED
