Item: G0460 | Model: G0460
1 Product Photos

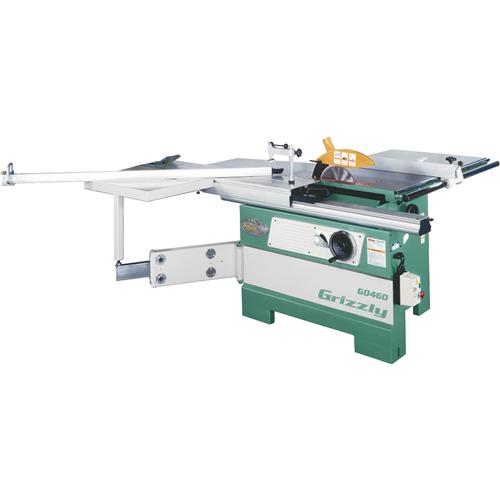

For years, our customers have been asking us to offer a full featured sliding table saw that won't take so much valuable floor space in their shops. It took us a little while to do, but we are pleased to introduce the newest member of our sliding table saw line. This saw uses many of the assemblies from out G0588 and G0591 including the ball bearing sliding table. Panels as wide as 59" can be "squared" with incredible accuracy which, for many cabinet shops will meet all their needs. If you have wanted a sliding table saw but never had the room, now there is a saw that will fit your shop yet is still loaded with all the features you need:
View More Details
- Scoring saw blade ensures tear-out free cutting
- Durable aluminum sliding table
- Cast iron trunnions
- Blade tilts 45 deg. for miter cutting
- Single lever, front locking, extruded aluminum fence
- Steel, chromed and ground rails
- Magnetic switch with thermal overload protection
- Blade guard has 2 1/2" dust port
- 5" main dust port
- Rugged construction for maximum stability
- Precision ground cast iron main table
- Adjustable riving knife alignment
- Sliding table locks for conventional ripping
- 59" sliding table cutting capacity
- Includes hold down, edge shoe and push stick
- Main blade and scoring blade sold separately
Specifications:
- Main motor: 5 HP, 220V, single-phase, 22 amps, 3,450 RPM
- Power transfer: Belt drive
- Main blade size: 12"
- Main blade arbor: 1"
- Main blade tilt: 0-45 deg.
- Main arbor speed: 4,900 RPM
- Depth of cut at 90 deg.: 3 3/4"
- Depth of cut at 45 deg.: 2 5/8"
- Scoring blade size: 3 1/8" (80mm)
- Scoring blade arbor: 20mm
- Scoring blade tilt: 0-45 deg.
- Sliding table size: 59" wide x 13 3/4" deep
- Maximum cut right of blade: 44 1/2"
- Main table dimensions: 33" wide x 22" deep
- Approximate shipping weight: 1163 lbs.
