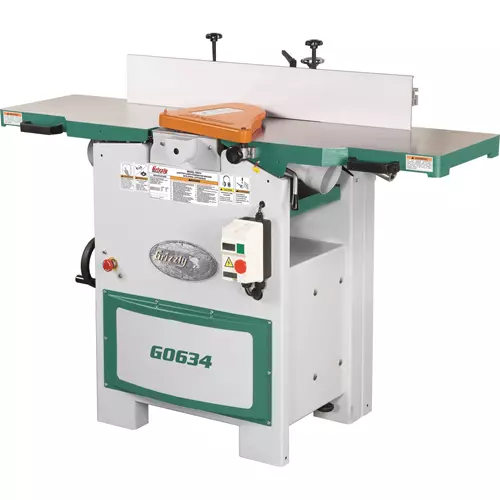

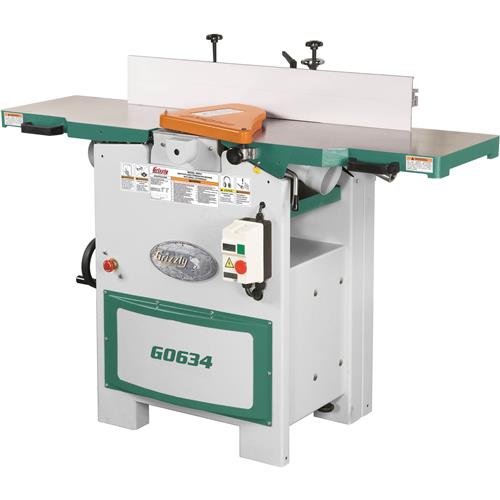

Grizzly G0634 - 12" Jointer / Planer w/ Spiral Cutterhead
An improved version of this machine is now available. Check out model G0634Z.
This heavy-duty Combination Machine joints and planes using the same 12" cutterhead, saving money and the space required for two individual machines. Conversion from the jointer to the planer is easy. Just remove the quick release fence and flip up the jointer tables. The tables are precision ground flat to a mirror like finish and the fence can be positioned at any angle between 45° and 90° as well as raised, lowered, canted and adjusted along the table. The planer features 2 feed rollers, anti-kickback fingers and thickness scale. This machine is a very high quality unit that is built to last!
Specifications:
- Motor: 5 HP, 220V, single-phase Amps: 25 RPM: 3450
- Jointer table size: 14" x 59-1/2"
- Carbide insert spiral cutterhead
- Cutterhead diameter: 3-1/8"
- Cutterhead speed: 5034 RPM
- Maximum jointer depth of cut: 1/8"
- Maximum width of cut: 12"
- Cuts per minute: 20, 136
- Fence: 5-7/8" x 39-3/8"
- Bevel jointing: 0° - 45°
- Switch: Magnetic
- Power transfer: Twin V-belts
- Bearings: shielded and lubricated
- Floor to table height: 35-1/5"
- Overall length: 60-1/4"
- Overall width: 45-1/4"
- Dust port size: 4"
- Planer feed rate: 22 FPM
- Maximum planer depth of cut: 1/8"
- Maximum planer cutting height: 8"
- Planer table size: 12-1/4" x 23-1/8"
- Approximate shipping weight: 748 lbs.
