Item# G4002 Model# G4002

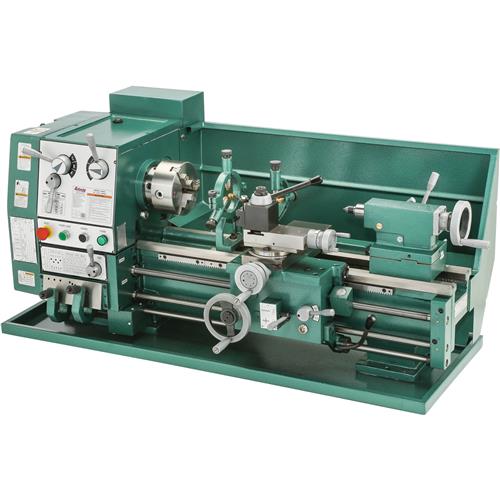

Grizzly G4002 - 12" x 24" Gear-Head, Cam Lock Spindle, Lathe

This metal lathe is an incredible value. Produced with precision slides and ways, the G4002 will keep up with the most demanding machining job!

Features:

  • Nine spindle speeds - ranging from 70 to 1400 RPM
  • Easy-to-use lever controls
  • Hardened and ground cast iron bed
  • Cuts 4-112 Standard TPI and 0.2-4.5 Metric
  • Full length splash guard
  • On/off/reverse switch on carriage

Standard Equipment:

  • 6" 3-Jaw chuck w/2 sets of jaws
  • 8" 4-Jaw chuck w/reversible jaws
  • 10" Faceplate
  • Steady rest
  • Follow rest
  • Quick-change tool post w/holder
  • 4-Piece insert tool holder set
  • Set of seven change gears
  • Dead center MT#3 HSS tip
  • Dead center MT#3 carbide tip
  • Live center MT#3
  • 1/2" Drill chuck w/MT#3 arbor
  • Spindle sleeve MT#5/MT#3
  • Oil can
  • Toolbox

Specifications:

  • Swing over bed: 12"
  • Swing over cross slide: 7"
  • Distance between centers: 24"
  • Bed width: 7-1/4"
  • Spindle bore: 1.417" (36mm)
  • Taper of spindle bore: MT#5
  • Spindle: Camlock D1-4
  • Cross slide travel: 6-1/4"
  • Cuts LH threads
  • Compound travel: 3-1/4"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 4"
  • Diameter of tailstock barrel: 1-9/16"
  • Number of speeds: 9
  • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
  • Motor: 2 HP, single-phase, 220 Volt, 8.5 amps, 60 Hz, 1725 RPM
  • Height w/o stand: 23"
  • Height w/ stand: 52"
  • Length w/ stand: 53"
  • Width of stand: 26"
  • Approx. shipping weight: 1004 lbs.
View More Details

Recommended For You

Overview
This metal lathe is an incredible value. Produced with precision slides and ways, the G4002 will keep up with the most demanding machining job!

Features:

  • Nine spindle speeds - ranging from 70 to 1400 RPM
  • Easy-to-use lever controls
  • Hardened and ground cast iron bed
  • Cuts 4-112 Standard TPI and 0.2-4.5 Metric
  • Full length splash guard
  • On/off/reverse switch on carriage

Standard Equipment:

  • 6" 3-Jaw chuck w/2 sets of jaws
  • 8" 4-Jaw chuck w/reversible jaws
  • 10" Faceplate
  • Steady rest
  • Follow rest
  • Quick-change tool post w/holder
  • 4-Piece insert tool holder set
  • Set of seven change gears
  • Dead center MT#3 HSS tip
  • Dead center MT#3 carbide tip
  • Live center MT#3
  • 1/2" Drill chuck w/MT#3 arbor
  • Spindle sleeve MT#5/MT#3
  • Oil can
  • Toolbox

Specifications:

  • Swing over bed: 12"
  • Swing over cross slide: 7"
  • Distance between centers: 24"
  • Bed width: 7-1/4"
  • Spindle bore: 1.417" (36mm)
  • Taper of spindle bore: MT#5
  • Spindle: Camlock D1-4
  • Cross slide travel: 6-1/4"
  • Cuts LH threads
  • Compound travel: 3-1/4"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 4"
  • Diameter of tailstock barrel: 1-9/16"
  • Number of speeds: 9
  • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
  • Motor: 2 HP, single-phase, 220 Volt, 8.5 amps, 60 Hz, 1725 RPM
  • Height w/o stand: 23"
  • Height w/ stand: 52"
  • Length w/ stand: 53"
  • Width of stand: 26"
  • Approx. shipping weight: 1004 lbs.
