Item: G4791 | Model: G4791
Image for G4791

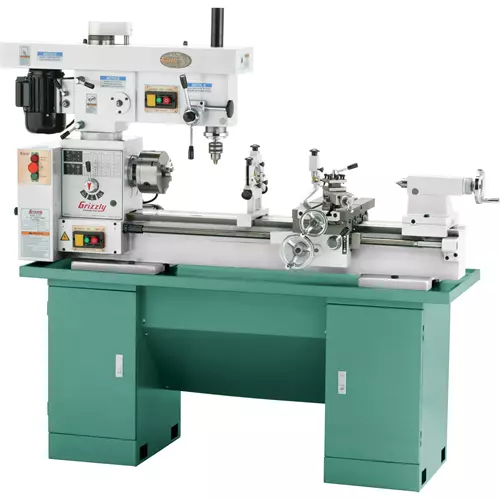

This is the machine for the most serious hobbyist or even a busy, but crowded job shop. Our newest combo machine boasts some serious power and capacity! Powered by a 3/4 HP motor for the mill/drill and a 1-1/2 HP motor for the lathe, you can machine a wide variety of projects a few at a time or all day long. The work table measures 7-7/8" x 16-7/8" and has standard T-slots (uses our G9511 T-slot nuts). The lathe spindle has a 1-1/2" bore and accommodates 39" between centers. Check out all the features listed below. With the included accessories, this is a bargain that's hard to pass up.

Standard Equipment:

  • 6" 3-jaw chuck
  • 8" 4-jaw chuck
  • 8" faceplate
  • Reversing switch
  • 2 dead centers
  • Threading dial
  • Steady rest
  • Follow rest
  • 4-way toolpost
  • 1/2" drill chuck
  • Stand with 2 storage compartments

Specifications:

  • Swing over bed: 12"
  • Swing over cross slide: 6-7/8"
  • Distance between centers: 39"
  • Spindle: Intrinsic 6" back plate
  • Lathe spindle bore: 1-1/2"
  • Spindle nose taper: MT#5
  • Tailstock barrel travel: 3"
  • Cross slide travel: 9"
  • Compound slid travel: 3"
  • Spindle to work table: 14-1/4"
  • Spindle travel (drill): 5"
  • Spindle taper (drill): MT#3
  • Number of speeds: 9 lathe / 9 mill/drill
  • Lathe speed range: 250, 315, 400, 500, 630, 800, 1000, 1250, 1600 RPM
  • Mill/drill speed range: 350, 400, 550, 630, 800, 1000, 1350, 1600, 2000 RPM
  • Range of threads (inches): 11 TPI - 40 TPI in 20 Steps (Gear changes required)
  • Range of threads (metric): 14 @ 0.5 - 3.0mm
  • Milling head motor size (Single Phase 220V): 3/4 H.P.
  • Lathe motor size (Single-phase, 220V): 1-1/2 H.P.
  • Approximate shipping weight: 1391 lbs.
View More Details

Frequently Purchased With

Image for G5679 Steel Parallel Set - 1/2" Item# G5679 $88.95 Add Image for G1436 Drill Chuck Arbor - MT3/JT6 Item# G1436 $21.95 Add Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for H2942 Magnetic Base w/ Eye Shield 8" x 10" Item# H2942 $39.95 Add Image for G1070 Live Center Set - Taper: MT3 Item# G1070 $190.00 Add
Shop All Recommended
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
This is the machine for the most serious hobbyist or even a busy, but crowded job shop. Our newest combo machine boasts some serious power and capacity! Powered by a 3/4 HP motor for the mill/drill and a 1-1/2 HP motor for the lathe, you can machine a wide variety of projects a few at a time or all day long. The work table measures 7-7/8" x 16-7/8" and has standard T-slots (uses our G9511 T-slot nuts). The lathe spindle has a 1-1/2" bore and accommodates 39" between centers. Check out all the features listed below. With the included accessories, this is a bargain that's hard to pass up.

Standard Equipment:

  • 6" 3-jaw chuck
  • 8" 4-jaw chuck
  • 8" faceplate
  • Reversing switch
  • 2 dead centers
  • Threading dial
  • Steady rest
  • Follow rest
  • 4-way toolpost
  • 1/2" drill chuck
  • Stand with 2 storage compartments

Specifications:

  • Swing over bed: 12"
  • Swing over cross slide: 6-7/8"
  • Distance between centers: 39"
  • Spindle: Intrinsic 6" back plate
  • Lathe spindle bore: 1-1/2"
  • Spindle nose taper: MT#5
  • Tailstock barrel travel: 3"
  • Cross slide travel: 9"
  • Compound slid travel: 3"
  • Spindle to work table: 14-1/4"
  • Spindle travel (drill): 5"
  • Spindle taper (drill): MT#3
  • Number of speeds: 9 lathe / 9 mill/drill
  • Lathe speed range: 250, 315, 400, 500, 630, 800, 1000, 1250, 1600 RPM
  • Mill/drill speed range: 350, 400, 550, 630, 800, 1000, 1350, 1600, 2000 RPM
  • Range of threads (inches): 11 TPI - 40 TPI in 20 Steps (Gear changes required)
  • Range of threads (metric): 14 @ 0.5 - 3.0mm
  • Milling head motor size (Single Phase 220V): 3/4 H.P.
  • Lathe motor size (Single-phase, 220V): 1-1/2 H.P.
  • Approximate shipping weight: 1391 lbs.
