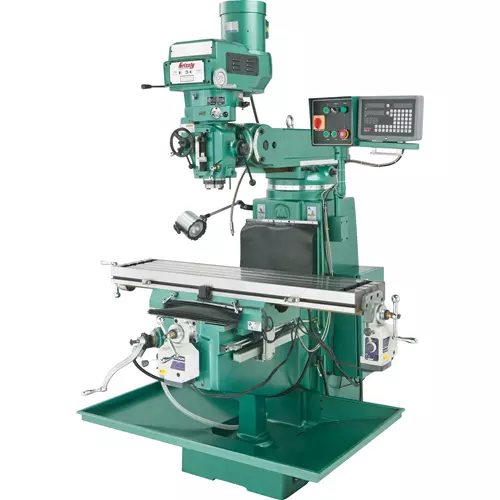

G0726 12" x 54" Milling Machine

This is the colossus of knee mills! This machine is so rugged and heavy-duty that you’ll have to see it to believe it. Start with a table that measures 12" x 54" x 4" and is hardened and precision-ground Meehanite cast iron, and then add a 3-axis power feed system. Variable spindle speeds from 90-3800 RPM are easy to control with just a turn of the dial. The quill has its own feed rates of 0.0015", 0.003" and 0.006" with auto-stop and return, and the hard chrome quill also assures years of accurate, trouble-free service.

FEATURES:

Meehanite casting

One-shot pump lubrication system

Variable-speed

Auto-down feed

Auto-stop with micro-adjustable setting

NT #40 spindle

Chrome-plated precision-ground quill

Y, Z covers

Quill feed rates: 0.0015", 0.003" and 0.008"

Longitudinal power feed

Cross slide power feed

Knee rapid traverse

DRO for X and Y axis

5/8"–11 TPI drawbar

SPECIFICATIONS:

Motor: 5 HP, 220V, 3-phase, TEFC

Motor RPM: 1725

Power transfer: Variable belt and pulley

Spindle travel: 5"

Table size: 12" x 54"

Table travel (longitudinal): 28"

Table travel (cross): 14-1/4"

Knee travel: 16-1/2"

Max. dist. spindle to column: 29-1/2"

Max. dist. spindle to table: 22-1/4"

Head tilt: 45° both ways

Head swivel: 90° both ways

T-slots: 3 on 2-1/2" centers, 5/8" wide

Variable-speed range: 50–3750 RPM

Bearings shielded and lubricated for life

Approximate shipping weight: 4290 lbs.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
