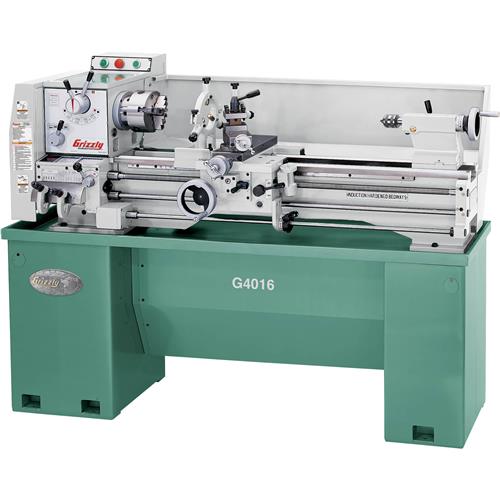

Grizzly G4016 - 13-1/2" x 40" Gear Head Lathe w/ Stand

Delivering all the power and versatility you're looking for, this popular 8-speed, 13-1/2" x 40" metal lathe combines a brawny 2-horsepower motor with the sure control of a precision gear head system. Choose from speeds ranging between 78 RPM and 2100 RPM without all the inconvenience of belts and pulleys. The Model G4016 features rock solid cast iron construction with heavy-gauge steel chip tray and backsplash, and fiberglass headstock cover. A terrific lathe for the serious machinist or job shop. This great Lathe comes with a Cam-Lock Spindle!

Features:

  • Cast iron construction throughout
  • Induction hardened bedways
  • Flame hardened headstock gears
  • Tapered roller and ball bearings

    Standard Equipment:

    • 6" 3-Jaw chuck
    • 8" 4-Jaw chuck
    • 12" face plate
    • Steady rest
    • Follow rest
    • 4-Way turret tool post
    • Live center
    • 2 #3 MT dead centers
    • Threading dial
    • Stand
    • Chip pan
    • Splash guard
    • Stand
    • Jog button and emergency stop

    Specifications:

    • Swing over bed: 13-1/2"
    • Swing over gap: 19"
    • Swing over cross slide: 8"
    • Distance between centers: 40"
    • Bed width: 7-3/8"
    • Spindle bore: 1-7/16"
    • Spindle nose: D1-4 Camlock
    • Taper in spindle nose: MT#5
    • Maximum carriage travel: 35"
    • Cross slide travel: 6-1/4"
    • Compound travel: 2-7/8"
    • Maximum tool size: 5/8" x 5/8"
    • Feed rod diameter: 3/4"
    • Leadscrew: 7/8" x 8" TPI
    • Range of longitudinal feeds (inches/rev.): 40 @ 0.0036"-0.1005"
    • Range of cross feeds (inches/rev.): 40 @ 0.00123"-0.0345"
    • Tailstock barrel taper: MT#3
    • Tailstock barrel travel: 3-1/2"
    • Number of speeds: 8
    • Range of speeds: 78, 128, 210, 330, 510, 830, 1360, 2100 RPM
    • Thread range (inches): 40 @ 4 TPI-112 TPI
    • Thread range (metric): 40 @ 0.25mm-11mm
    • Motor: 2 HP, Single Phase, TEFC, 220V, 11.9 Amps, 60 Hz, 1750 RPM
    • Overall length: 71-1/2"
    • Overall width: 26"
    • Height with stand: 52-1/2"
    • Height of center line: 45-1/2"
    • Approx. shipping weight: 1330 lbs.
