Metal Lathes
Item# G9036 Model# G9036

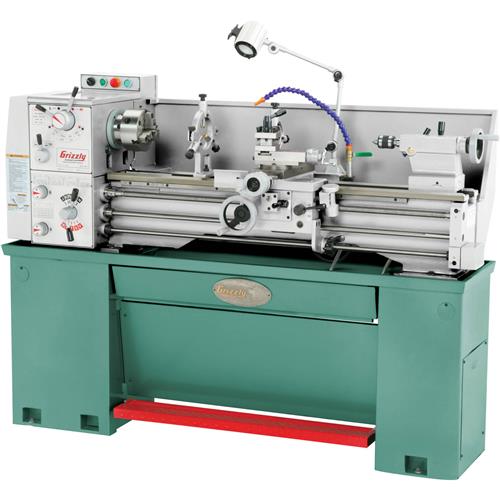

Grizzly G9036 - 13" x 40" Gear-Head Floor Lathe

Safety, reliability and convenience—the G9036 Floor Lathe has dozens of heavyweight features for a reasonable price. Driven by a powerful 2 HP, 220V motor, this metal monster will tackle the toughest machining jobs with ease. D1-4 camlock spindle offers a reliable and accurate chuck mounting system. Add an extra-long foot brake and apron mounted spindle switch and you have precise, safe control when threading or working up close to those difficult shoulders. Hardened gear-head gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety.

Features:

  • 2 HP motor, single phase
  • Coolant system
  • Apron mounted handle switch
  • Front removable chip tray

Specifications:

  • Swing over bed: 13"
  • Swing over gap: 18-3/4"
  • Swing over saddle: 7-3/4"
  • Distance between centers: 40"
  • Bed width: 7-3/8"
  • Hole through spindle: 1-7/16"
  • Taper of spindle nose: MT#5
  • Spindle nose: D1-4
  • Cross slide travel: 6-1/8"
  • Compound travel: 2-7/8"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 3-3/8"
  • Number of speeds: 8
  • Range of speeds: 70, 115, 190, 300, 460, 755, 1255, 2000 RPM
  • Motor: 2 HP, 220 Volt, single phase
  • Height: 53-1/2"
  • Length: 71-1/2"
  • Width: 30"
  • Net weight: 1320 lbs.
  • Approx. shipping weight: 1555 lbs.

Standard Equipment:

  • 6" 3-jaw chuck with reversible top jaws
  • 8" 4-jaw chuck with reversible jaws
  • 12" face plate
  • Steady rest
  • Follow rest
  • Chip pan
  • Splash guard
  • Stand
  • Threading dial
  • 4-way turret tool post
  • 2 MT #3 dead centers (1 carbide tipped)
  • Jog button and emergency stop
  • Work light
View More Details

Product Resources

Specification Sheet - PDF Manual - PDF Parts List - PDF Buy Parts

Accessories

Recommended For You

Overview Comparisons Reviews Documents
Overview
Safety, reliability and convenience—the G9036 Floor Lathe has dozens of heavyweight features for a reasonable price. Driven by a powerful 2 HP, 220V motor, this metal monster will tackle the toughest machining jobs with ease. D1-4 camlock spindle offers a reliable and accurate chuck mounting system. Add an extra-long foot brake and apron mounted spindle switch and you have precise, safe control when threading or working up close to those difficult shoulders. Hardened gear-head gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety.

Features:

  • 2 HP motor, single phase
  • Coolant system
  • Apron mounted handle switch
  • Front removable chip tray

Specifications:

  • Swing over bed: 13"
  • Swing over gap: 18-3/4"
  • Swing over saddle: 7-3/4"
  • Distance between centers: 40"
  • Bed width: 7-3/8"
  • Hole through spindle: 1-7/16"
  • Taper of spindle nose: MT#5
  • Spindle nose: D1-4
  • Cross slide travel: 6-1/8"
  • Compound travel: 2-7/8"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 3-3/8"
  • Number of speeds: 8
  • Range of speeds: 70, 115, 190, 300, 460, 755, 1255, 2000 RPM
  • Motor: 2 HP, 220 Volt, single phase
  • Height: 53-1/2"
  • Length: 71-1/2"
  • Width: 30"
  • Net weight: 1320 lbs.
  • Approx. shipping weight: 1555 lbs.

Standard Equipment:

  • 6" 3-jaw chuck with reversible top jaws
  • 8" 4-jaw chuck with reversible jaws
  • 12" face plate
  • Steady rest
  • Follow rest
  • Chip pan
  • Splash guard
  • Stand
  • Threading dial
  • 4-way turret tool post
  • 2 MT #3 dead centers (1 carbide tipped)
  • Jog button and emergency stop
  • Work light
