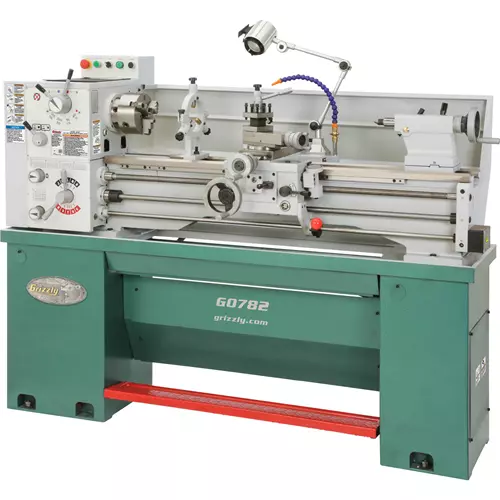

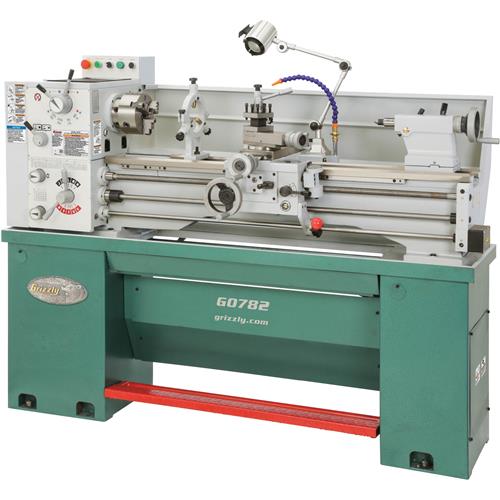

Grizzly G0782 - 13" x 40" Gearhead Floor Lathe

Weighing in at 1320 lbs., meet our newest contender in the gearhead lathe lineup: the G0782. Specs include 40" between centers, 13" of swing, and a 2HP 220V motor. It also comes standard with a 6" 3-jaw chuck, 8" 4-jaw chuck, 12" faceplate, steady rest, follow rest, coolant system, and worklight. Hardened gearhead gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety.

Features:

  • Coolant system
  • Apron-mounted spindle ON/OFF lever
  • Removable chip tray
Standard Equipment:
  • 6" 3-Jaw chuck with reversible top jaws
  • 8" 4-Jaw chuck with reversible jaws
  • 12" Faceplate
  • Steady rest
  • Follow rest
  • Chip tray
  • Splash guard
  • Stand
  • Threading dial
  • 4-Way turret tool post
  • Two MT#3 dead centers (1 carbide-tipped)
  • Jog button and emergency stop
  • Worklight
Specifications:
  • Swing over bed: 13"
  • Swing over gap: 18-3/4"
  • Swing over saddle: 7-3/4"
  • Distance between centers: 40"
  • Bed width: 7-3/8"
  • Spindle bore: 1.5"
  • Spindle nose taper: MT#5
  • Spindle nose: D1-4 camlock
  • Cuts LH threads
  • Cross slide travel: 6-1/8"
  • Compound travel: 2-7/8"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 3-3/8"
  • Motor: 2 HP, 220V, single-phase, 10A
  • Number of speeds: 8 (70–2000 RPM)
  • Overall dimensions: 71-1/2" L x 30" W x 53-1/2" H
  • Approximate shipping weight: 1448 lbs.
