Item# G7209 Model# G7209

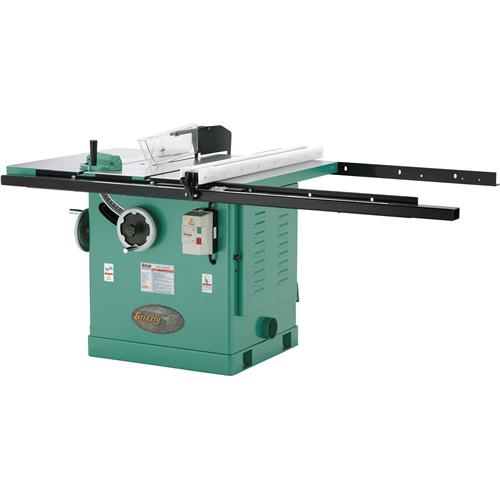

Grizzly G7209 - 14" Table Saw Pro-Cabinet-Style 5 HP Single-Phase 220V

Our 14" Cabinet Saw has quickly become the workhorse of the professional shops. With features such as quadruple V-belt drive, machined collars, outboard arbor support bearing, dust pick up and a huge 48-1/2" x 38" table surface, no job is too large. From 4' x 8' sheet stock to material 5" thick, this saw will handle it and ask for more. If you're tired of trying to process large stock on a small table saw, look no further. Chances are you'll be able to afford one too since other saws with these features cost considerably more. Put a 1 HP power feeder on this saw and you'll be able to rip all day.

Features:

  • Long 5/8" arbor
  • Cast iron trunnions
  • 1/2" x 63/64" T-slots
  • Cast iron miter gauge
  • Safety guard
  • 4" dust port
  • Power transfer: V-belt drive
  • Table size with wings: 48-1/2" D x 38" W
  • Precision ground cast iron table
  • Sloped cabinet floor assists dust collection
  • One piece steel cabinet
  • TEFC capacitor start motor
  • Magnetic switch with thermal overload protection
  • Outboard bearing
  • 1" arbor

Specifications:

  • 5 HP, 220V, Single Phase motor
  • 26 Amps @ 220V
  • Arbor speed 3850 RPM
  • Rim speed 14,110 SFPM
  • Maximum depth of cut @ 90°: 5"
  • Maximum depth of cut @ 45°: 3-9/16"
  • Maximum rip to right of blade: 50-3/4"
  • Distance from front of table to blade at maximum cut: 15-1/2"
  • Distance from front of table to center of blade: 22-1/2"
  • Overall dimensions: 82" W x 47" D x 42" H
  • Shipping dimensions: 36-1/2" W x 43-1/2" D x 42" H
  • Table height above floor: 35-1/2"
  • Net weight: 825 lbs.
  • Shipping weight approx: 1000 lbs.

    PUSH STICK H3308 INCLUDED
