Item# G0453 Model# G0453

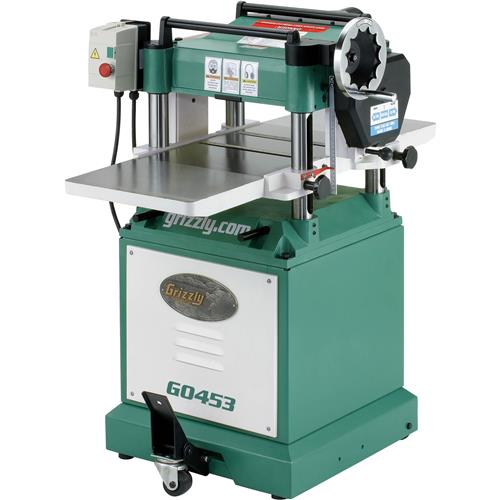

Grizzly G0453 - 15" 3 HP Planer

15" 3 HP Planer-img-0
15" 3 HP Planer-img-1
15" 3 HP Planer-img-2
15" 3 HP Planer-img-3
15" 3 HP Planer-img-4
15" 3 HP Planer-img-5
15" 3 HP Planer-img-6
15" 3 HP Planer-img-7
$1,495.00
+$175.00 Freight
+$0.00  Oversize
  • Motor: 3 HP
  • Max cutting width: 15"
  • Max cutting height: 8"
  • Cutter Head Type: 3 blade
  • Cutter Head Diameter: 3"
  • Min Stock Length: 8"
  • Feed Rate(s): 16, 30 FPM
  • Table size: 20" x 15"
  • Shipping weight: 675 lbs.

Hover to View Details

Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Recommended For You

Videos
Overview

Enjoy the stability and power of a stationary planer with the shop mobility of a built-in mobile base. Simply press down on the foot pedal to raise the planer on its wheels for positioning, then push the lever up to lower the planer down for rock-solid stability. A 42" long bed with cast-iron wings and bed rollers provide the support needed for perfectly planed lumber. Heavy-duty construction and materials will have you wanting to plane all day long. Check out all the other specifications and design features, and roll one of these planers into your shop today!

Certified to CSA & UL standards

SPECIFICATIONS:

  • Motor: 3 HP, 240V, single-phase, 15A
  • Maximum stock width: 15"
  • Maximum stock thickness: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Cutterhead diameter: 3"
  • Cutterhead type: 3-knife
  • Knife size & type: 15" x 1" x 1/8", HSS
  • Cutterhead speed: 4800 RPM
  • Feed rate: 16 and 30 FPM
  • Table size with extensions: 15" x 42"
  • Dust port size: 4"
  • Footprint: 22-1/2" X 22"
  • Overall dimensions: 32-1/2" W x 42" D x 45-7/8" H
  • Approximate shipping weight: 675 lbs.

FEATURES:

  • Board return rollers
  • Built-in mobile base
  • Precision-ground, cast-iron table and extension wings
  • Board return rollers
  • Adjustable bed rollers
  • Rubber-coated power feed rollers
  • Magnetic switch with thermal overload protection
  • Anti-kickback fingers
  • Four-column support with table locks
  • Precision-ground table and wings
  • Certified to UL & CSA standards
