Item: G0509 | Model: G0509
1 Product Photos

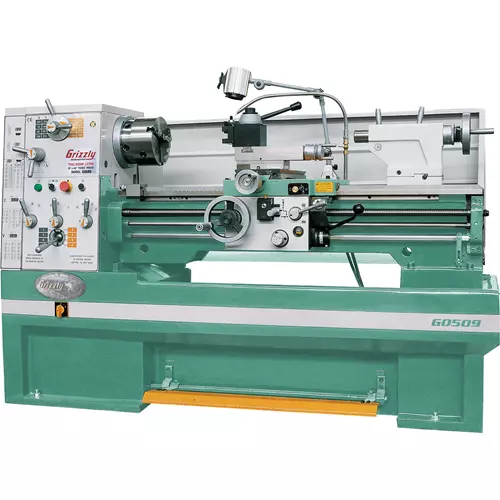

Grizzly G0509 - 16" x 40" Lathe
An incredible 16" swing lathe at a great price! Due to our incredible connections overseas and our large purchasing power, we are able to bring to you this excellent 16" x 40" lathe at a price that allows you to spend the money left over on a mill.
View More Details
Features:
- Precision ground and hardened V-bed is made of Meehanite casting
- Totally enclosed universal gearbox allows cutting of Inch, Metric, Whitworth, Module and Diametral threads
- Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
- 1/8 HP, .45 Amp coolant motor
Standard Equipment:
- 8" 3-Jaw chuck
- 12" 4-Jaw chuck
- 12" Face plate
- Steady rest
- Follow rest
- Coolant system
- Halogen light
- Full length splash guard
- Dual inch/metric dials
- Quick change tool post
- Jog button & emergency stop
- #4 to 6 Morse taper spindle nose sleeve
- Centers, center sleeve, service tools, manual and toolbox
Specifications:
- Swing over bed: 16"
- Swing over gap: 21-1/4"
- Swing over cross slide: 8-7/16"
- Distance between centers: 40"
- Spindle size/type: D1-6 camlock
- Spindle nose taper: MT#6
- Spindle bore: 2"
- Tailstock barrel taper: MT#4
- Tailstock barrel travel: 4-3/4"
- Cross slide travel: 8-1/4"
- Compound travel: 4"
- Number of speeds: 16
- Speed range: 45-1800 RPM
- Range of threads(inches): 45 @ 2-72 TPI
- Range of threads (metric): 39 @ 0.2-14mm
- Diametrical pitch range: 21 @ 8-44 DP
- Modular pitch range: 18 @ .3-3.5 MP
- Width of bed: 10"
- Motor size (2 speed, 3-phase, 220/440V): 3.8-4.5 HP
- Approximate shipping weight: 3960 lbs.
Overview
An incredible 16" swing lathe at a great price! Due to our incredible connections overseas and our large purchasing power, we are able to bring to you this excellent 16" x 40" lathe at a price that allows you to spend the money left over on a mill.
Features:
- Precision ground and hardened V-bed is made of Meehanite casting
- Totally enclosed universal gearbox allows cutting of Inch, Metric, Whitworth, Module and Diametral threads
- Headstock gears run in an oil bath and are hardened and precision ground for smooth, quiet and vibration free operation
- 1/8 HP, .45 Amp coolant motor
Standard Equipment:
- 8" 3-Jaw chuck
- 12" 4-Jaw chuck
- 12" Face plate
- Steady rest
- Follow rest
- Coolant system
- Halogen light
- Full length splash guard
- Dual inch/metric dials
- Quick change tool post
- Jog button & emergency stop
- #4 to 6 Morse taper spindle nose sleeve
- Centers, center sleeve, service tools, manual and toolbox
Specifications:
- Swing over bed: 16"
- Swing over gap: 21-1/4"
- Swing over cross slide: 8-7/16"
- Distance between centers: 40"
- Spindle size/type: D1-6 camlock
- Spindle nose taper: MT#6
- Spindle bore: 2"
- Tailstock barrel taper: MT#4
- Tailstock barrel travel: 4-3/4"
- Cross slide travel: 8-1/4"
- Compound travel: 4"
- Number of speeds: 16
- Speed range: 45-1800 RPM
- Range of threads(inches): 45 @ 2-72 TPI
- Range of threads (metric): 39 @ 0.2-14mm
- Diametrical pitch range: 21 @ 8-44 DP
- Modular pitch range: 18 @ .3-3.5 MP
- Width of bed: 10"
- Motor size (2 speed, 3-phase, 220/440V): 3.8-4.5 HP
- Approximate shipping weight: 3960 lbs.
