Item# G0632 Model# G0632

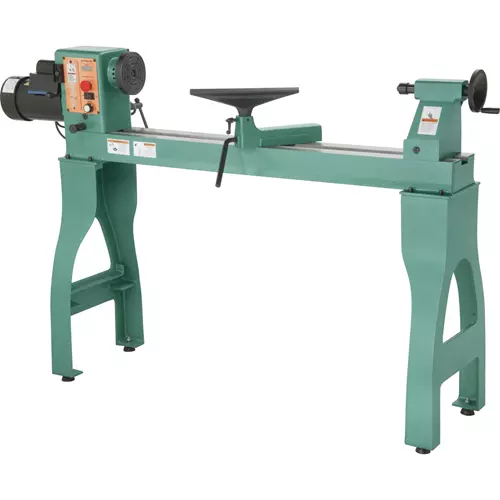

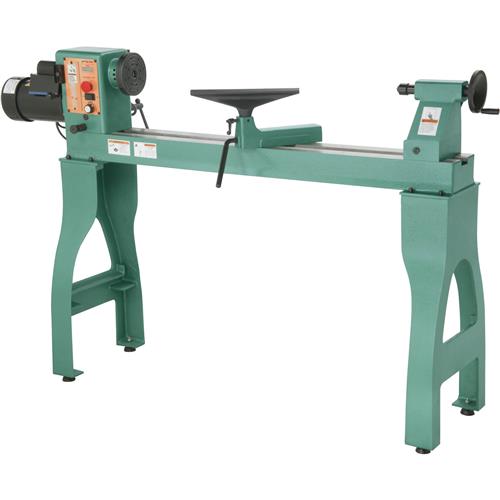

Grizzly G0632 - 16" x 42" Variable-Speed Wood Lathe

Looking for an even better deal? Check out the G0632Z - this is the newer version of the G0632 with all the same great features at an even lower price!

Aside from its large turning capacities, this machine has all of the features you would hope for in a Heavy-Duty Wood Lathe. For example, electronic variable-speed in two speed ranges, digital speed readout, a swiveling headstock for outboard turning, indexable spindle, spindle lock pin and a forward and reverse switch for outboard bowl turning are just some of the standard features you can expect. The bed is precision-ground steel for strength and durability, and the heavy cast-iron legs can be easily adapted for adding more mass. Best of all, this lathe runs on single-phase power, so it can be used in home shops as well as the workplace. The variable-frequency drive runs the 3-phase motor to provide variable-speed control and maximum torque at low speeds. If you're looking for a lathe that will handle all of your turning needs, this is the one!

Standard Equipment:

  • Spur center
  • Cup live center
  • Knockout tool
  • Indexing pin
  • Tool rest
  • 6" face plate
  • Hex wrenches

    Features:

  • Electronic variable-speed control
  • Digital spindle-speed indicator
  • 30° direct indexing using 1 indexing hole
  • 10° indexing using all 3 indexing holes
  • Headstock can be positioned anywhere along the bed
  • Tailstock, headstock and tool rest support have lever action cam locks for quick positioning
  • Belt drive offers 2 speed ranges to maximize spindle torque
  • Spindle lock pin
  • Outboard spindle handle
  • Forward/reversing switch
  • Emergency stop switch

    Specifications:

  • Motor: 1-1/2 HP, 220V, 3-phase with single-phase VFD
  • Power requirement: 220V, single-phase
  • Swing over bed: 16"
  • Swing over tool rest base: 11-1/2"
  • Distance between centers: 42"
  • Heavy-duty, precision machined steel bed and cast-iron legs ensures stability and minimize vibration
  • 1-1/4" x 8 TPI RH headstock spindle
  • Variable-speed spindle control with digital readout
  • Speed range, high: 250-3200 RPM low: 100-1200 RPM
  • MT#2 spindle & tailstock tapers
  • Spindle bore: .445"
  • Tool post diameter: 25mm
  • Overall dimensions: 77-1/16"L x 22-1/16"W x 47"H
  • Approximate shipping weight: 394 lbs.
  • View More Details
